Reynoldstech Photoresist Develop Hood Station

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Reynoldstech
MPN
Resist Develop Station
SKU
181396
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

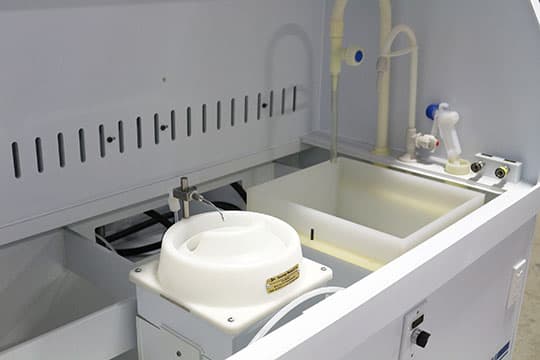

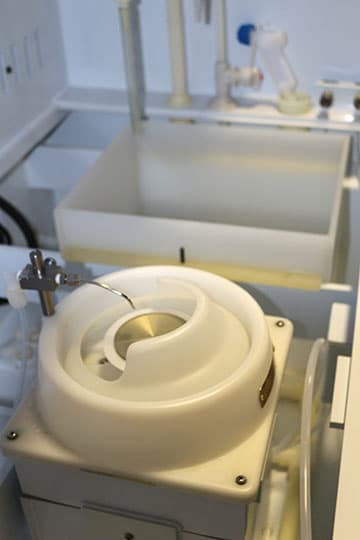

  • Headway PM80 Wafer Spin Cleaner with three position foot switch and pressurized dispense

  • (2) Di water spray wands one located on left and right side of deck

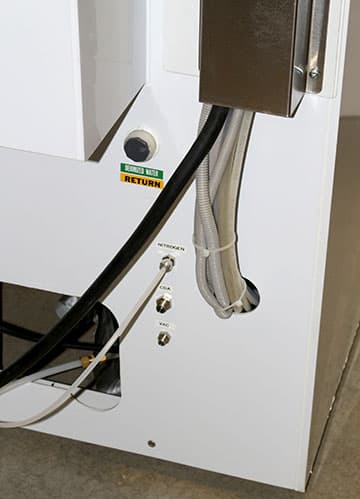

  • (2) N2 quick disconecct ports one located on left and right side of deck

  • (2) vacuum quick disconecct ports one located on left and right side of deck

  • Adjustable deck exhaust

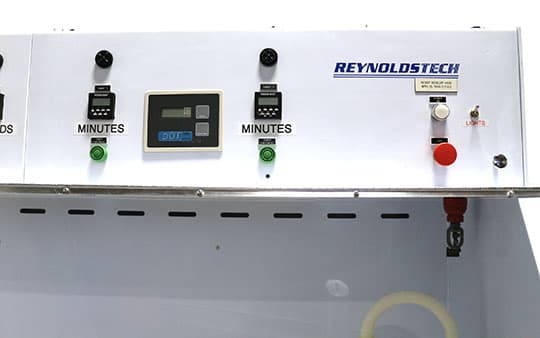

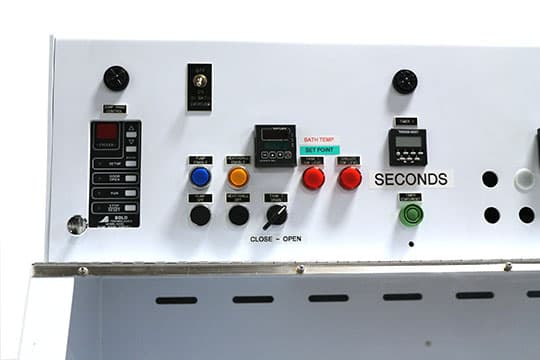

  • BOLD Technologies Model 625D Dump Rinse Control

  • Deck Width: 71.5"

  • Deck Depth: 27.5

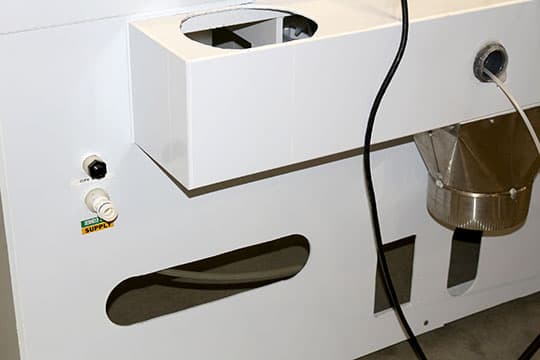

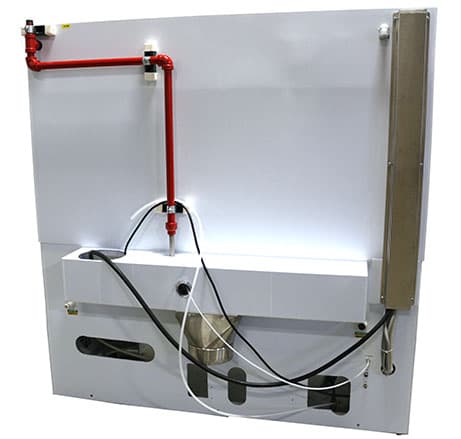

  • 8" Diameter SS exhaust connection. Transitions to 7" X 11" connection on bench --See photos

  • 7.25 x 8.5 port in exhaust rail. No connection, uncovered.

Technical specifications

Number of Positions1
Power Requirements120/208 V 30.0 A 60 Hz 3 Phase

Wafer Size Range

Minimum150 mm

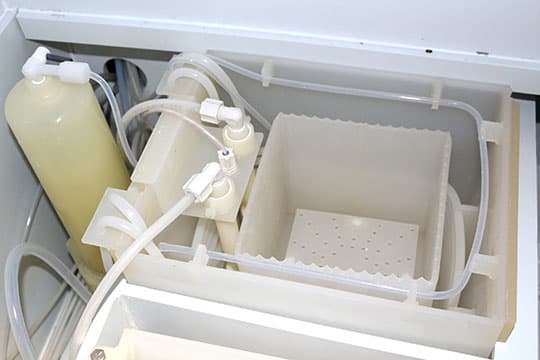

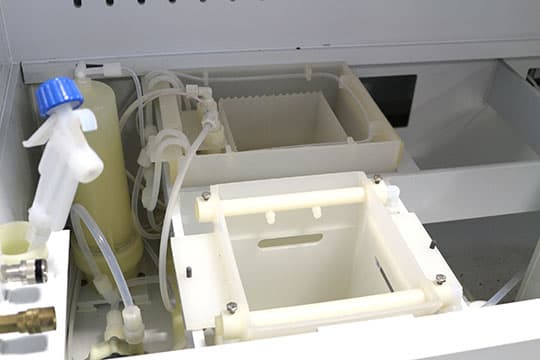

Position 1

ProcessOverflow Rinse
Tank MaterialPVDF
Other Features7" x 7" x 9" Deep

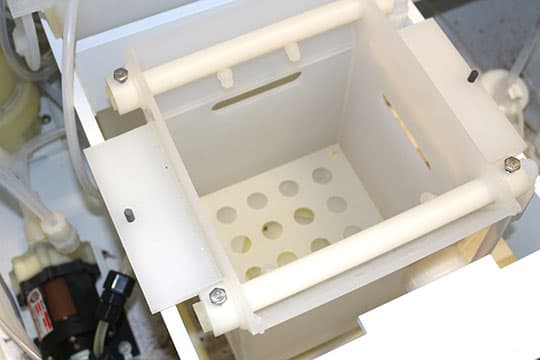

Position 2

ProcessQuick Dump Rinse
Tank MaterialPVDF
Other Features8" x 6.25" x 9"

Process

Tank MaterialPolypropylene
Other Features16 x 14 x 10 Sink w/(2) Gneck Faucets, DI+City H2O

Exterior Dimensions

Width72.000 in (182.9 cm)
Depth42.000 in (106.7 cm)
Height74.000 in (188.0 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
