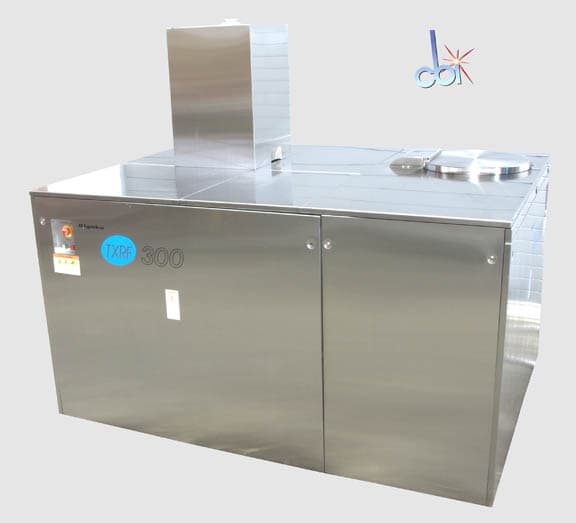

Rigaku TXRF 300S X-Ray Fluoresence Spectrometer

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Rigaku
MPN
TXRF 300S
SKU
103332
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Oxford Detector

Model: 7043

Det. area 80 mm2

Window Be

Resolution at 5.9 KeV is 175 eV

Bias -500V

System Includes

Ebara Dry Pump: Model A10S

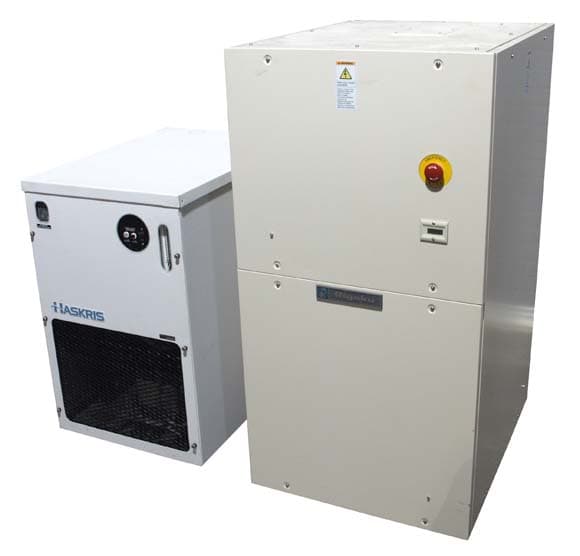

Haskris Chiller: Model RW100F1

Oxford Instruments: Model 7043

UBS Industries: Model LLC-203 Liquid Level controller

Technical specifications

Cassette to CassetteYES
Xray Source SpecificationsX Ray Tube Water cooled diffraction x-ray tube Target: Au Electron gun: W filament Focusing size: .4 x 12 mm on the target Maximum load: 1.2kW
Year of Manufacture2001
Power Requirements208 V 50/60 Hz 3 Phase
Weight2,092 lb (949 kg)

Wafer Size Range

Minimum150 mm
Maximum300 mm

Exterior Dimensions

Width67.000 in (170.2 cm)
Depth48.000 in (121.9 cm)
Height62.000 in (157.5 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
