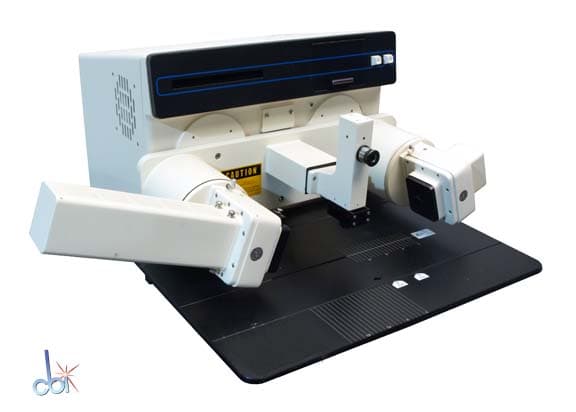

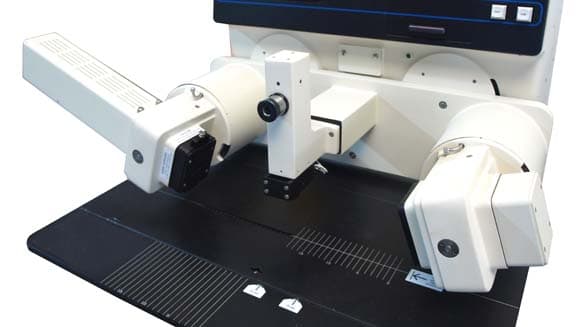

Rudolph AUTO EL Ellipsometer

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Rudolph Technologies
MPN
AUTO EL
SKU
86164
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Operating wavelength: 632.8nm

Max sample size: 6" x 6"

Resolution & accuracy

Polarizer or analyzer: 0.05°

Delta: 0.1°

PSI: 0.05°

Measuring time

Single film: 15 seconds

Double film: 20 seconds

Technical specifications

Illumination Source TypeHeNe Laser
Power Requirements115 V 50/60 Hz 1 Phase
Weight130 lb (59 kg)

Wafer Size Range

Maximum150 mm

Exterior Dimensions

Width29.000 in (73.7 cm)
Depth21.000 in (53.3 cm)
Height17.000 in (43.2 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
