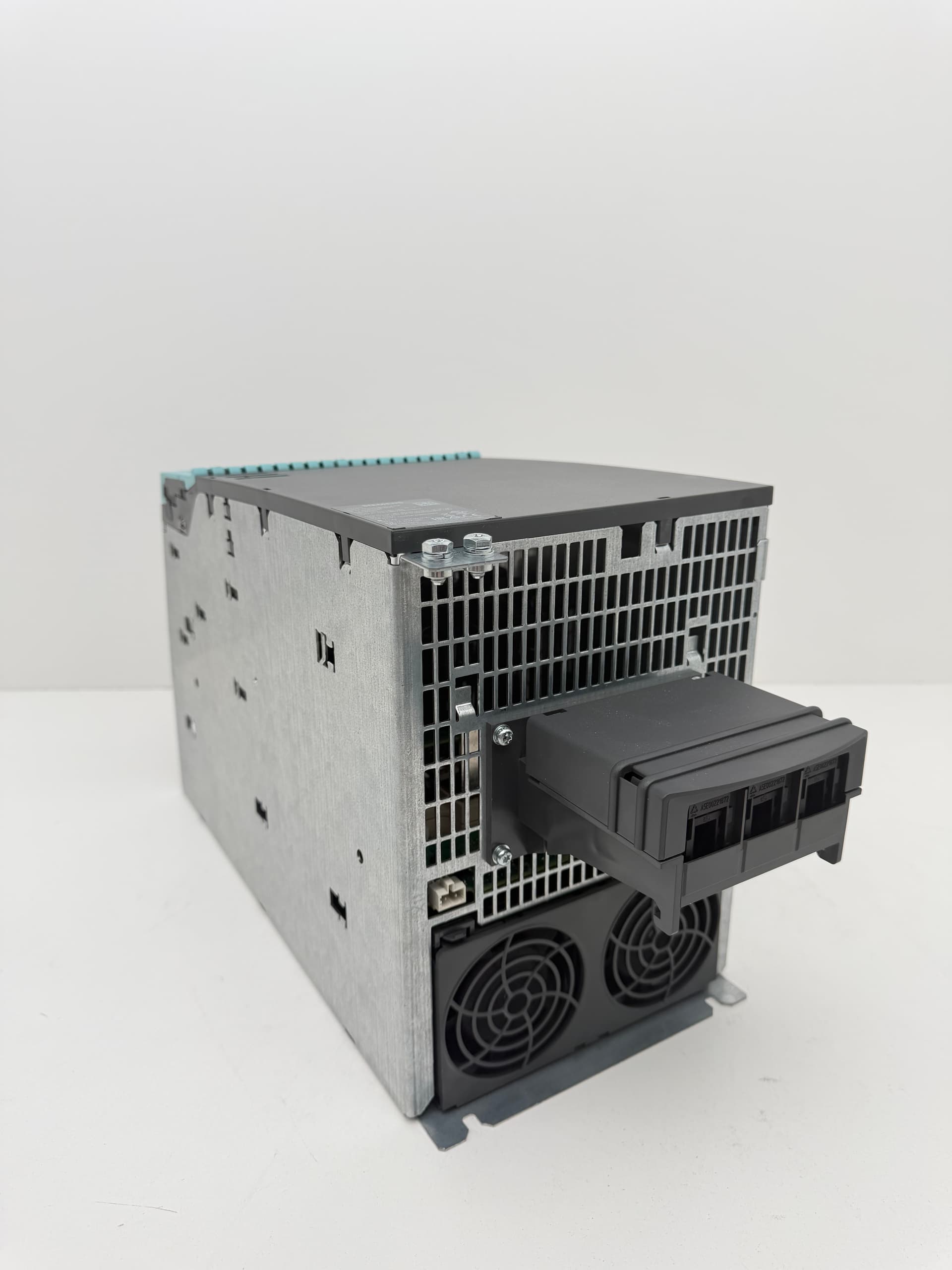

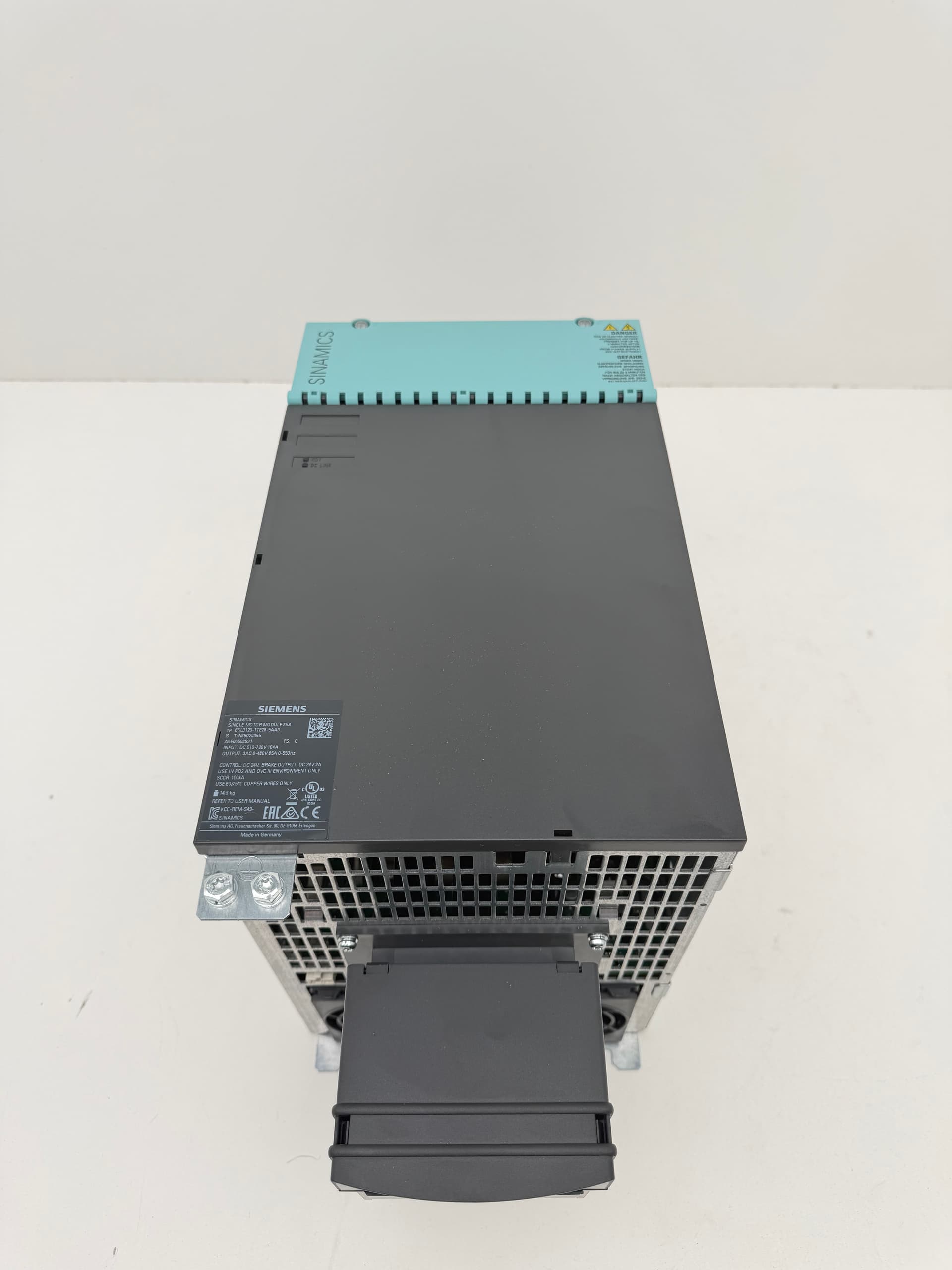

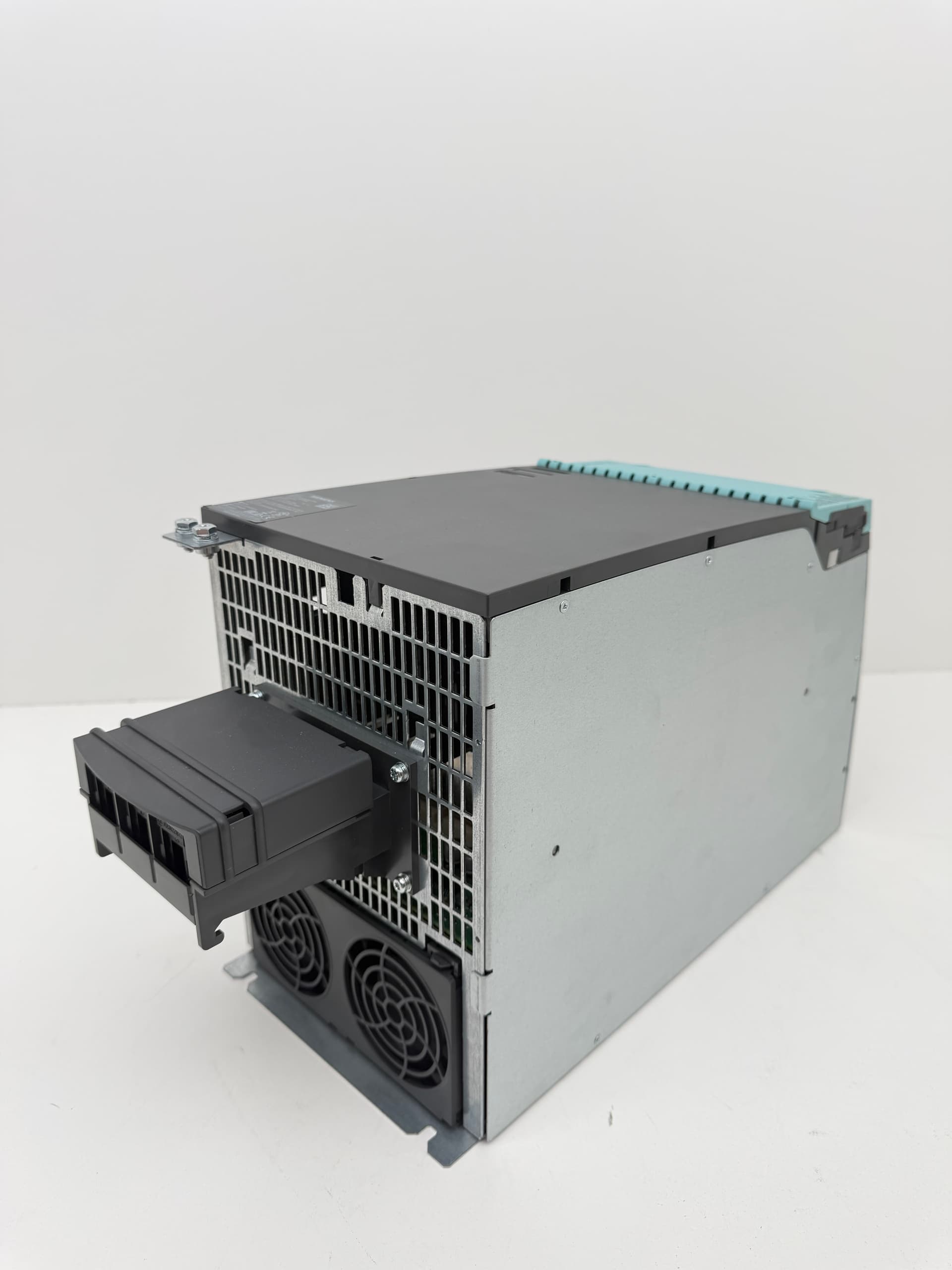

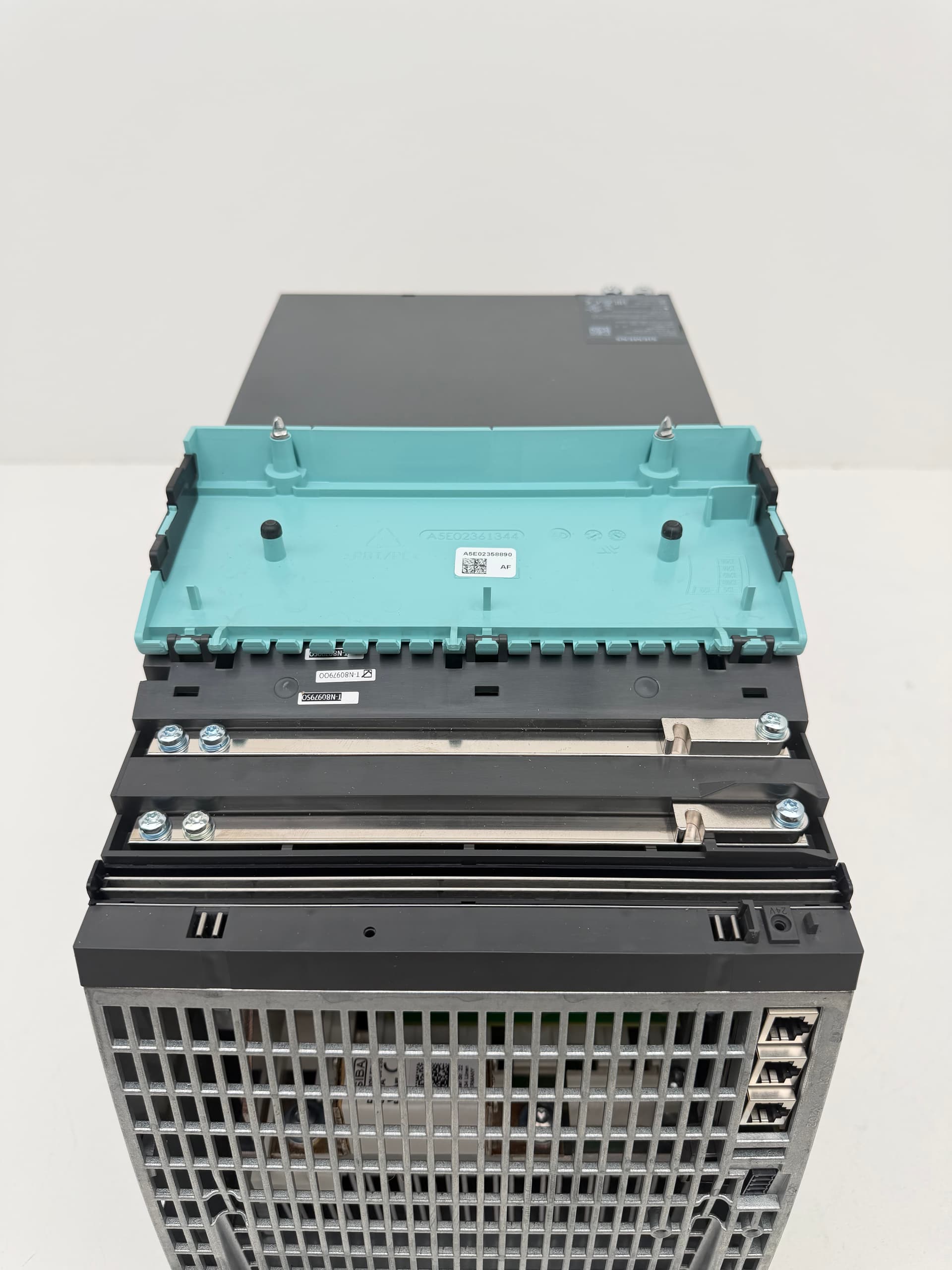

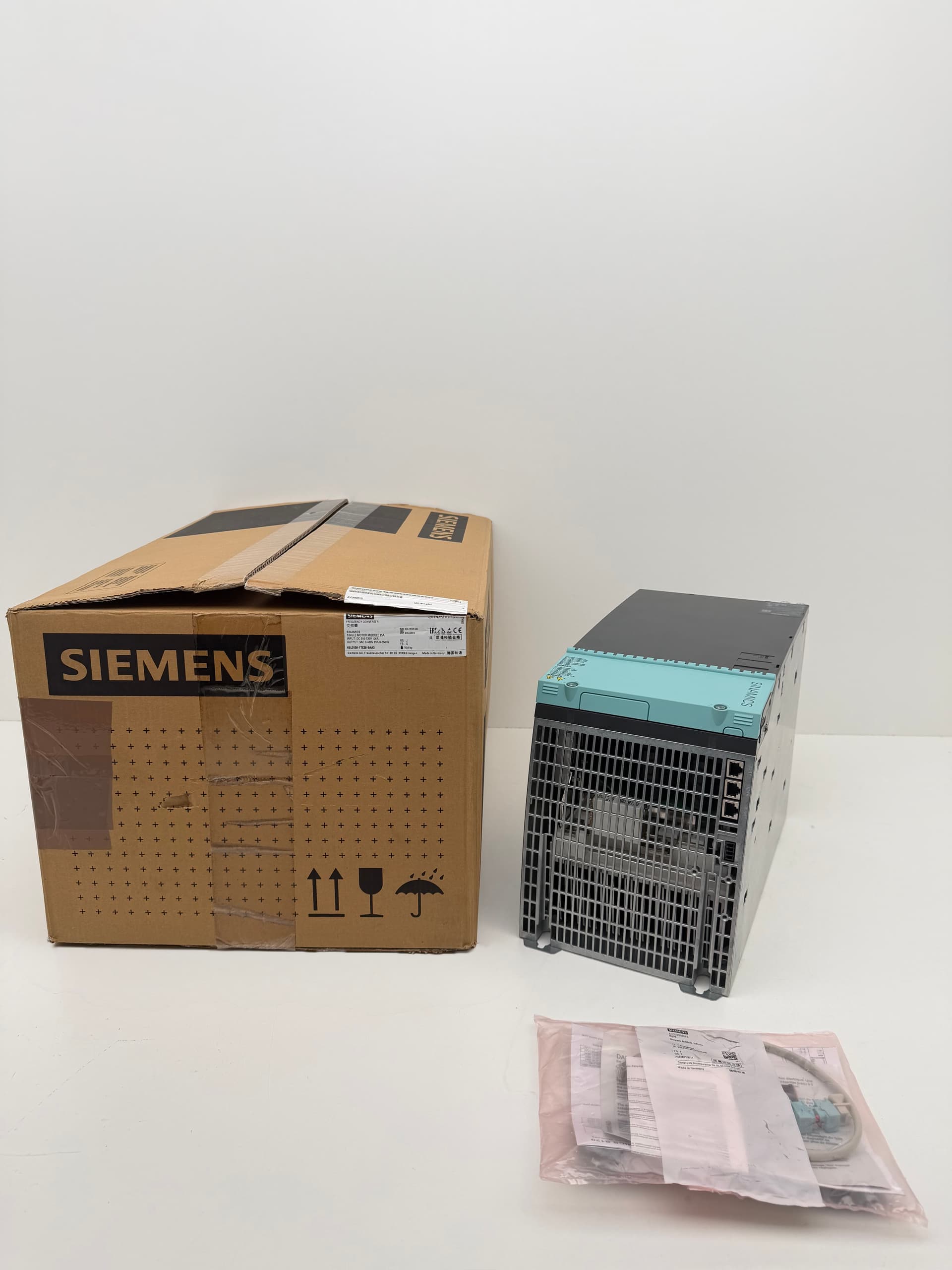

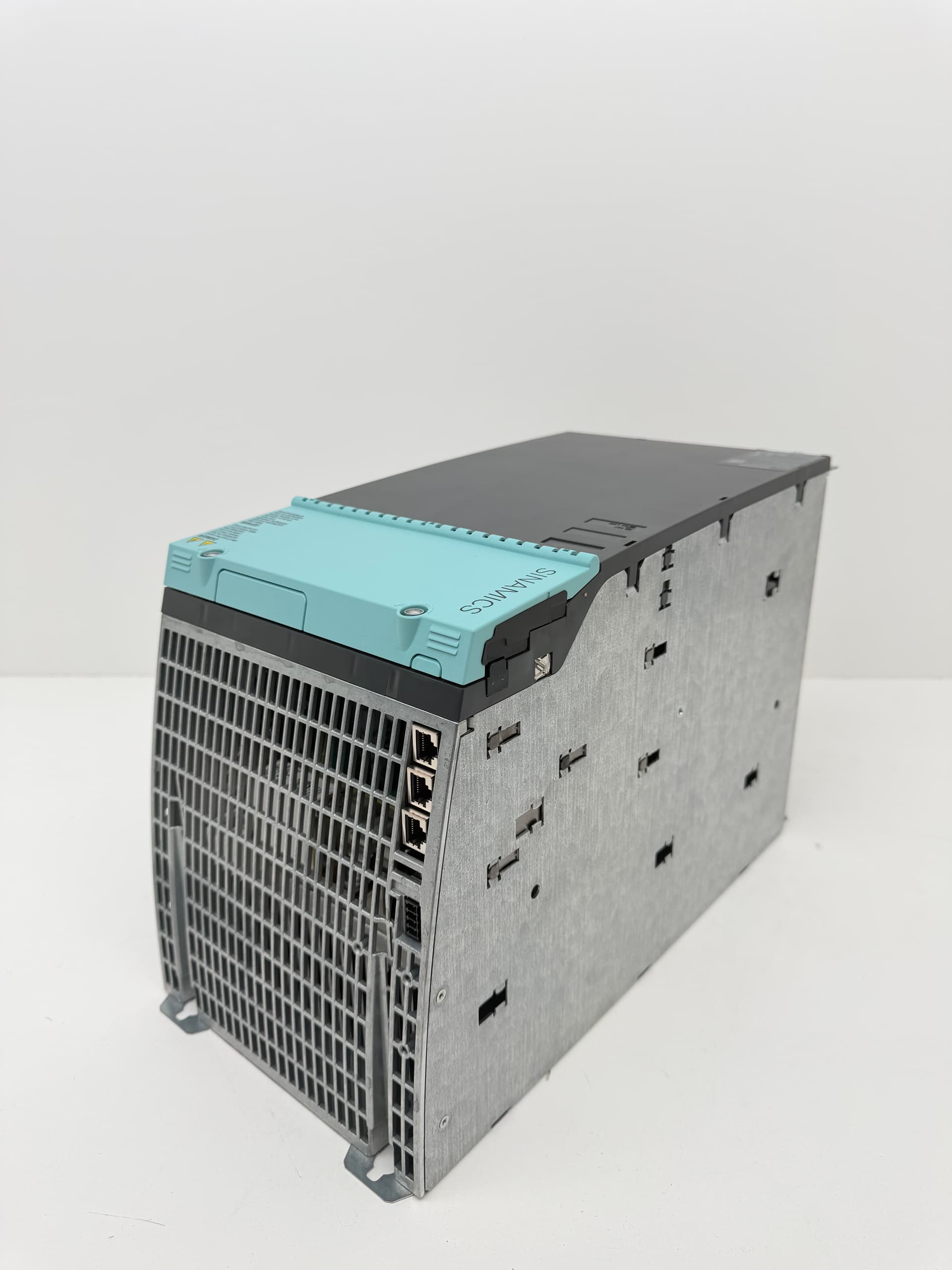

Siemens 6SL3120-1TE28-5AA3 Single Motor Module, S120, 85A, 480V
$2,150.0030 day return
- Condition
- Brand new See details
- Brand
- Siemens
- MPN
- 6SL3120-1TE28-5AA3
- SKU
- CID1412
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return as listed. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

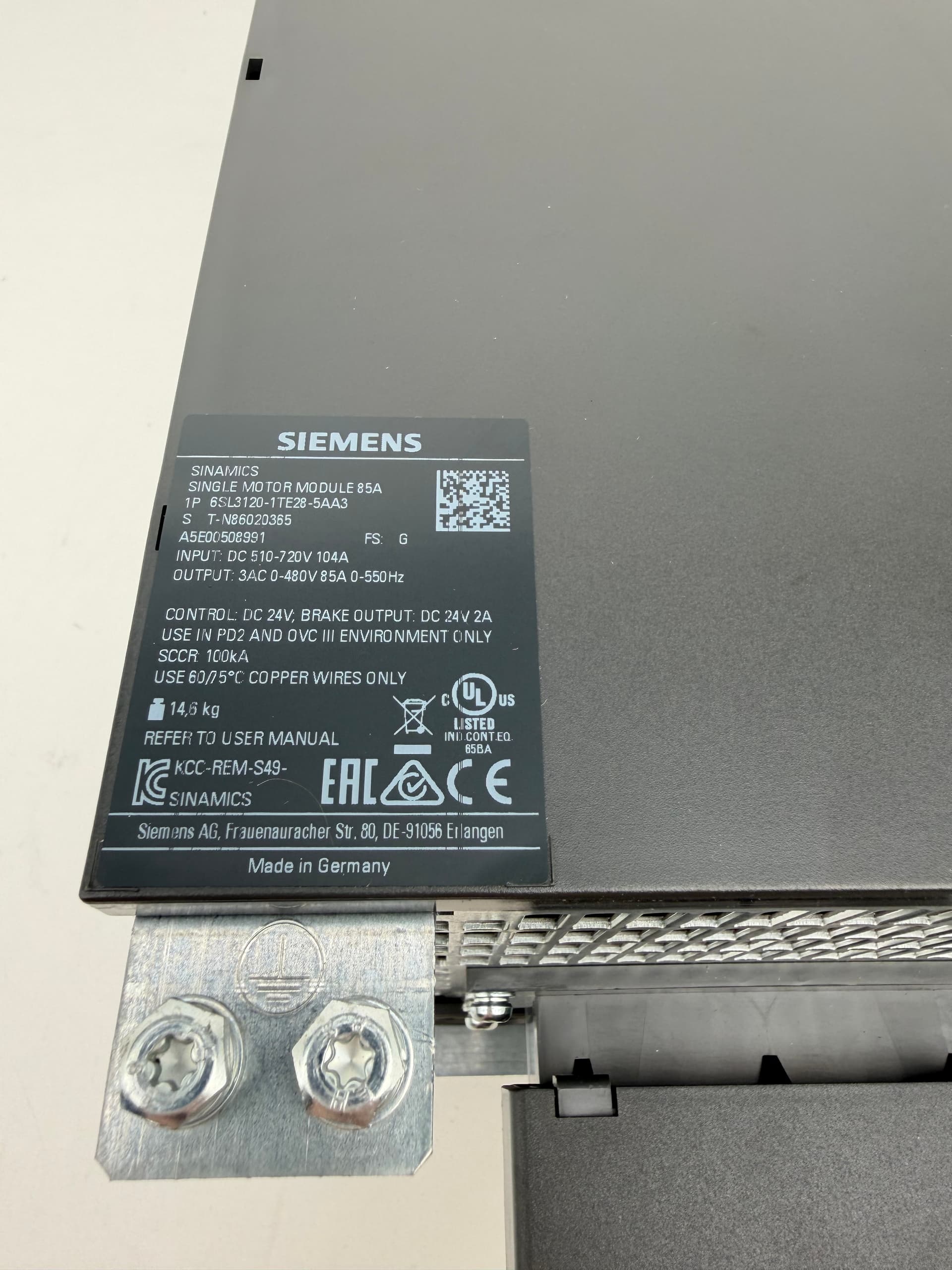

Input DC 510-720 V, 104 A; output 3AC 0-480 V, 85 A, 0-550 Hz. Control DC 24 V; brake output DC 24 V, 2 A. SCCR 100 kA, PD2/OVC III, FS G, 14,6 kg.
Technical specifications
| INPUT | DC 510-720V 104A |
| OUTPUT | 3AC 0-480V 85A 0-550Hz |
| CONTROL | DC 24V |
| BRAKE OUTPUT | DC 24V 2A |
| SCCR | 100kA |
| FS | G |
| Weight | 14,6 kg |
| Product family | SINAMICS S120 |
| Frame size | Booksize |
| Cooling | Internal air cooling |
| Rated value IN | 85.0 A |
| Type rating | 46.0 kW based on IN; 37.0 kW based on IH |
| Rated pulse frequency | 4.00 kHz |
| Degree of protection | IP20 / UL open type |
| Width | 200.00 mm (7.87 in) |
| Height | 380.00 mm (14.96 in) |
| Depth | 270.00 mm (10.63 in) |
Condition & testing notes
Never used inventory in brand new condition. The item is from old surplus stock.
