Swagelok SS-45S8 Ball Valve, 40 Series, 1/2 in Tube, 316 SS, 2500 PSIG
$225.0030 day return
- Condition
- Brand new See details
- Brand
- Swagelok
- MPN
- SS-45S8
- SKU
- CID1453
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

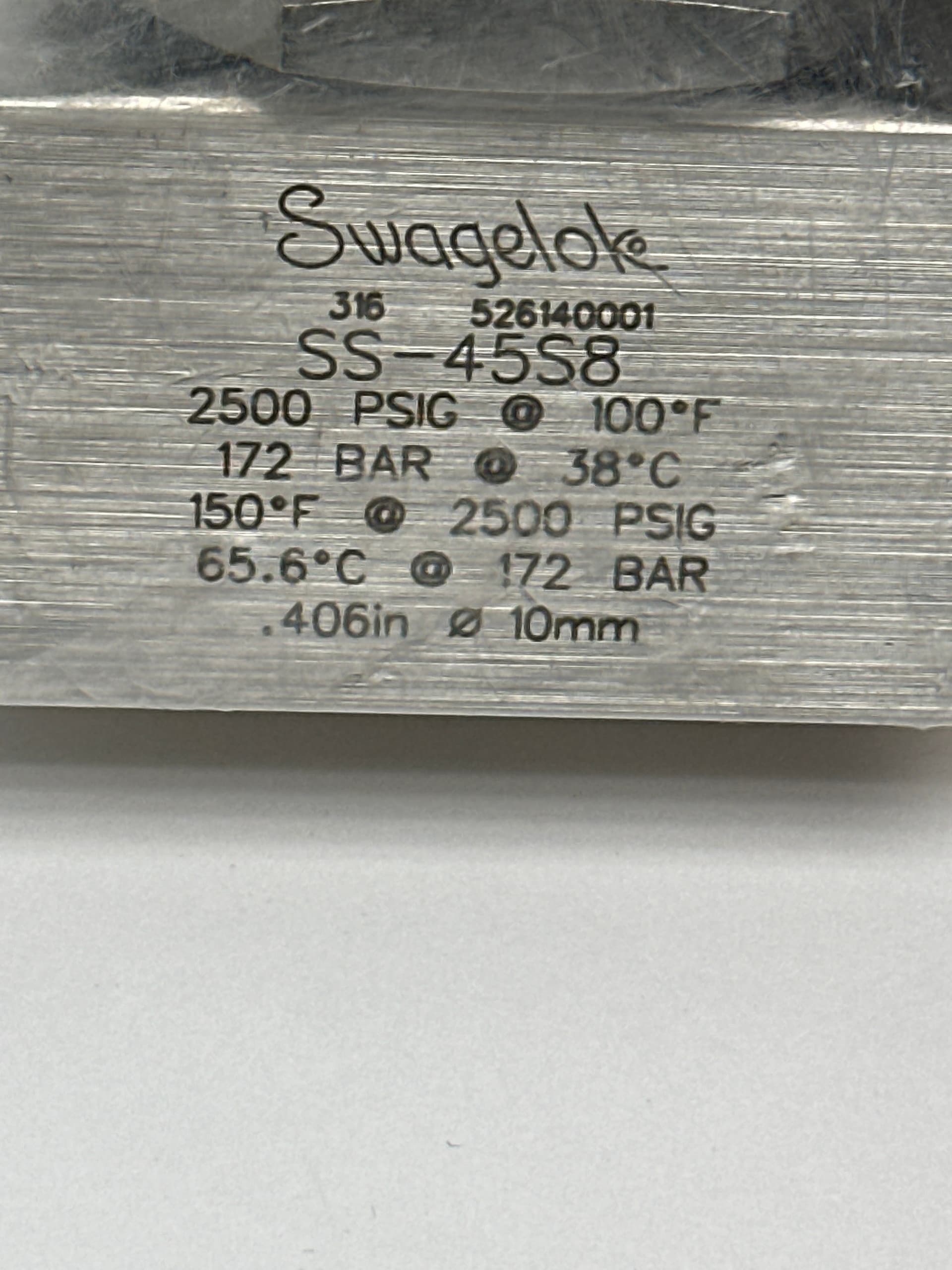

40 Series, 316 stainless steel, 1/2 in. Swagelok tube fittings, Cv 12, 2-way straight pattern. Plate: 2500 PSIG @ 100°F / 172 BAR @ 38°C; 150°F @ 2500 PSIG / 65.6°C @ 172 BAR; .406in Ø 10mm.
Technical specifications
| 316 | 316 |
| 2500 PSIG @ 100°F | 2500 PSIG @ 100°F |
| 172 BAR @ 38°C | 172 BAR @ 38°C |
| 150°F @ 2500 PSIG | 150°F @ 2500 PSIG |
| 65.6°C @ 172 BAR | 65.6°C @ 172 BAR |
| Ø | .406in Ø 10mm |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 12 |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Style | Lever |
| Ball/Stem Material | Stainless Steel |
| Packing Material | PTFE |
| Ring/Disc Material | PTFE-Coated Stainless Steel |
| Low Emissions Certified | Yes |
| Testing | Testing according to WS-22 |
Condition & testing notes

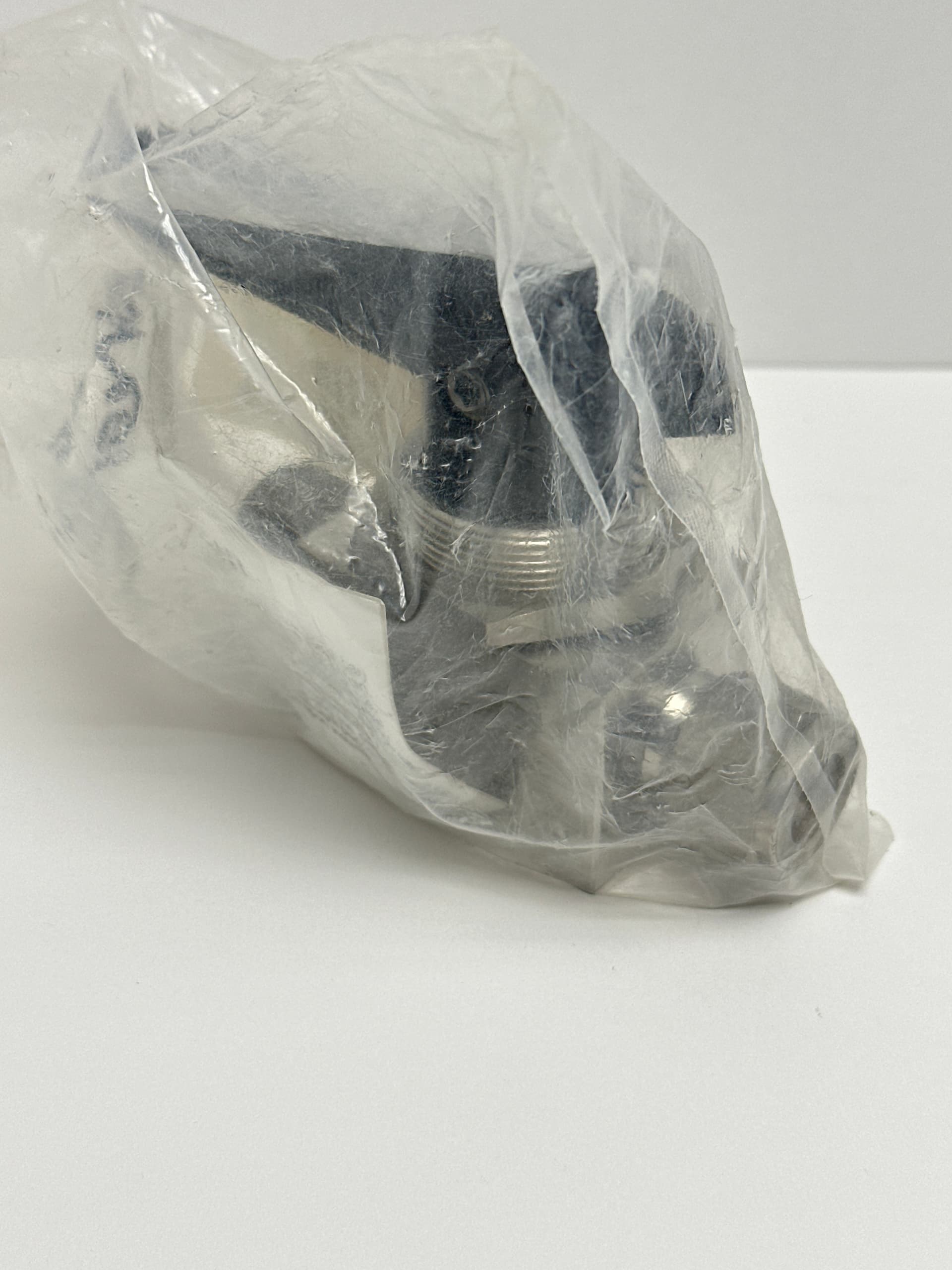

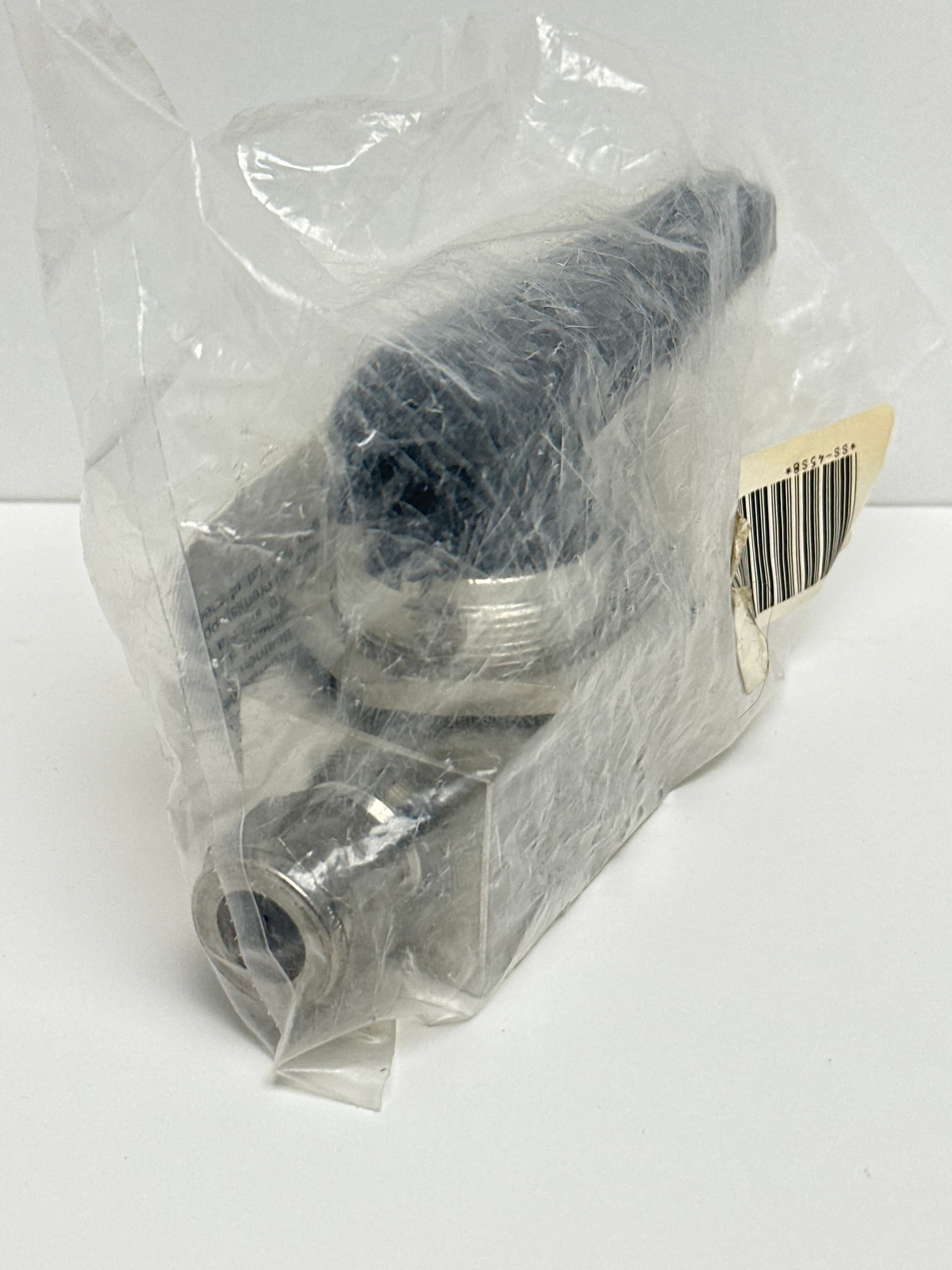

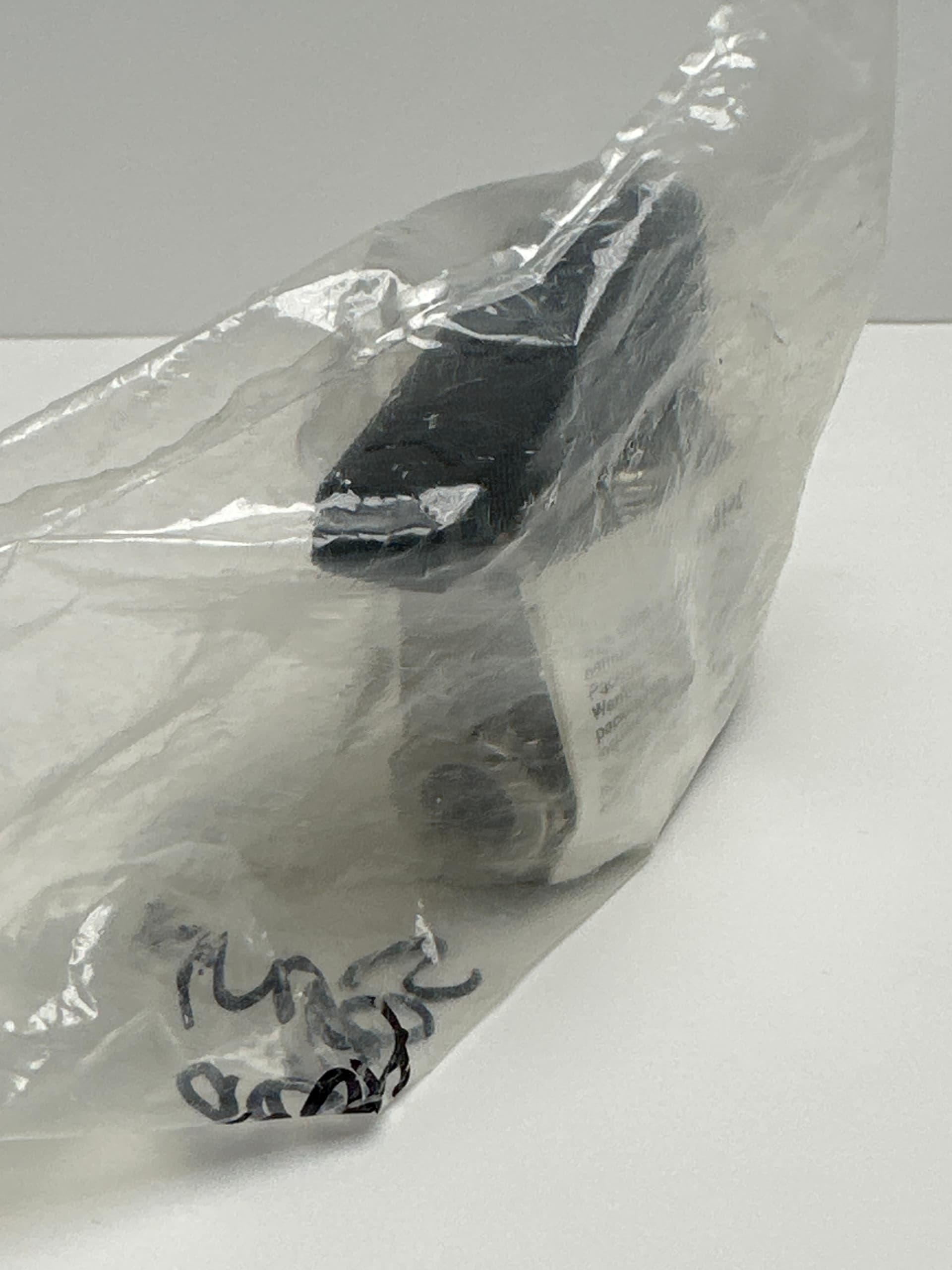

Never used inventory in brand new condition. The item is from old surplus stock.
