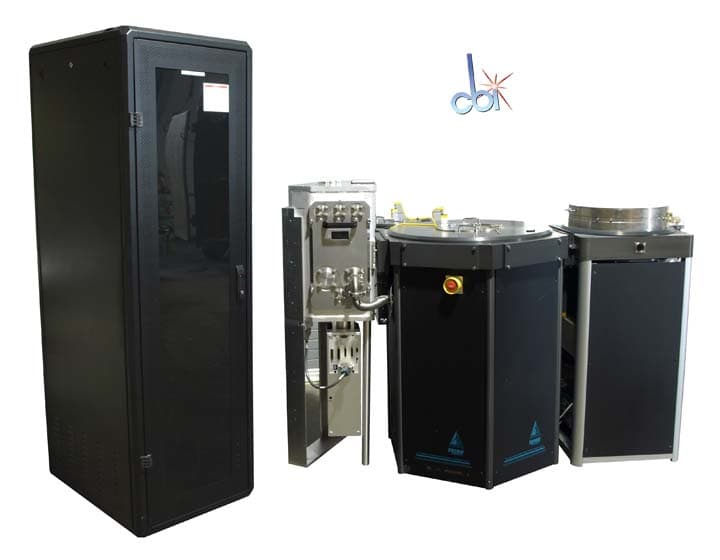

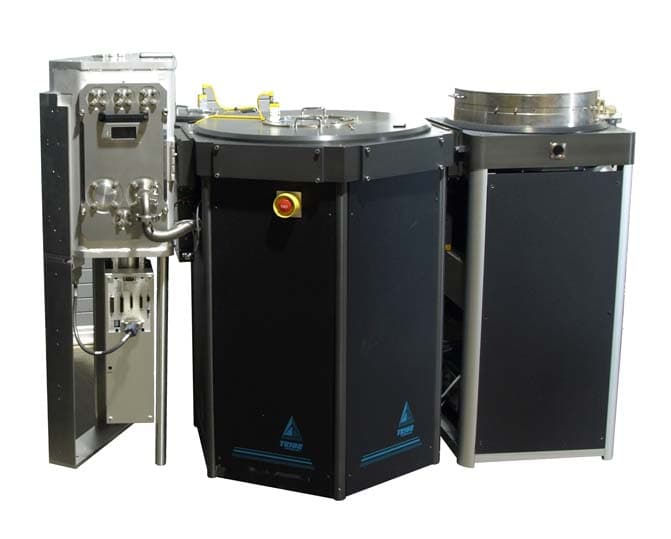

Trion Technology Dielectric Cluster Tool
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Trion Technology
- MPN
- Oracle
- SKU
- 119294
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

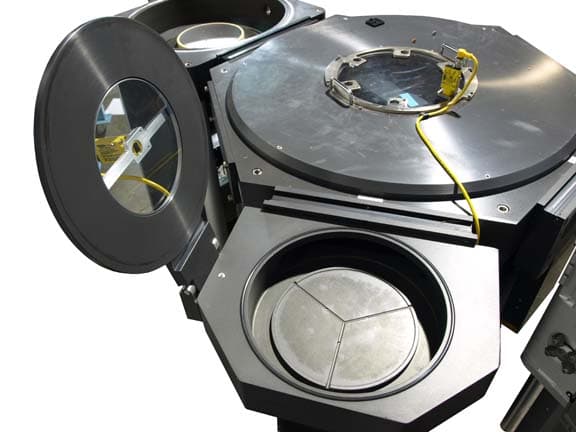

Central Vacuum
Transport (CVT) Platform
High Conductance Plenum and Vacuum System

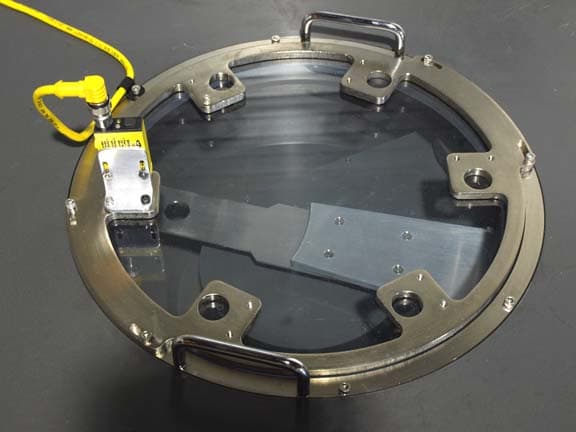

Manual Wafer Load Port
Automatic Pressure Control
600 Watt, 13.56 MHz RF Generator
DC Bias Control

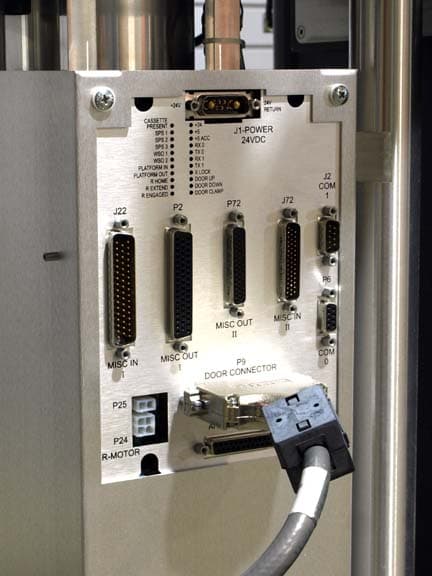

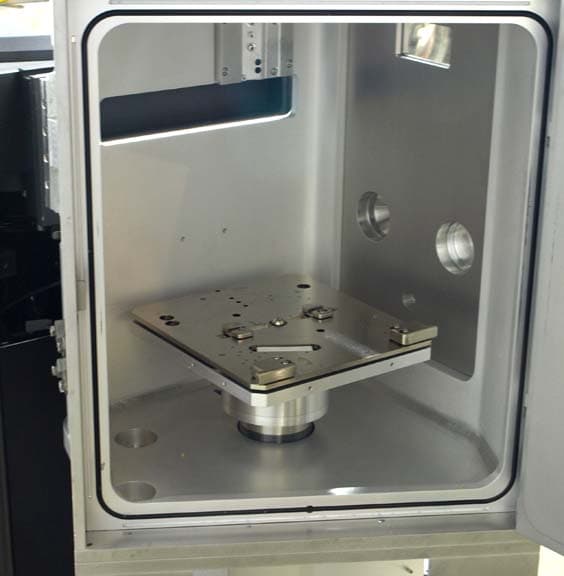

Brooks Automation VCE6 Vacuum Cassette Elevator

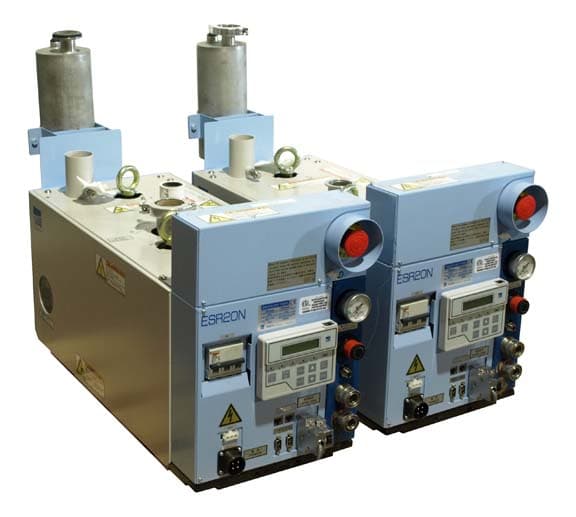

(2) Ebara ESR20N 2,000 LPM Dry Pumps,
Technical specifications
| Number of Chambers | 1 |
| Process Capabilities | Oxide Etch |

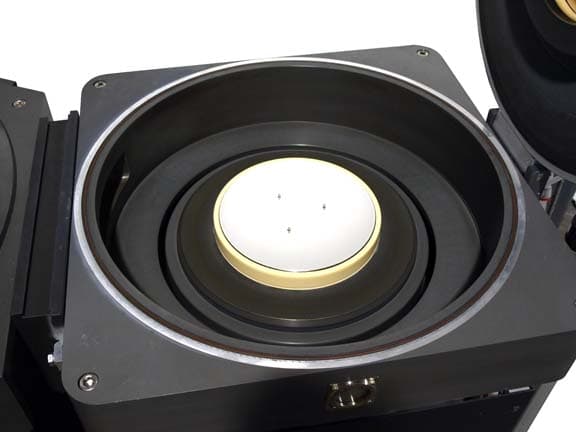

| Chamber 1 Description | RIE Dielectric Etch Phantom III RIE Reactor |

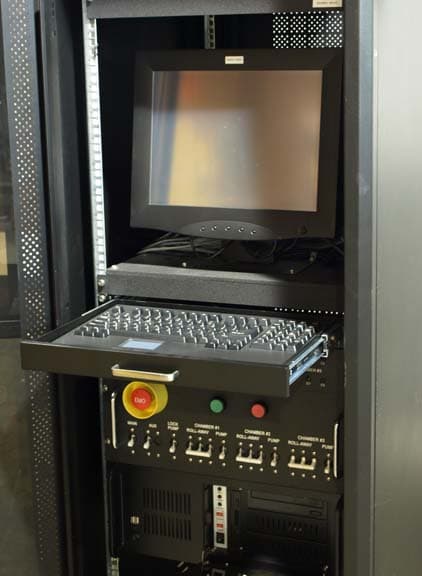

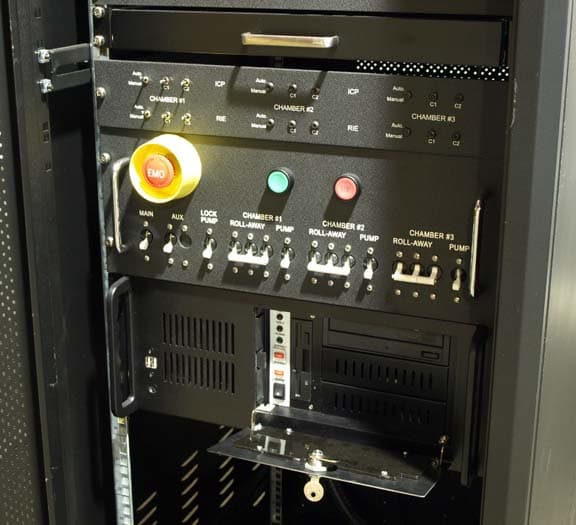

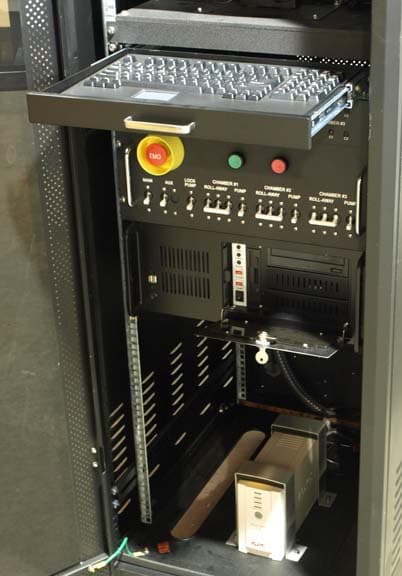

| Controller Type | PC Controller Type |
| Elevator Type | Brooks Automation VCE 6 |
| Process Gases | CF4, CHF3, Ar, O2 |
| Power Requirements | 208 V 49.0 A 60 Hz 3 Phase |
| Year of Manufacture | 2006 |
Wafer Size Range
| Minimum | 50 mm |
| Maximum | 200 mm |
| Set Size | 200 mm |
Condition & testing notes
Previously in service and offered for secondary-market resale.
