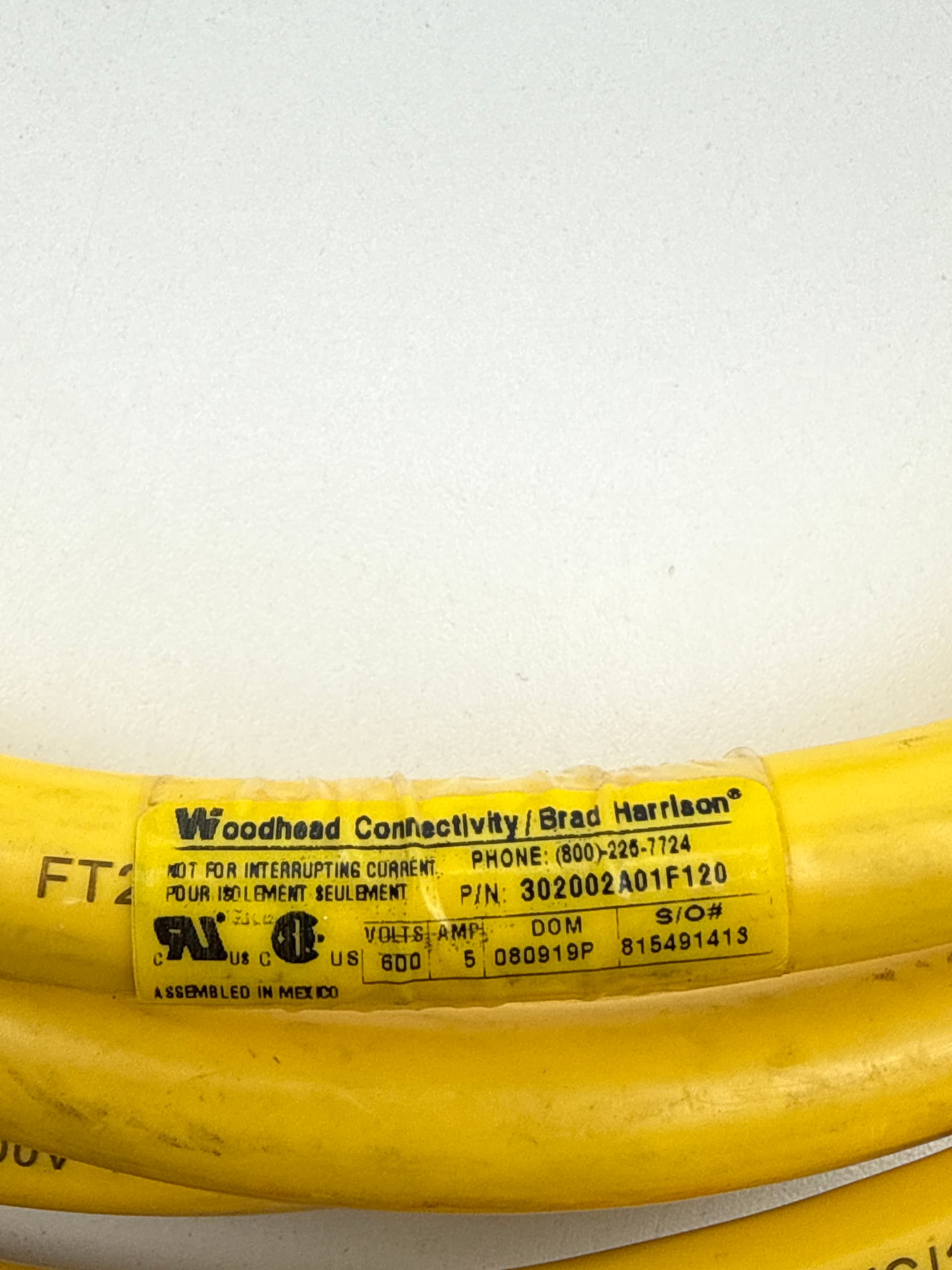

Woodhead Brad Harrison 302002A01F120 Mini-Change Cordset, 12P, 600 V, 5 A
$65.0030 day return
- Condition
- Used See details
- Brand
- Woodhead Connectivity / Brad Harrison
- MPN
- 302002A01F120
- SKU
- CID1388
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

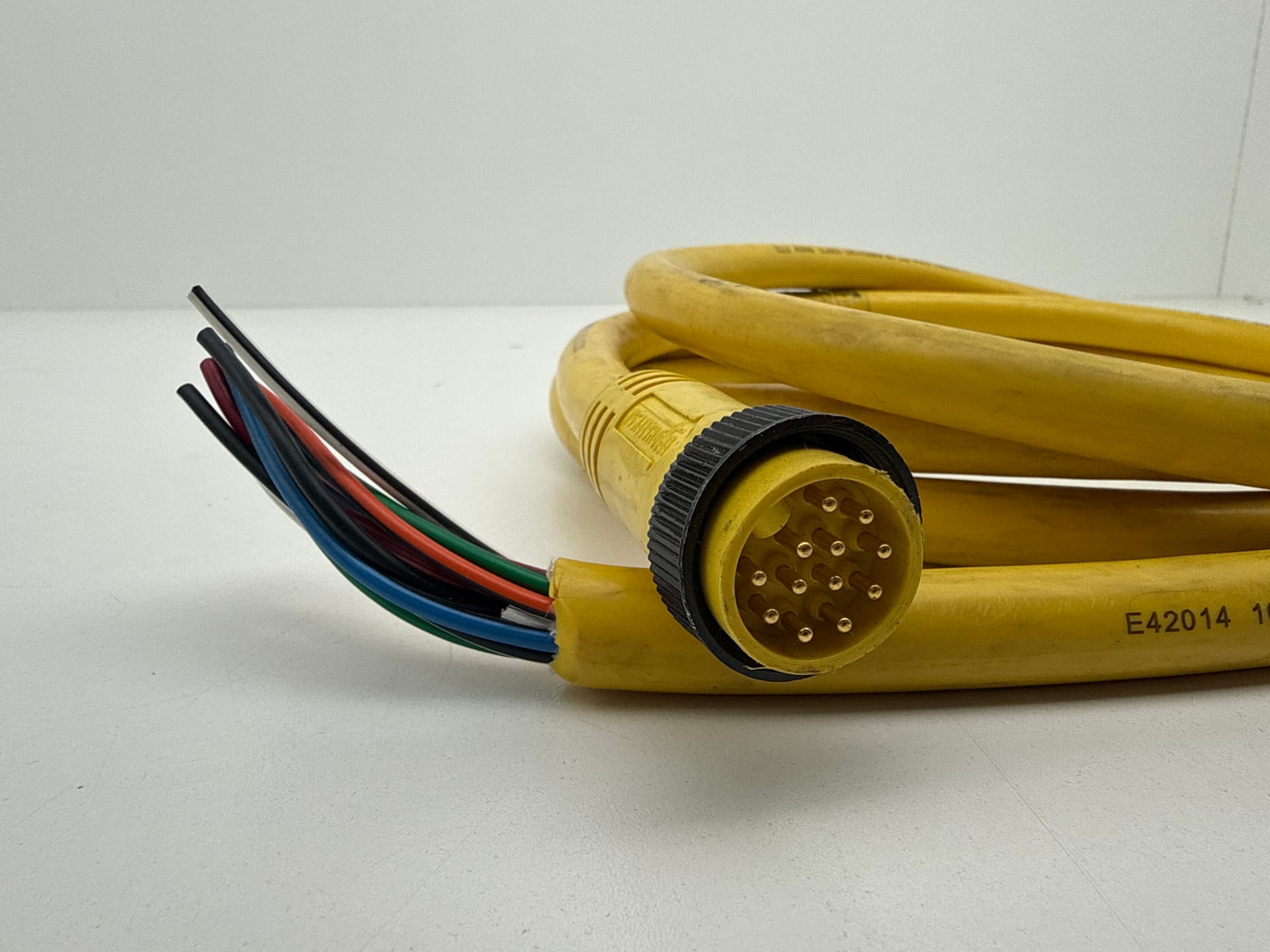

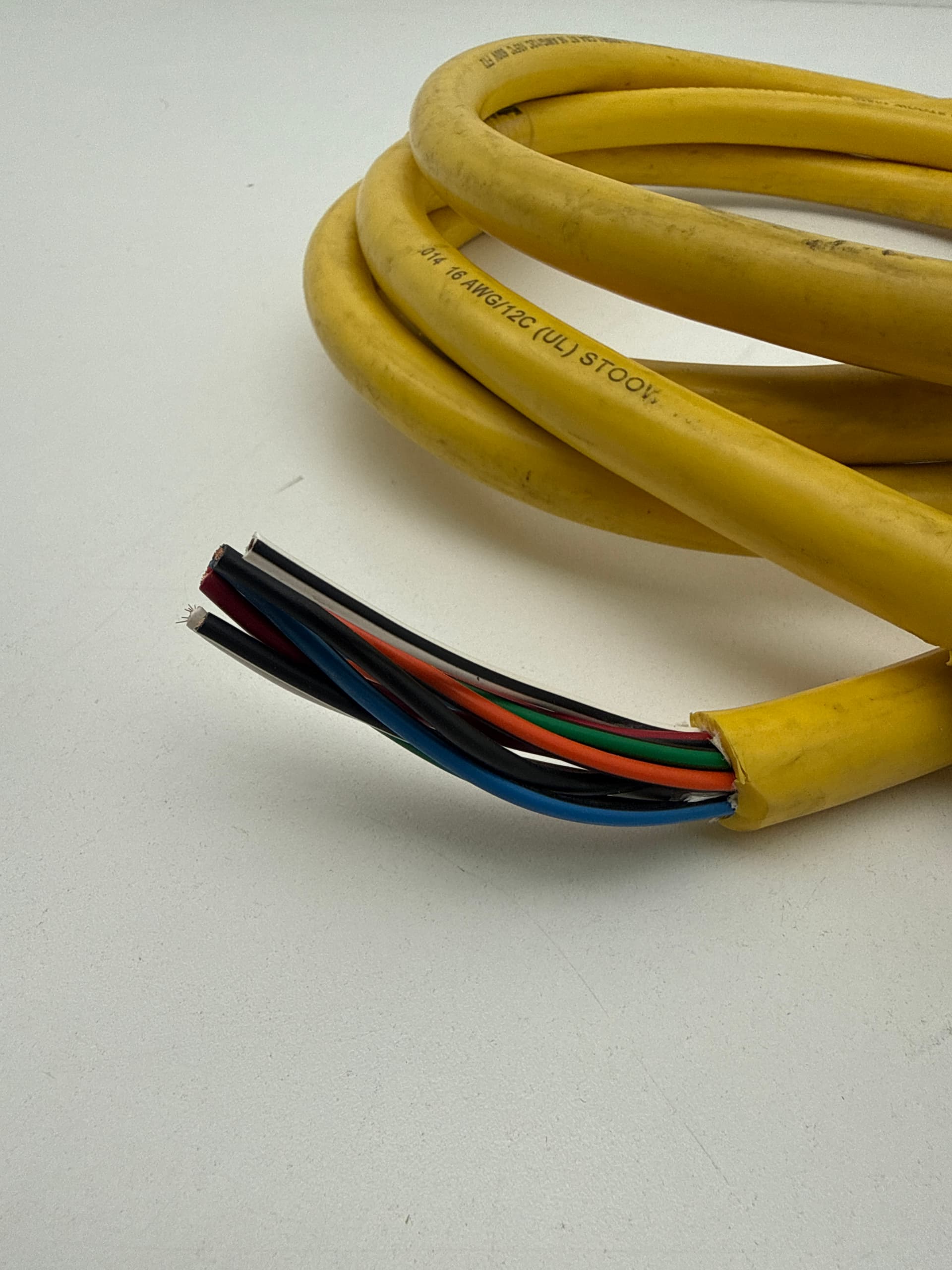

Mini-Change C-Size single-ended, male straight to pigtail, 12 poles, 16 AWG yellow PVC STOOW cable, 3.66 m (12.0 ft), IP67. 600 V, 5 A per contact, -20 to +105 C, threaded coupling, single keyway, DeviceNet.
NB! actual length is 11'
Technical specifications
| VOLTS | 600 |
| AMPS | 5 |
| Product Family | Industrial Cordsets |
| Series | 130008 |
| Connector End A | Mini-Change |
| Connector End B | Pigtail |
| IP Rating | IP67 |
| Protocol | DeviceNet |
| Type | Single Ended |
| Cable Diameter | 18.03 mm (.710 in) |
| Cable Length | 11' |
| Color - Cable Jacket | Yellow |
| Coupling Style | Threaded |
| Gender | Male-Pigtail |
| Keyway | Single |
| Material - Cable Jacket | PVC |
| Material - Connector Body | TPE |
| Material - Contact | Brass |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Material - Plating Mating | Gold |
| Orientation | Straight to Pigtail |
| Poles | 12 |
| Temperature Range - Operating | -20 to +105 C |
| Wire Size AWG | 16 |
| Wire/Cable Type | STOOW |
Condition & testing notes
Previously in service and offered for secondary-market resale. Item has been removed from new equipment that was never commissioned.
