FULL DESCRIPTION of Item 200219

in DC Magnetron Drives
Item ID: 200219

Offered 1 Offered at Best Price


ADVANCED ENERGY PINNACLE DC POWER SUPPLY, 10 KW

DC Power Supply

In addition to this Advanced Energy PINNACLE, Capovani Brothers Inc stocks a wide range of used DC Magnetron Power Supplies. Typical manufacturers include Advanced Energy, ENI Power Systems, Huettinger, Spellman and TDK Lambda.

To view our complete stock of used DC magnetron power supplies, visit our DC Magnetron Power Supplies Category.

This used DC magnetron power supply and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus equipment list

ADVANCED ENERGY PINNACLE DC POWER SUPPLY, 10 KW
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Advanced Energy
Model PINNACLE
Power Output 10.00  kW
Regulation Modes Constant Current     Constant Voltage     Constant Power
Cables Included No
Other Information

M/N : 3152422-110V

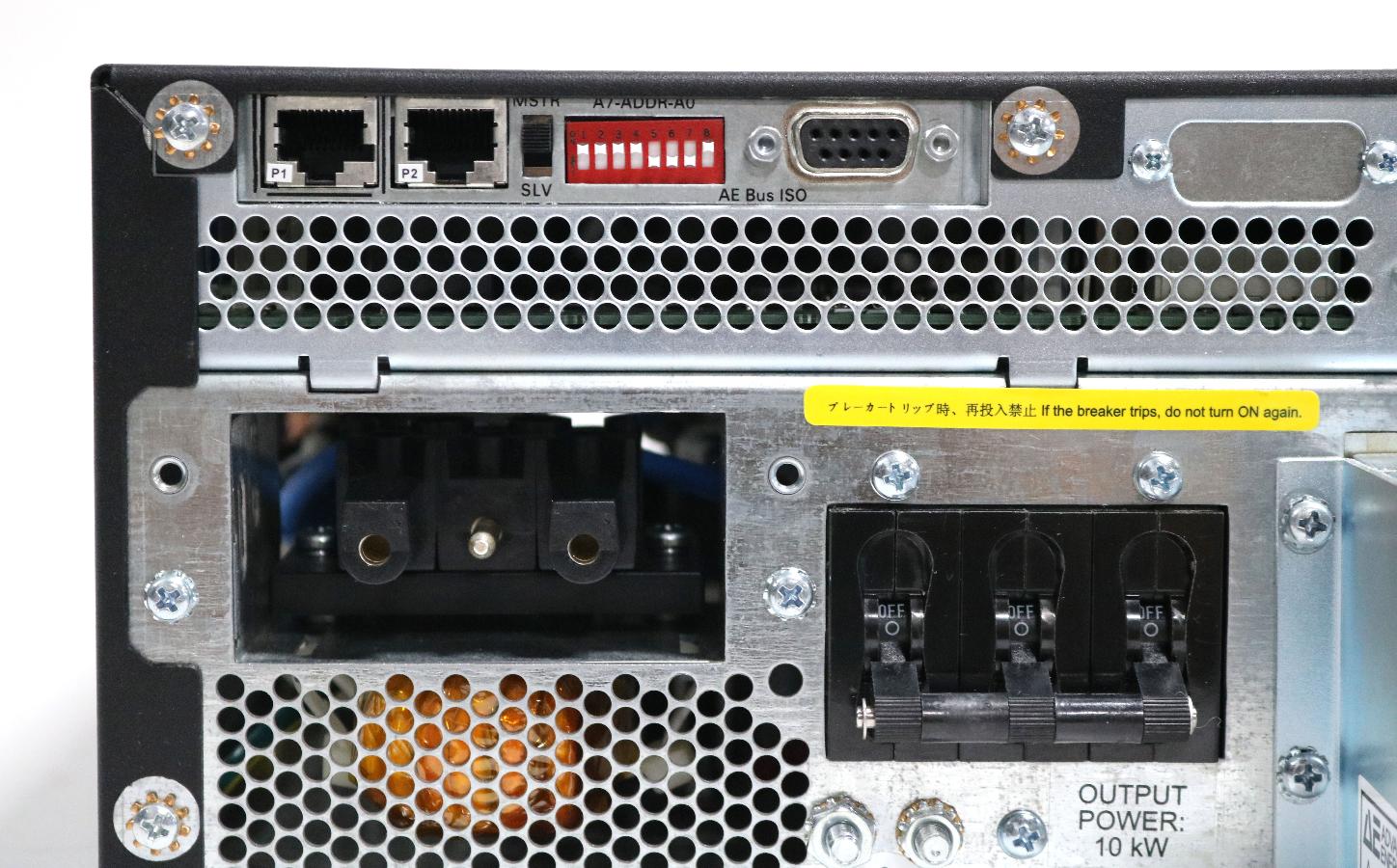

Power Requirements: 208 V, 32 A, 50/60 Hz, 3 Phase

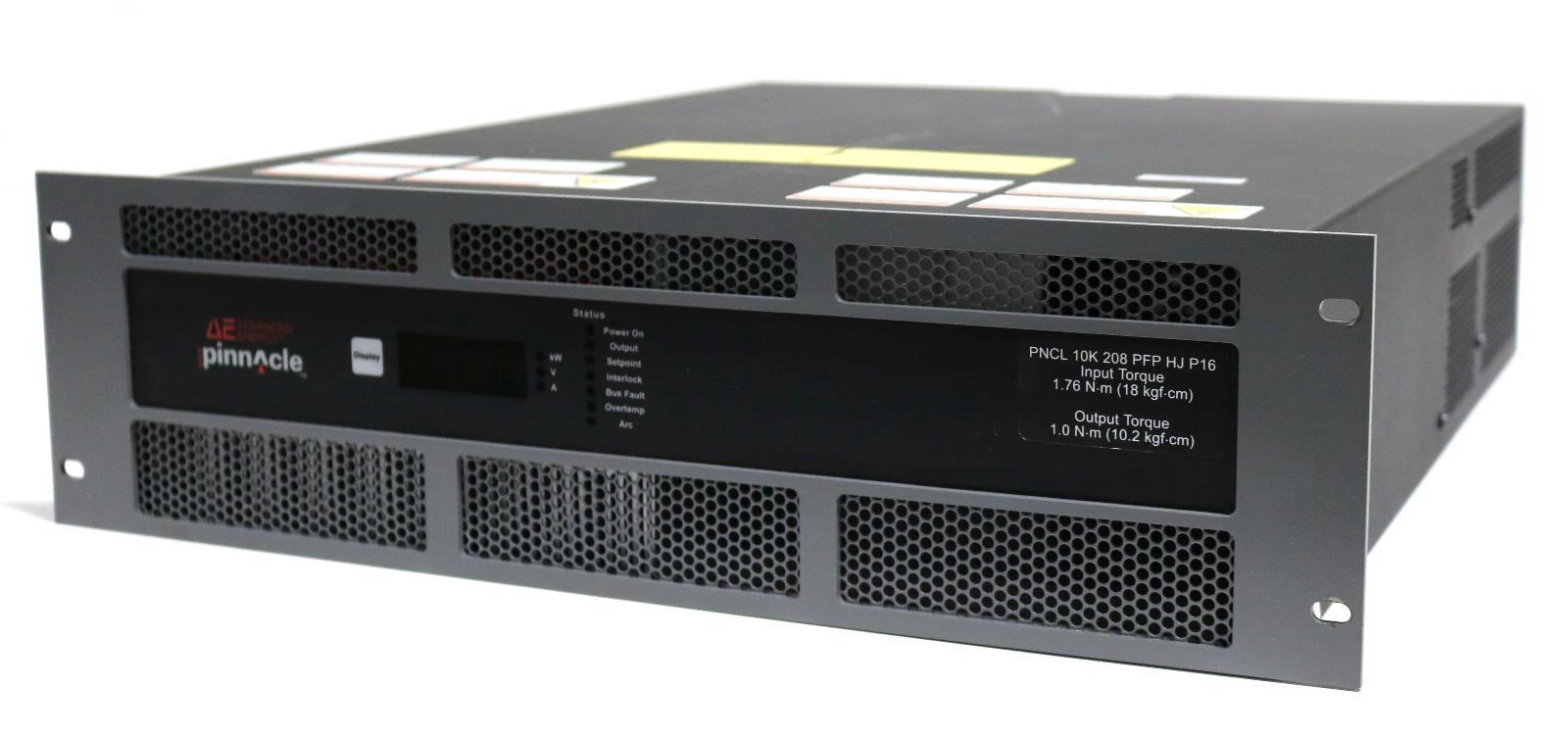

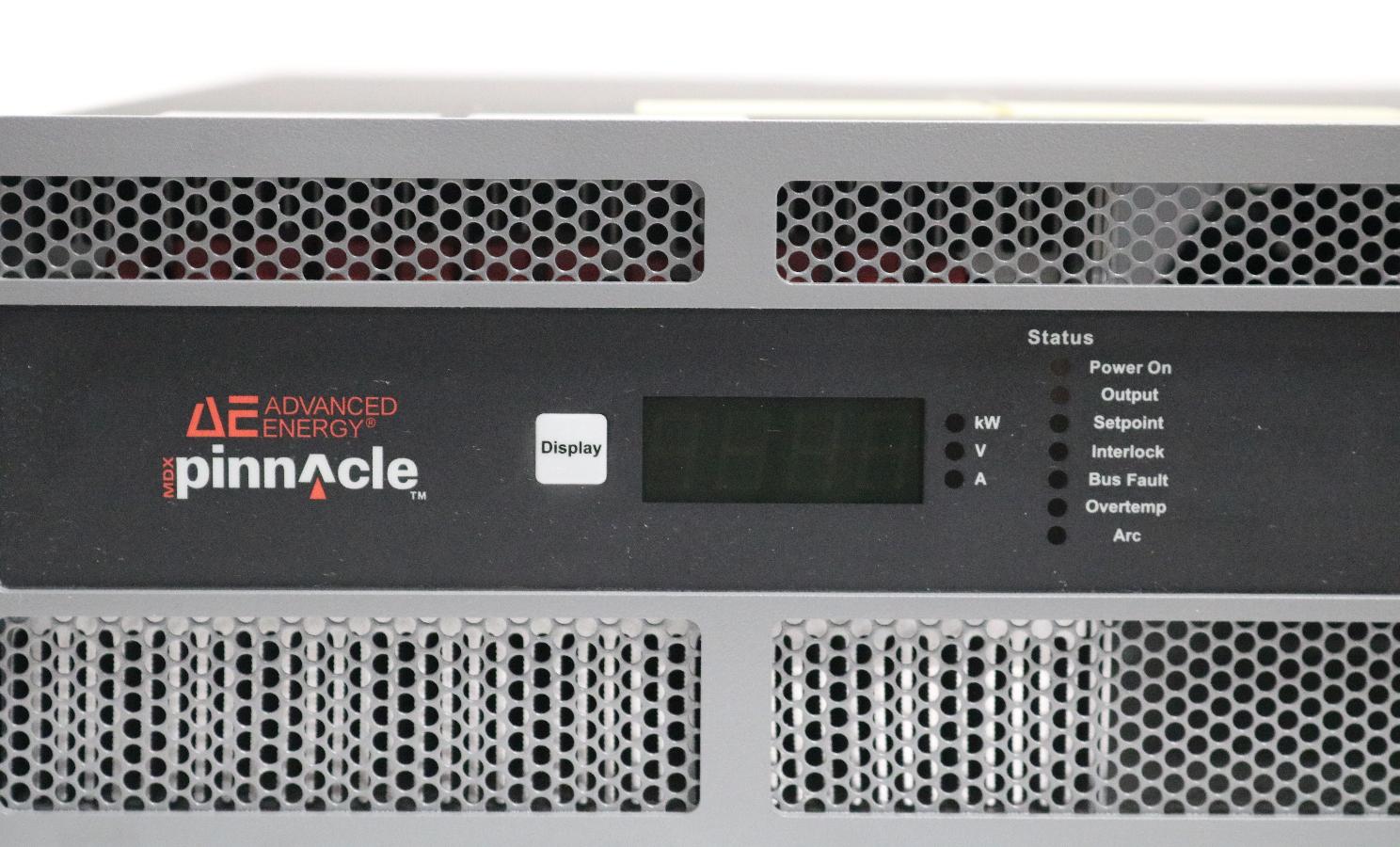

this unit has passive front panel (no controls) as shown on the photo.

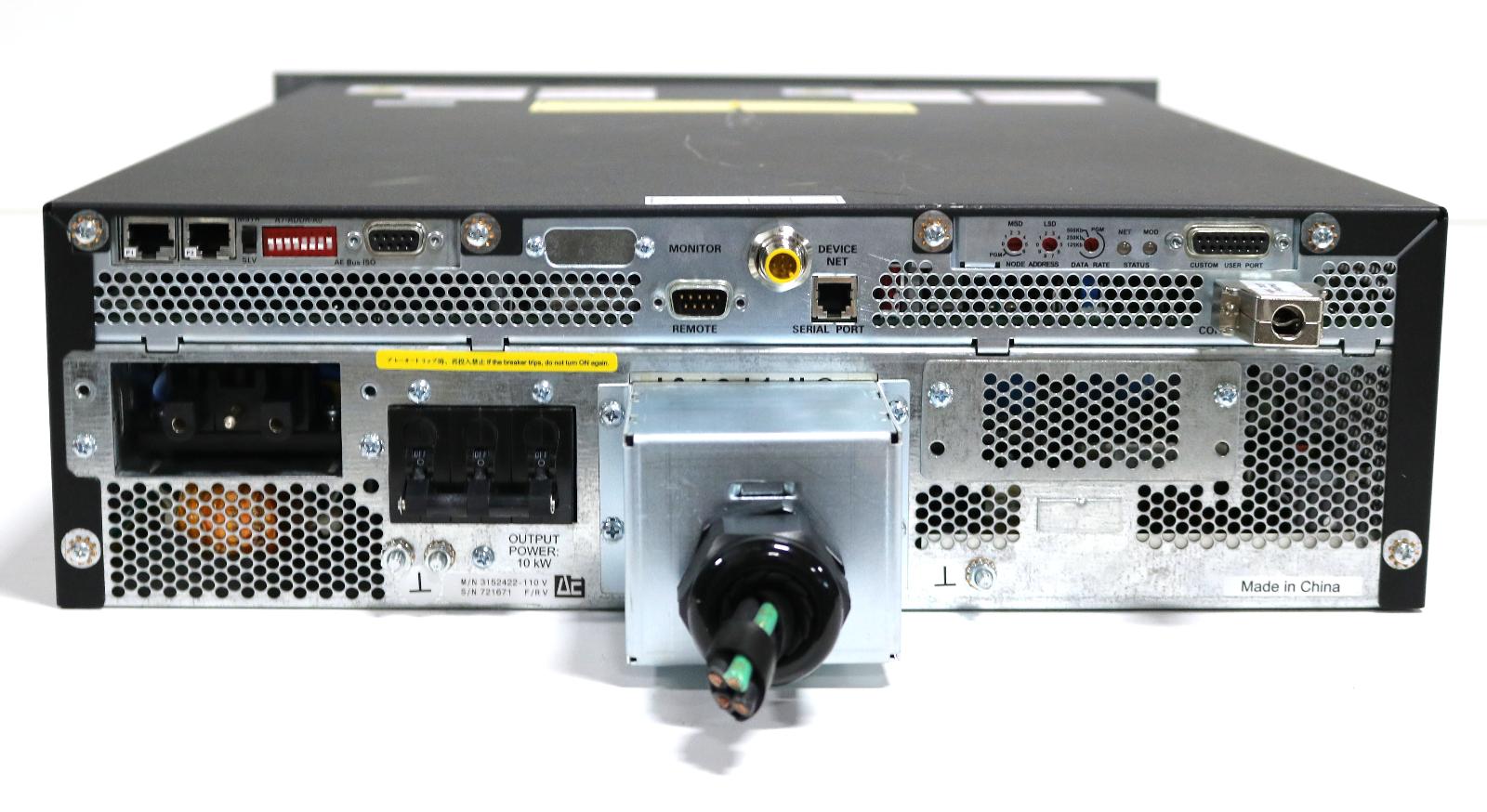

See "other images" link above for more photos.

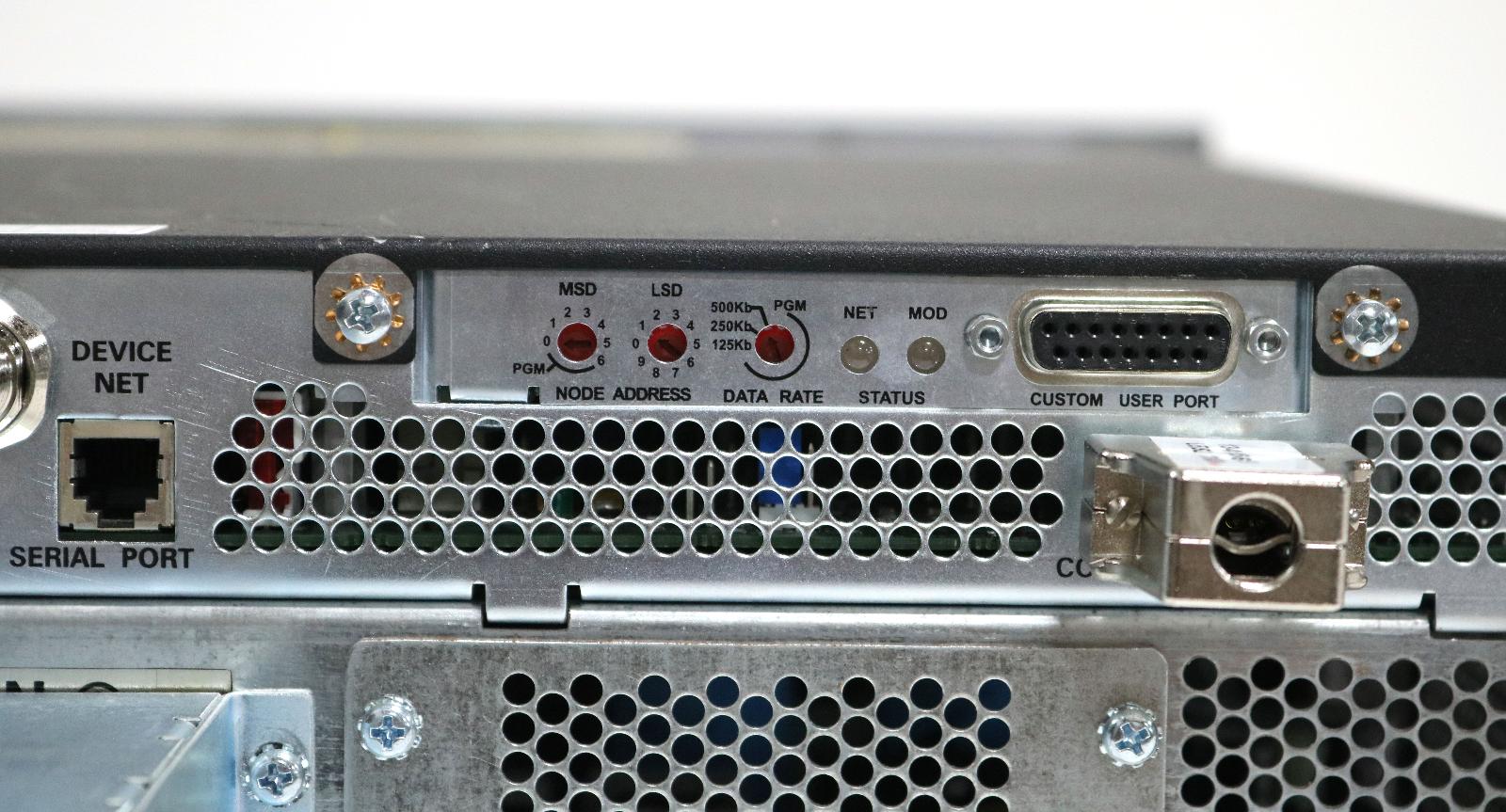

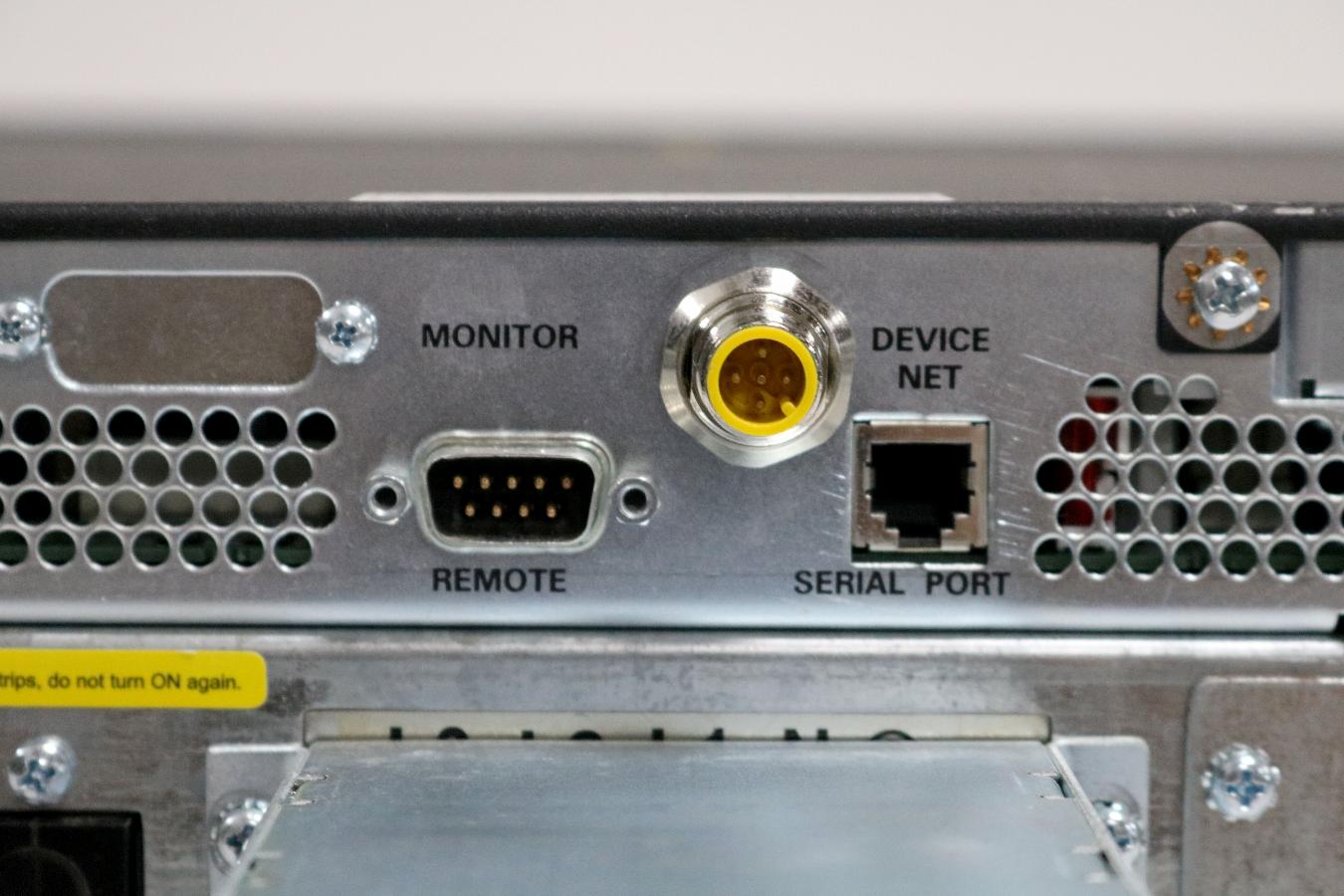

Control options are:

1.    Remote front panel (not included)
2.    Custom 15 pin user port
3.    Device net interface
4.    AE BUS RS232 isolated interface
5.    Set as master or slave unit controlled by master

Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 28.000  in  (71.1 cm)
  Height 6.000  in  (15.2 cm)
Weight 64  lb  (29 kg)
