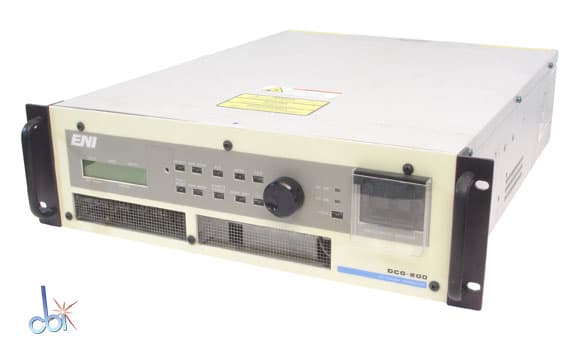

ENI Power Systems DCG-200Z DC Plasma Generator
- Condition
- Used See details
- Brand
- ENI Power Systems
- MPN
- DCG-200Z
- SKU
- 58787
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Applied Materials P/N: 0190-08279
10 KW Master, no slave

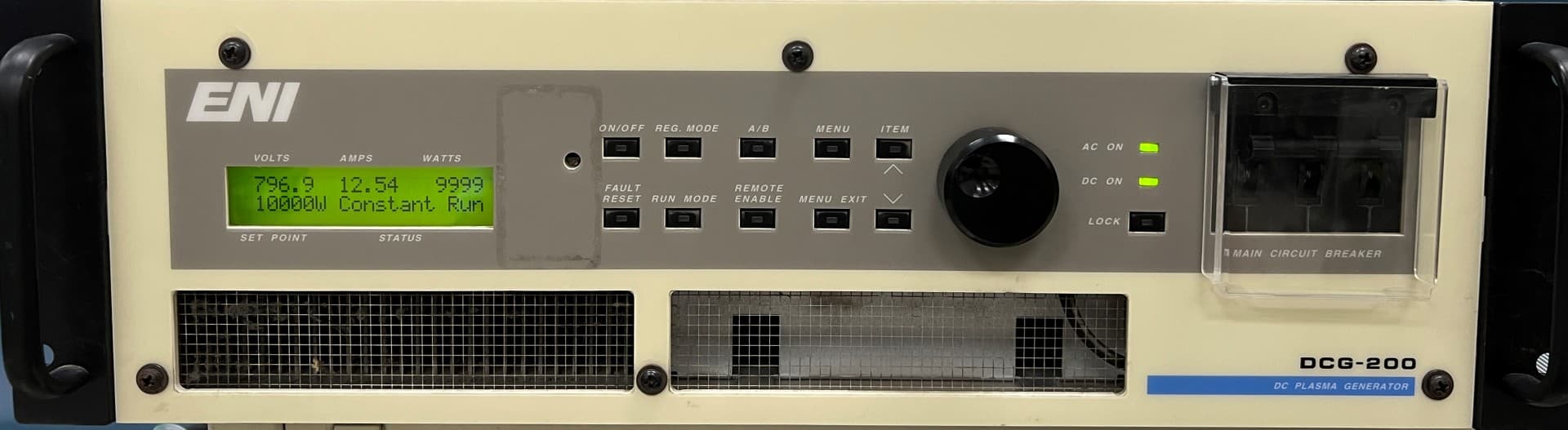

Fully functional front panel
Control Interfaces: RS232, RS422, Device net, 15 pin analog user interface
Low Z option
Full ENI Part Number: DC21M-Z141300110A
Input power: 340-480 Volt 3 Ph, 50/60 Hz
Input current: 23A
Transformer taps available: 400V, 500V, 645V
Panel meters: Digital

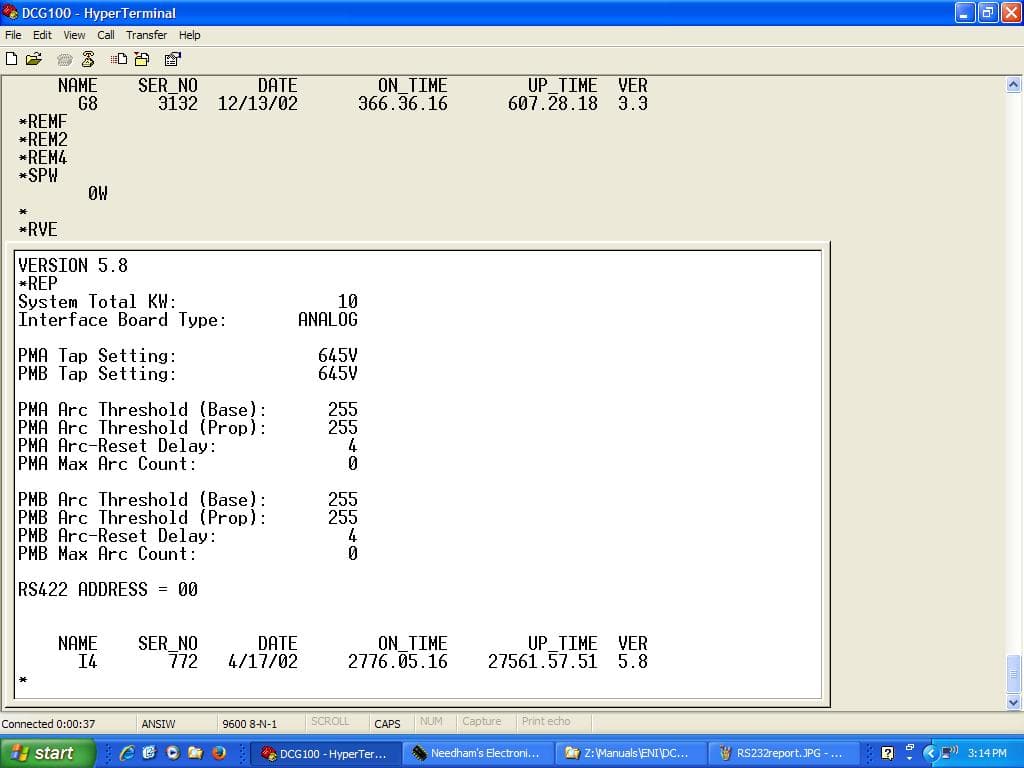

The system supports two separate “Monitors” over RS-232/RS-
422 electrical protocol. The first is the ENI Monitor. The second is
the “Emulation Monitor”, as implemented on the MDX- 10™,
manufactured by Advanced Energy®.
Specify taps setting when ordering, please
Technical specifications
| Power Output | 10.00 kW |
| Maximum Output Voltage | 645.00 Volts |
| Power Module Type | Master |
| Year of Manufacture | 2002 |
| Weight | 64 lb (29 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 25.000 in (63.5 cm) |
| Height | 5.250 in (13.3 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale. Item has been tested and found to be working.
