in Thermal Analysis
Item ID: 217551

Offered 1 Offered at Best Price


Furnace Temperature Profiling System

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Datapaq
Model TP2216A
Description Furnace Temperature Profiling System

Thermal barrier model TB5011B

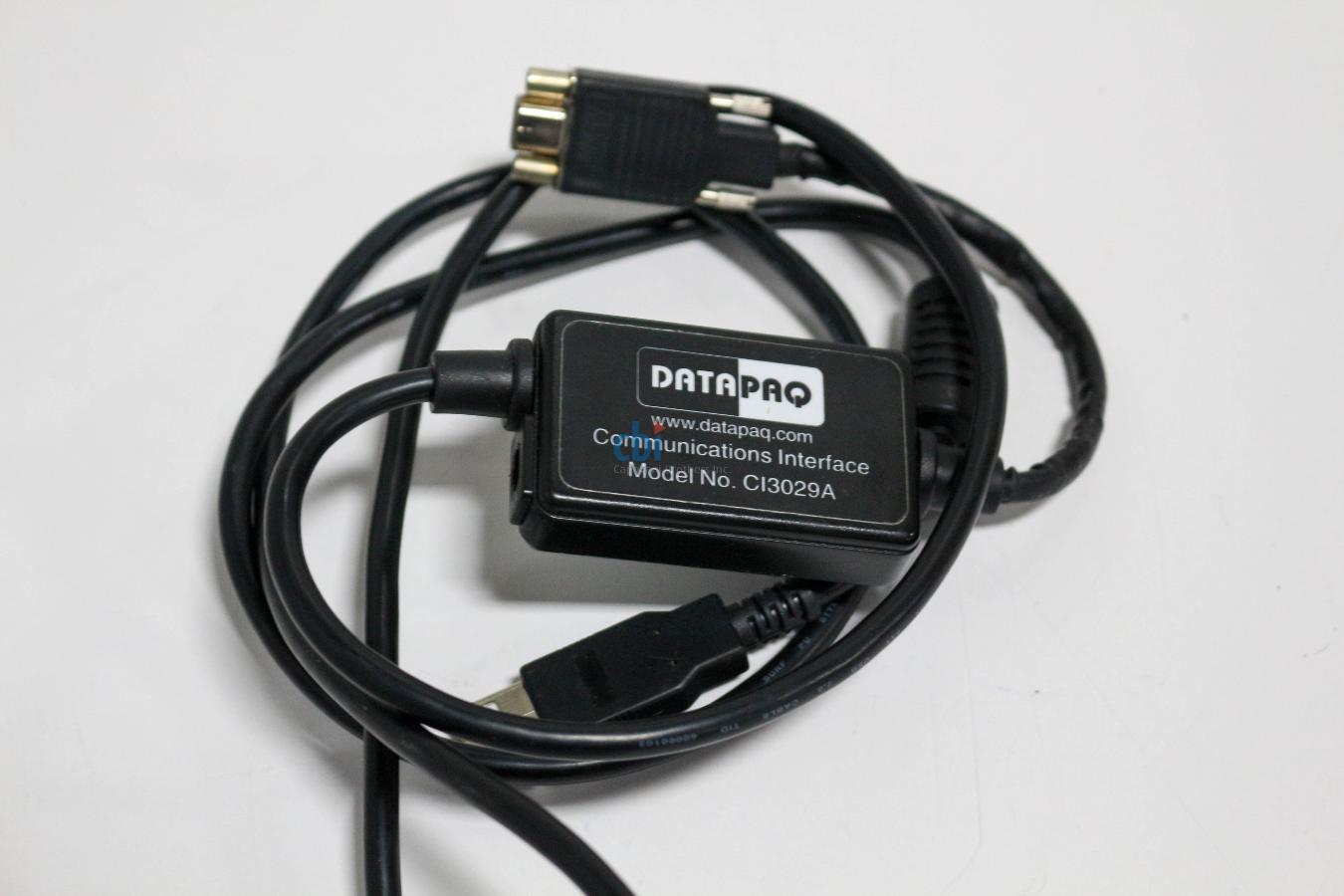

USB communications adapter cable CI3029A

Battery charger

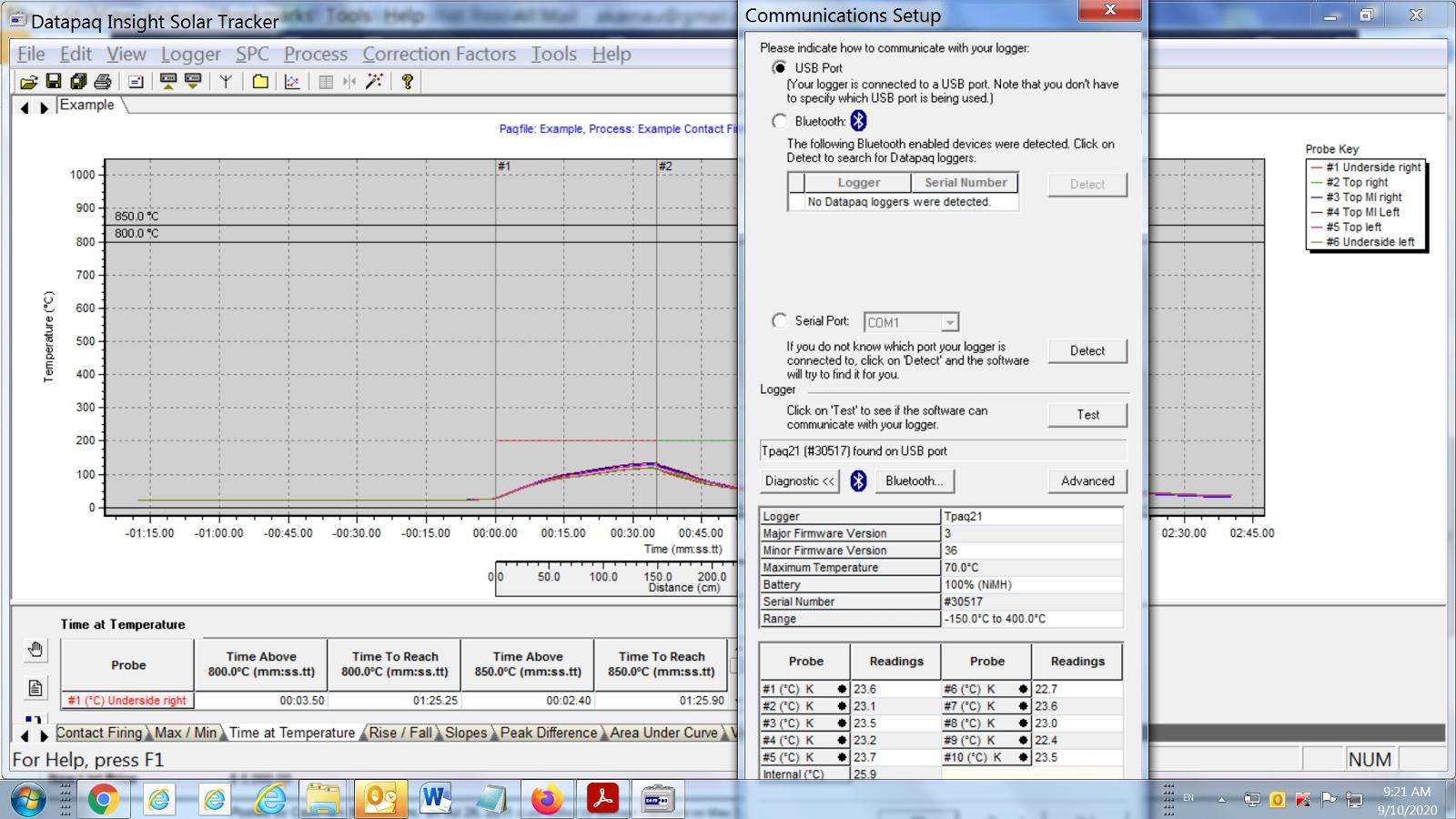

Datapaq Insight Tracker software available, please inquire


Other Information

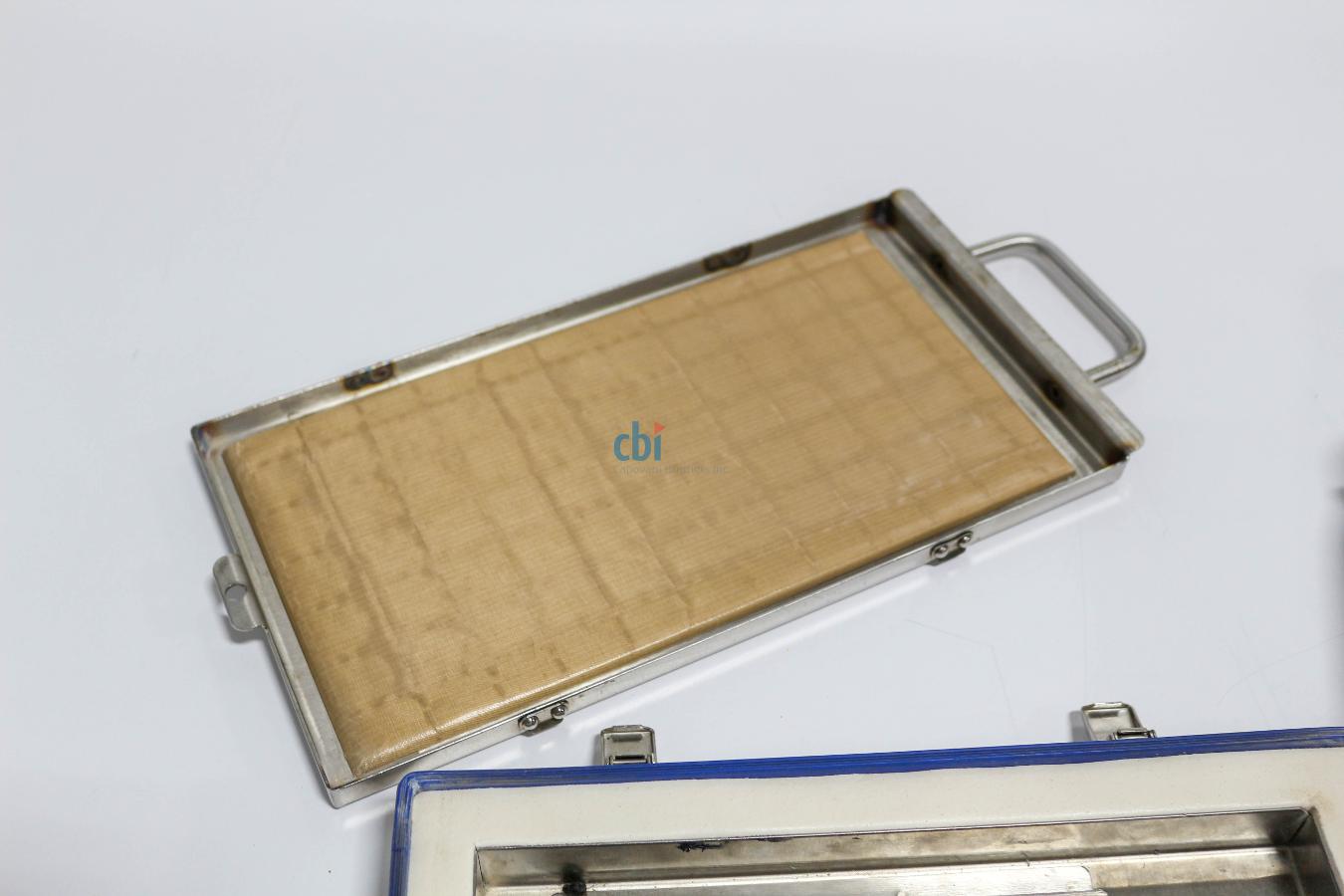

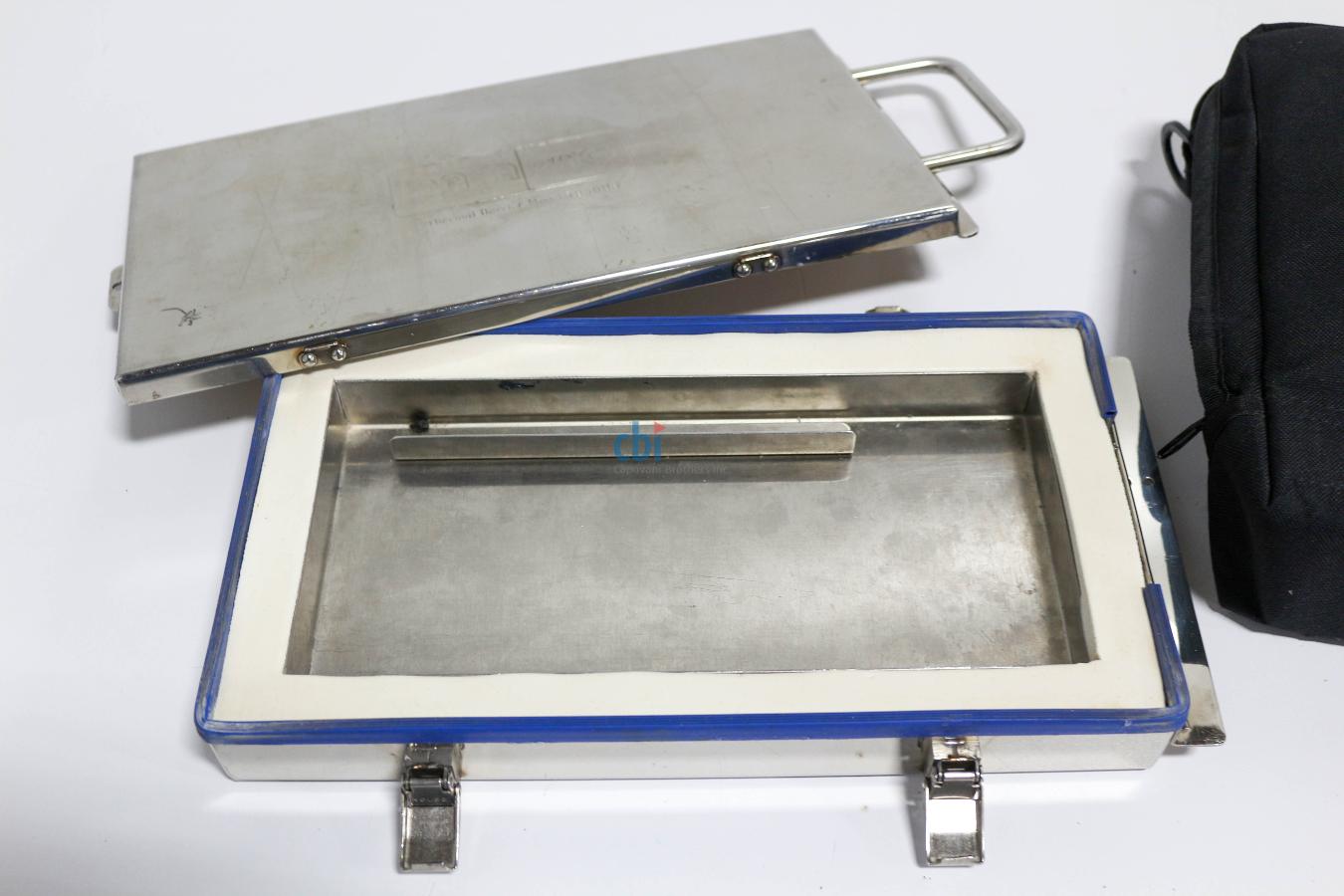

  • Thermal barrier:

7.7"W X 15.1"L X 1.6"H, 6.6 lbs, temperature duration @100C (212F) 2.5 hrs, @200C (392F) 40 min

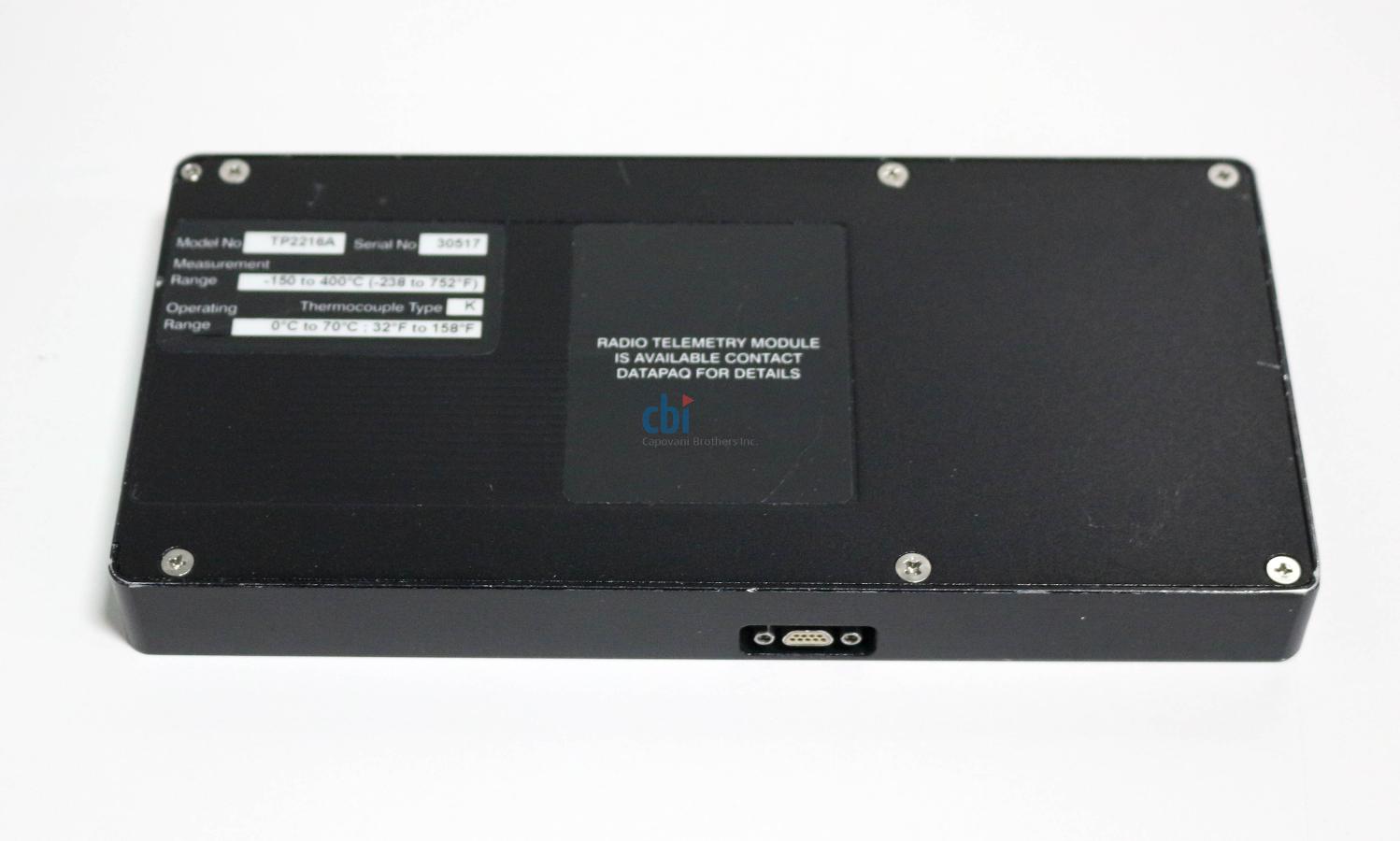

  • Data Logger:

130,000 data points;

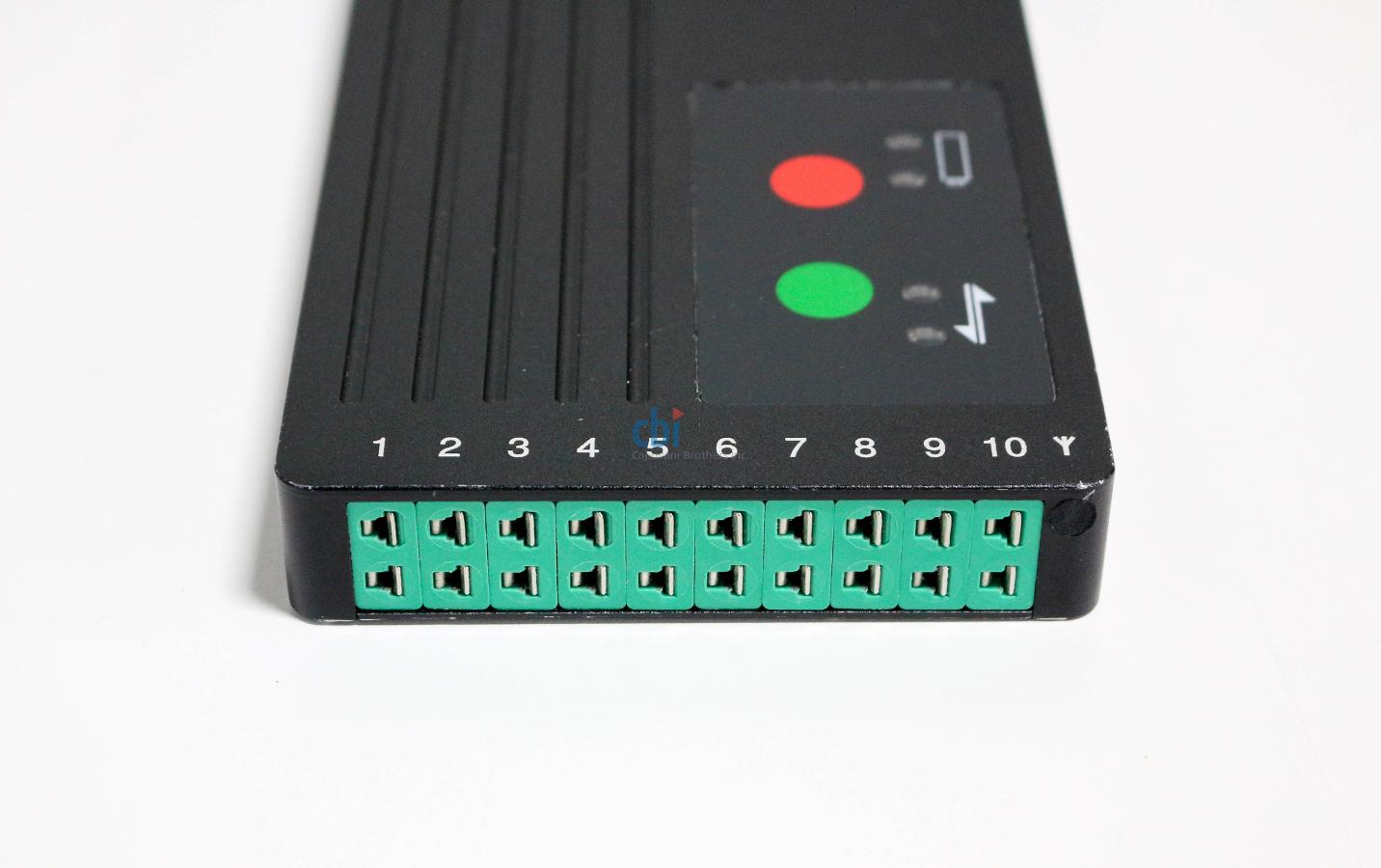

10 channels for type K thermocouples (thermocouples not included);

Measurement range: -150C to 400C (-238F to 752F);

Operating range: 0C to 70C (32F to 158F);

Accuracy: ±0.3°C/0.5°F

Batteries NiMH rechargeable, 170 hours between charges;

Sample Interval 0.1 s to 50 min, minimum interval with 10 thermocouples in use 0.3 s;

For more information:


Extended Description  Details at TPAQ21_TB5011.pdf
Exterior Dimensions
  Width 3.860  in  (9.8 cm)
  Depth 7.870  in  (20.0 cm)
  Height 0.790  in  (2.0 cm)
