Cassette for alkaline batteries
Thermal barrier model TB5011B

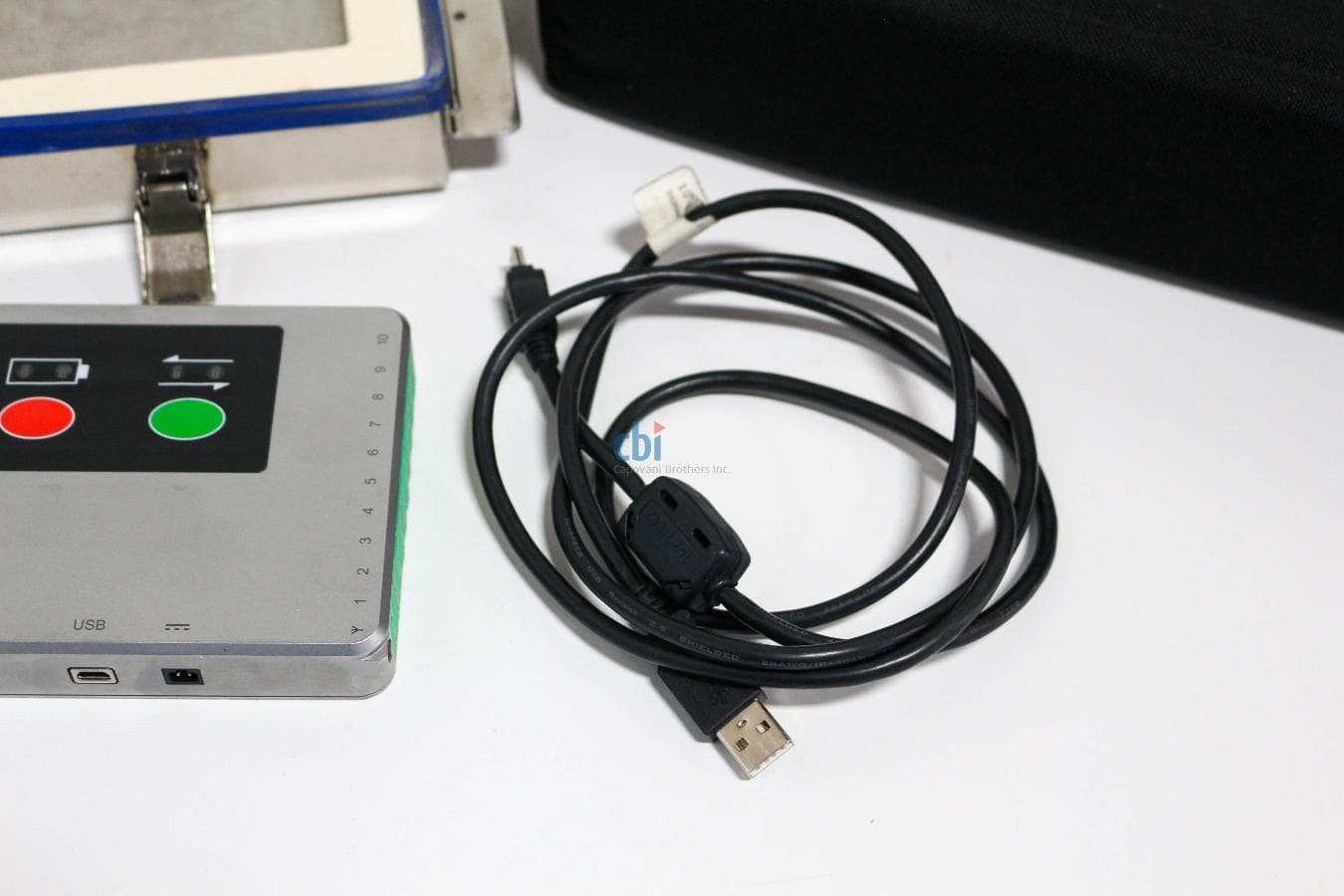

USB cable

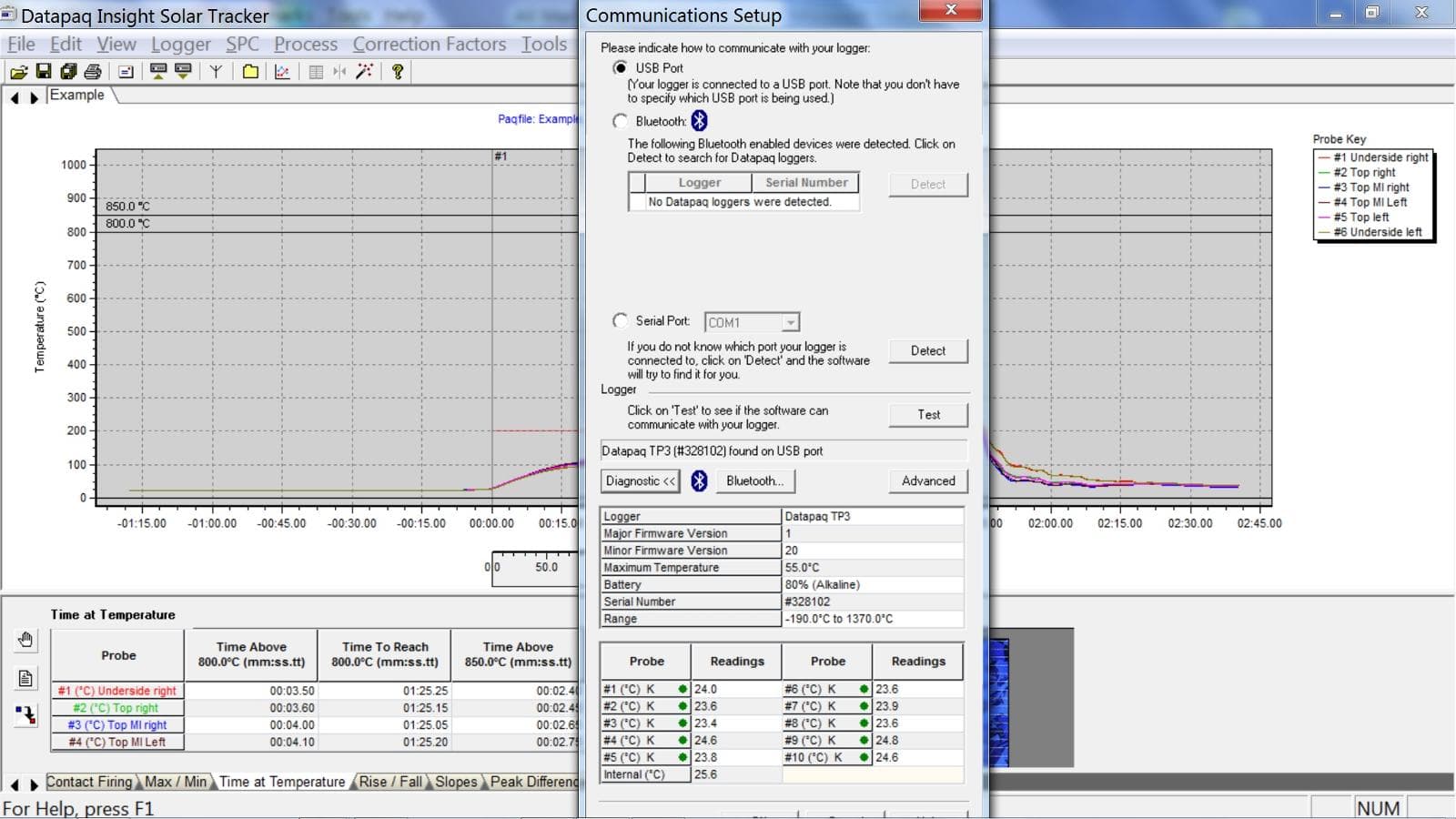

Datapaq Insight Tracker software available, please inquire

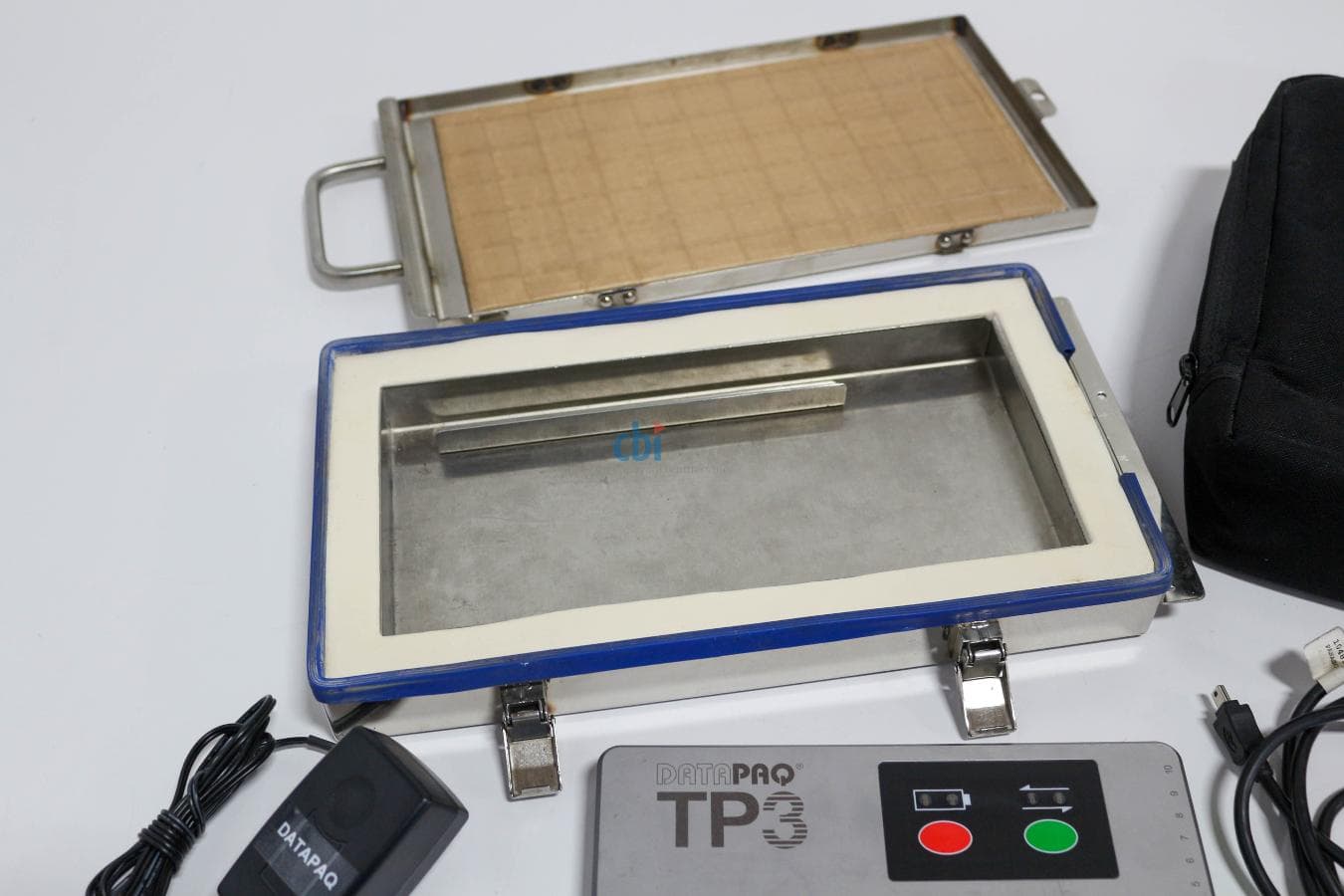

Thermal barrier
7.7"W X 15.1 "L X 1.6 "H, 6.6 lbs , t emperature duration @100C (212F) 2.5 hrs, @ 200C (392F) 40 min

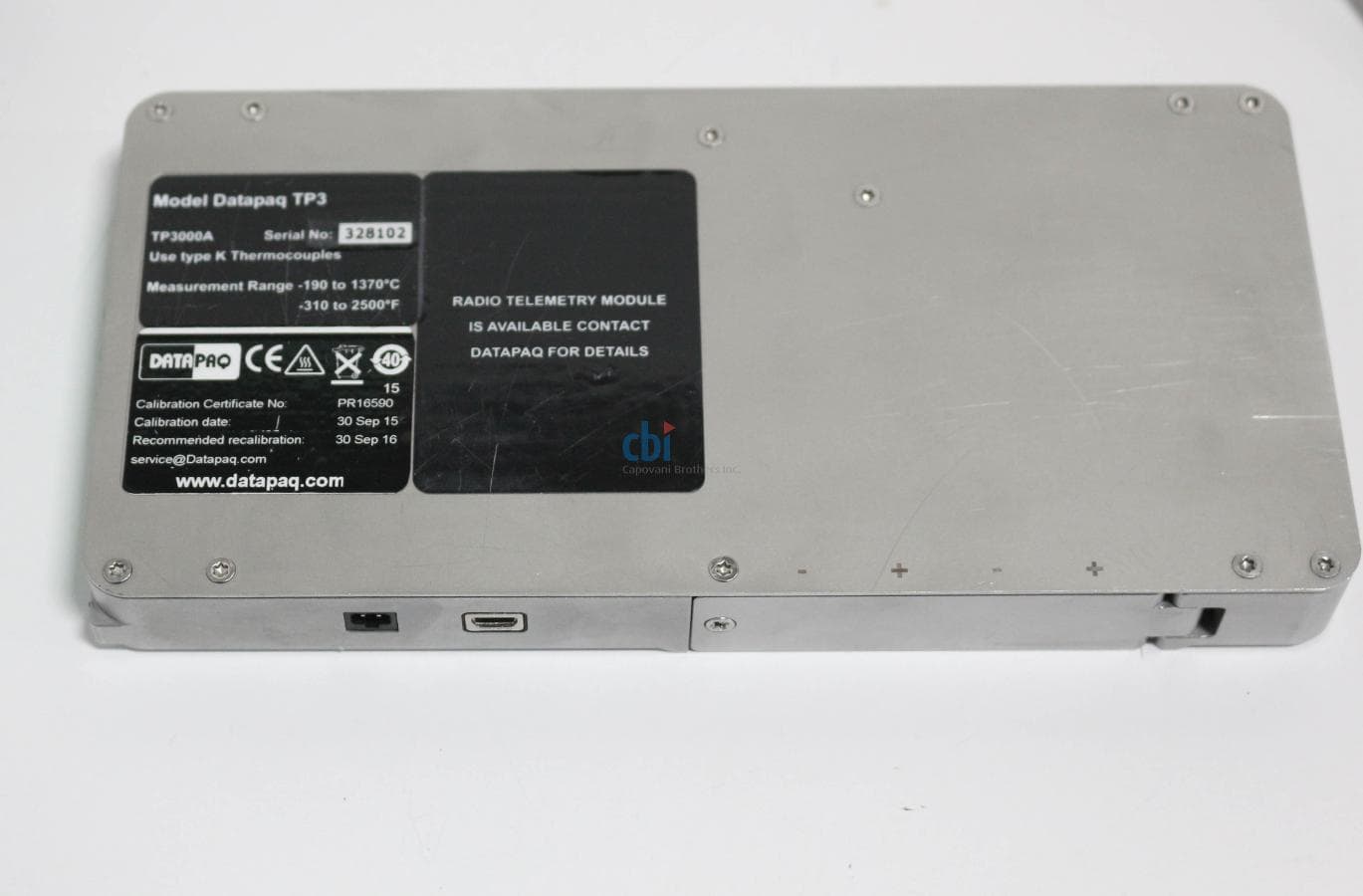

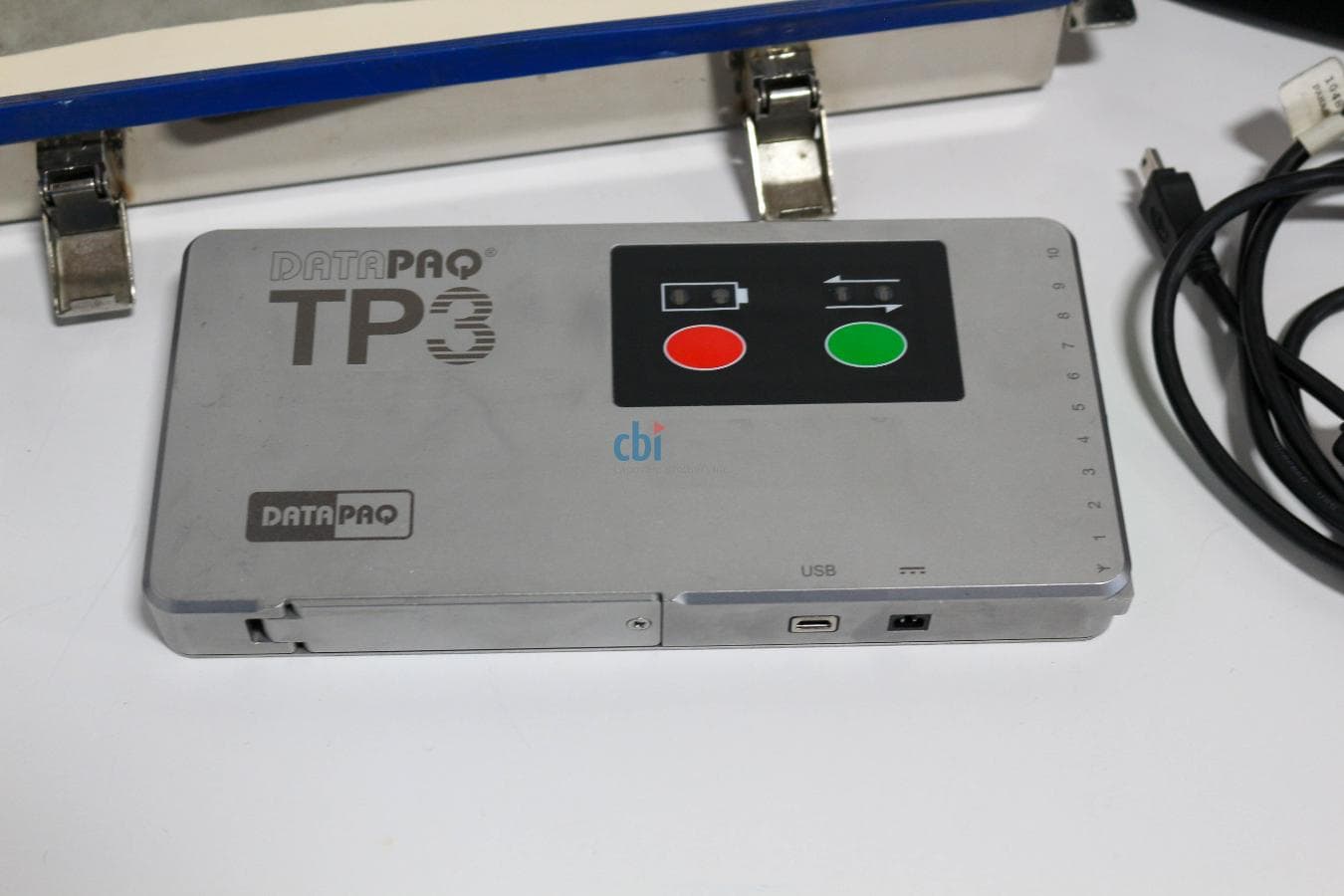

Data Logger
3.6 million data-points;
10 channels for type K thermocouples (thermocouples not included)
Measurement range: -190C to 1370C (-310F to 2500F)
Operating range (logger internal temperature): −40°C to 55°C (−40°F to 131°F)
Accuracy: ±0.3°C/0.5°F
Power source: Alkaline batteries, 450 hours
USB power: Logger is powered by USB when connected
Sample Intervals
1–3 channels 0.1 s to 50 min.
4–9 channels 0.2 s to 50 min.
10 channels 0.3 s to 50 min.
Data-collection start
No trigger, Start button, Date and time, Rising temperature, Falling temperature.
Pre-trigger data stored: Configurable
Multiple runs: Collect data from up to 10 runs before downloading
Multiple events: Up to 10 events (different probes, sample intervals and trigger modes for different stages of a profile run
Communications: USB 2.0, Mini-B socket.
For more information: www.flukeprocessinstruments.com
