FULL DESCRIPTION of Item 185839

in Sealing/Welding Systems
Item ID: 185839

Offered 1 Offered at $ 5,250.00

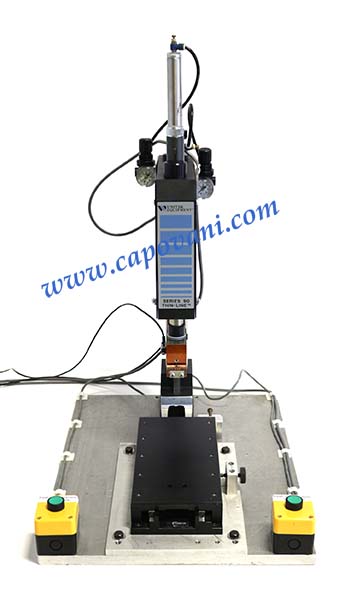

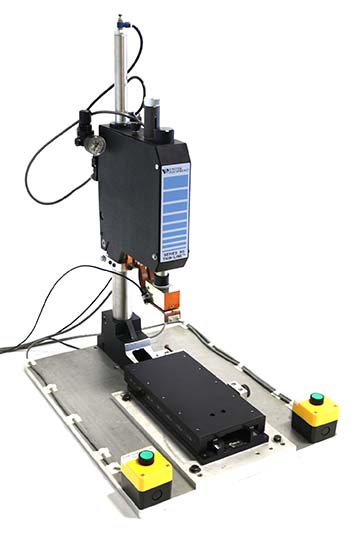

UNITEK REFLOW SOLDERING SYSTEM

Solder Reflow System
UNITEK REFLOW SOLDERING SYSTEM
  Click to see additional image(s)... other images

Location: Scotia, NY, United States
Unit Price $ 5,250.00
Number of Units 1
Manufacturer Unitek
Model Thin-Line 90RA -- Phasemaster IV
Description Thin-Line Reflow Soldering System
Actuation Pneumatic
Maximum Rating 2.0  KVA
Weld Force Minimum 7.00  lb  (3.18 kg)
Weld Force Maximum 150.00  lb  (68.04 kg)
Weld Head Type Solder Reflow
Welding Speed 60  welds/m
Maximum Throat Size
  Height 8.25  cm  (3.25 in)
Power Supply Included YES
Power Supply Model Phasemaster 4

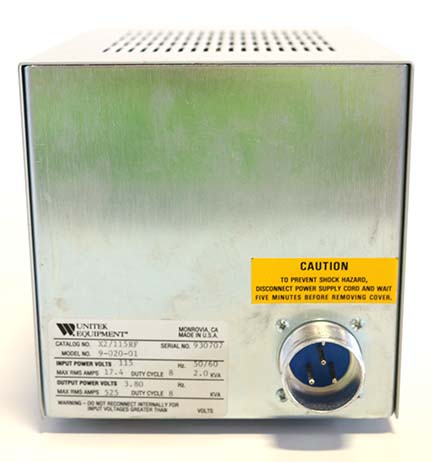

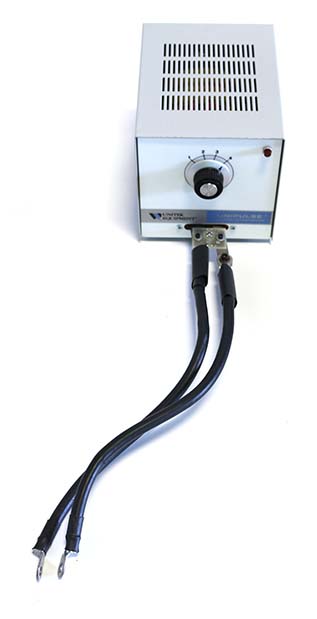

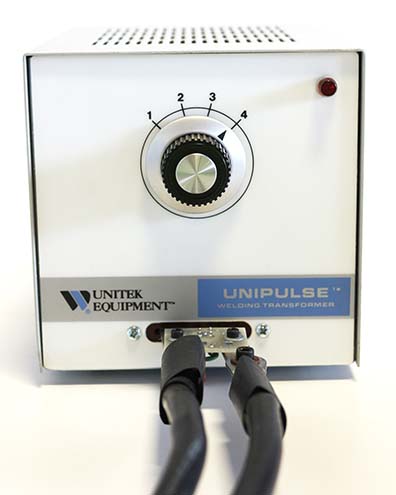

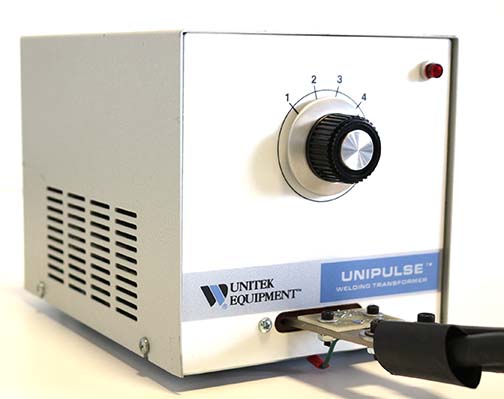

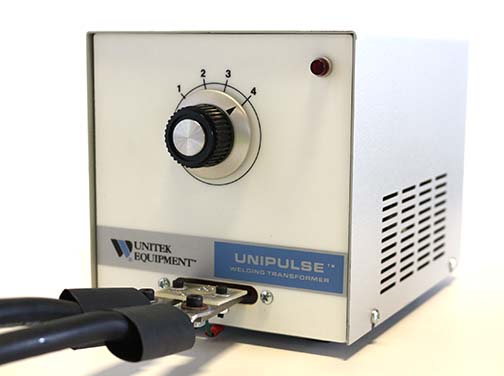

Other Information Unitek Transformer
Catalog No.:  X2/115RF, Model: 9-020-01
Input:  115V, 17.4A, 50/60Hz, 2.0KVA
Output: 3.80V, Max RMS Amps:525

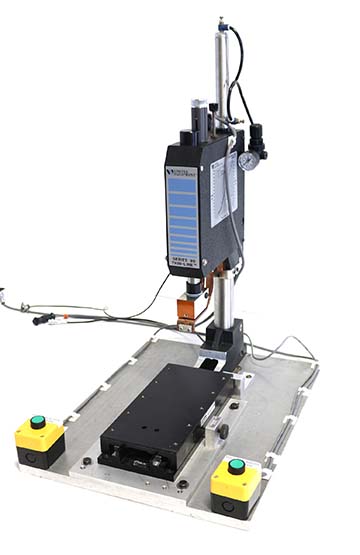

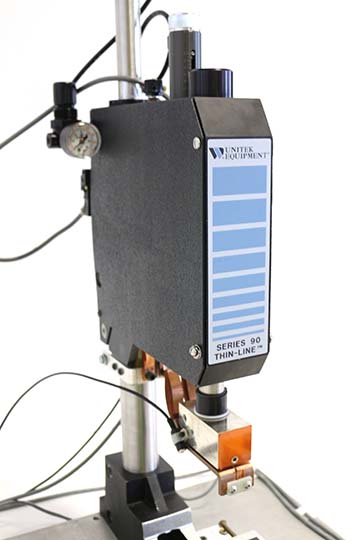

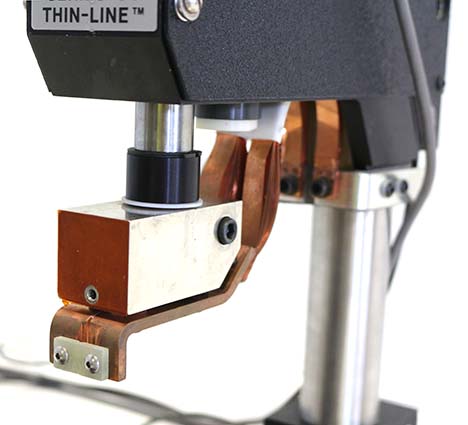

Unitek Thin Line Weld Head
Catalog No.:  90RA/24, Model: 2-151-02-02

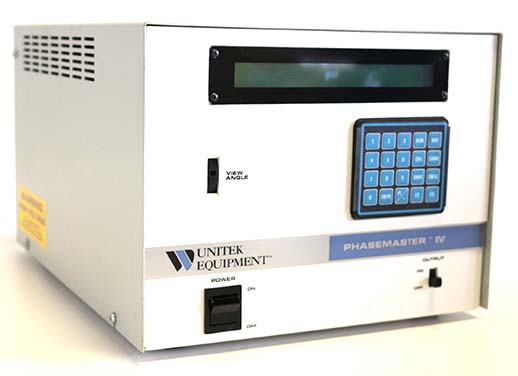

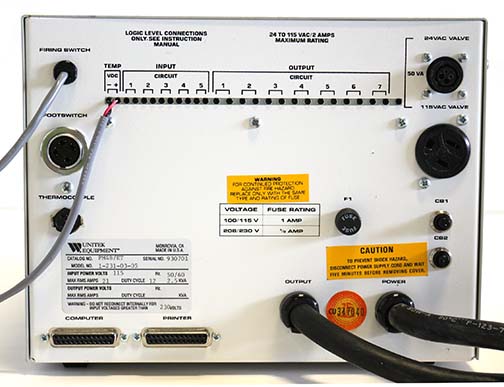

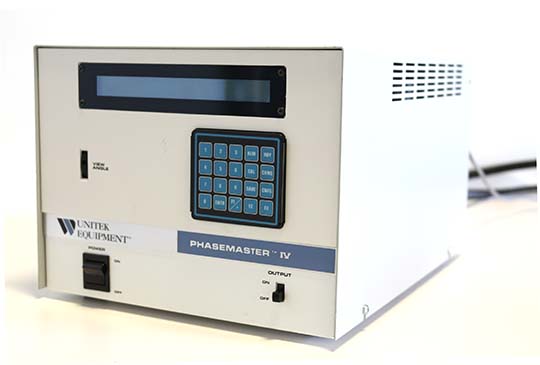

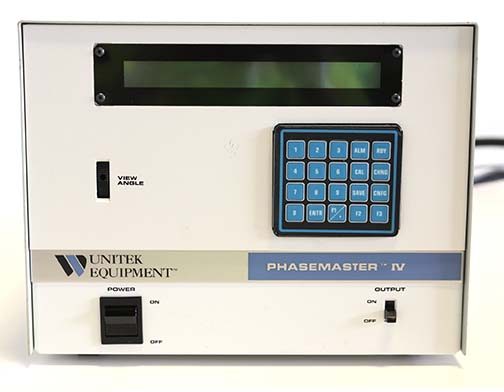

Unitek Phasemaster IV Power Supply
Catalog No.:  PM4B/ET, Model: 1-231-03-05
Input power: 115V, 21A, 50/60 HZ

Power Requirements 115 V     50/60 Hz     1¬†Phase
