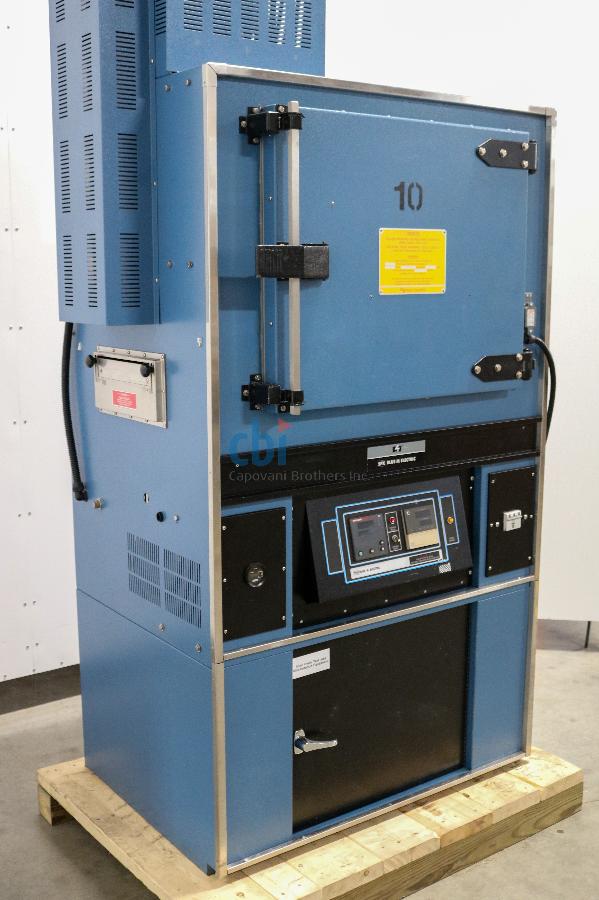

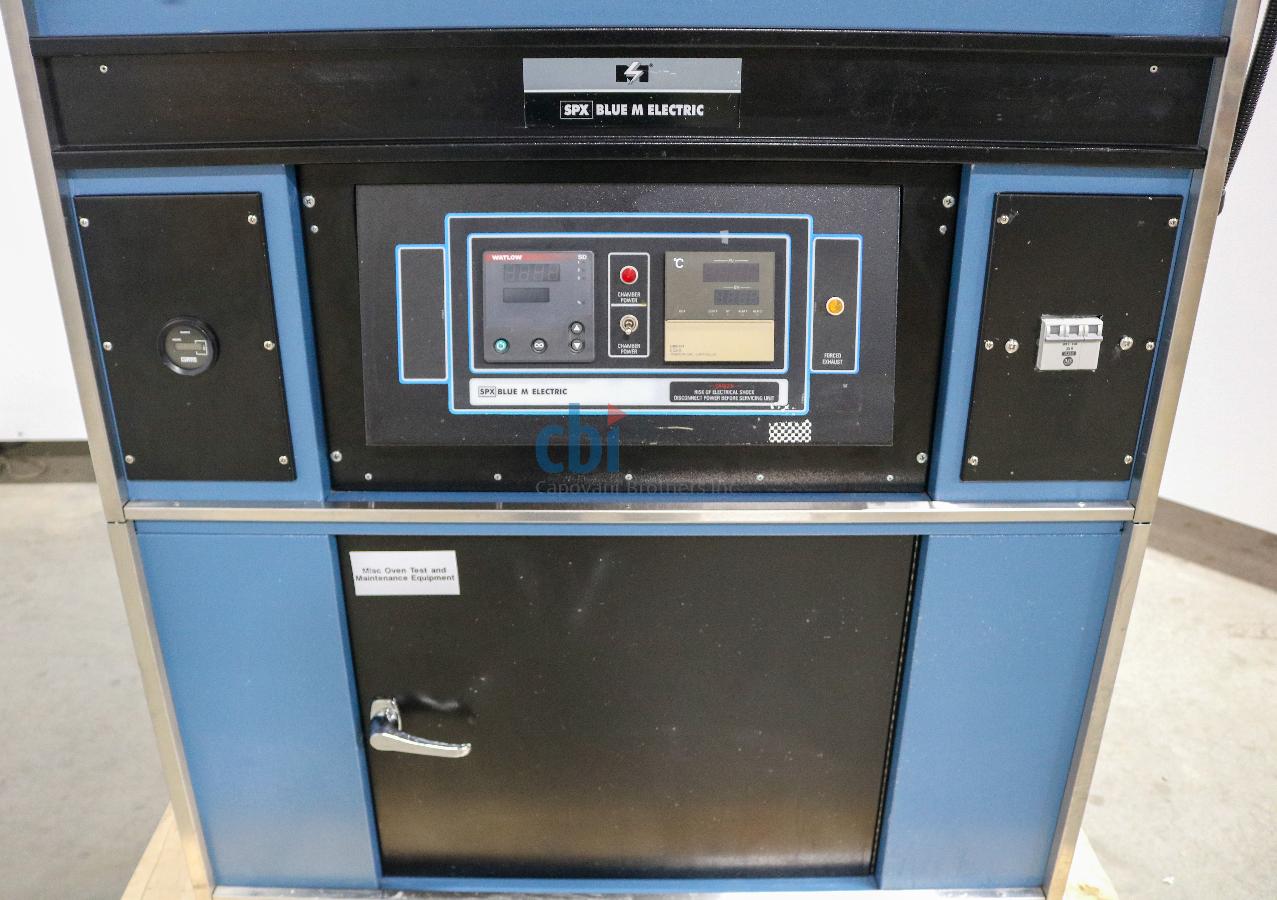

BLUE M CLASS A VOLATILE OVEN 316C

Class A Volatile Oven

In addition to this Blue M DCSA-256-G-MP550-HP, Capovani Brothers Inc stocks a wide range of used laboratory and industrial ovens, including convection, both gravity and mechanical, large batch, inert gas, solvent drying, clean room, burn in and vacuum. Typical manufacturers include Blue M, Despatch, Grieve, Lab-Line, Lindberg, Napco, Precision Scientific, Sheldon, VWR Scientific and Yield Engineering. To view our complete stock of used ovens, visit our Ovens category.

All of our used ovens are refurbished and functionally tested prior to shipping. When selecting a used laboratory or industrial oven be aware that the input voltage will effect performance. Learn more about Input voltage and our oven refurbishment process

This used oven and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus equipment list

BLUE M CLASS A VOLATILE OVEN 316C
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Blue M
Model DCSA-256-G-MP550-HP
Description Class A Volatile Oven
Maximum Temperature 316  ºC  (601 ºF, 589 ºK)
Heat/Cool Controls

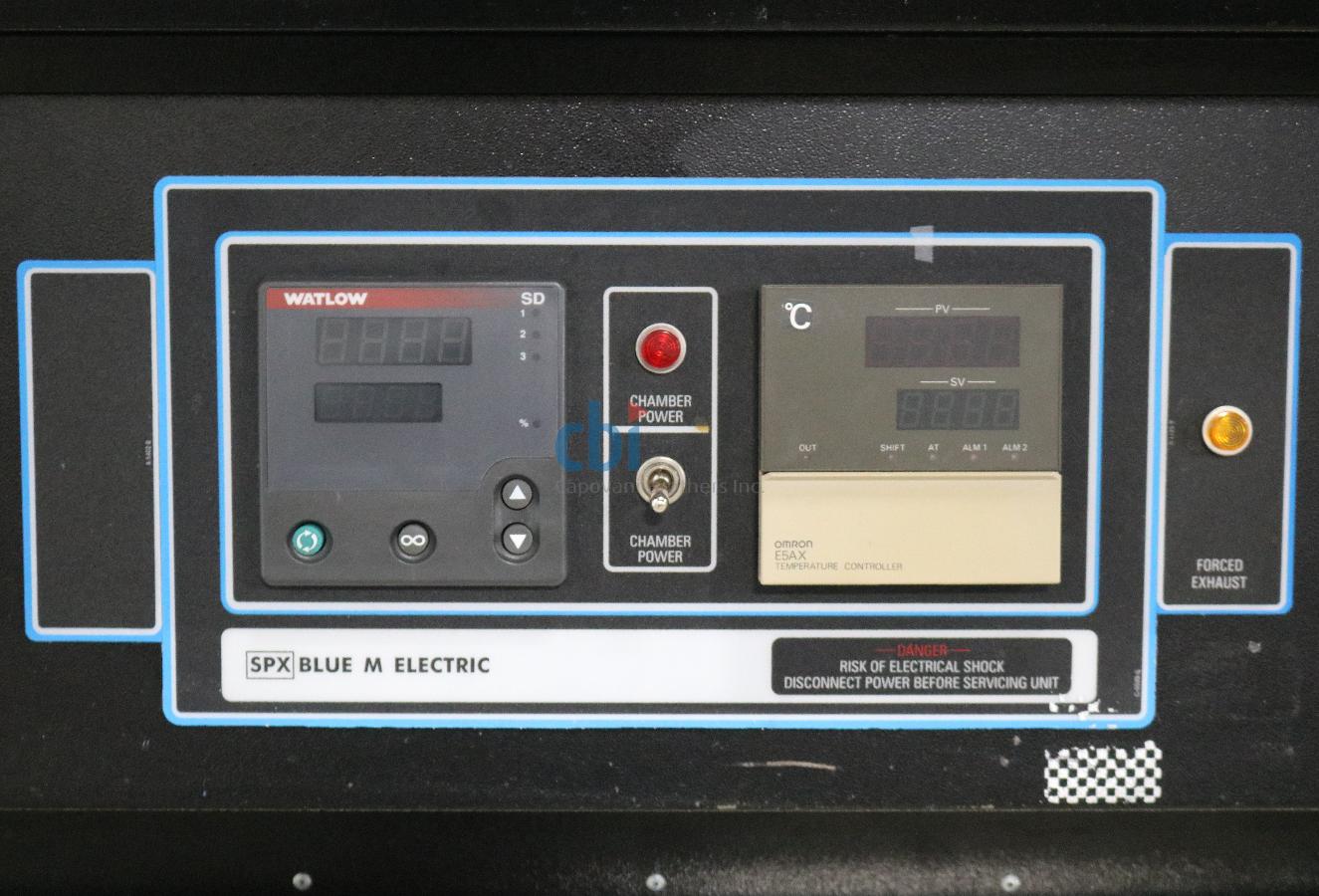

  Control Type Digital Setpoint
  Controller Manufacturer/Model Omron E5AX--A-F
Capacity/Volume Box 5.80  cu ft  (0.16 cu m)
Chamber Size
  Width 25.00  in  (63.50 cm)
  Depth 20.00  in  (50.80 cm)
  Height 20.00  in  (50.80 cm)

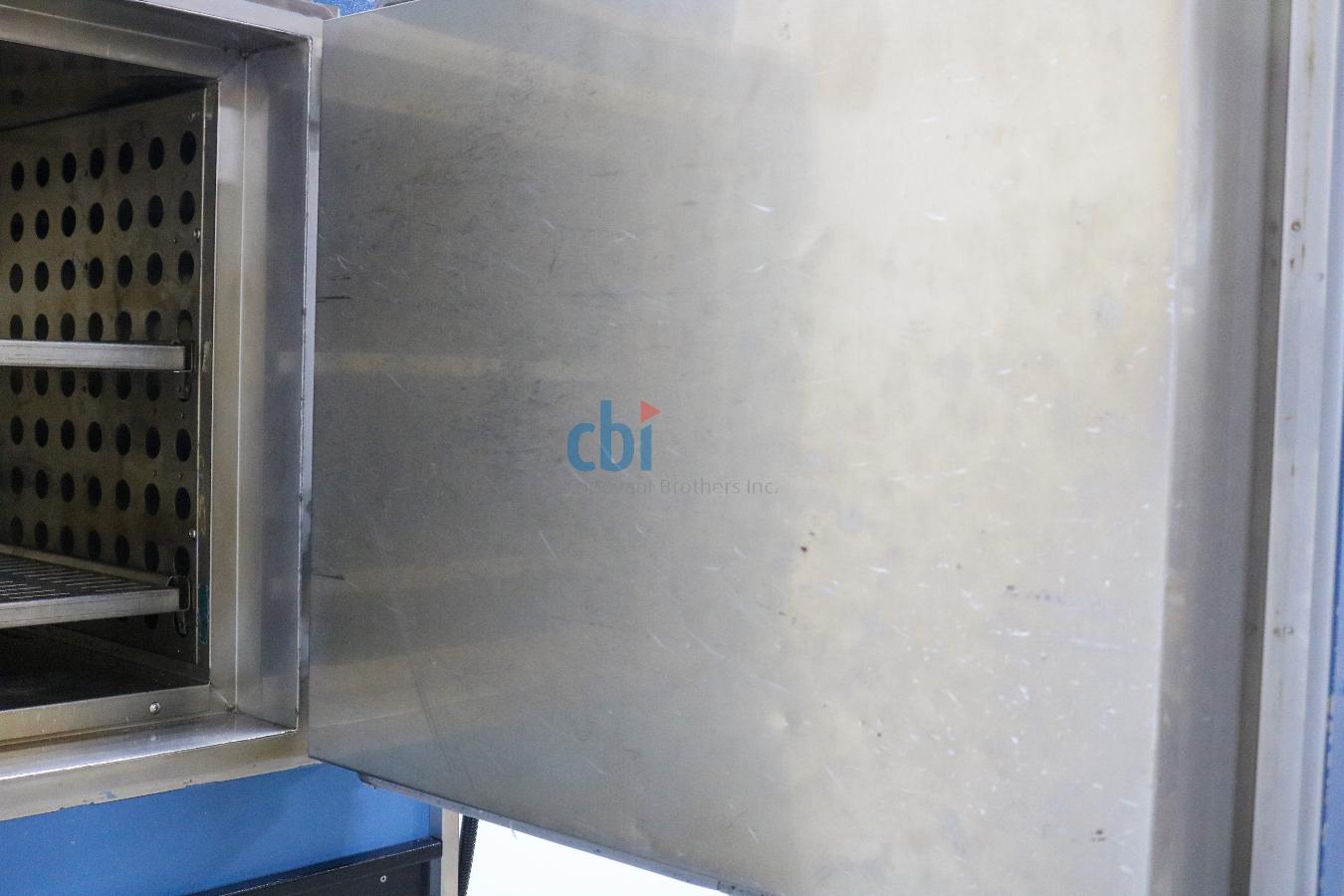

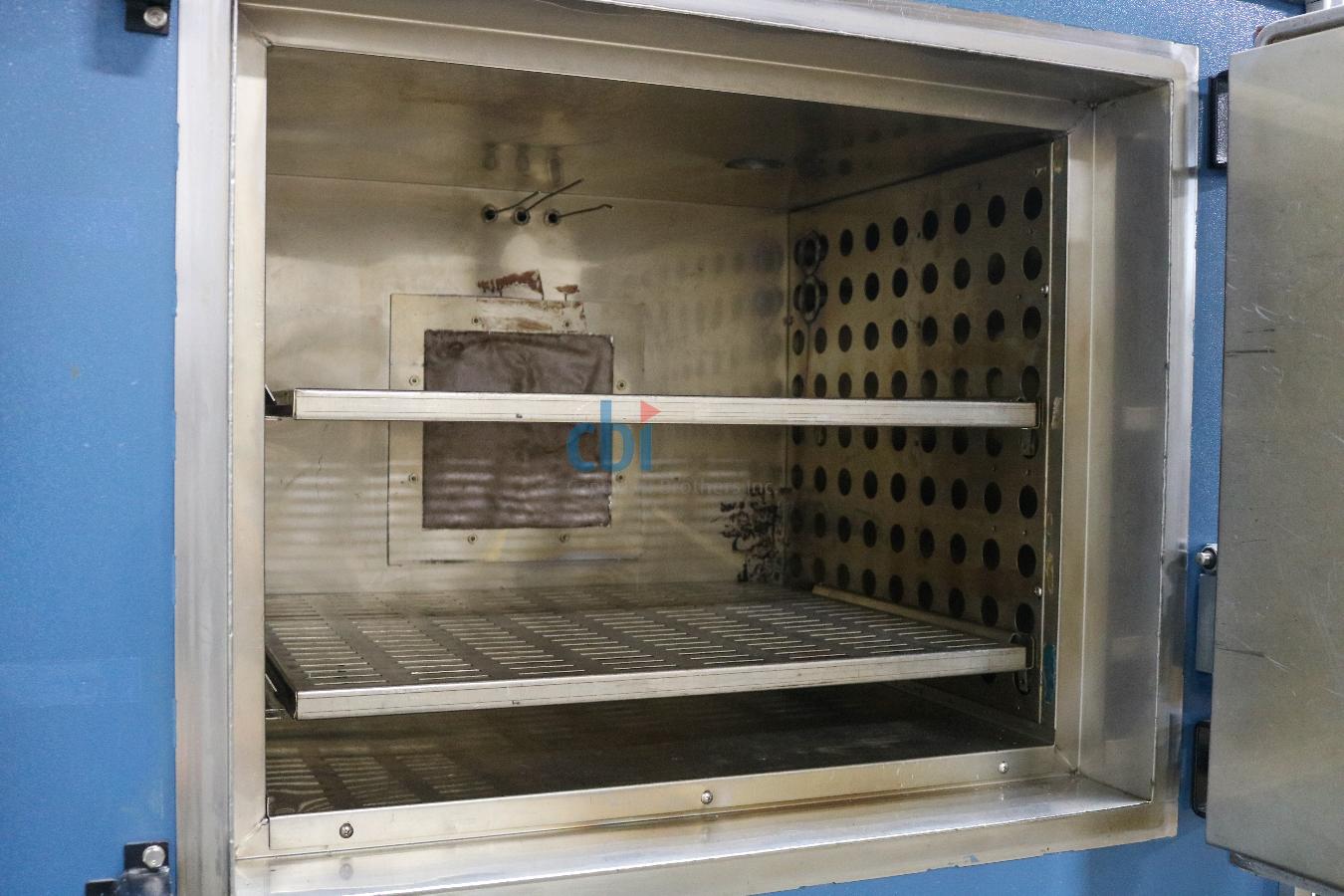

Chamber Characteristics
  Chamber Construction Stainless steel
  Maximum Number of Shelves 2
  Number of Shelves Provided 2

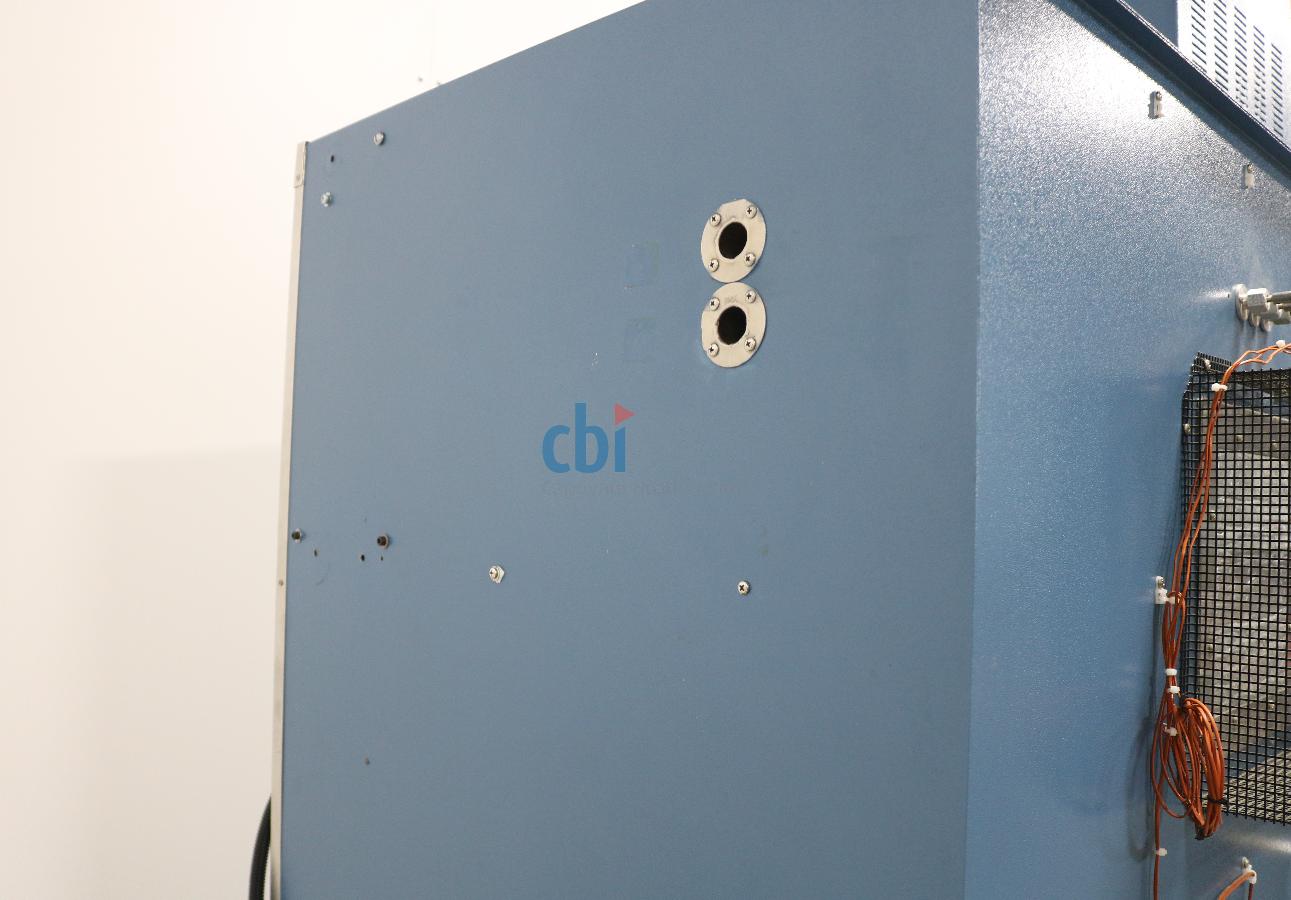

  Number and Size of Access Ports 3-1" Access ports 2 on right and 1 on left side
Other Information

Watlow SD control for over temperature.

Heating capacity 12-KW

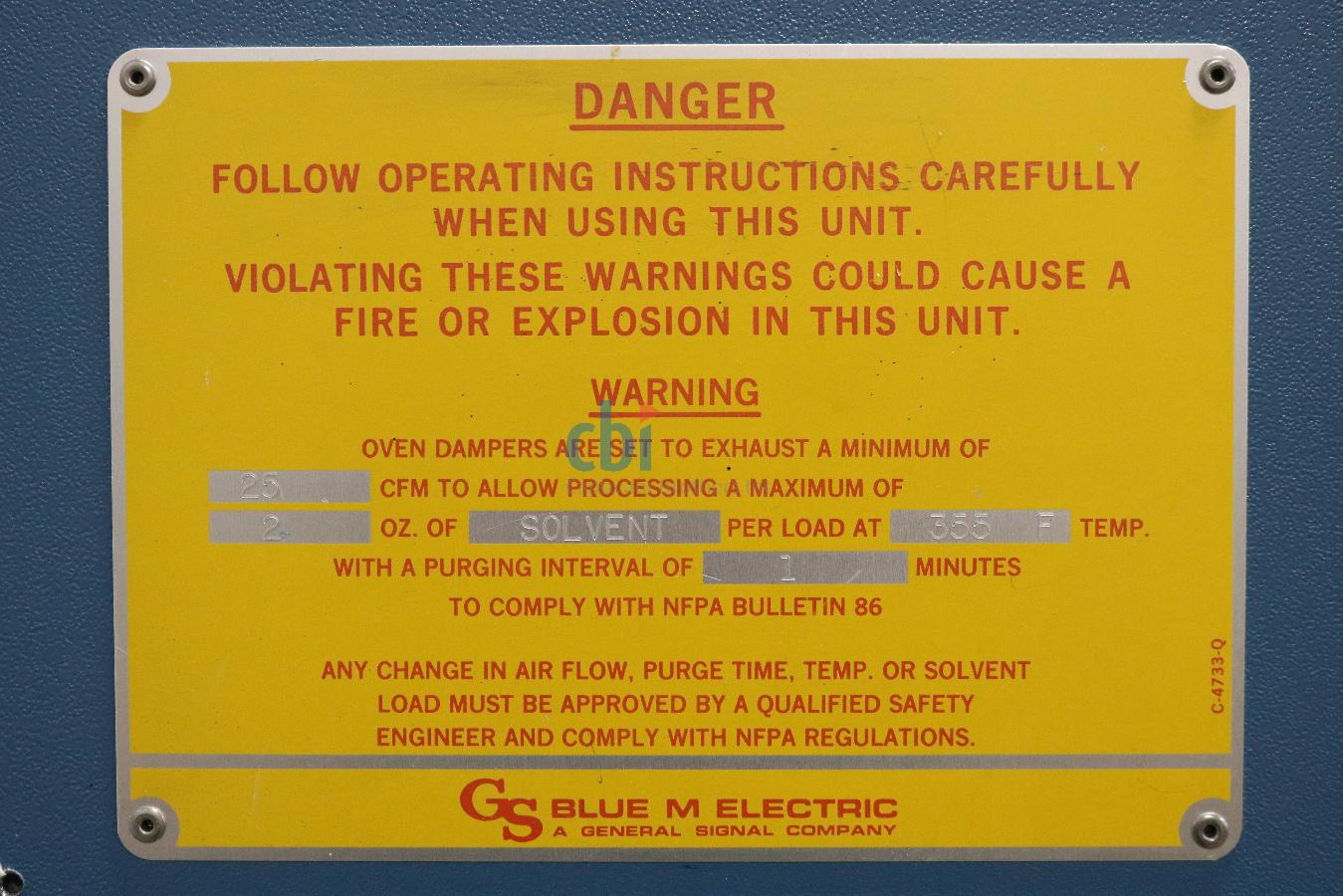

Minimum purge time required 1-min

Exhaust duct 3" x 7"

Type of solvent (Flammable liquid or gas} VM & P naptha or equal.

Fire Extinguisher port 2" on top of unit.

25-Amp Main Breaker.

Power Requirements 480 V     16.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 45.000  in  (114.3 cm)
  Depth 40.000  in  (101.6 cm)
  Height 83.000  in  (210.8 cm)
Weight 675  lb  (306 kg)
