FULL DESCRIPTION of Item 215336

in Platen Presses
Item ID: 215336

Offered 1 Offered at Best Price


PHI HEATED PLATEN PRESS 30 TON

Heated Platen Press

PHI HEATED PLATEN PRESS 30 TON
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer PHI
Model Q230H
Description Heated Platen Press
Frame Type H-Frame

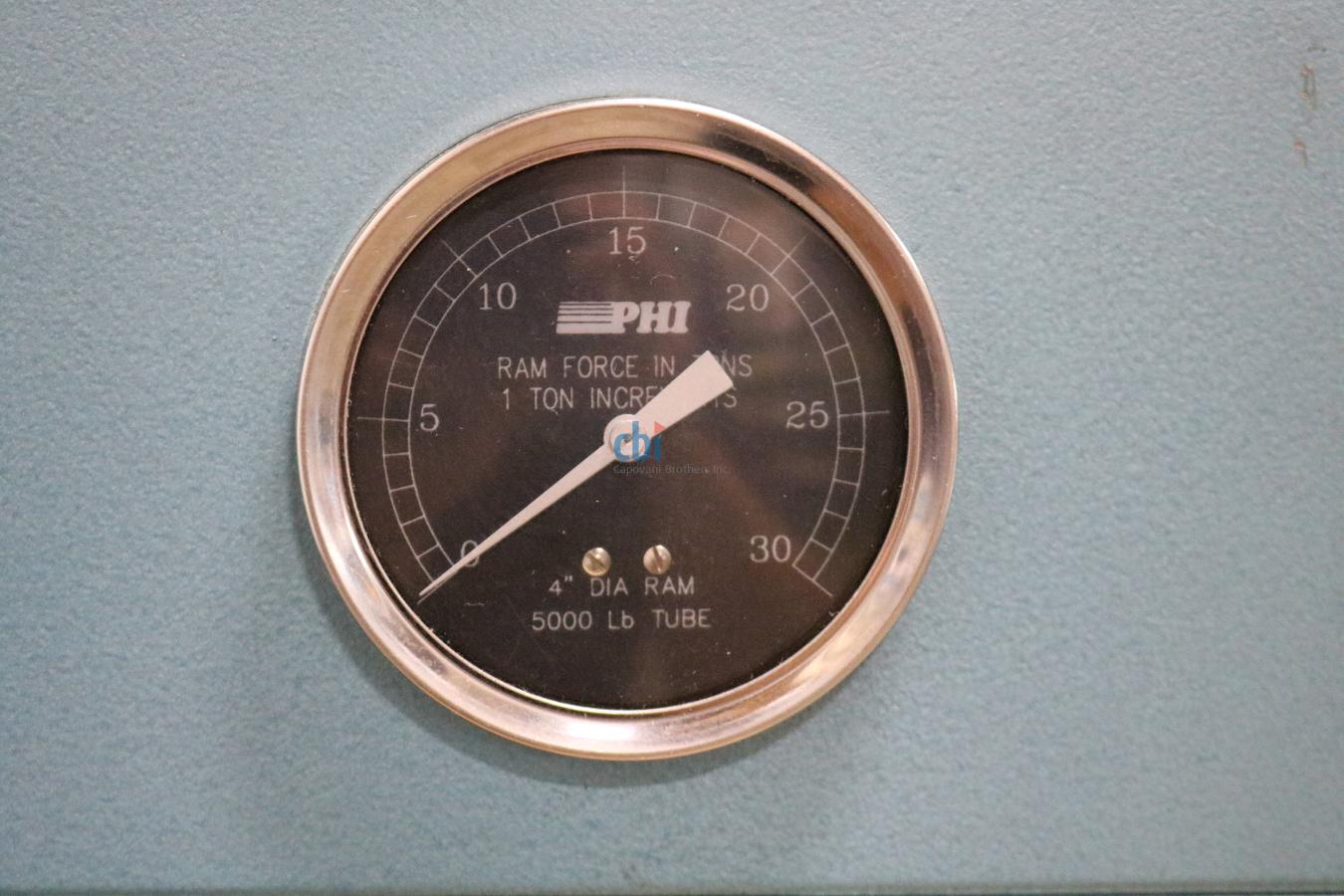

Tonnage 30.0  sh ton  (27.2 MT)
Heated Platen

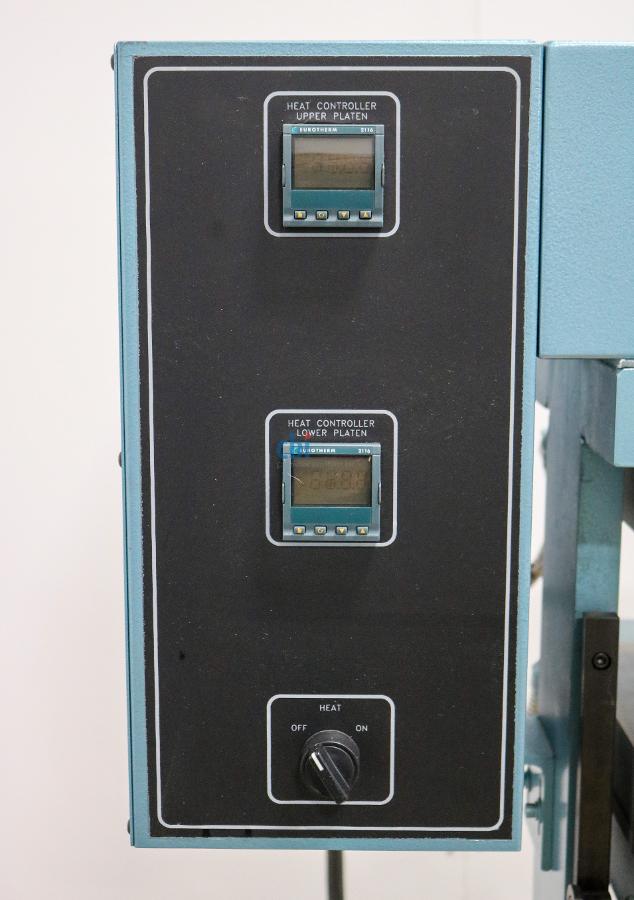

  Control Type Digital Setpoint
  External Cooling Air Cooled
Daylight 4.000  in  (10.2 cm)
Bed Area Width: 12.500  in  (31.8 cm)  -  Depth: 12.500  in  (31.8 cm)
Stroke 4.000  in  (10.16 cm)
Ram Diameter 5.000  in  (127 mm)
Extended Description  Details at PHI-Q230H Heated Platen Press.pdf
Power Requirements 240 V     17.0 A     60 Hz     1 Phase
Year of Manufacture 1999
Exterior Dimensions
  Width 31.000  in  (78.7 cm)
  Depth 17.000  in  (43.2 cm)
  Height 30.000  in  (76.2 cm)
Weight 730  lb  (331 kg)
