YIELD ENGINEERING VACUUM BAKE/VAPOR PRIME OVEN 200ºC

Other Ovens

Vacuum Bake/Vapor Prime Oven

This processing system combines ultimate dehydration with HMDS priming.
This cost effective system reduces HMDS consumption by 95% or more compared
with conventional spray or flood prime processes.

1 unit @ Best Price

Make: Yield Engineerng Sys

Model: YES-6112R

Item ID: 11557

Manufacturer	Yield Engineerng Sys
Model	YES-6112R
Description	Vacuum Bake/Vapor Prime
Maximum Temperature	200 ºC (392 ºF, 473 ºK)

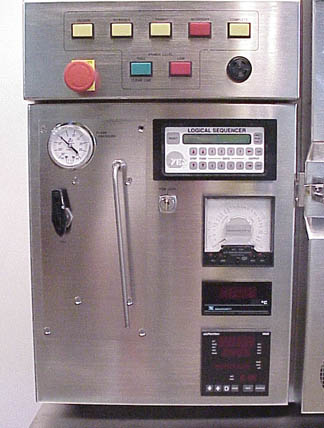

Heat/Cool Controls
Control Type	Programmable
Overtemperature Protection	YES
Controller Manufacturer/Model	LARK / I.S.P.C
Capacity/Volume Box	3.50 cu ft (0.10 cu m)
Chamber Size
Width	20.00 in (50.80 cm)
Depth	15.12 in (38.40 cm)
Height	20.00 in (50.80 cm)

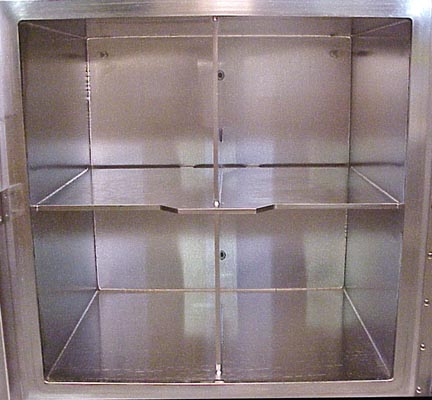

Chamber Characteristics
Chamber Construction	Electropolished 316 Stainless Steel

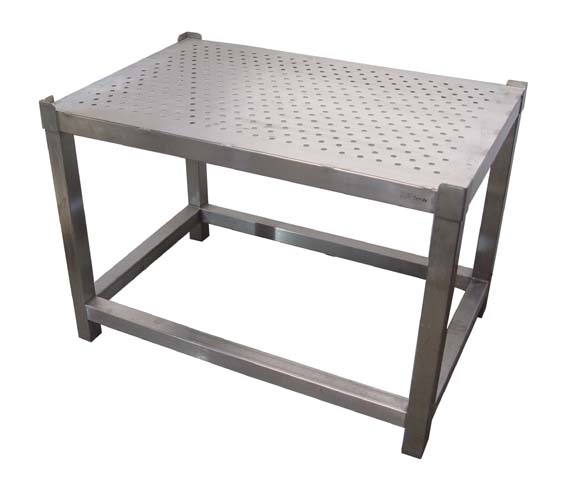

Accessories	Ramp option 1 Optional 27" high Stainless steel table $350.00 see photo #3
Other Information	Wafer Capacity: Four cassettes of 8" Eight cassettes of 4", 5" or 6" Throughput: 200 8" or 400 6" per hour 13- 200 watt heaters Stainless Steel HMDS Flask, 316SS float and stem level sensor.
Power Requirements	208 V 25.0 A 60 Hz 1 Phase
Year of Manufacture	2001
Condition	Excellent
Exterior Dimensions
Width	39.000 in (99.1 cm)
Depth	22.000 in (55.9 cm)
Height	26.000 in (66.0 cm)
Weight	440 lb (200 kg)
