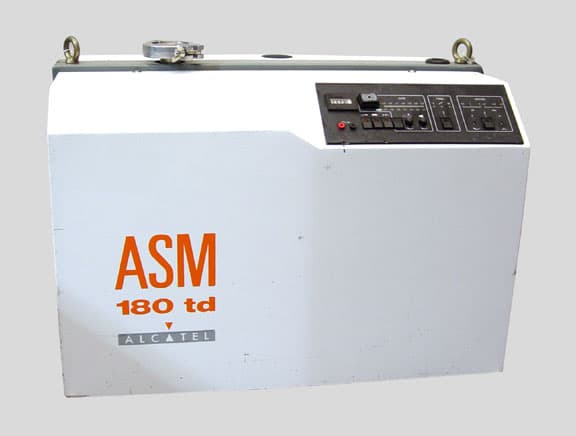

Alcatel ASM 180 TD Dry Helium Leak Detector

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Alcatel
MPN
ASM 180 TD
SKU
44813
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

External He calibration leak 3.7E-8 atm·cc/s,

Smallest detectable signal at full pumping speed 5E-12 (atm·cc/s)

Helium signal reading range 2E-11 to 1E-1(atm·cc/s)

Technical specifications

High Vacuum Pump TypeTurbomolecular Pump
Minimum Detectable Helium Leak Rate0.2E-10 atm-cc/sec
Maximum Detectable Leak Rate0.10E0 atm-cc/sec
Inlet Port for Auxiliary PumpNo
Test Port ConnectionKF 40
Start Up Time3 Min.
Helium Pumping Speed at Inlet4.40 l/s (9.32 CFM)
Remote Control CapabilitiesYes
Audio Alarm with Variable PitchYes
Detectable Masses4 AMU
Internal Calibrated LeakNot Included
Built-In Roughing PumpIncluded
Liquid Nitrogen TrapNot Included
Power Requirements115 V 60 Hz 1 Phase
Weight153 lb (69 kg)

Exterior Dimensions

Width23.000 in (58.4 cm)
Depth19.000 in (48.3 cm)
Height20.000 in (50.8 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
