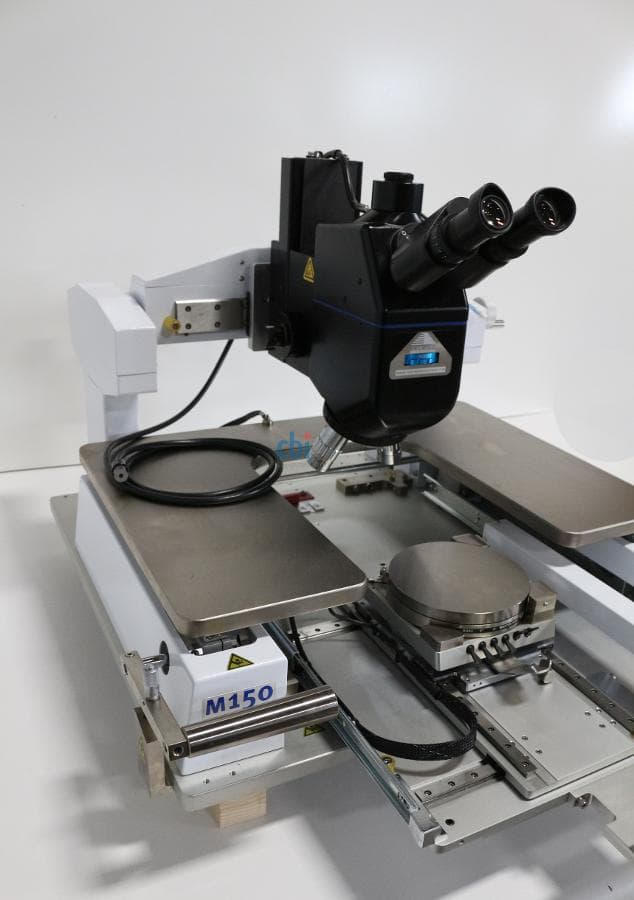

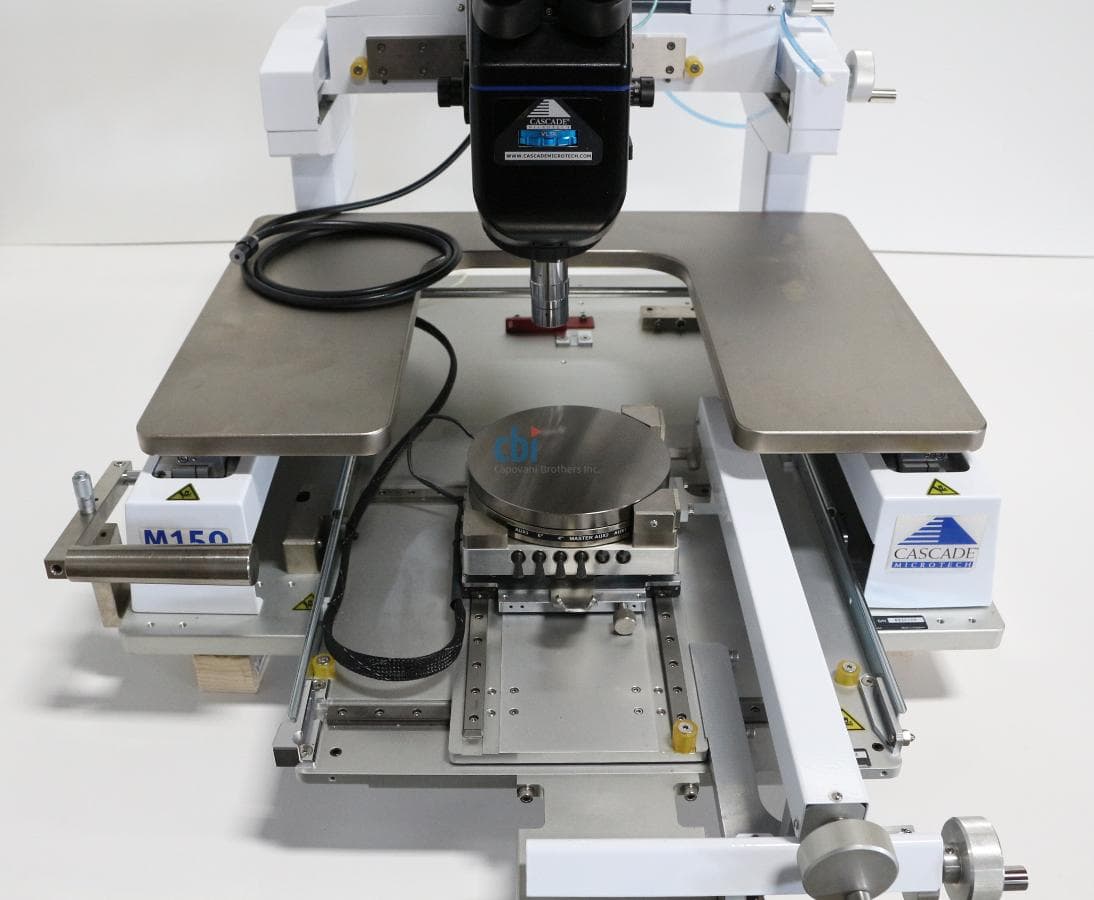

Cascade Microtech Formfactor M150 6" Manual Probe Station
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Cascade Microtech
- MPN
- M150
- SKU
- 231327
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Precision X-Y slides driven by individual knobs provide easy movement of the chuck.

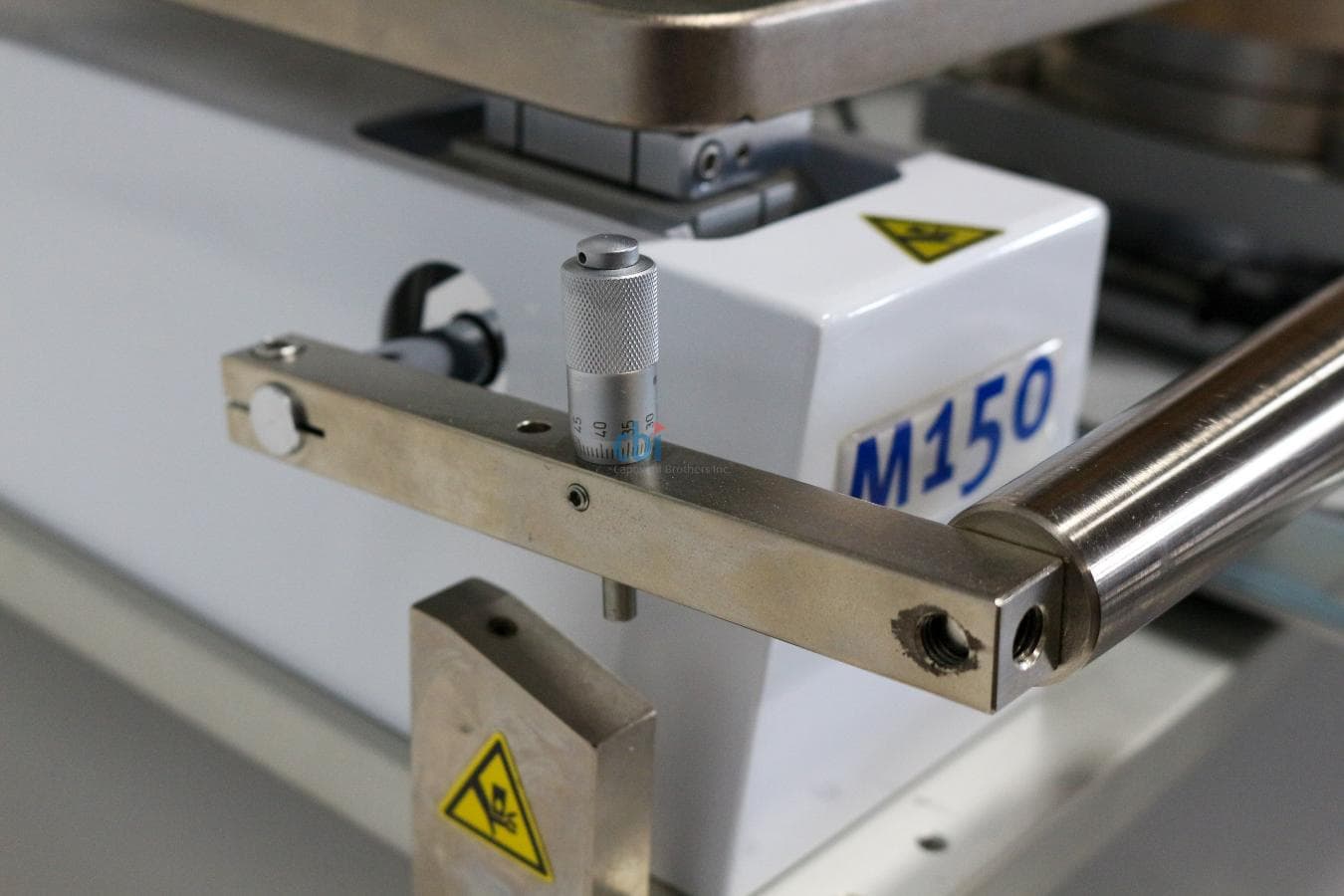

Fast Z lift of probe platen can be adjusted with micrometer for precision contact break with specimen.
Large magnetic stainless steel platen accommodates placement of variety of probe positioners.

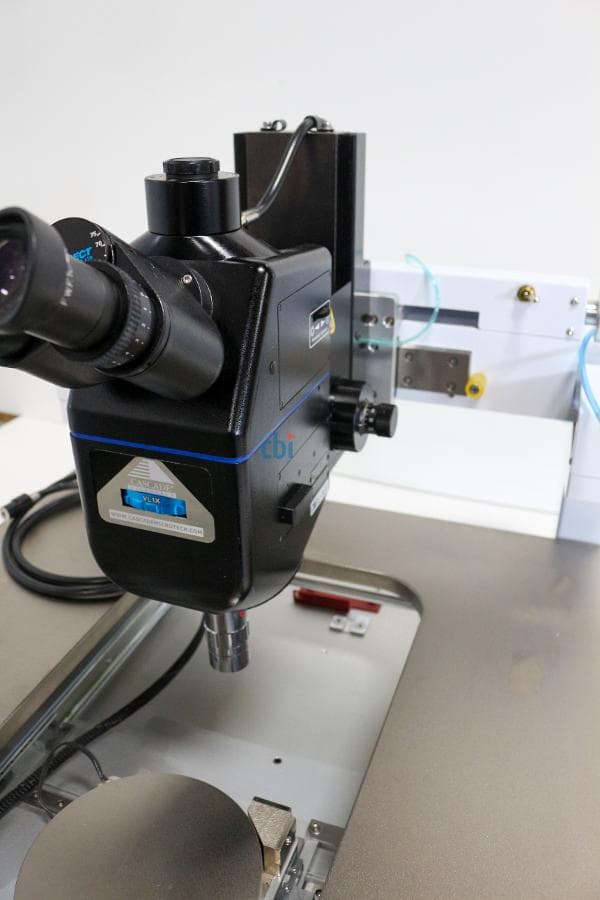

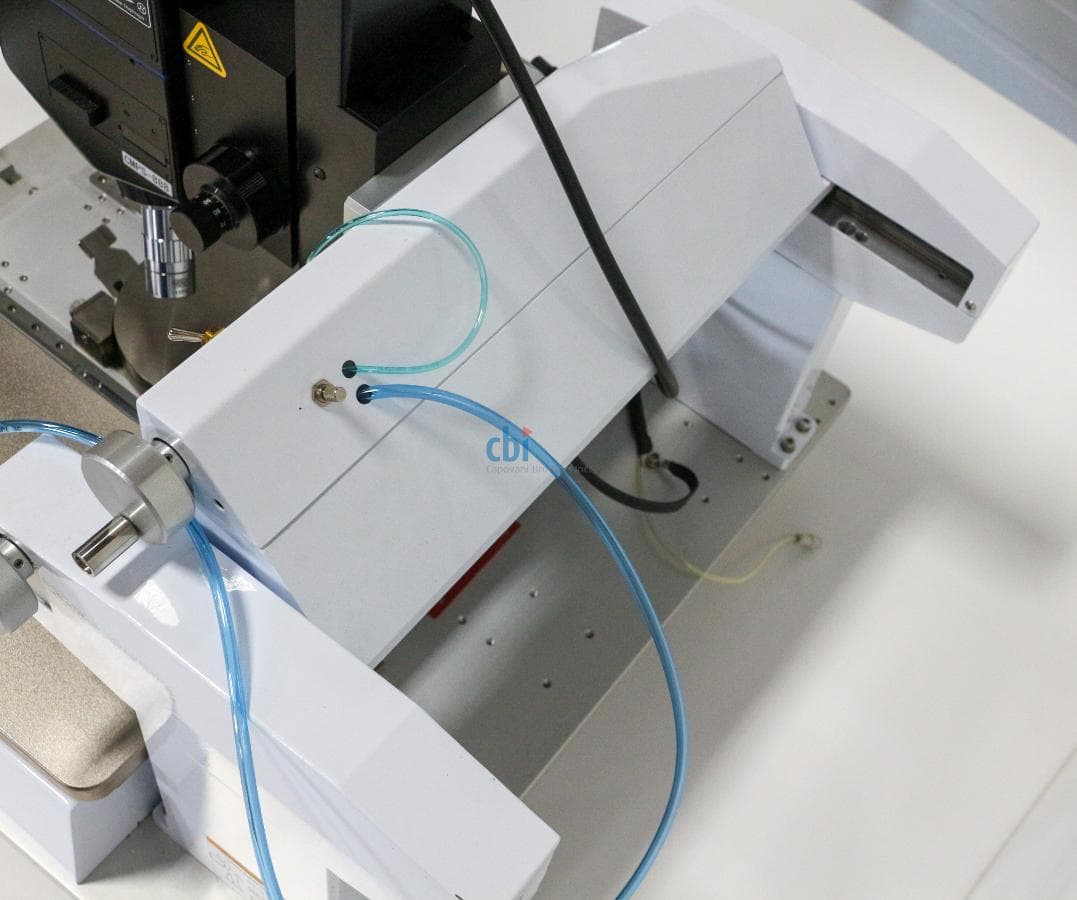

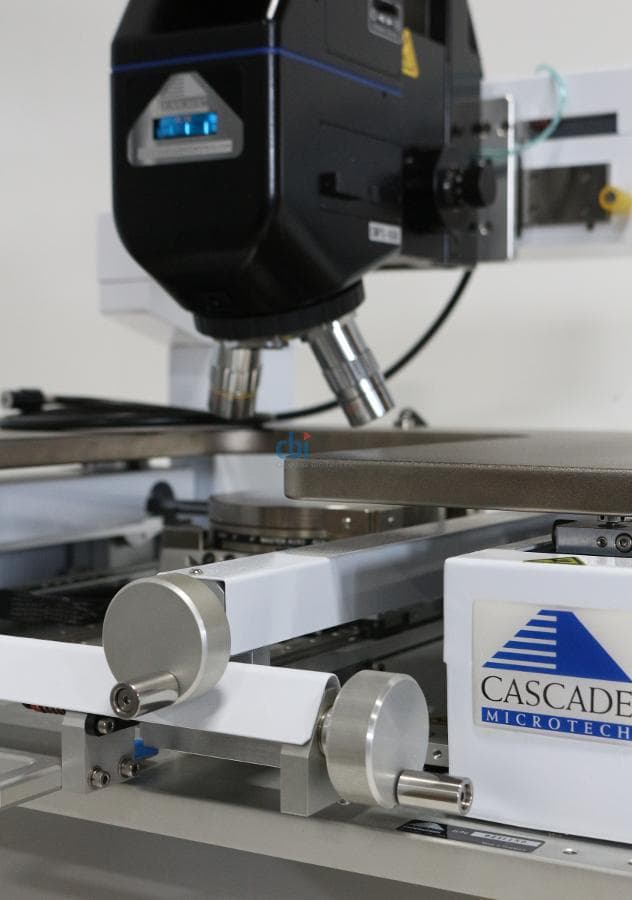

Large microscope gantry is designed to enable viewing of DUT boards and probes with ease.
Technical specifications
| Microscope Type | Stereo Zoom |

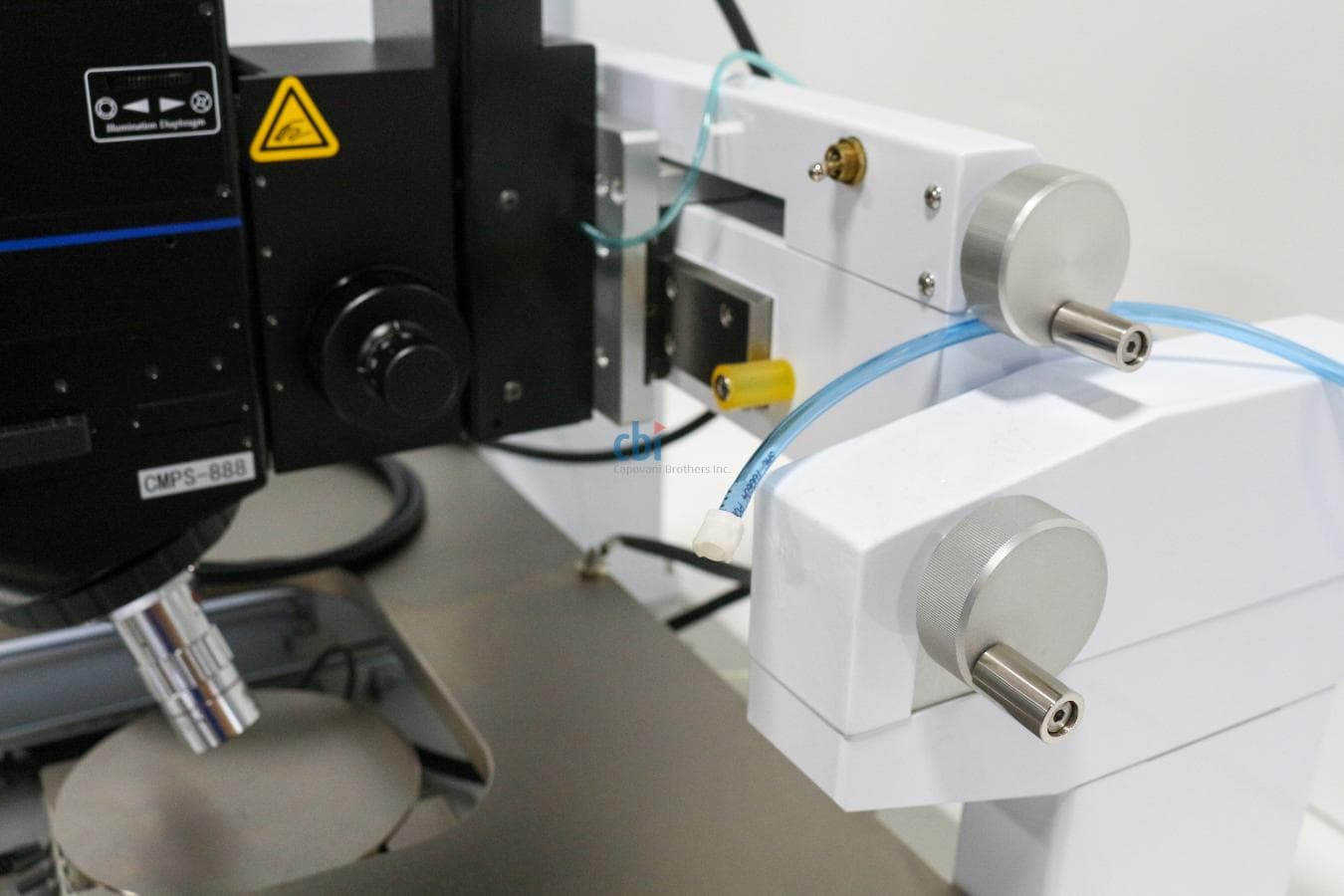

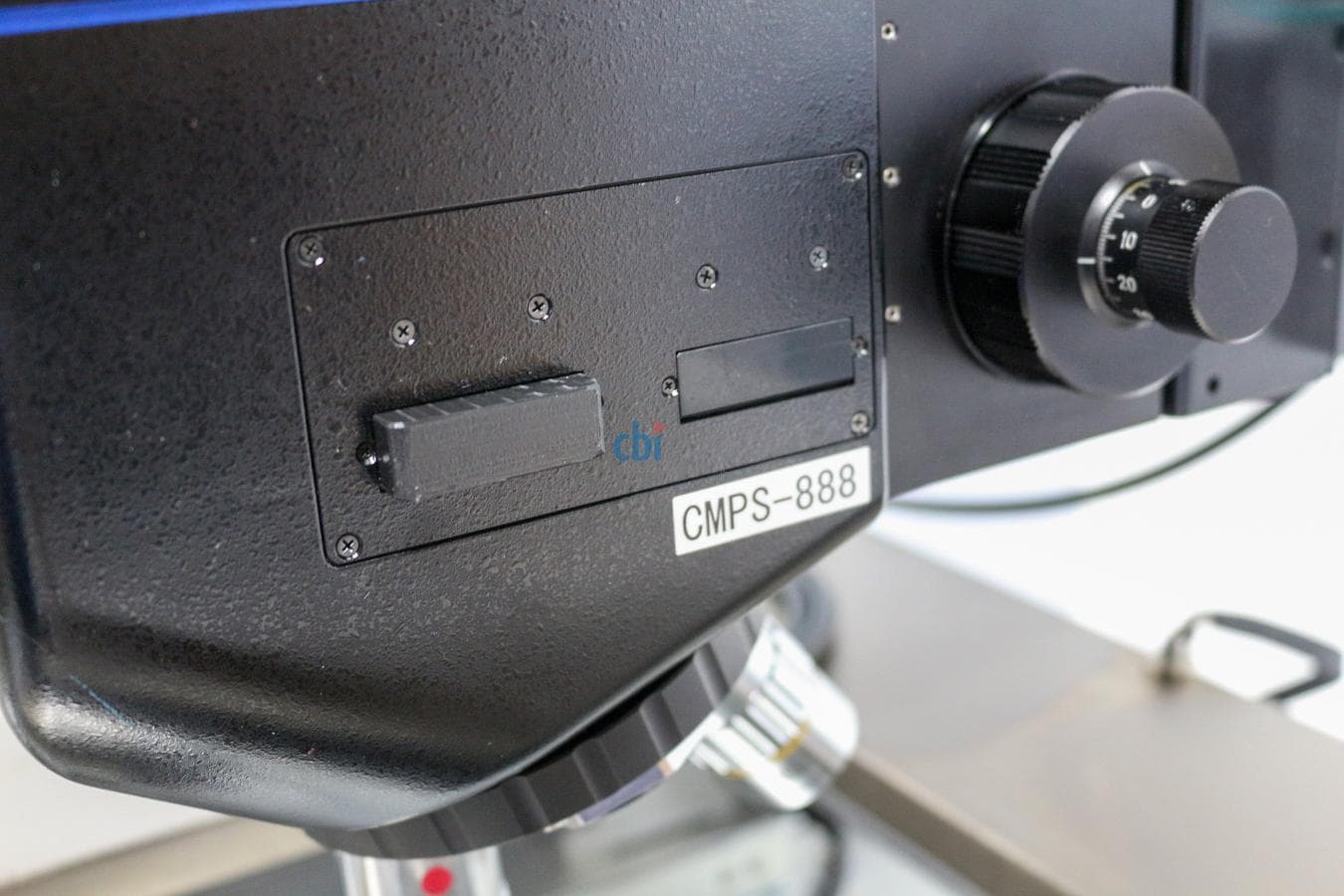

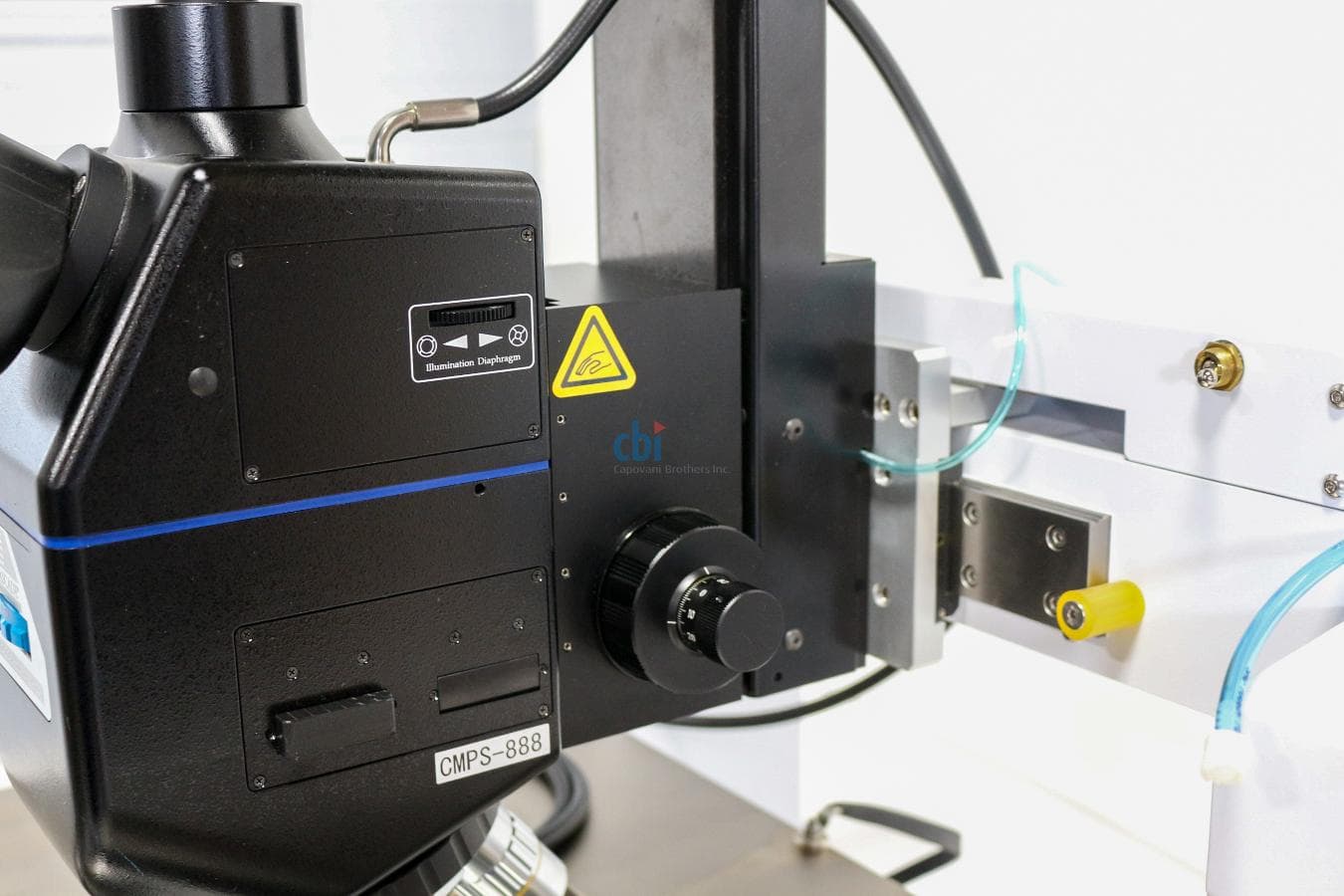

| Microscope Make | SEIWA Optical Microscope Model CMPS-888 |
| Objectives | MPLAN APO 10X/0.25, SLWD, Infinity Corrected and MPLAN APO 2.5X/0.06, SLWD, Infinity Corrected |
| Number of Micropositioners | 0 |
| CE Marked | Yes |
| Weight | 255 lb (116 kg) |
Wafer Size Range
| Minimum | 50 mm |
| Maximum | 150 mm |

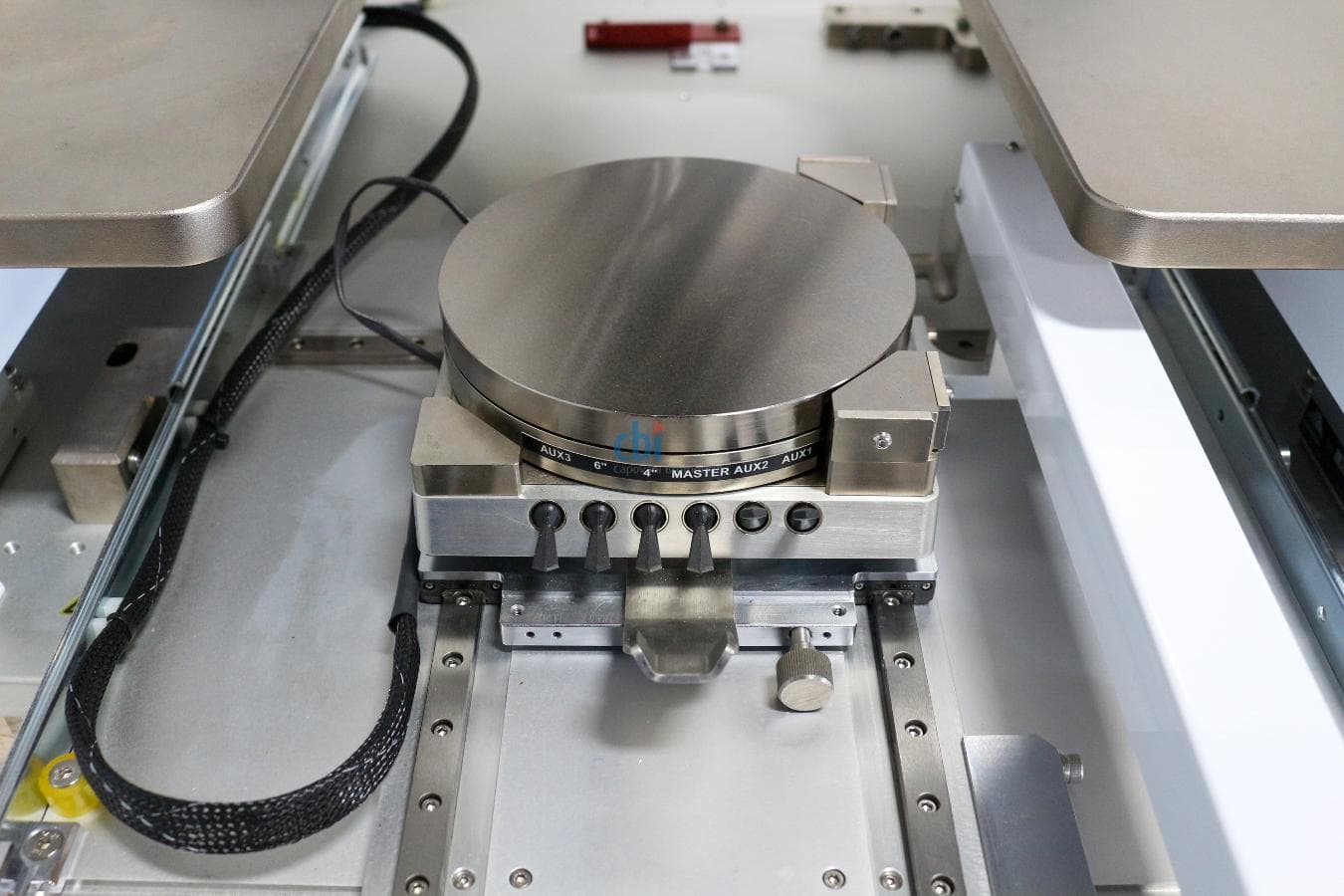

Vacuum Chuck
| Diameter | 6.0000 in (152.40 mm) |
| Plating Material | Nickel |
Condition & testing notes
Previously in service and offered for secondary-market resale.
