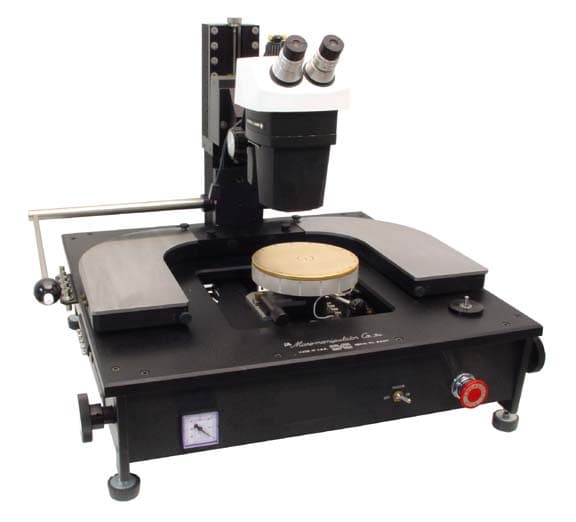

Micromanipulator 6640 Semi Automatic Wafer Prober
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Micromanipulator
- MPN
- 6640
- SKU
- 45437
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
B&L Stereo Zoom 7 Microscope 10 to 70X

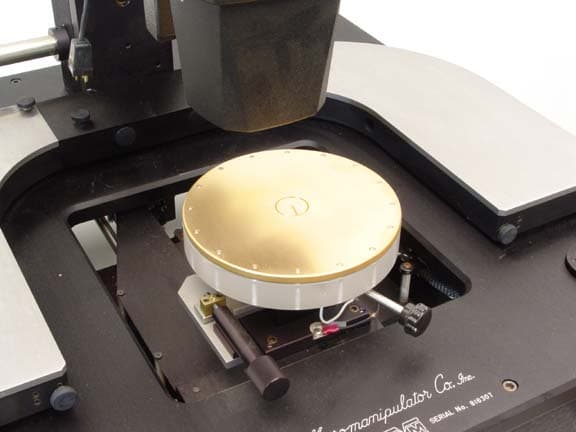

Vacuum Chuck
Flatness +-.0005"
Electrical isolation exceeds 500 mghohms at 500 VDC
Electrically connected via coax cable to BNC at rear of machine
Fine Lift Control
Resolution: 0.3 micron per degree of revolution
Range: 0.5"
Technical specifications
| Microscope Type | Stereo Zoom |
| Vacuum Required | 20.00 in Hg (507.99 mm Hg) |
| Interface | RS 232 |
| Power Requirements | 120/240 V 15.0 A 50/60 Hz 1 Phase |
| Weight | 151 lb (68 kg) |
Wafer Size Range
| Set Size | 150 mm |
Vacuum Chuck
| Diameter | 6.0000 in (152.40 mm) |
| Plating Material | Gold Plated Brass |
Exterior Dimensions
| Width | 24.000 in (61.0 cm) |
| Depth | 24.000 in (61.0 cm) |
| Height | 22.000 in (55.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
