Datapaq TP2216A Furnace Temperature Profiling System
- Condition
- Used See details
- Brand
- Datapaq
- MPN
- TP2216A
- SKU
- 217551
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Thermal barrier model TB5011B

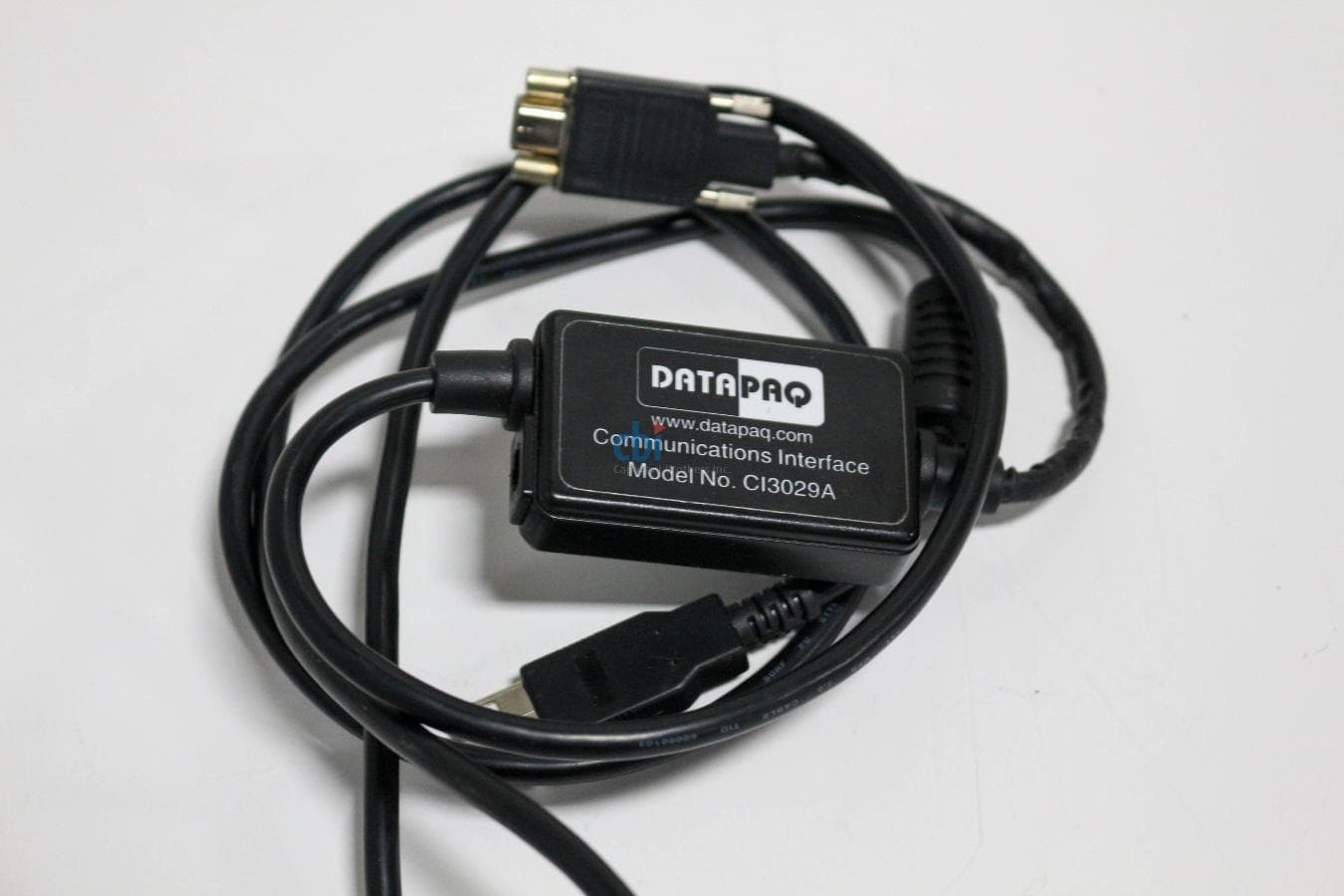

USB communications adapter cable CI3029A
Battery charger

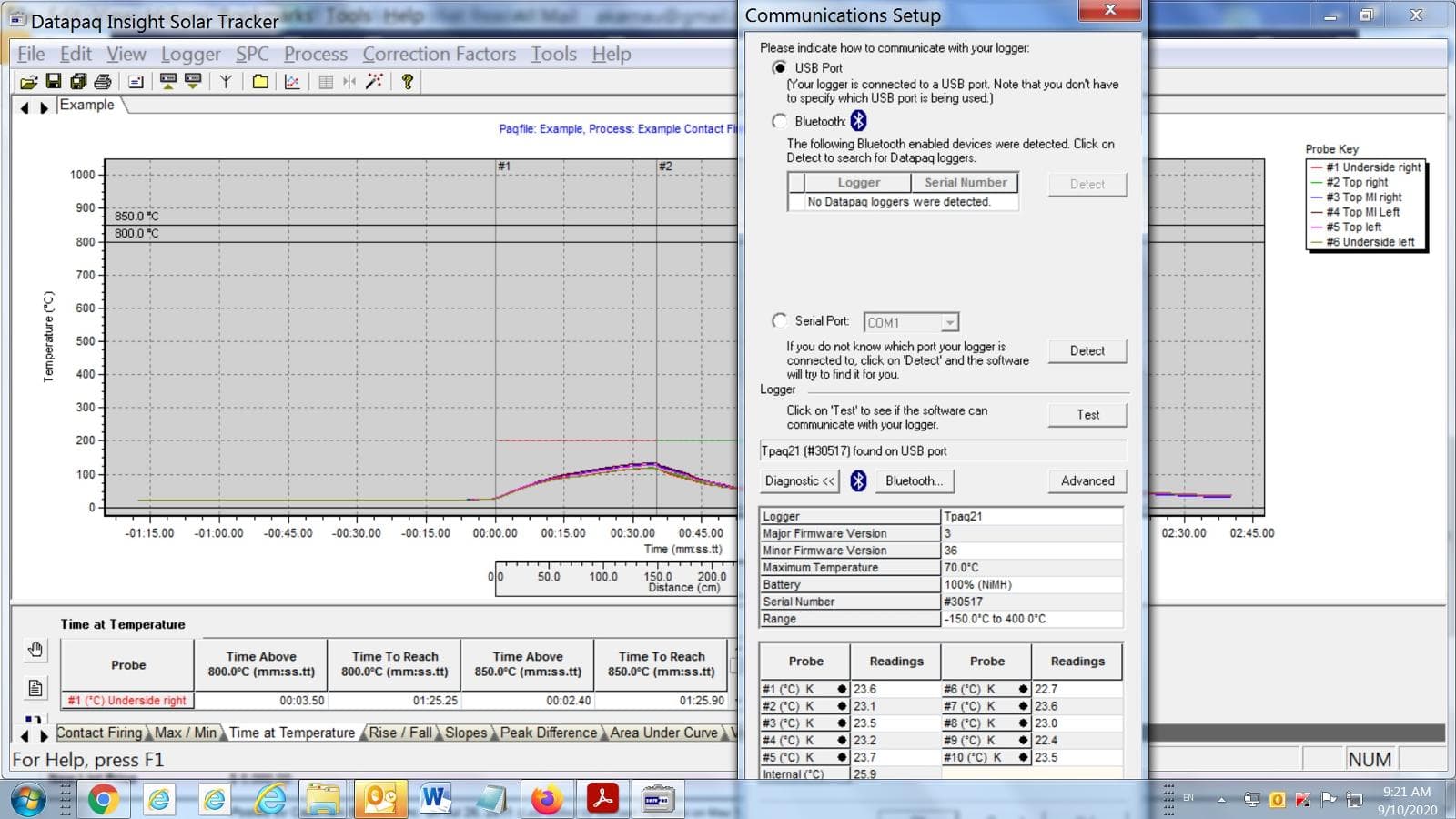

Datapaq Insight Tracker software available, please inquire

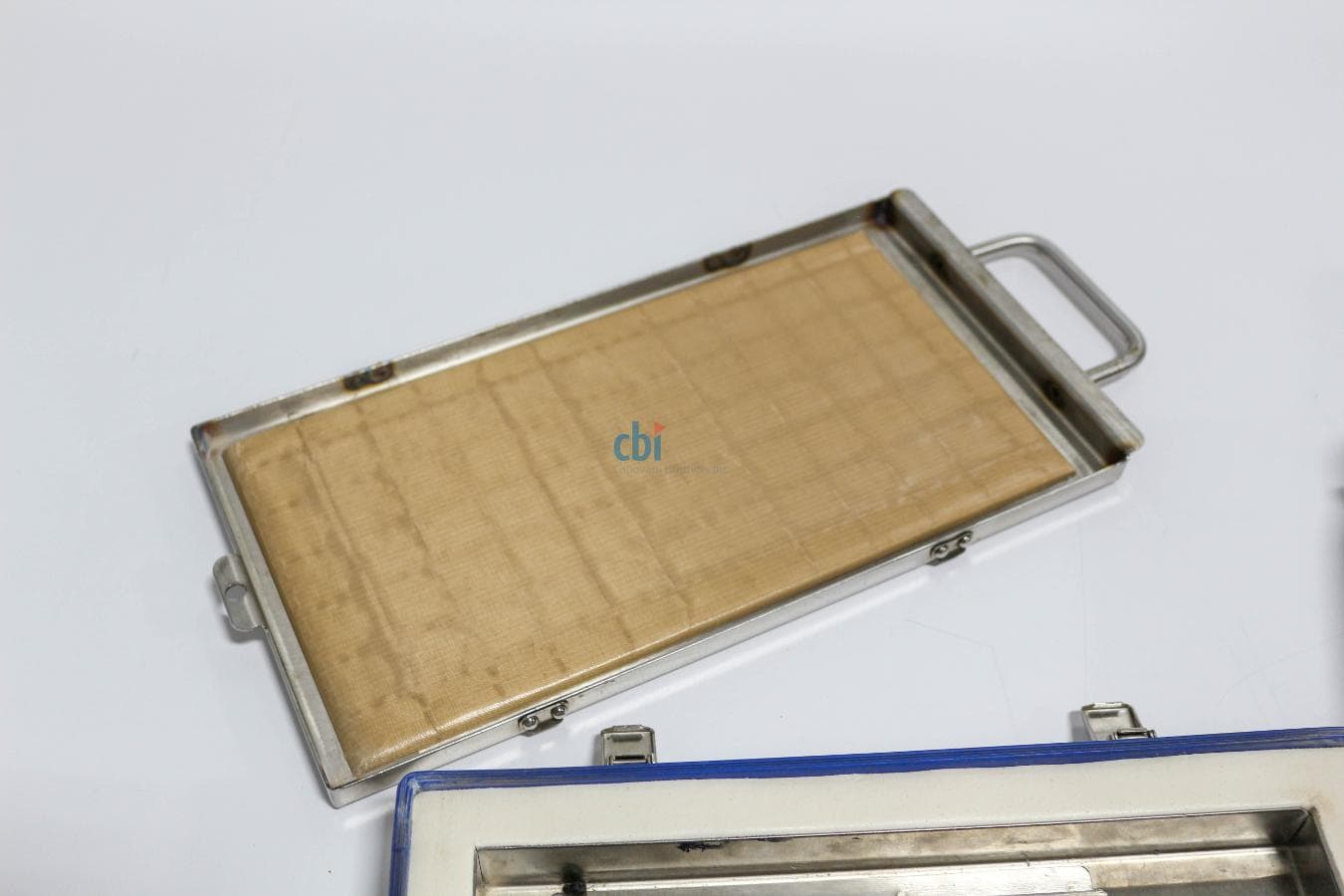

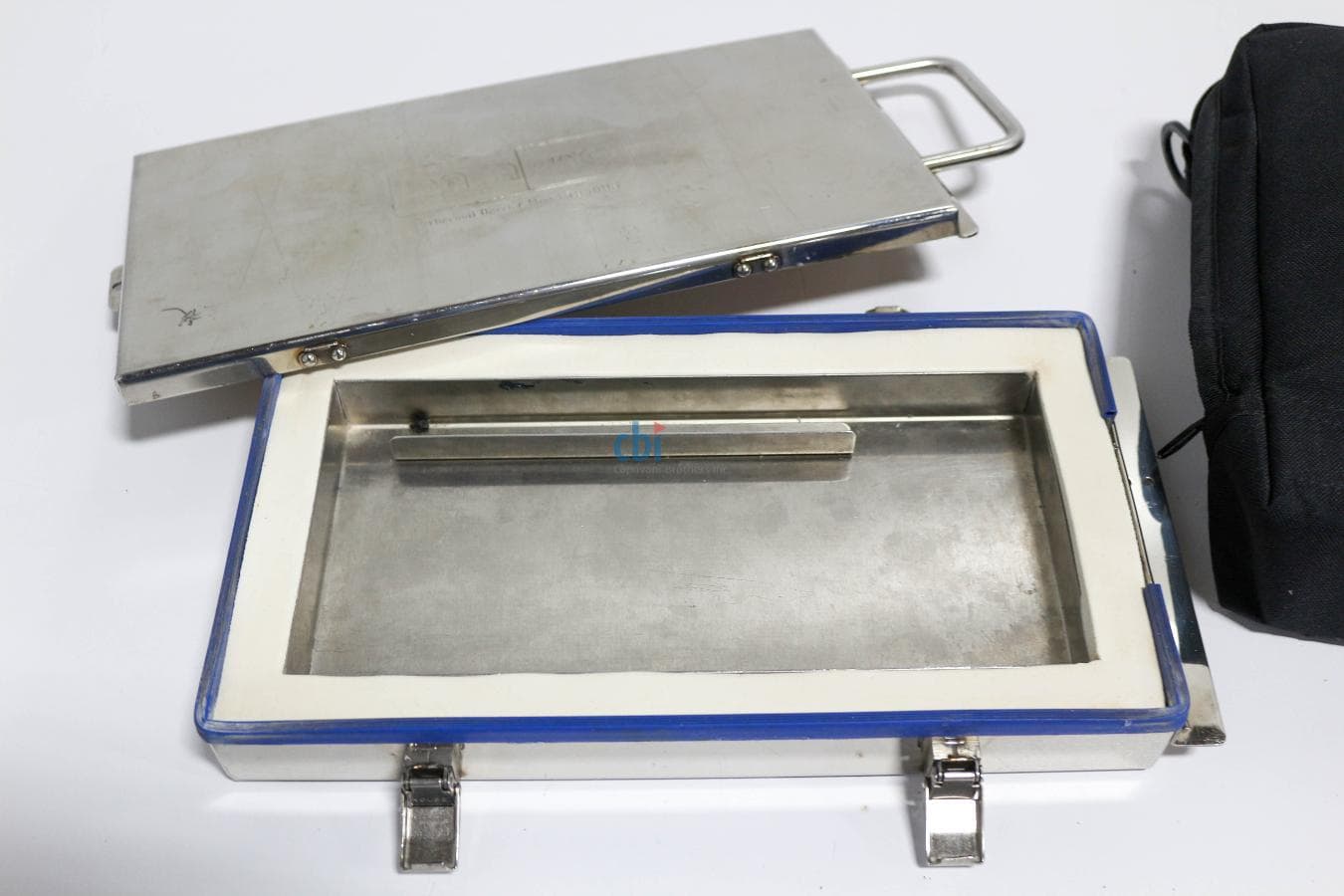

Thermal barrier
7.7 "W X 15.1 "L X 1.6 "H, 6.6 lbs , t emperature duration @100C (212F) 2.5 hrs, @ 200C (392F) 40 min

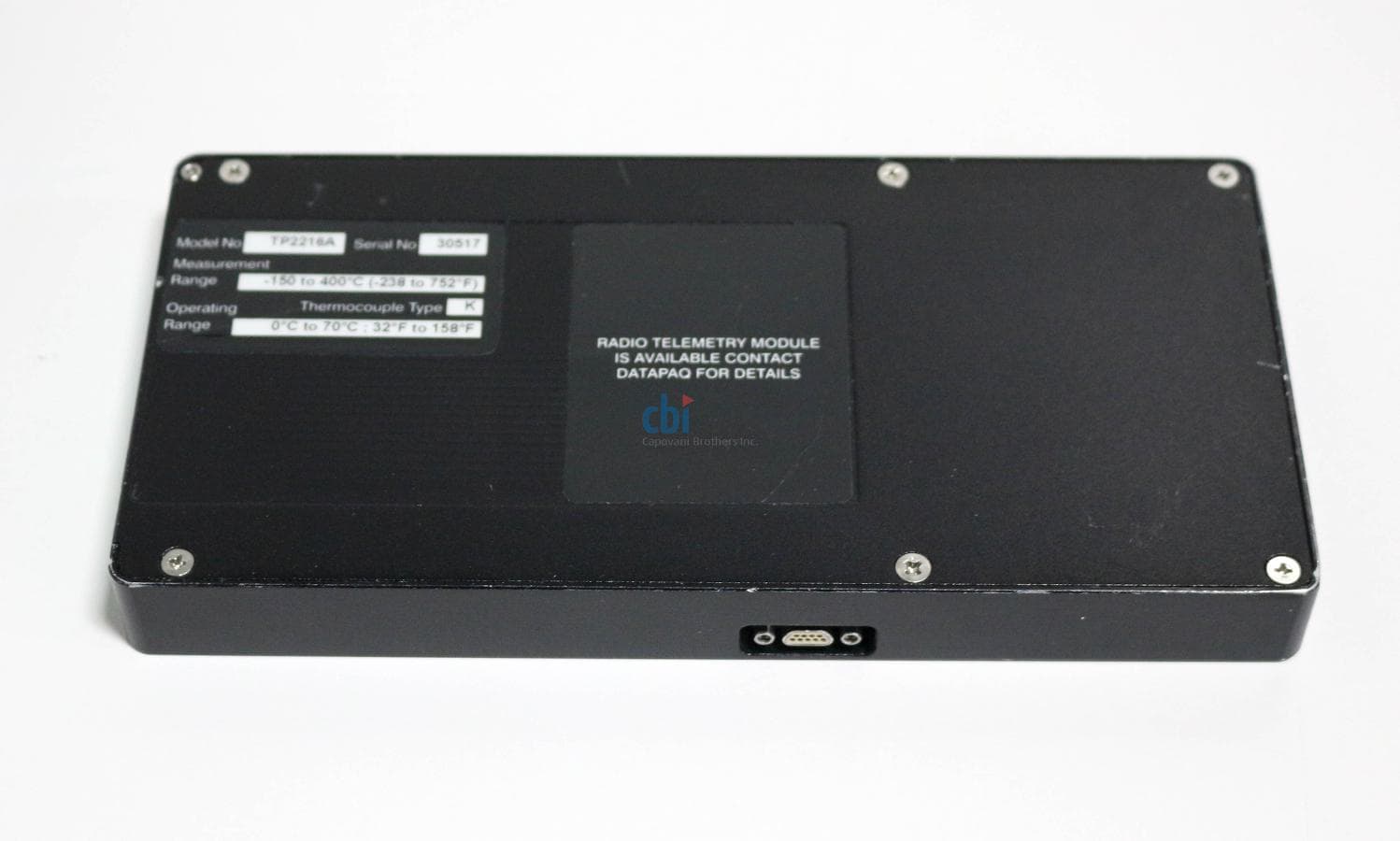

Data Logger
130,000 data points;

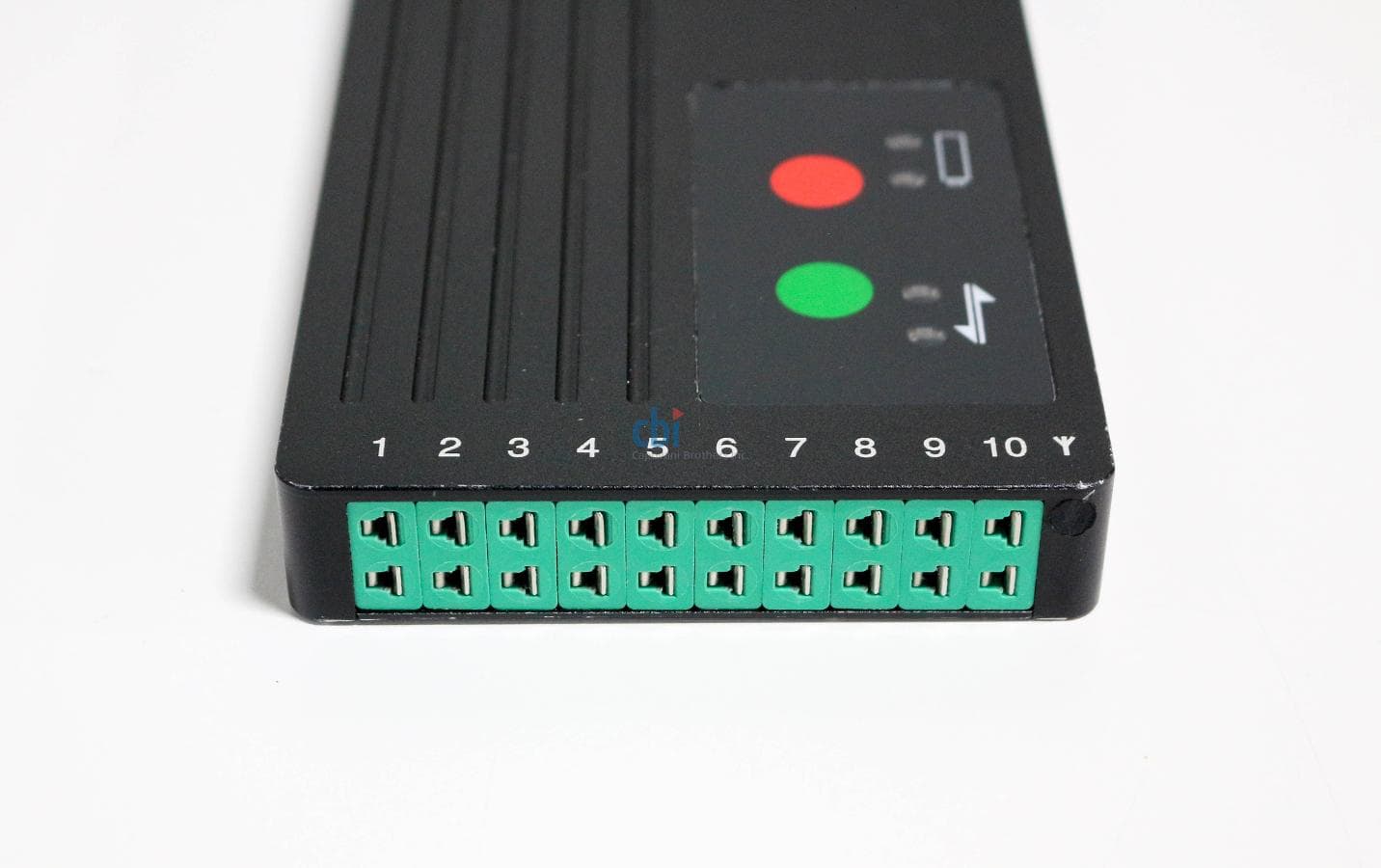

10 channels for type K thermocouples (thermocouples not included);
Measurement range: -150C to 400C (-238F to 752F);
Operating range: 0C to 70C (32F to 158F);
Accuracy: ±0.3°C/0.5°F
Batteries NiMH rechargeable, 170 hours between charges;
Sample Interval 0.1 s to 50 min, minimum interval with 10 thermocouples in use 0.3 s;
For more information: www.flukeprocessinstruments.com
Technical specifications
Exterior Dimensions
| Width | 3.860 in (9.8 cm) |
| Depth | 7.870 in (20.0 cm) |
| Height | 0.790 in (2.0 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
