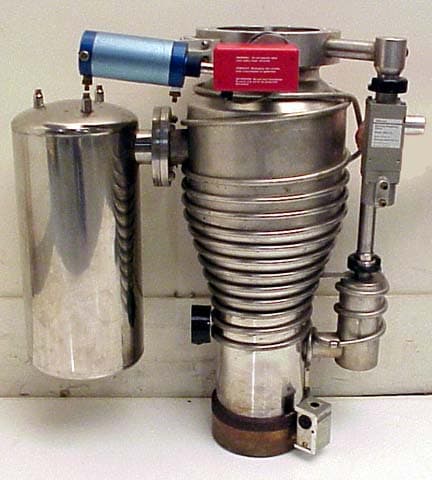

Edwards CR160/700P Cryo-Cooled Vapor Pump

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Edwards
MPN
CR160/700P
SKU
4890
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Typical Applications Include

  • Coating

  • E-beam welding

  • Leak detection

  • Mass spectrometry

  • Degassing

  • Lamp and tube evacuation

  • Cryostat pumpdown

  • Vacuum ovens

  • Pneumatically operated inlet baffle

Pumping speed for water vapor: 2000 l/s

Liquid nitrogen charge of 7.73 liters, lasting for 18 hours

Pneumatic connections: 6mm x 1/4"BSP male

Pneumatic actuating pressure: 2.4-6.9 mbar

Additional info through this link: and here too

Technical specifications

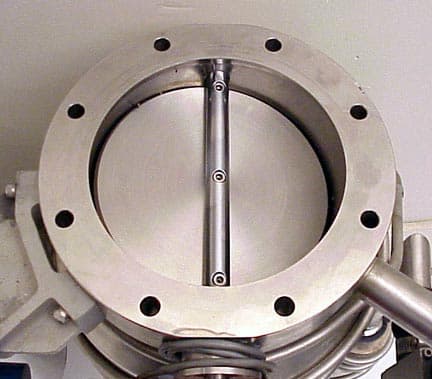

Inlet FlangeISO-K 160.0 mm (6.299 in)
Foreline FlangeKF 25.0 mm (0.984 in)
Pumping Speed Nitrogen600.0 l/s (1,271.5 CFM)
Ultimate Pressure0.23E-8(En) torr (0.30E-8 mbar)
Fluid Charge0.60 L (0.16 gal, 0.13 Br gal)
Cooling Water RequiredMinimum Flow: 0.50 GPM (1.90 l/m) Minimum Temperature: 20 ºC (68 ºF, 293.00 ºK)
Water Connection10mm compression couplings
Power Requirements110 V 1 Phase
Weight60 lb (27 kg)

Exterior Dimensions

Width25.000 in (63.5 cm)
Height30.000 in (76.2 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
