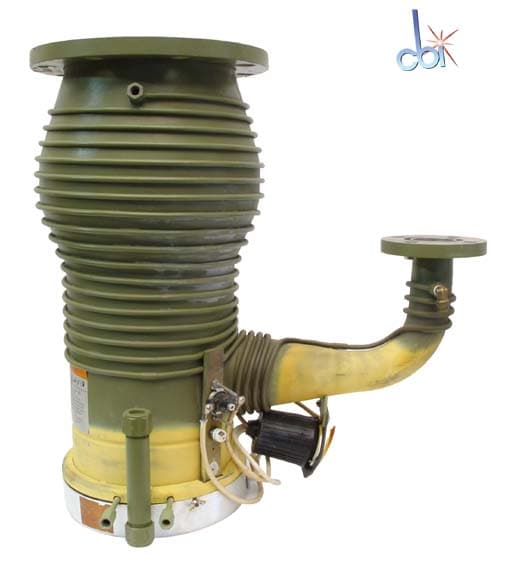

Varian VHS 6 Diffusion Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Varian
- MPN
- VHS 6
- SKU
- 42866
- Availability
- 4 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Technical specifications
| Inlet Flange | ASA 152.4 mm (6.000 in) |
| Foreline Flange | ASA 38.1 mm (1.500 in) |
| Pumping Speed Helium | 3,000.00 l/s (6,357.28 CFM) |
| Pumping Speed Air | 2,400.00 l/s (5,085.82 CFM) |
| Ultimate Pressure | 0.50E-8(En) torr (0.67E-8 mbar) |
| Warmup Time | 10 Minutes |
| Cooldown Time | 10 Minutes |
| Fluid Charge | 0.50 L (0.13 gal, 0.11 Br gal) |
| Cooling Water Required | Minimum Flow: 0.25 GPM (0.95 l/m) |
| Water Connection | 1/8" |
| Power Requirements | 208 V 11.0 A 60 Hz 1 Phase |
| Weight | 52 lb (24 kg) |
Exterior Dimensions
| Height | 21.000 in (53.3 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
