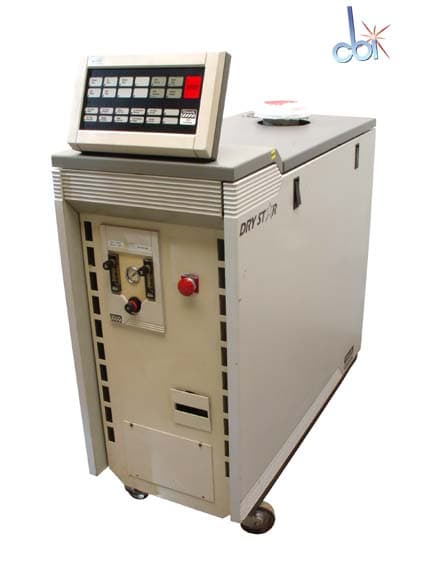

Edwards QMKII--QDP80/QMB500 Vacuum Pumping System
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Edwards
- MPN
- QMKII--QDP80/QMB500
- SKU
- 40064
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

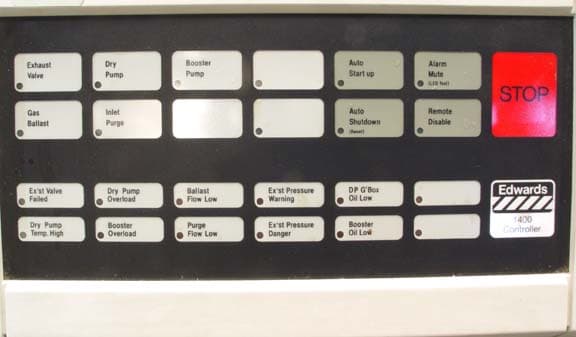

Model 4000 controller
Technical specifications
| Dry Pump | YES |
| Pumping Speed | 271.0 CFM (7,657.8 l/m) |
| Ultimate Pressure | 0.53E-3(En) torr (0.71E-3 mbar) |
| Inlet Flange | Other 100.0 mm (3.937 in) |
| Exhaust Flange | KF 40.0 mm (1.575 in) |

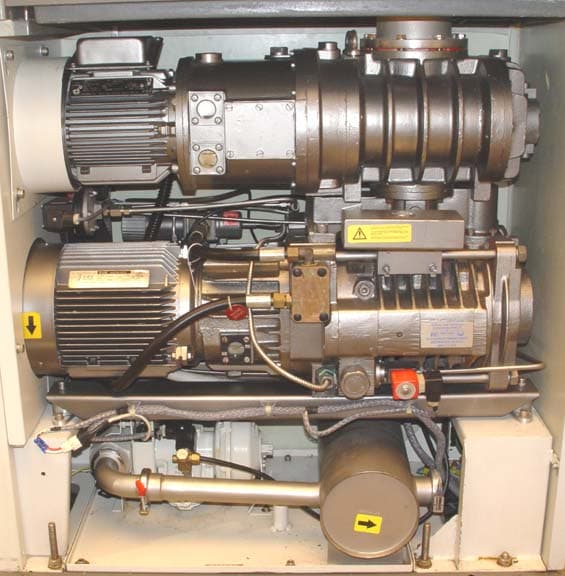

| Backing Pump Model | QDP80 |
| Roots Pump Model | QMB500 |
| Power Requirements | 208 V 60 Hz 3 Phase |
| Weight | 802 lb (364 kg) |
Exterior Dimensions
| Width | 18.000 in (45.7 cm) |
| Depth | 41.000 in (104.1 cm) |
| Height | 40.000 in (101.6 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
