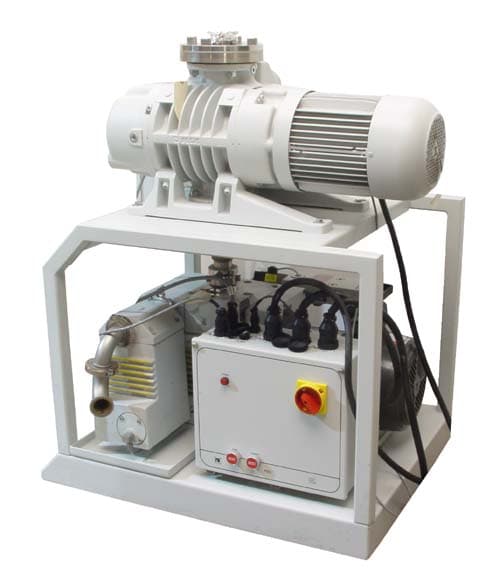

Oerlikon Leybold D40BCS WSU501 Vacuum Pumping System
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Leybold
- MPN
- D40BCS/WSU501
- SKU
- 55922
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
System features
ARS 40-65 Filter (Filter with feed back)
EIS system 40-65 (Electric indicator system)
IGS 40/65 (Inert gas system)
CFS 40-65 (Chemical system)
LSS 40-65 (Limit switch system)

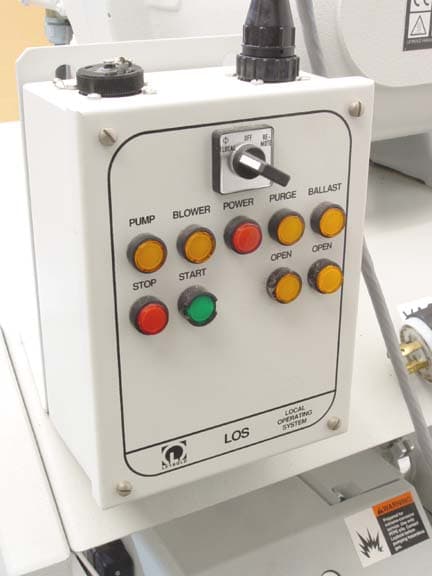

PSS/LOS/ROS (Local-remote operation)
Full drip pan
Technical specifications
| Pumping Speed | 122.9 CFM (3,472.8 l/m) |
| Ultimate Pressure | 0.10E-3(En) torr (0.13E-3 mbar) |
| Inlet Flange | ISO-K 63.0 mm (2.480 in) |
| Exhaust Flange | KF 40.0 mm (1.575 in) |
| Backing Pump Model | D40BCS |
| Roots Pump Model | WSU501 |
| Power Requirements | 460 V 9.6 A 60 Hz 3 Phase |
| Year of Manufacture | 1999 |
| Weight | 757 lb (343 kg) |
Exterior Dimensions
| Width | 26.000 in (66.0 cm) |
| Depth | 35.000 in (88.9 cm) |
| Height | 43.000 in (109.2 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
