ENI Power Systems ACG-3 Radio Frequency Generator
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- ENI Power Systems
- MPN
- ACG-3
- SKU
- 78779
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

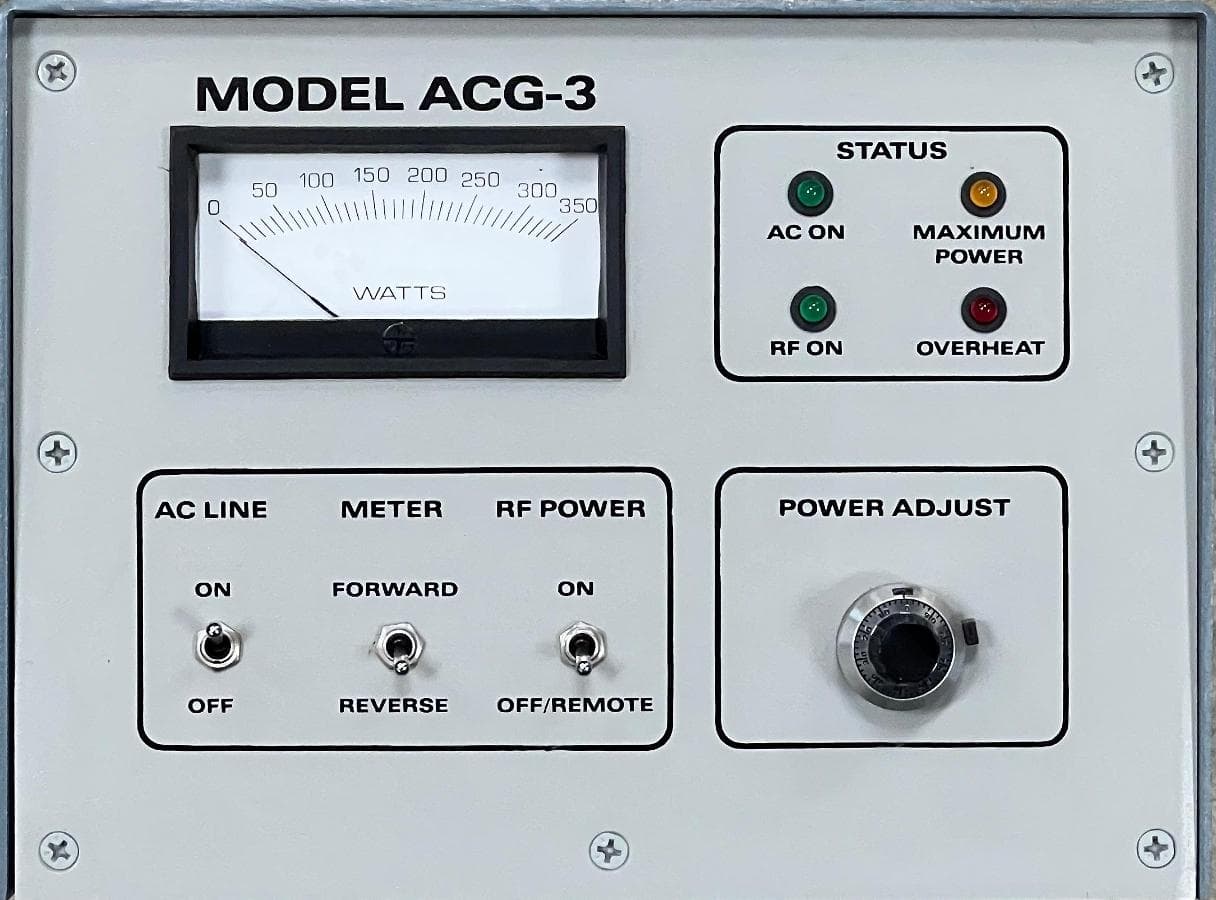

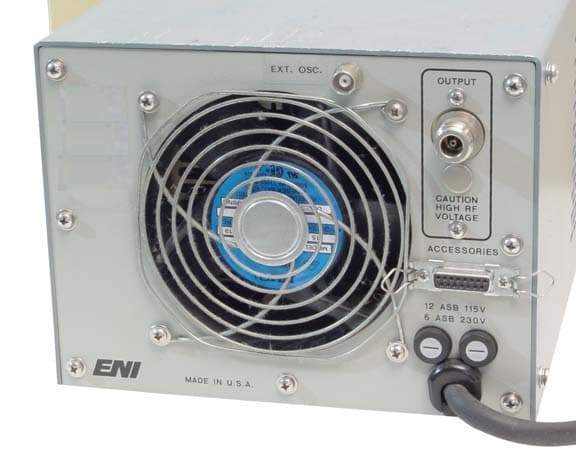

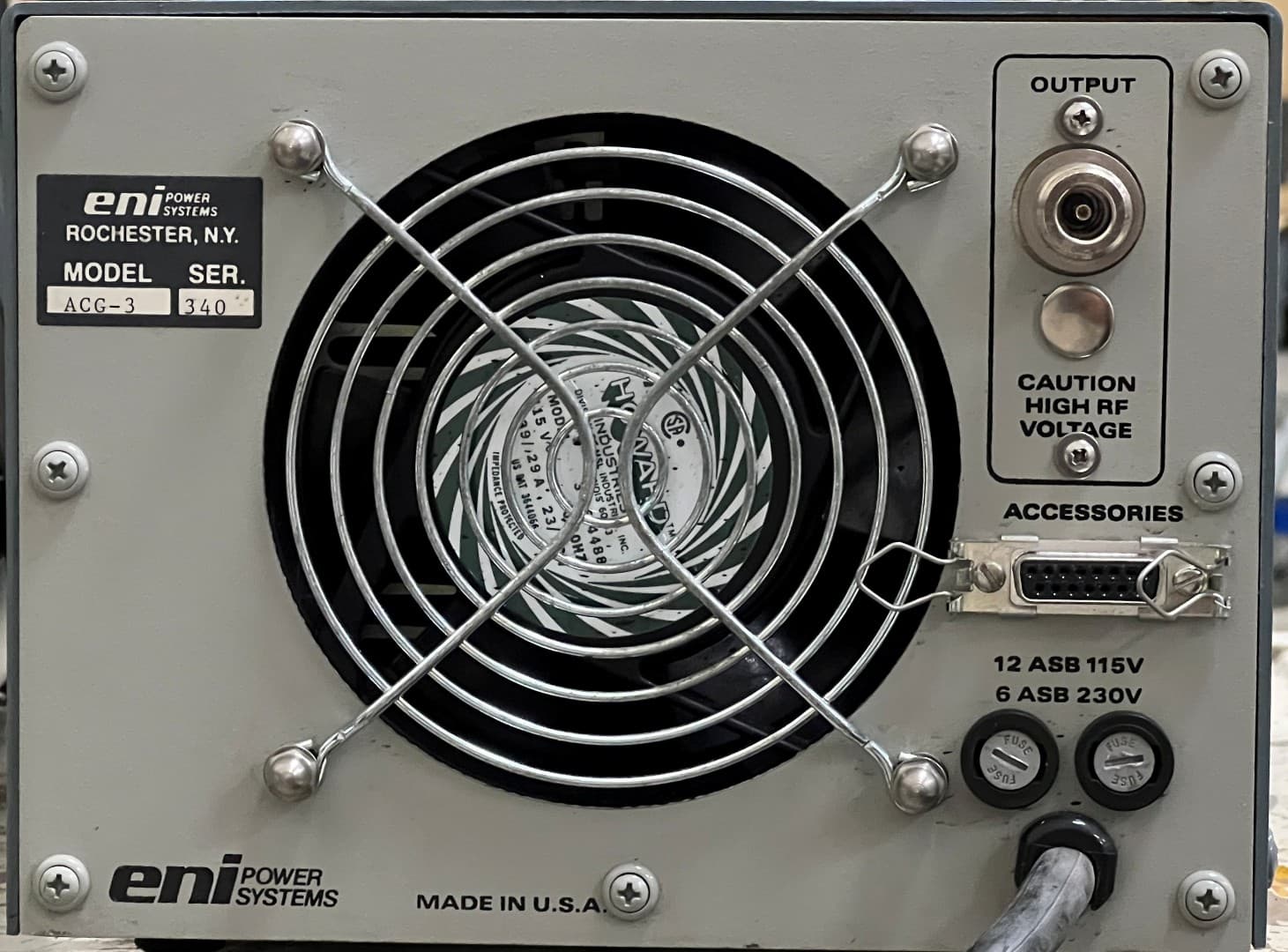

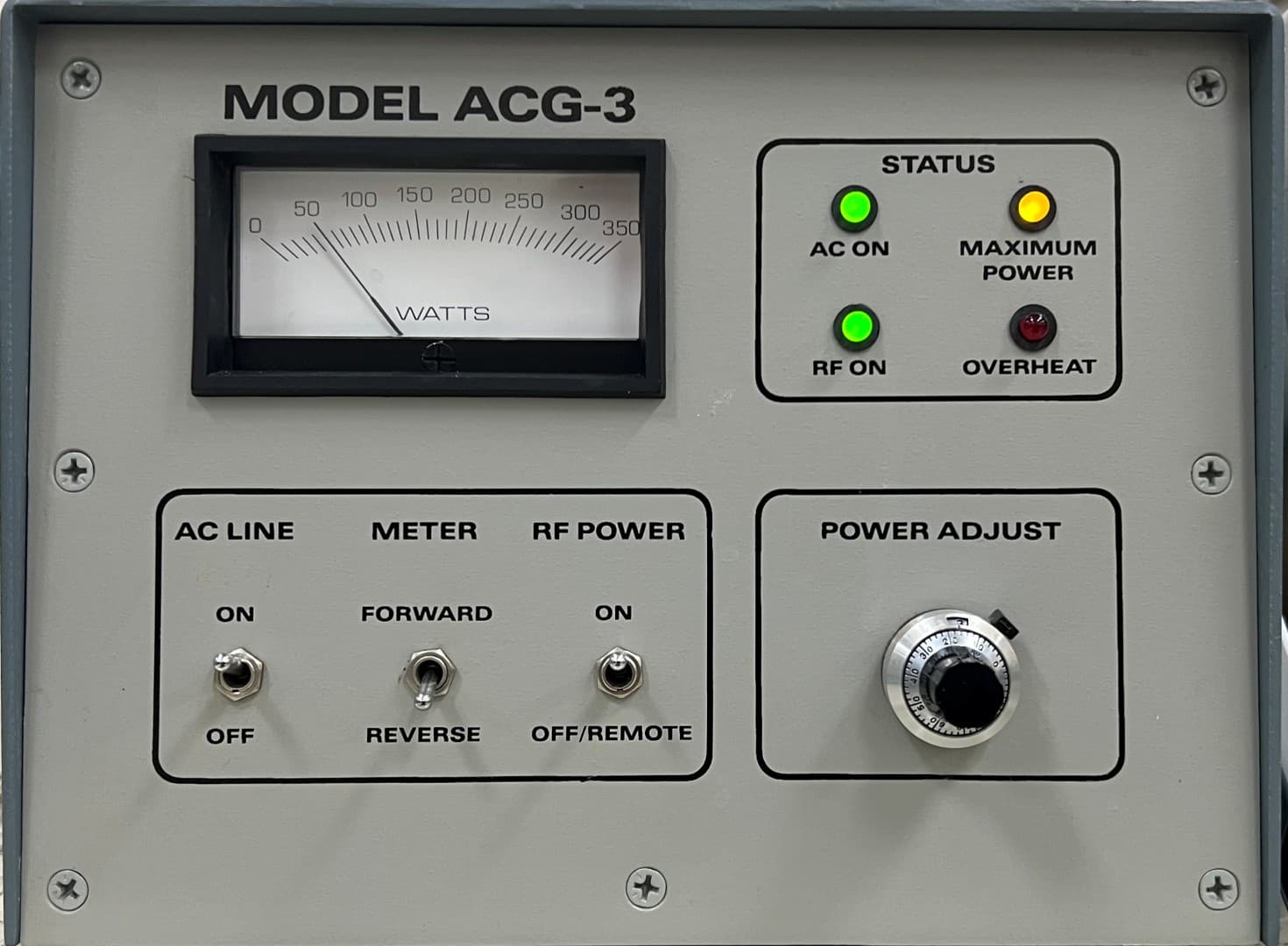

ACG-3 Power Generator is an all solid state, air-cooled power source expressly designed for use in gas plasma and sputtering applications. Completely self-contained, the ACG-3 provides all of the control and monitoring functions needed in a state-of-the-art power generator. It will provide a maximum continuous power output of 300W into a 50Ω impedance.
Primary AC Power Source 100/107/115/120 VAC ±5% at 12A or 200/208/225/240 VAC ±5% at 6A single phase 50-60Hz at full power output.
Specify you outlet voltage when ordering to set input power transformer taps, please.
Technical specifications
| Rated Power Output | 300 Watts |
| Frequency | 13.56 |
| Scale | MHz |
| Output Impedance | 50 Ohms |
| Panel Meters | Analog |
| Power Requirements | 115/ 230 V 12.0 A 6.0 A(2) 60 Hz 1 Phase |
| Weight | 33 lb (15 kg) |
| Reflected Power Limit | 50 Watts |
Exterior Dimensions
| Width | 8.250 in (21.0 cm) |
| Depth | 20.500 in (52.1 cm) |
| Height | 7.000 in (17.8 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
