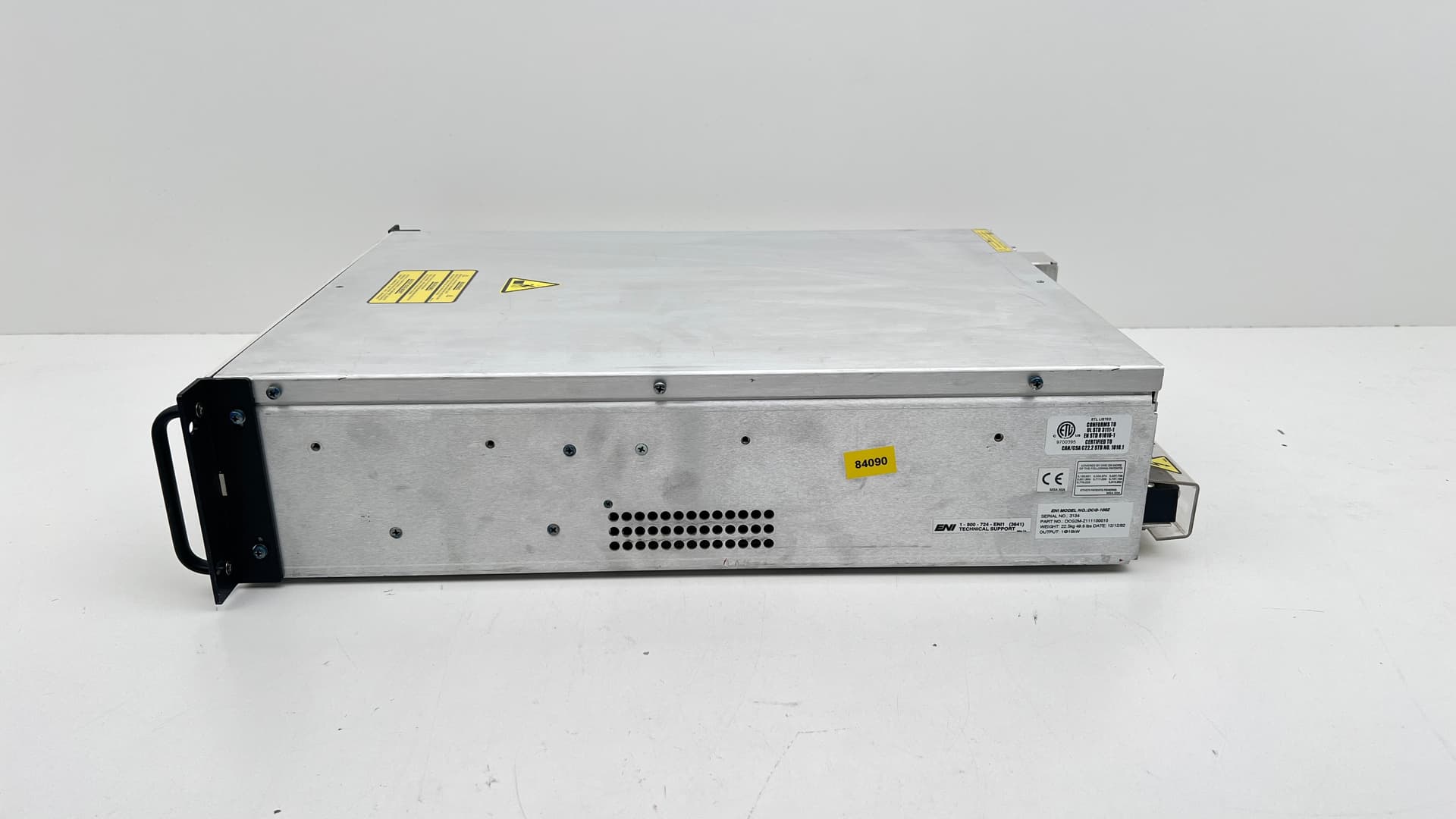

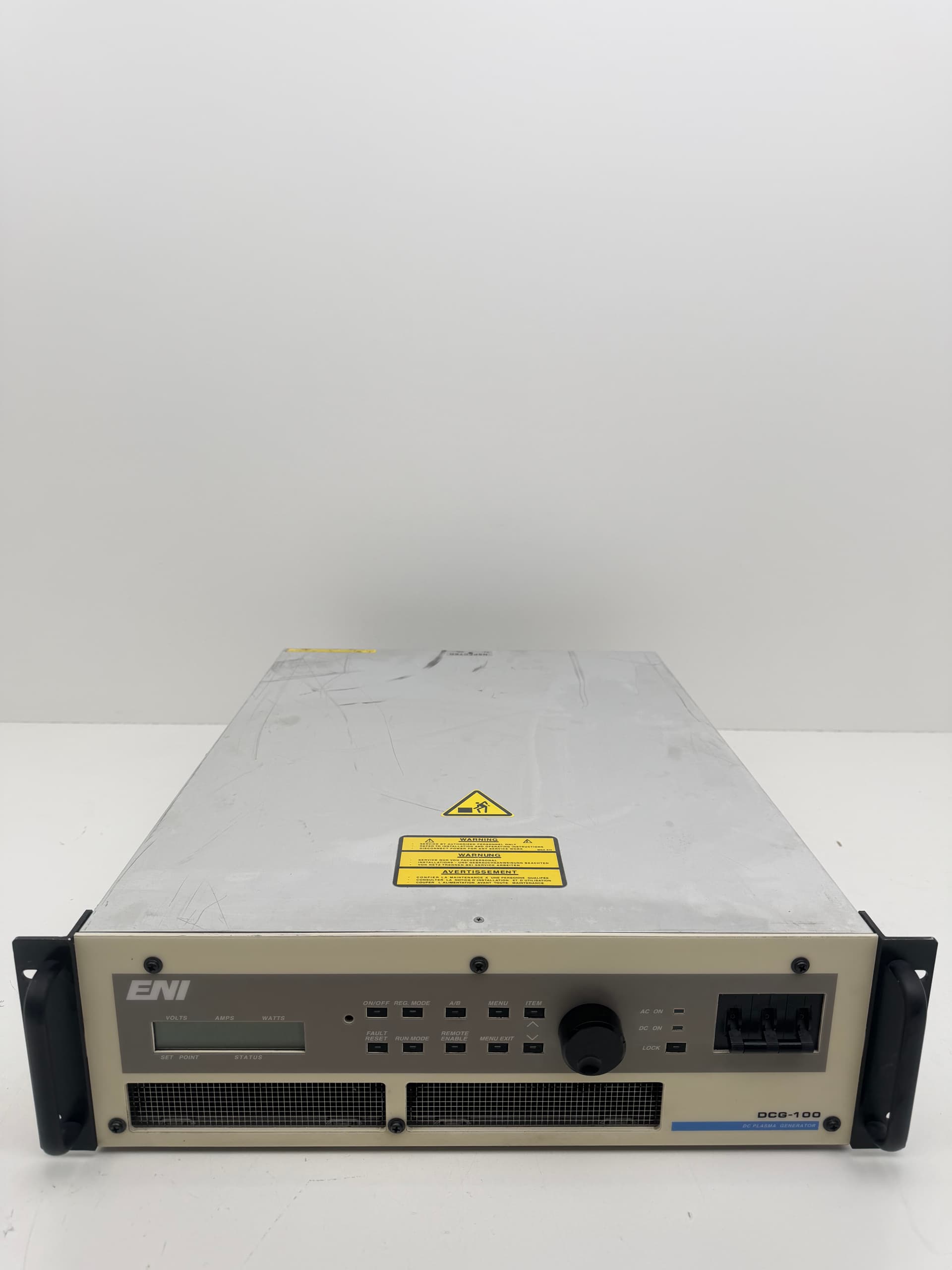

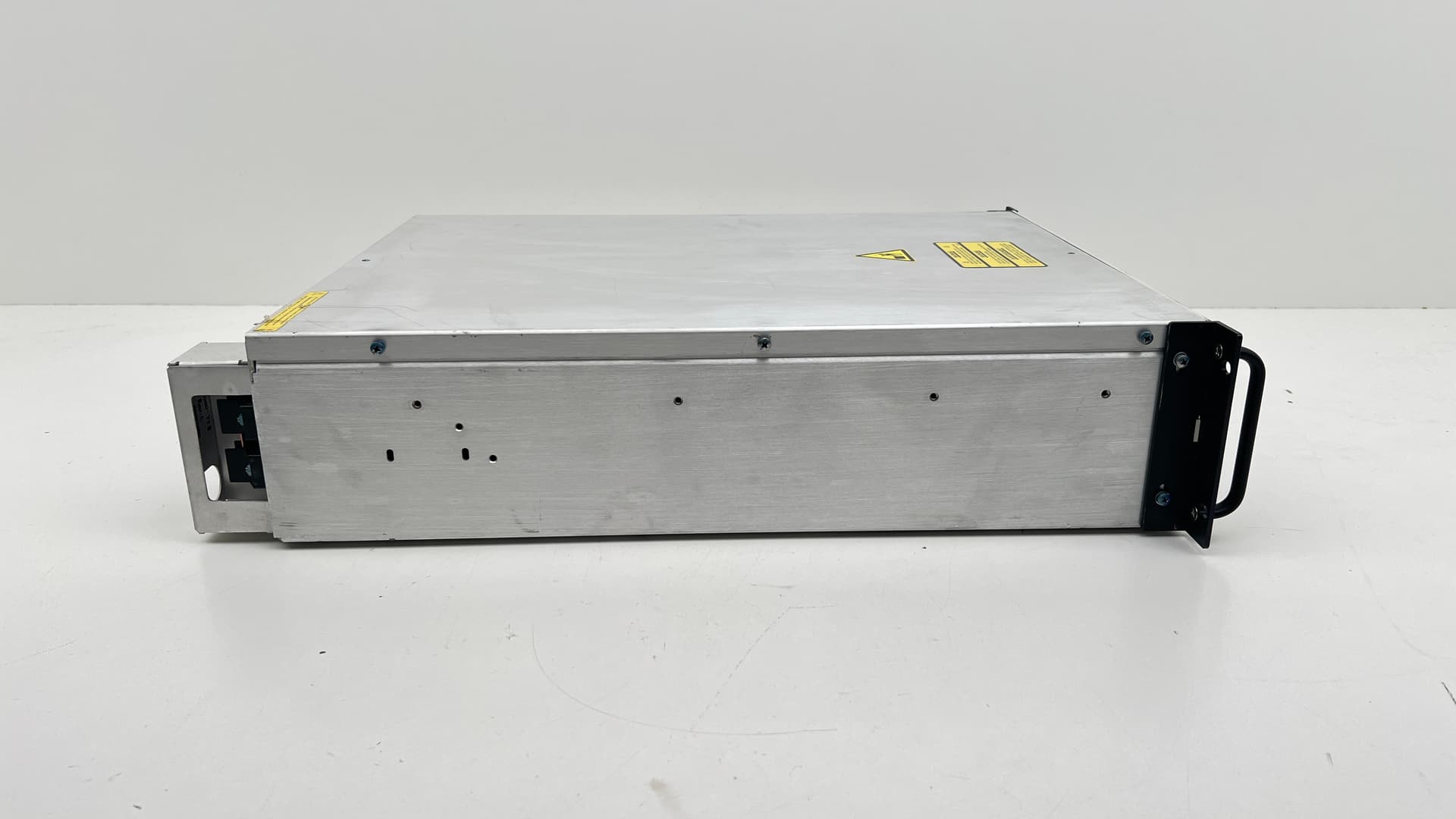

ENI Power Systems DCG-100 DC 10kW Plasma Generator
- Condition
- Used See details
- Brand
- ENI Power Systems
- MPN
- DCG-100Z
- SKU
- CID1512
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

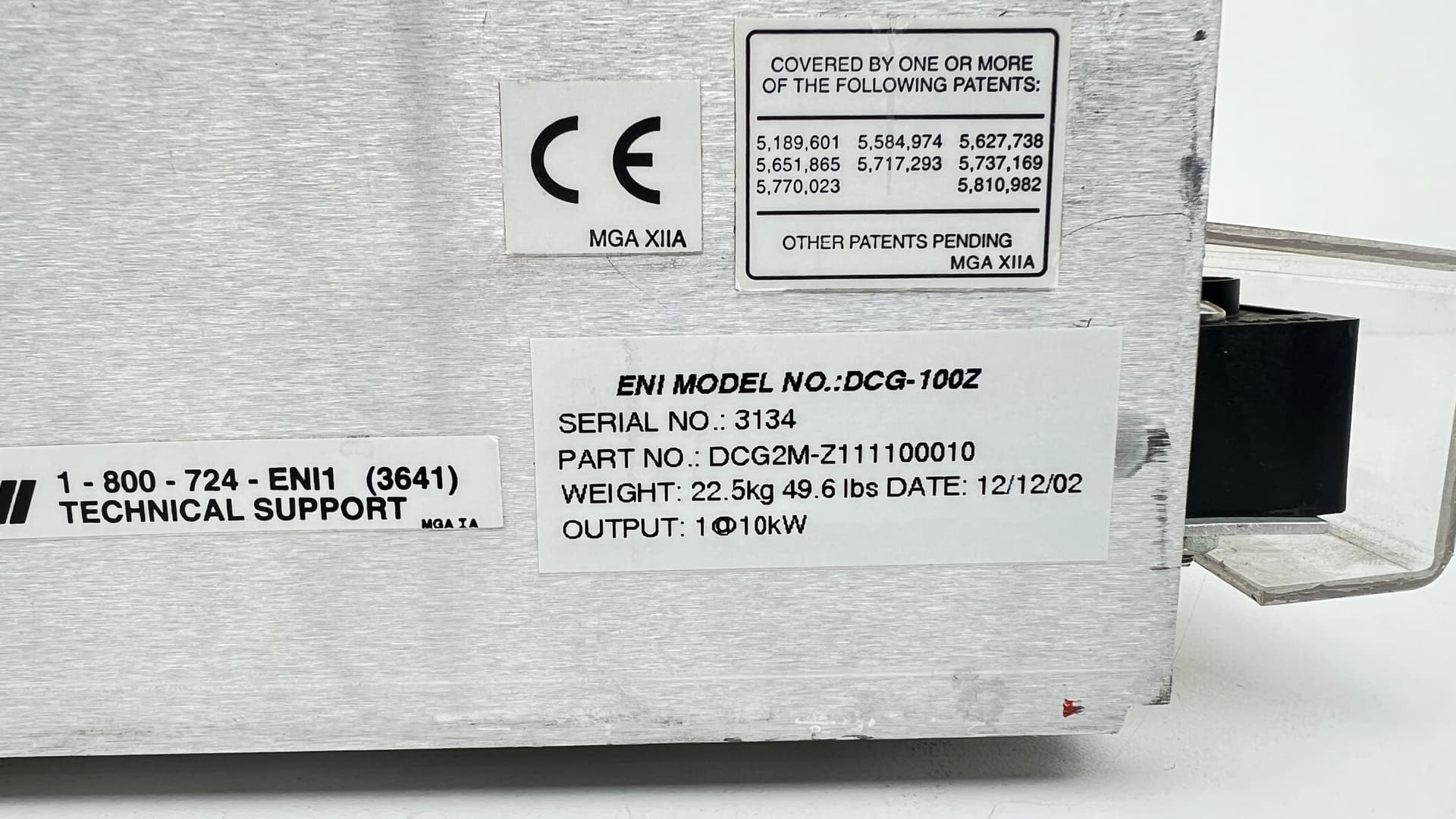

PART NO.: DCG2M-Z111100010
Single 10 KW Master, can be reconfigured for Dual (2x5KW) Master, specify when ordering, please
Advanced Energy® Emulation Monitor: the alternative “Host Remote” interface serial control protocol emulates the protocol used on the Advanced Energy® MDX-10™ DC power supplies. The Emulation monitor allows limited access to the DCG-100's advanced features.
Input power 3 phase 4 wire 342-504VAC 25-18A 50/60Hz
"Low Z" transformer, output taps 400V/500V/645V. Specify taps setting when ordering, please

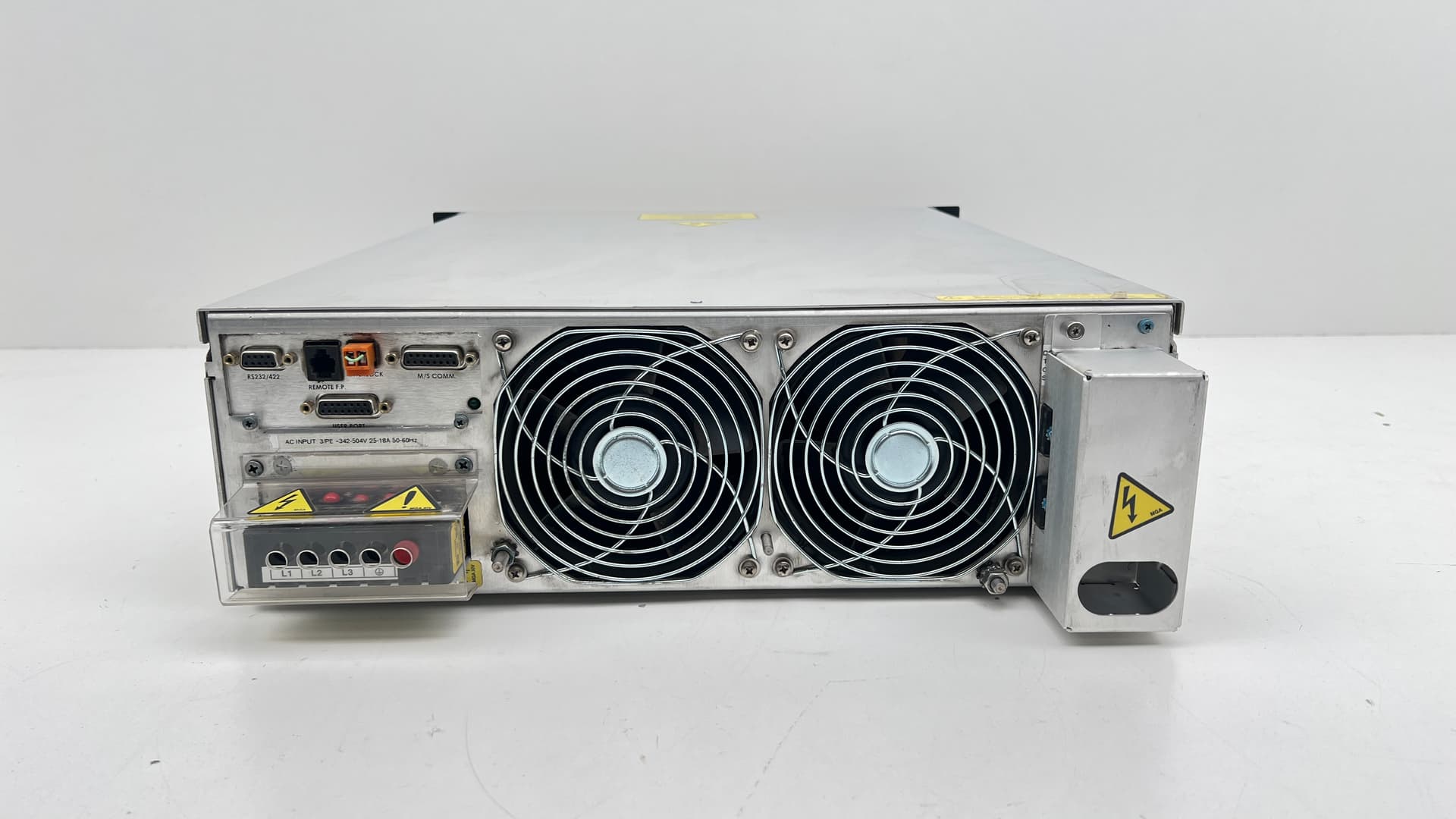

Terminal block output connector
Analog interface 15 pin connector
RS232/422 9 pin connector
Master/Slave 15 pin connector
No ground fault detect
Reactive sputtering
Technical specifications
| Power Output | 10 KW |
| Continious DC Output Voltage Limit | 1100 V |
| Power Module Type | Master |
| Regulation Modes | Constant Current/Constant Voltage/Constant Power |
| Number of Output Connectors | 1 |
| Interface | RS 232/422; Analog |
| Number of Interlocks | 3 |
| Cables Included | No |
| External Cooling | Forced Air Cooled |
| Power Requirements | 342-504V 25-18A 50-60Hz 3 Phase 4 wire |
| Weight | 54 lb (24 kg) |
| Strike Voltage | 1.40/1.55/1.75 KV Tap Dependent |
| Application | Reactive Sputtering |
Condition & testing notes

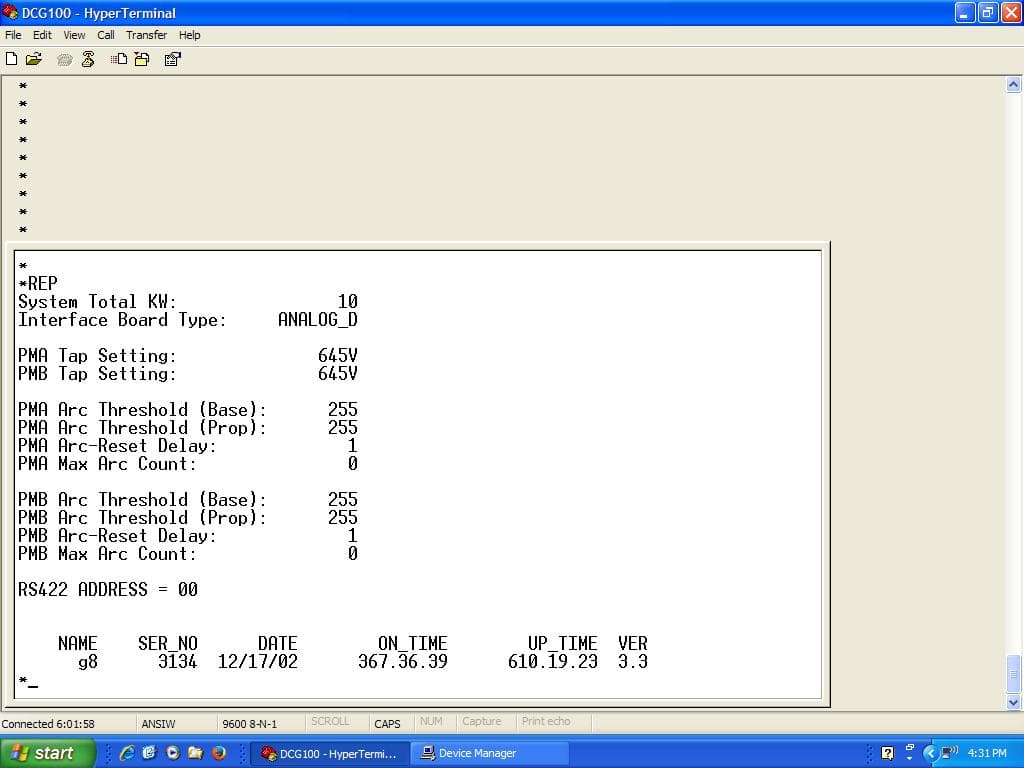

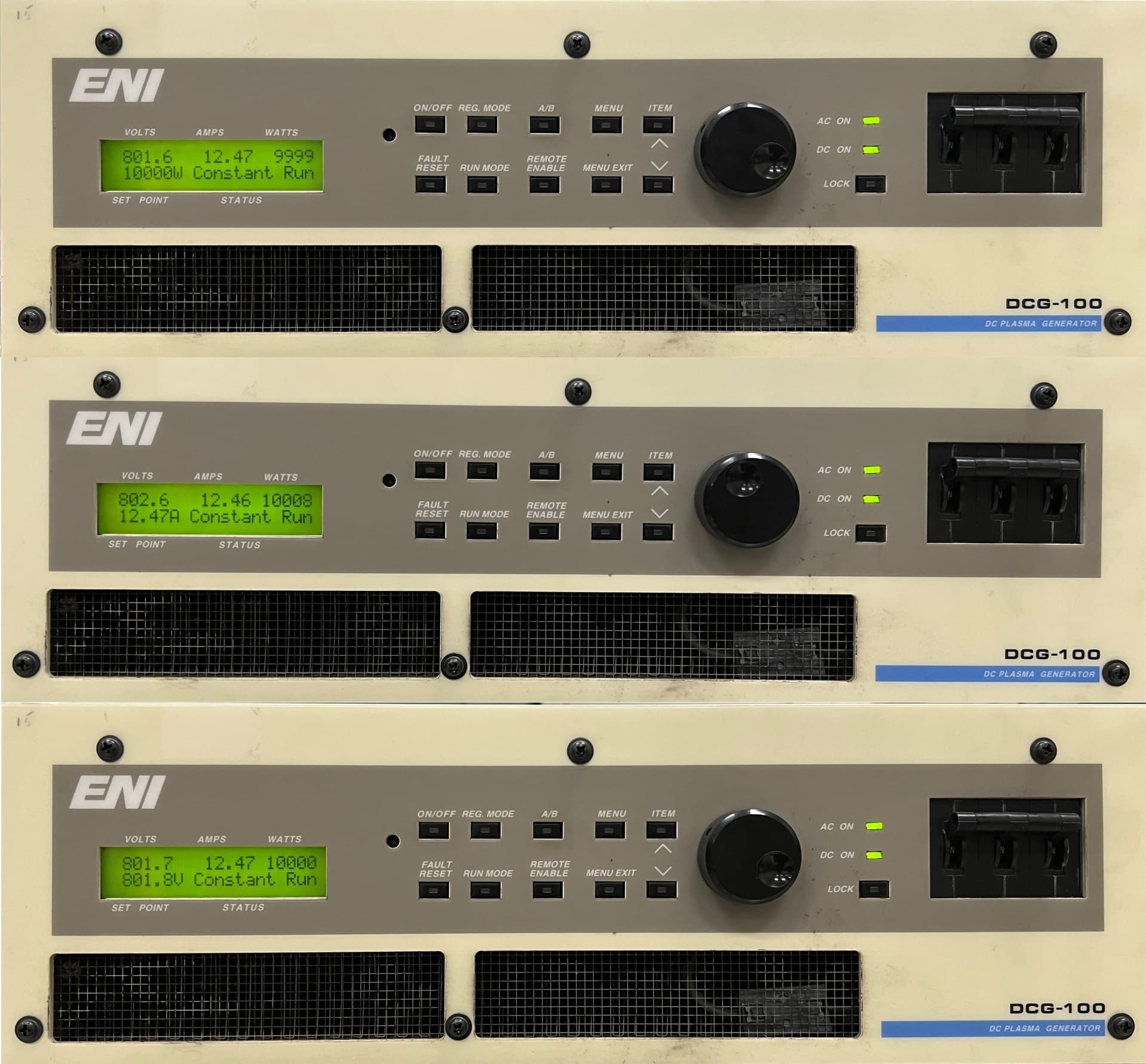

Previously in service and offered for secondary-market resale. Item has been tested and found to be working.
