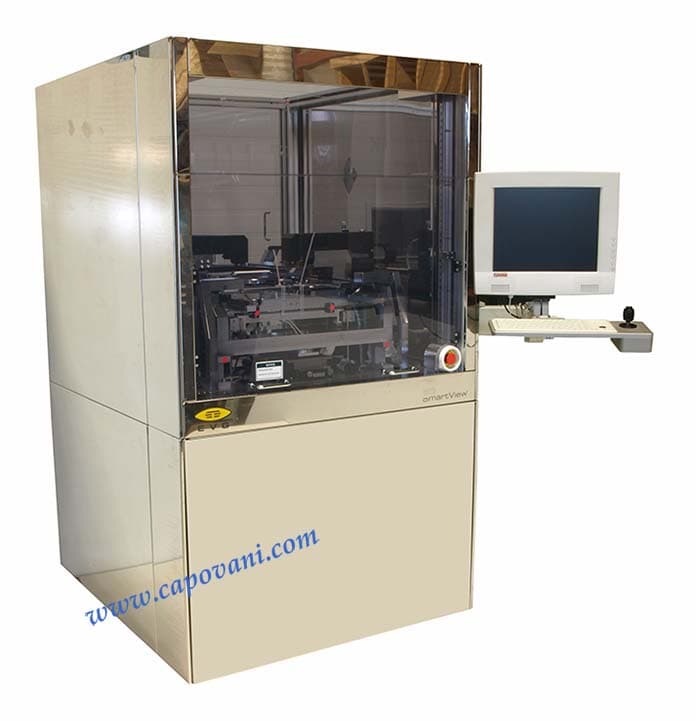

EV Group SmartView Bond Aligner
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- EVG
- MPN
- Smartview Bond Aligner
- SKU
- 148001
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

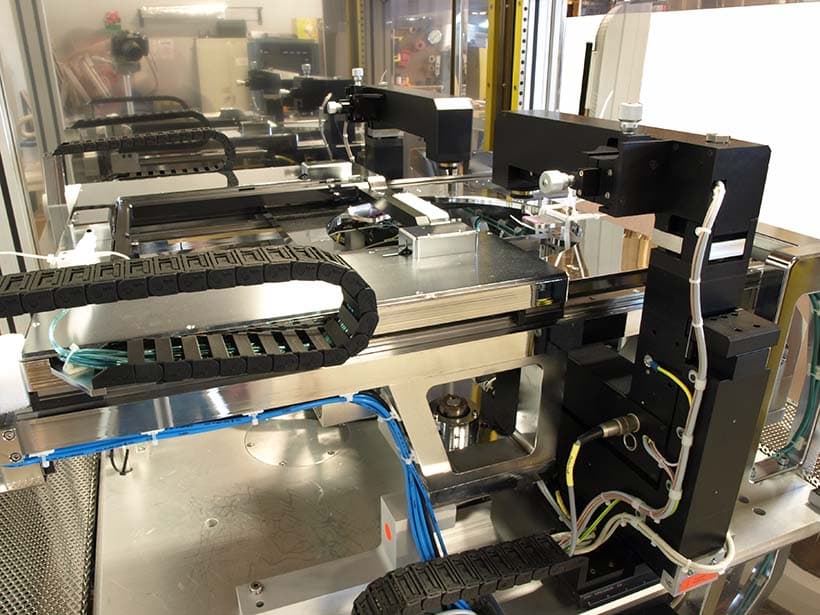

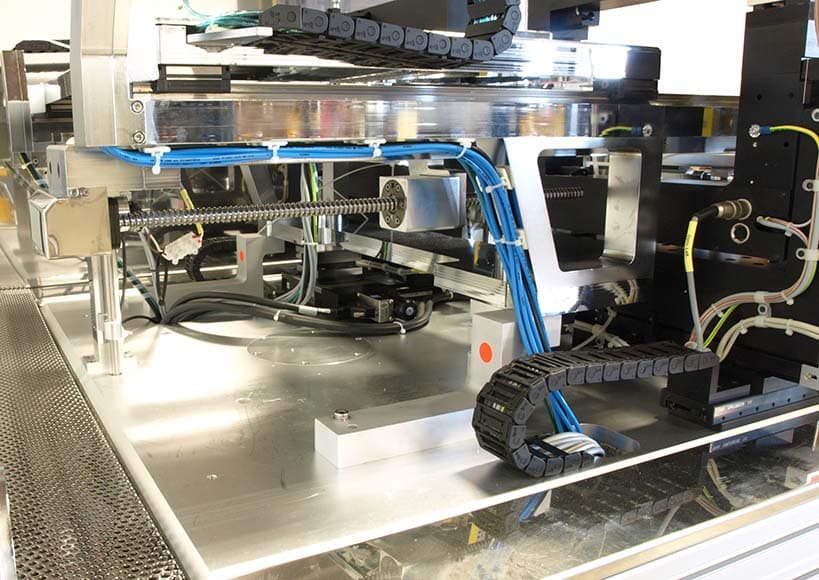

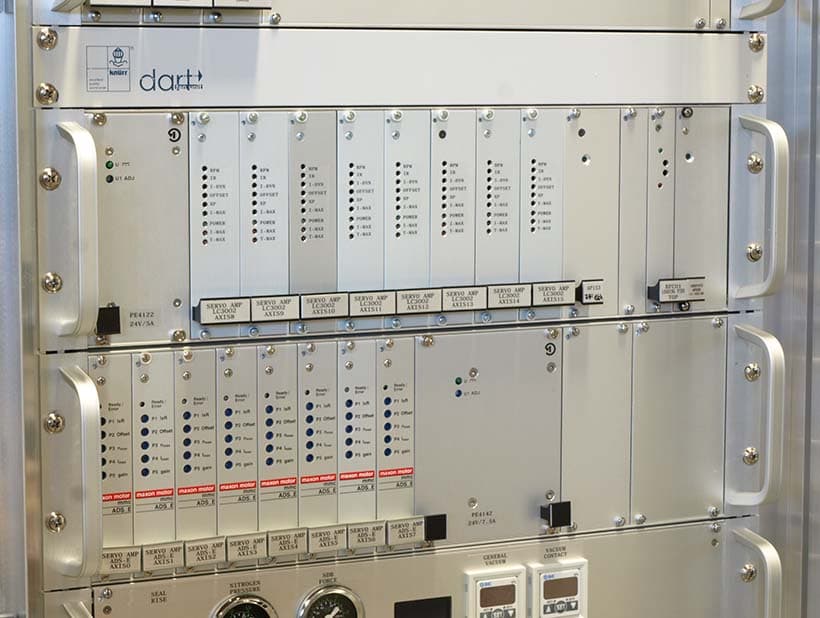

• High resolution alignment stage with DC servomotors in X, Y and Theta
• Alignment accuracy +/- 1 um (one sigma) with 20x objectives

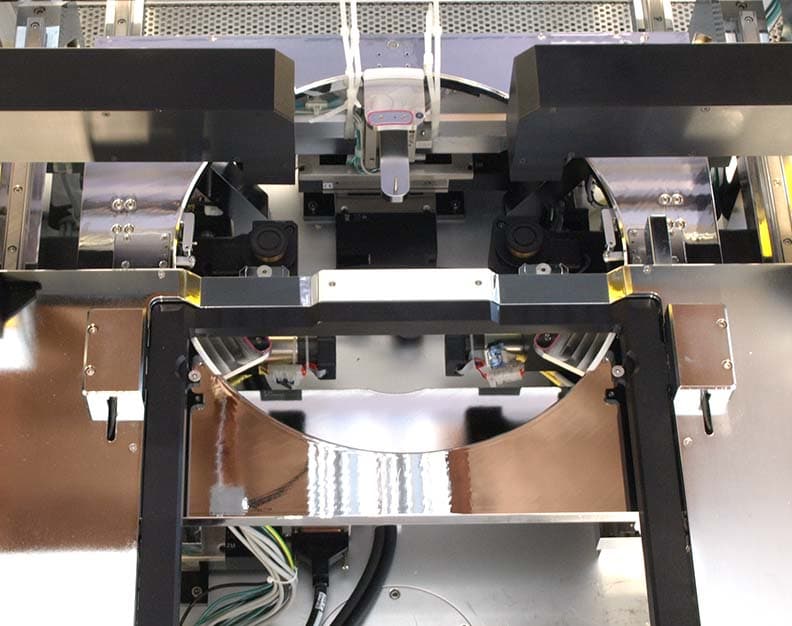

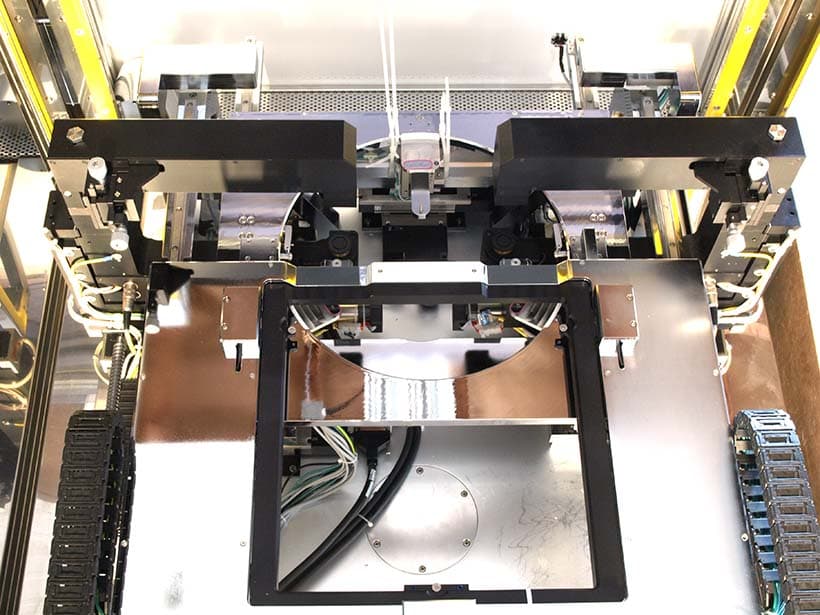

• Top and bottom stage with precision measurement system
• Complete computer control of all mechanical movements in the aligner.

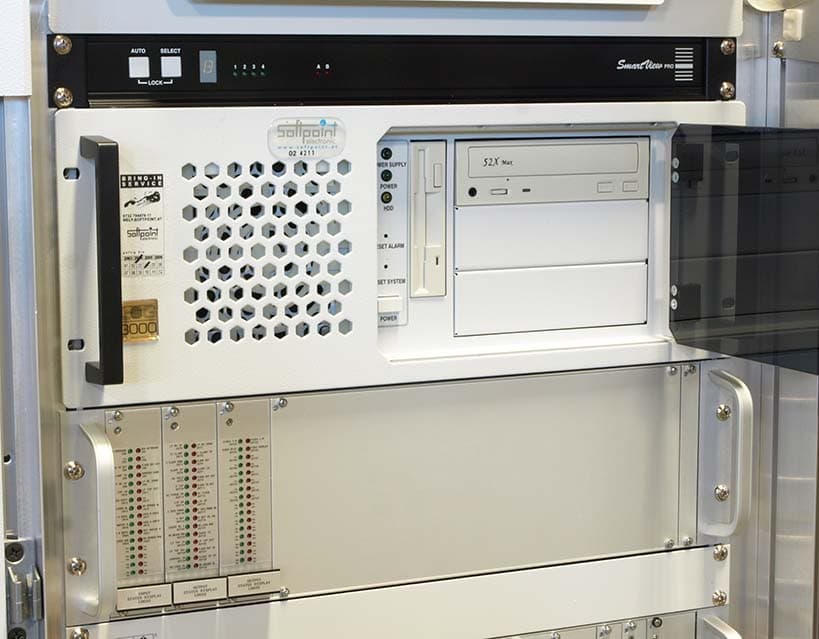

• 17" flat screen for operator interface and alignment functions

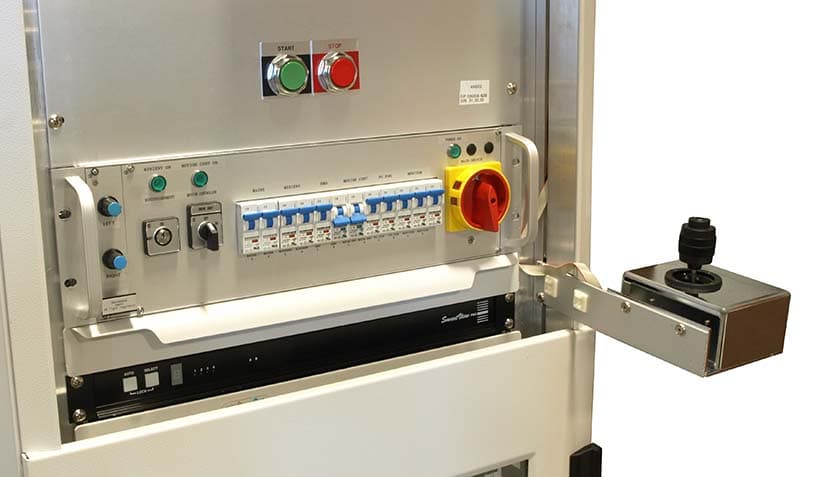

• Joystick control of all alignment movements and microscope movement in Z.

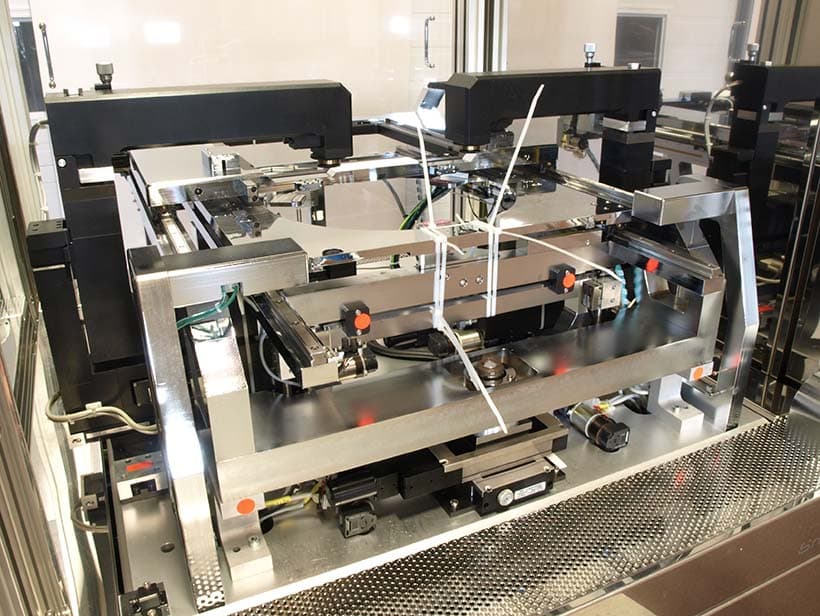

• Unique three spindle alignment stage for shift free Z movements
• Remote Diagnostics via modem
Technical specifications
| Year of Manufacture | 2005 |
| CE Marked | YES |
| Weight | 1,534 lb (696 kg) |
Wafer Size Range
| Minimum | 150 mm |
| Maximum | 300 mm |
| Set Size | 300 mm |
Exterior Dimensions
| Width | 52.000 in (132.1 cm) |
| Depth | 47.000 in (119.4 cm) |
| Height | 80.000 in (203.2 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
