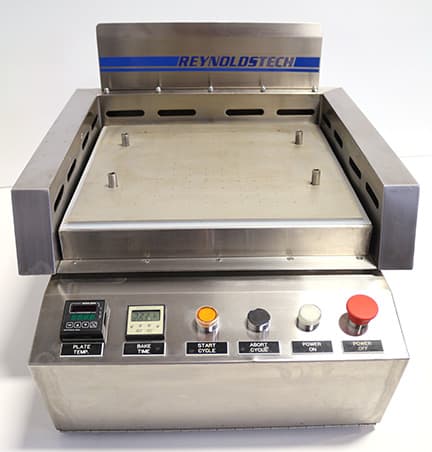

ReynoldsTech 16 X 16 Hot Plate

Name: ReynoldsTech 16 X 16 Hot Plate
Brand: Reynoldstech
SKU: 187522
Price: 5750 USD
Availability: InStock

Item description

Max Temp with hot plate covered -- 200°C, cover not included

Max Temp with hot plate not covered -- 160°C

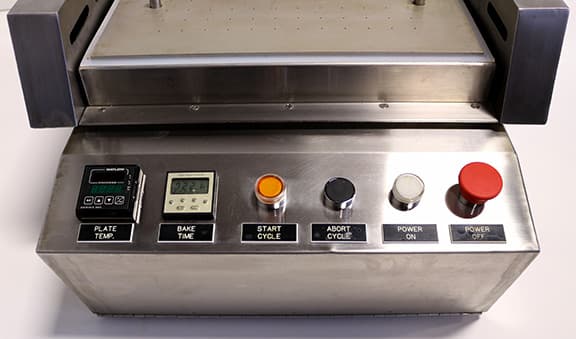

Digital set point controller

Overtemp controller

Vacuum hold down -- vacuum pump not included

(4) substrate lift pins, with 1/4-20 female threads to accept custom tips.

Lift Pin Layout

Top and Bottom: 4.5" from edge of hot plate to pins

Left and Right: 2.875" from edge of hot plate to pins

Vacuum hold down area: 11" Wide x 12" Deep

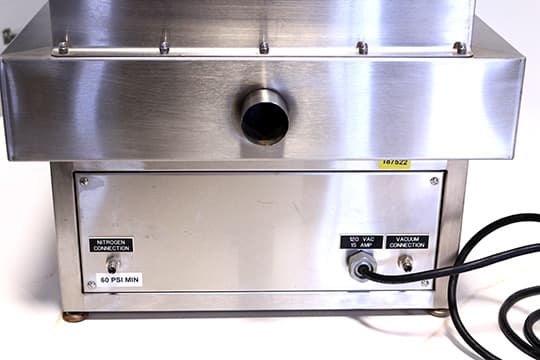

N2 Input for lift pin cyclinders.

Vacuum imput for hold down.

Power Requirements

120 V 15.0 A 50/60 Hz 1 Phase

Working & Warranted
Inspected by Capovani engineers to confirm function. Sold with a 90 day warranty covering function. Full warranty terms
Lead time varies, confirmed in your quote
These items are inspected and serviced after your order is confirmed. Typical lead time is 1 to 3 weeks. We will confirm exact timing when we send your quote.
