You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.

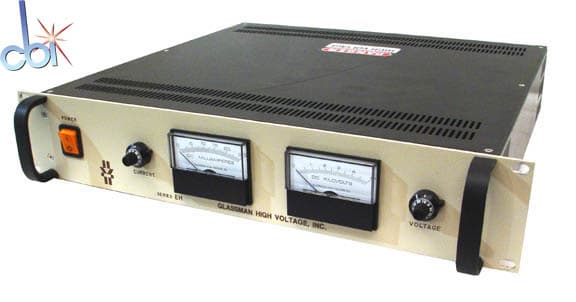

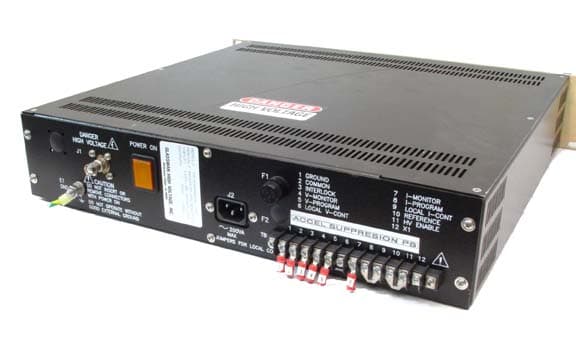

Glassman - PS/EH05N20L or + PS/EH05P20L High Voltage Power Supply
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Glassman
- MPN
- - PS/EH05N20L or + PS/EH05P20L
- SKU
- 39063
- Availability
- 4 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
HV cable is not included
Negative or positive output only, specify polarity when ordering
Output connector SHV
We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications
Technical specifications
| Maximum Output Voltage | 5.0 kV |
| Maximum Output Current | 20.0 mA |
| Bipolar | No |
| Panel Meters | Analog |
| Interface | I/O Port |
| External Cooling | Air Cooled |
| Power Requirements | 115 V 48-440 Hz 1 Phase |
| Weight | 10 lb (5 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 17.000 in (43.2 cm) |
| Height | 3.500 in (8.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
