You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.

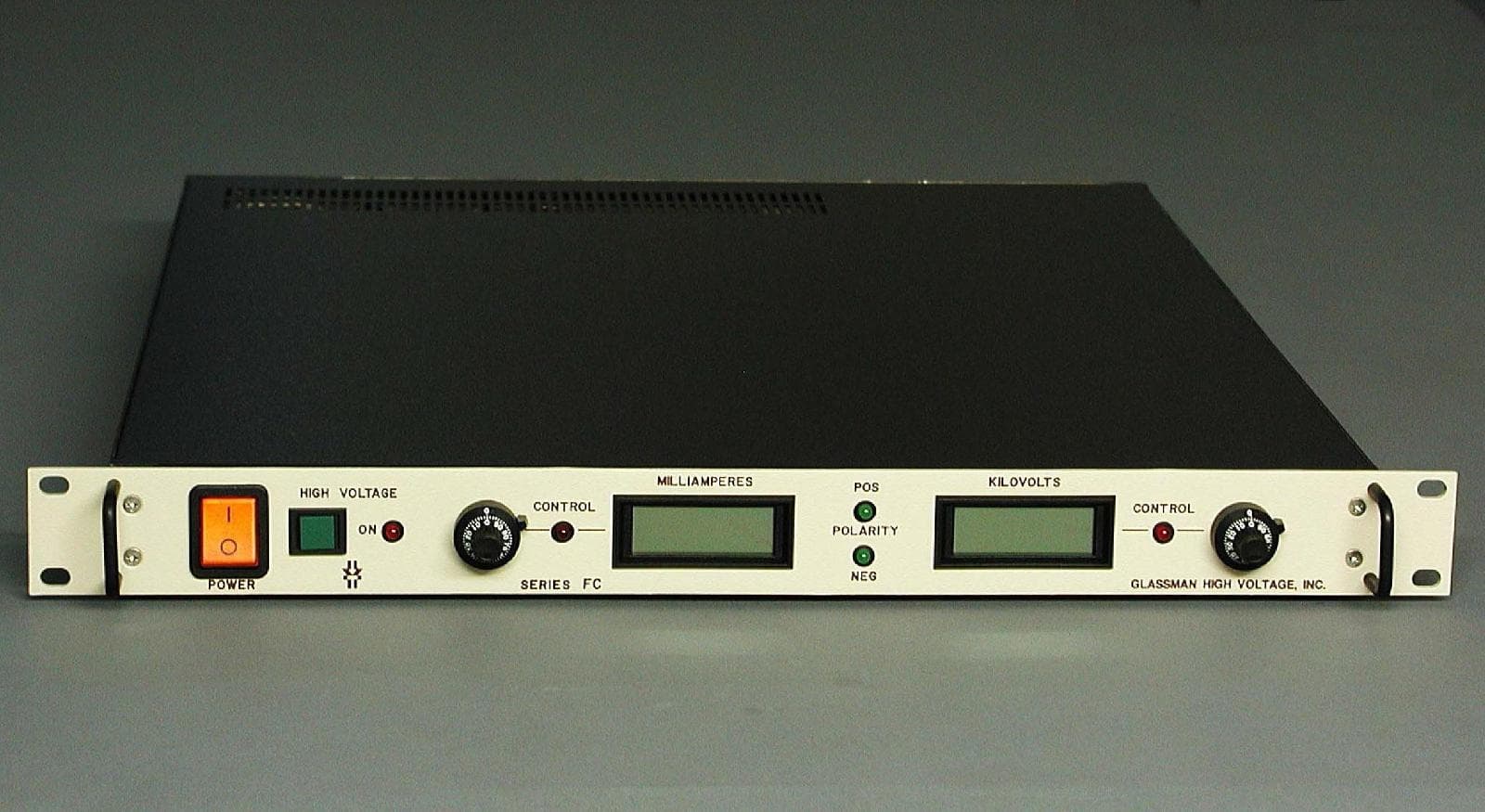

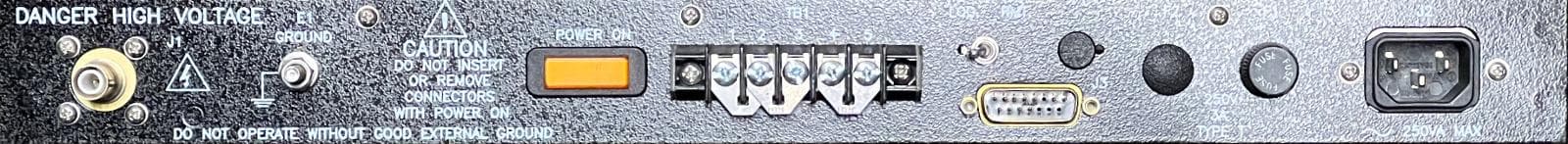

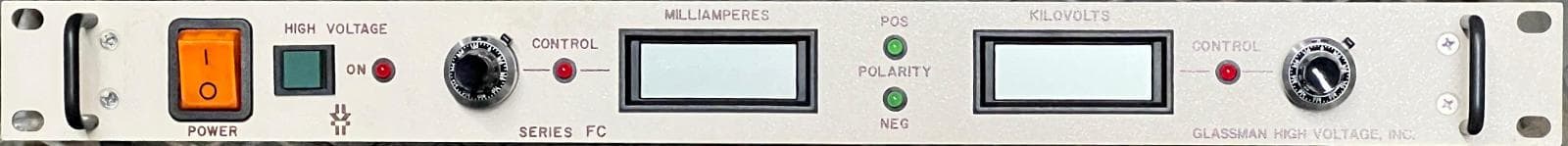

Glassman + PS/FC05P24 or - PS/FC05N24 High Voltage Power Supply Positive or Negative Polarity

Quoted on requestWorking & warranted

Condition: Used
Brand: Glassman
MPN: + PS/FC05P24 or - PS/FC05N24
SKU: 172335
Availability: 4 in stock

Ask a question?

Item description

Positive or Negative Polarity, request when ordering (not user configurable)

Can be configured for 230VAC input, request when ordering (not user configurable)

SHV output connector, high voltage cable is NOT included

RS232 option is NOT included

We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications

Specifications

Maximum Output Voltage: 5.0 kV
Maximum Output Current: 24.0 mA
Bipolar: No
Panel Meters: Digital
Ripple: <0.02% RMS of rated voltage +300mV at full load
Regulation: Better than 0.1%
Interface: I/O Port
External Cooling: Air Cooled
Power Requirements: 115 V 48-440 Hz 1 Phase
Weight: 12 lb (5 kg)

Exterior Dimensions

Width: 19.000 in (48.3 cm)
Depth: 20.000 in (50.8 cm)
Height: 1.720 in (4.4 cm)

Working & Warranted
Working & Warranted means the item has been inspected by Capovani engineers to confirm functional condition and is sold with a 90 day warranty.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
