Hontzsch GmbH UFA-PA-FADi 80-E-10A Vane Wheel Flow Sensor, 3", 150# ,316 SS
$2,650.0030 day return
- Condition
- New (open box) See details
- Brand
- Hontzsch GmbH
- MPN
- UFA-PA-FADi 80-E-10A
- SKU
- CID892
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return as listed. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Sensor w/integrated transducer and LCD display.

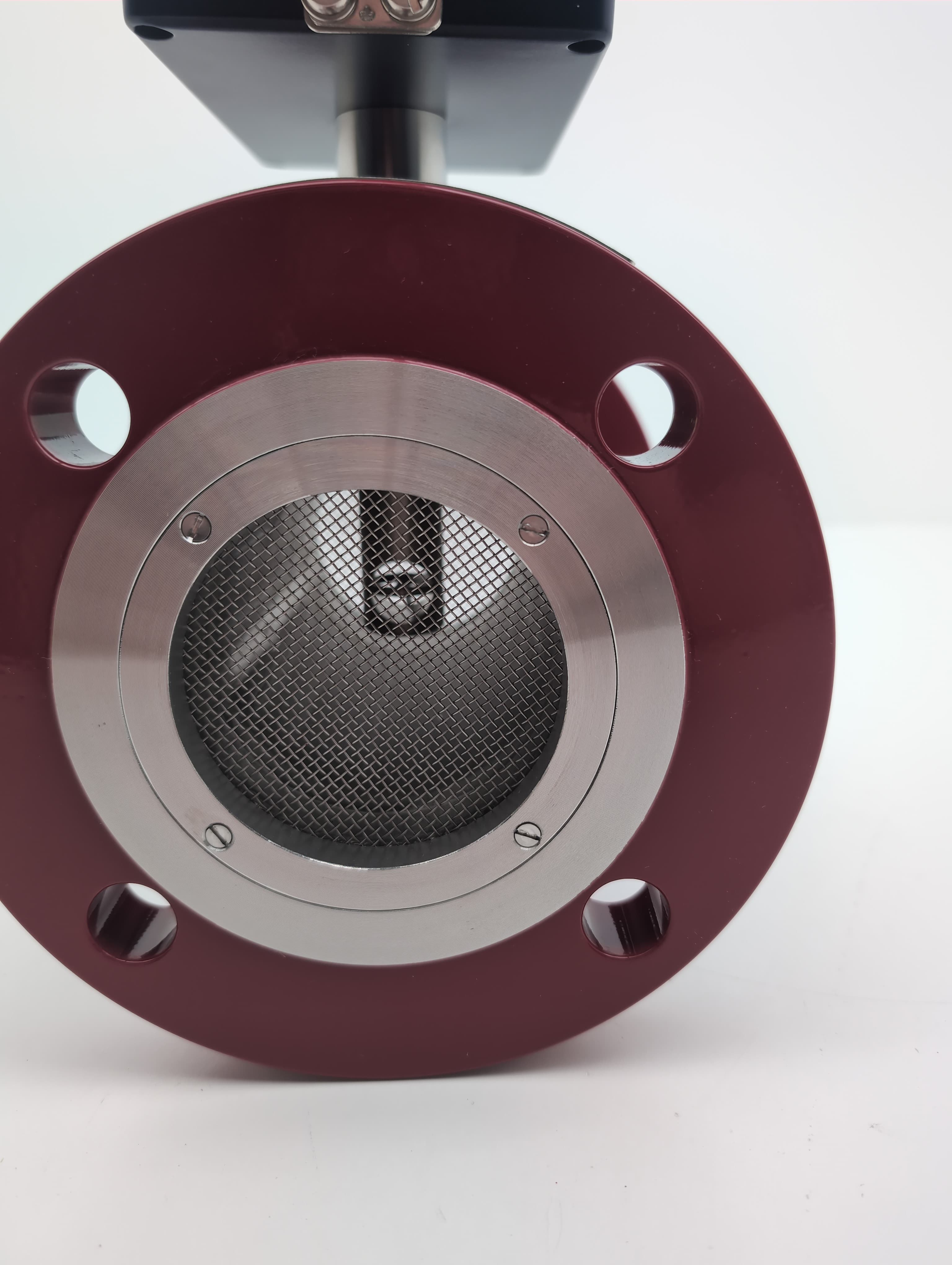

Stainless SteelMesh Gaurd at the inlet and outlet of the tube.

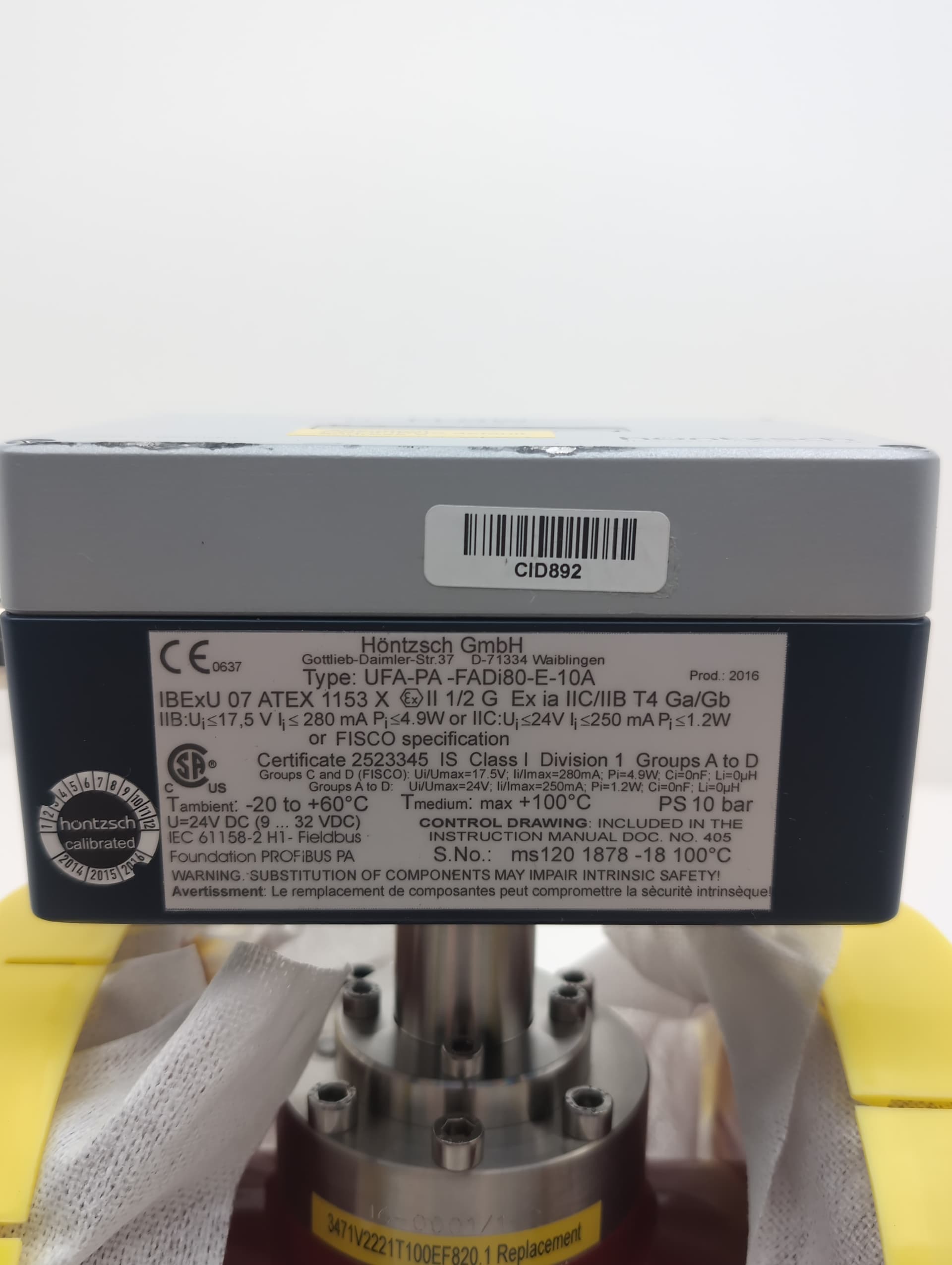

ATEX explosion proof housing.
Some of the sensors may have scuffed paint from storage.
Technical specifications
| Measuring range (air/gases with a density of approx. 1.2 kg/m³ | 21...1700m³/h |
| Flange | ANSI B 16.5 150lb RF |
| Max working pressure | 10 bar (145) |
| Ambient operating temperature range | -20 to+60ºC |
| Permissable medium temperature range | -20 To+100ºC |
| Tube length (flange face to flange face) | 200mm, 8" |
| Interface | Profibus PA |
| Tube Diameter | 80mm (3") |
Condition & testing notes
Unused inventory opened for inspection or photography. The item is from old surplus stock.
