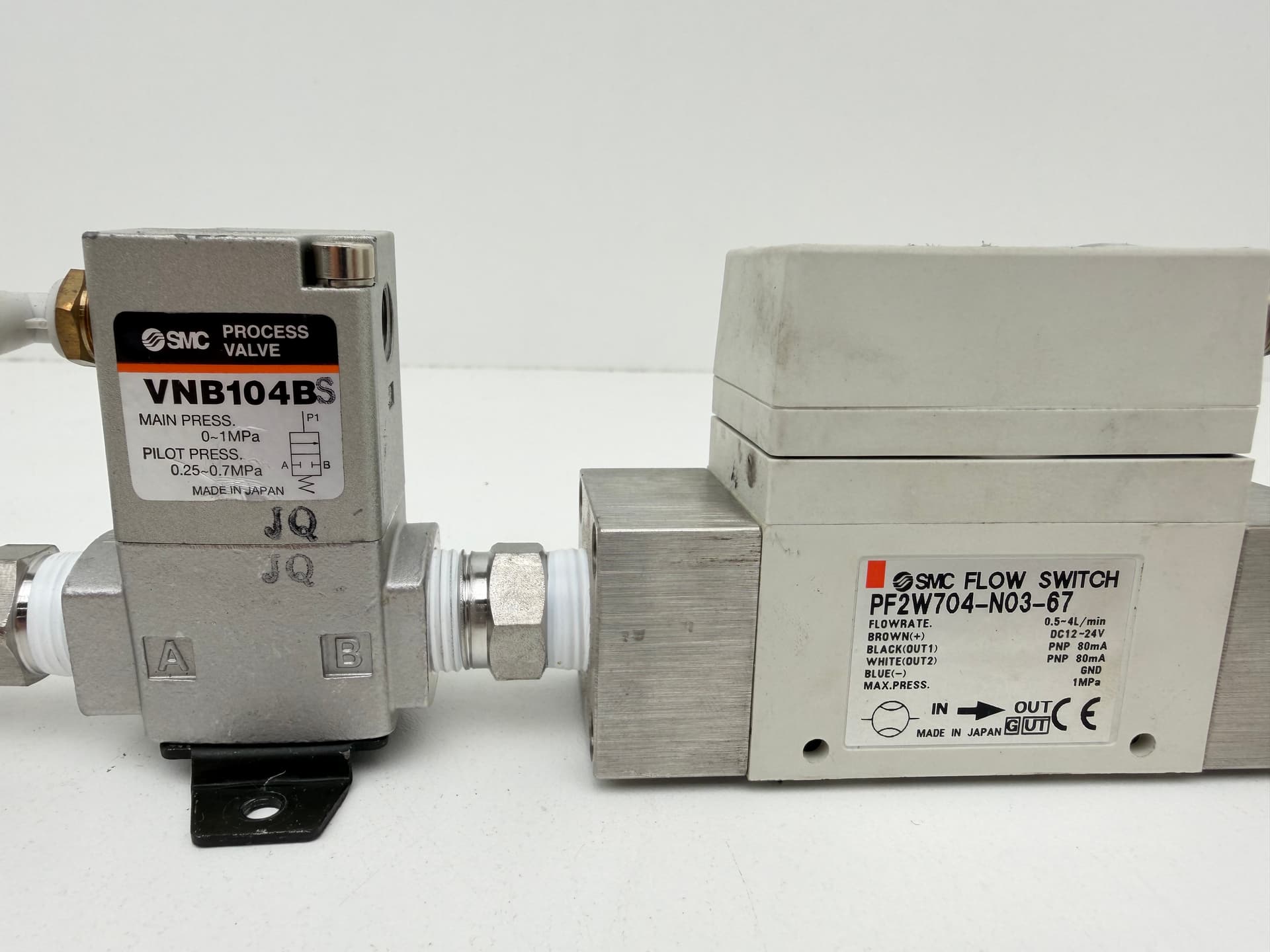

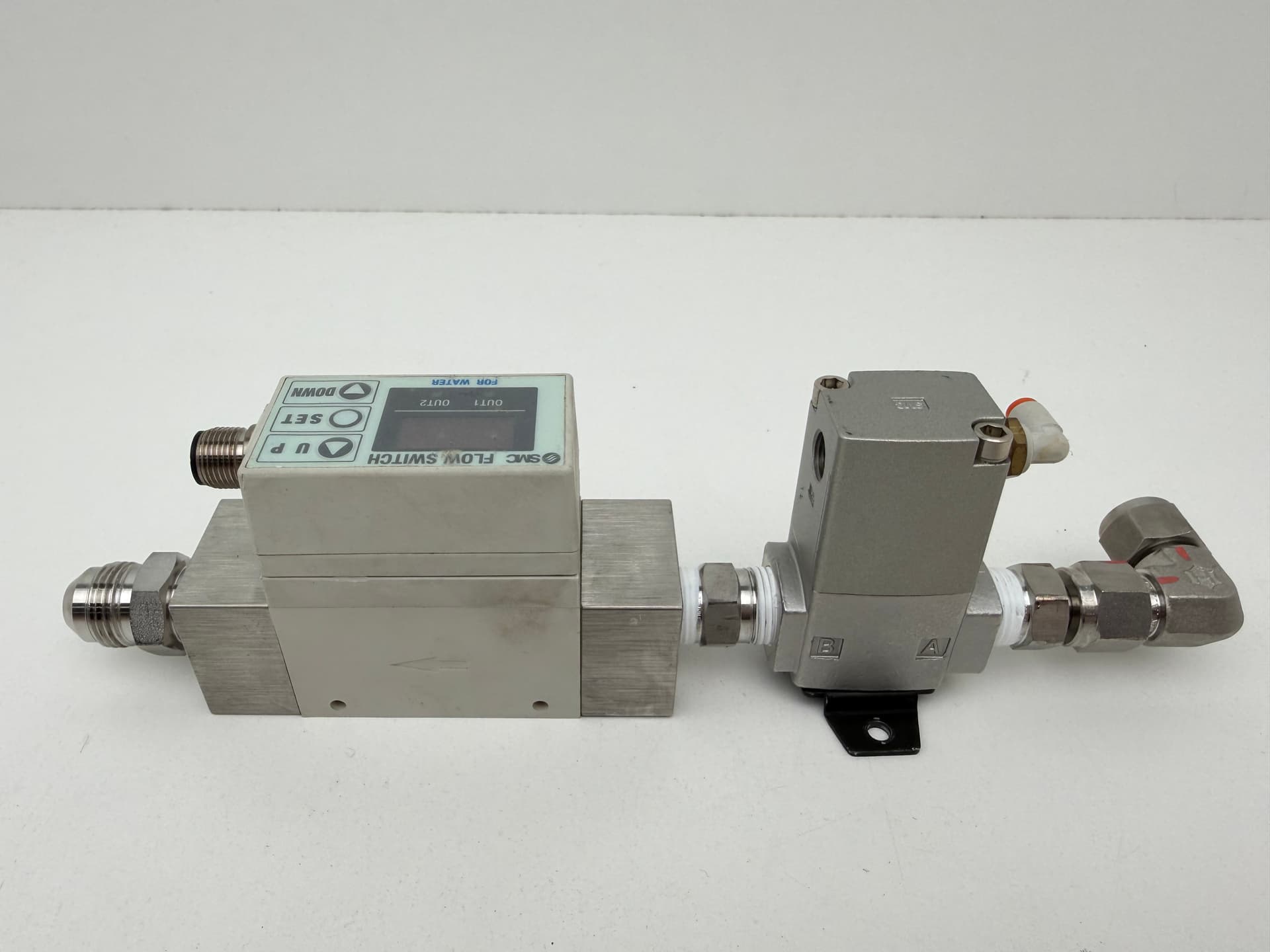

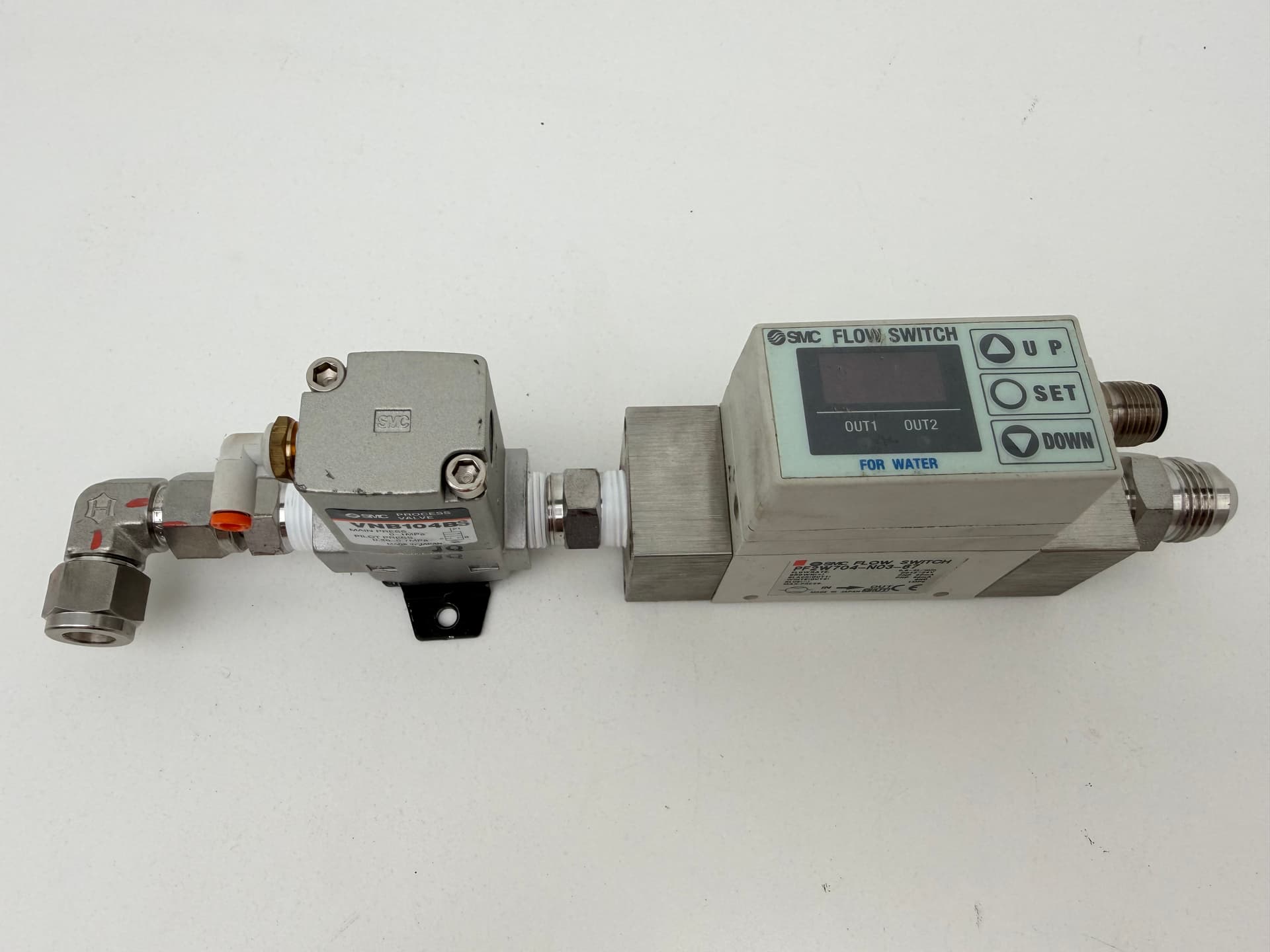

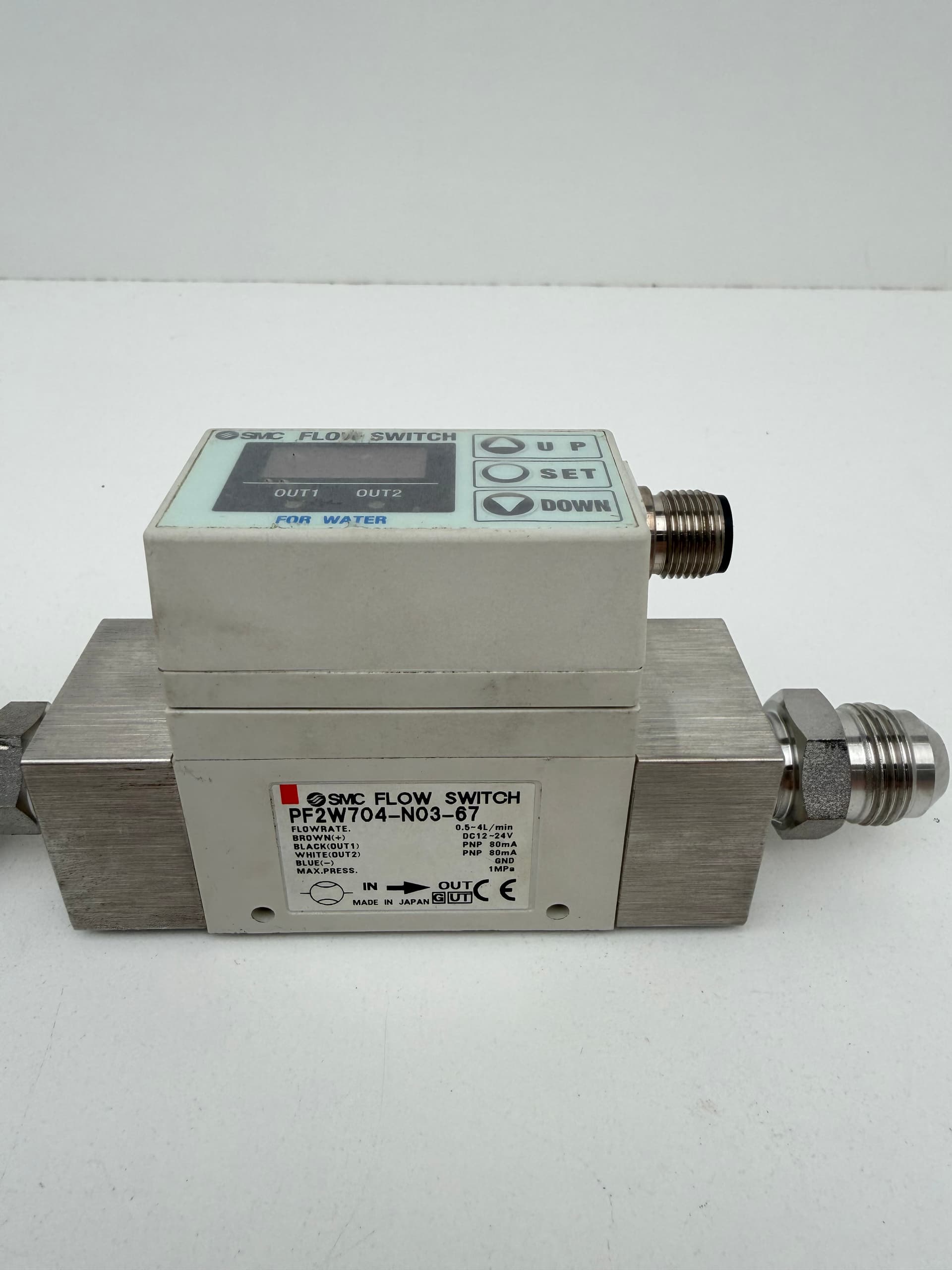

SMC PF2W704-N03-67 Digital Flow Switch , 0.5-4 L/min, NPT, w/ SMC VNB104BS
$100.0030 day return
- Condition
- Used See details
- Brand
- SMC
- MPN
- PF2W704-N03-67
- SKU
- CID1374
- Availability
- 23 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

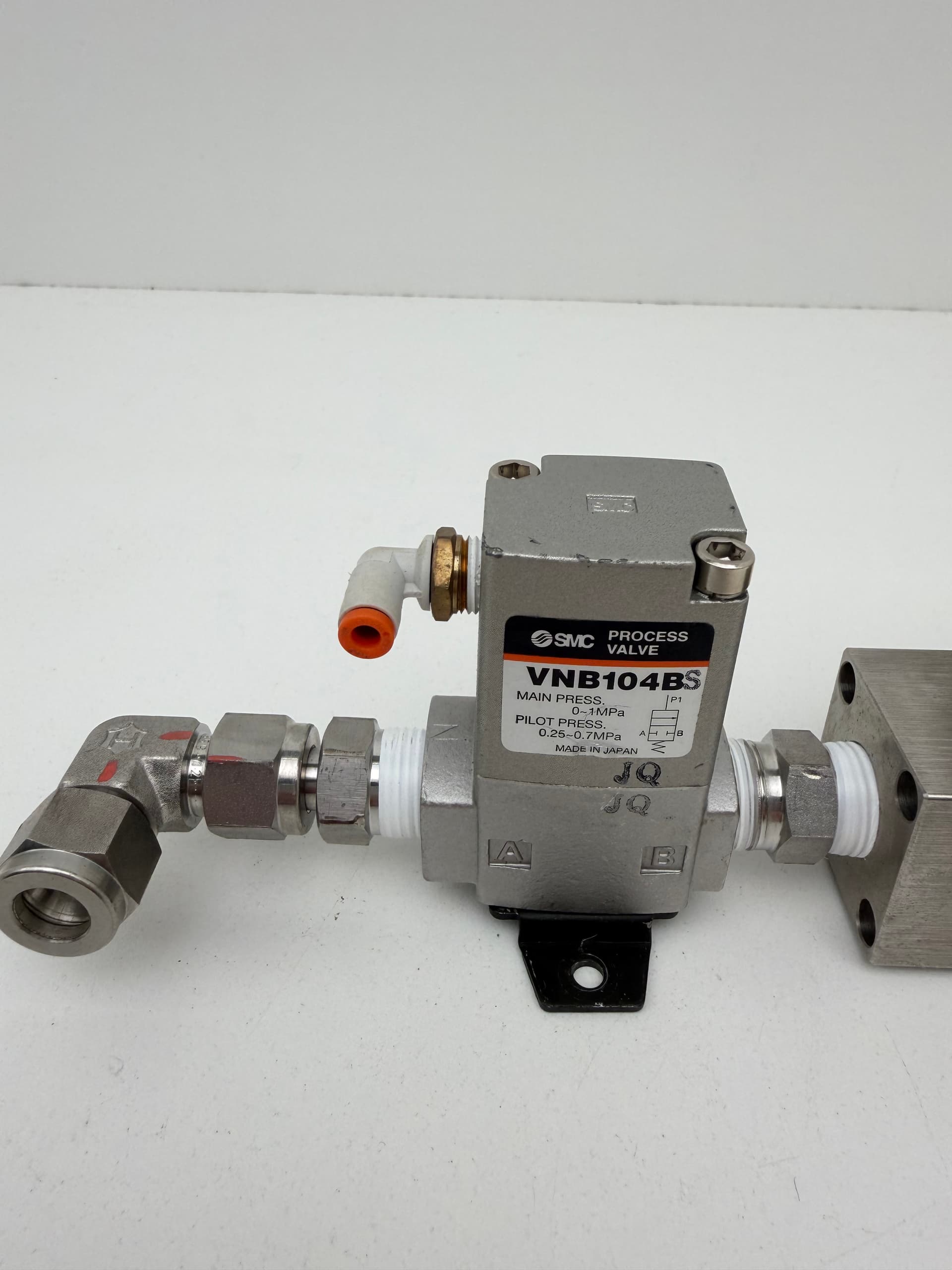

For water, 0.5-4 L/min, 12-24 VDC, PNP outputs, 80 mA, 1 MPa max; 3/8 NPT port. Process valve: VNB104BS, 0-1 MPa main pressure, 0.25-0.7 MPa pilot pressure.
Technical specifications
| FLOWRATE. | 0.5-4 L/min |
| BROWN(+) | DC12-24V |
| BLACK(OUT1) | PNP 80mA |
| WHITE(OUT2) | PNP 80mA |
| BLUE(-) | GND |
| MAX.PRESS. | 1MPa |
| Port Size | NPT 3/8 |
| Flow Rate Range | 0.35 to 4.5 L/min |
| Operating Temperature Range | 0 to +50 °C |
| Proof Pressure | +1.5 MPa |
Condition & testing notes
Previously in service and offered for secondary-market resale. It is not tested.
