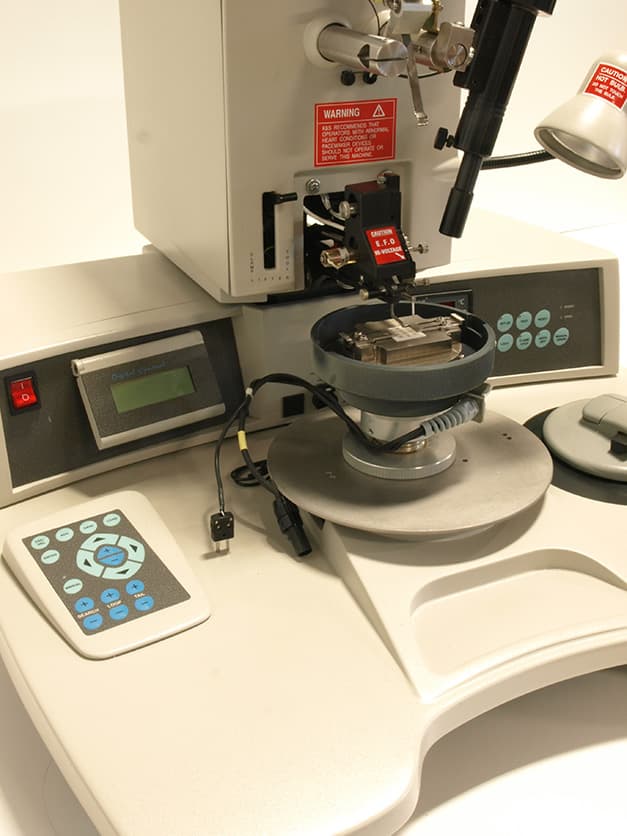

Kulicke & Soffa 4524D Manual Ball Bonder

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Kulicke & Soffa
MPN
4524D
SKU
165163
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Stereozoom microscope to be included; make and model to be determined.

Deep Access, 6 Channels,up to 200 programs, LCD Display

Bonding area: 6" x 6"

Throat dept: 5.6"

Gross table motion: 5.5"

Fine table motion: 0.55"

Z Motion system: DC servo/LVDT control

Z Travel: 9.1mm

Ultrasonic system

60 kHz Transducer

Low power: 1.3W

High power: 2.5W

Bond time

Ball bonding/bumping: 20 to 200ms

Single point, TAB: 20 to 1000ms

Bond force: 10 to 160 gr

Wire

Gold 0.7 to 3.0 Mil

Spool: 2"

Wire feed 90°

Wire termination: clamp tear

Modes of operation

  • Semi-auto

  • Manual Z

  • Ball bonding

  • Single point TAB

  • Ball bumping

  • Coining

Ball formation: Negative EFO (N.E.F.O.)

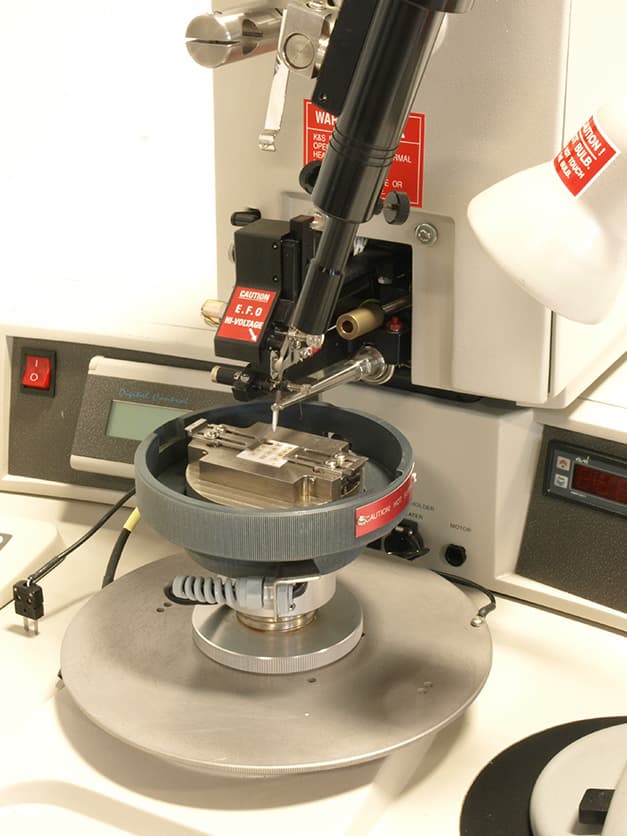

Heated 2"x2" work holder

Targeting spotlight

CE Label

Technical specifications

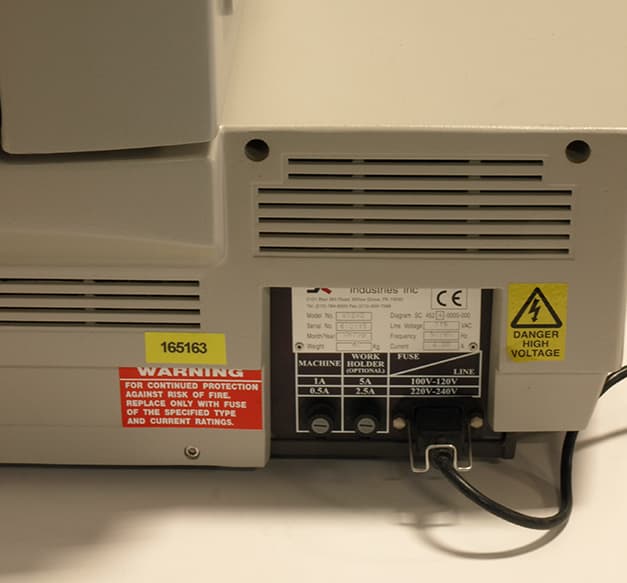

Power Requirements115 V 4.0 A 50/60 Hz 1 Phase
CE MarkedYES
Weight69 lb (31 kg)

Exterior Dimensions

Width27.000 in (68.6 cm)
Depth21.500 in (54.6 cm)
Height21.000 in (53.3 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
