You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.

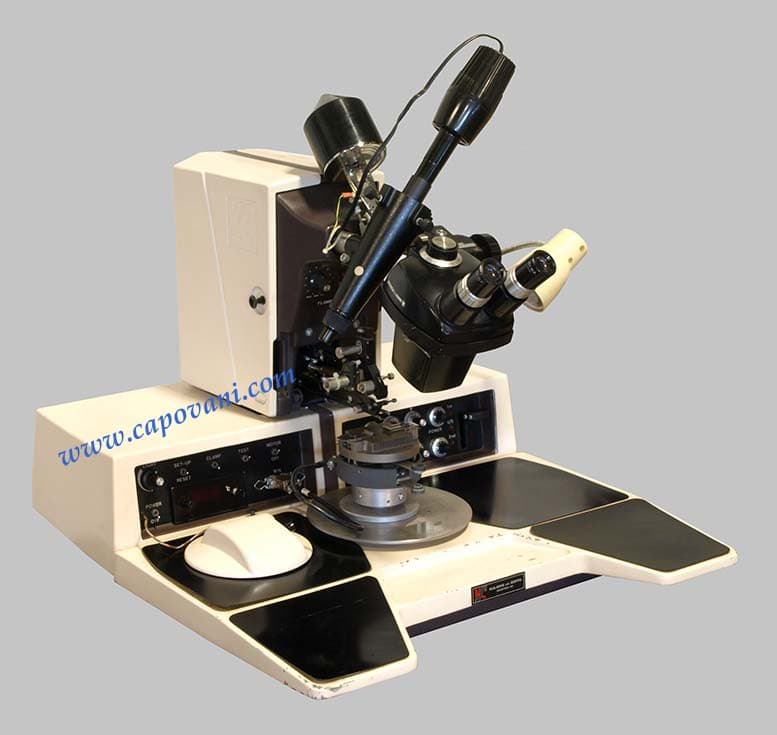

Kulicke & Soffa K&S 4124 Manual Ball Bonder

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Kulicke & Soffa
MPN
4124
SKU
143258
Availability
2 in stock
Quantity
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

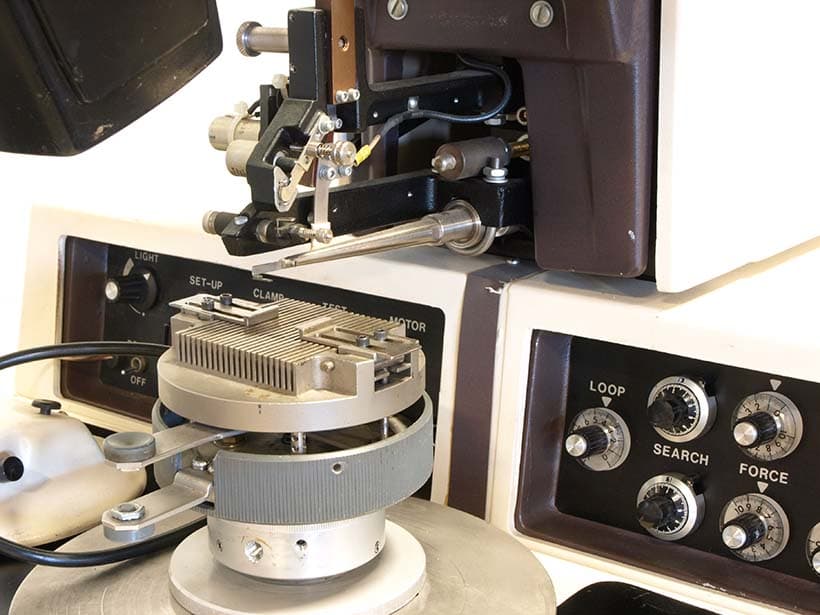

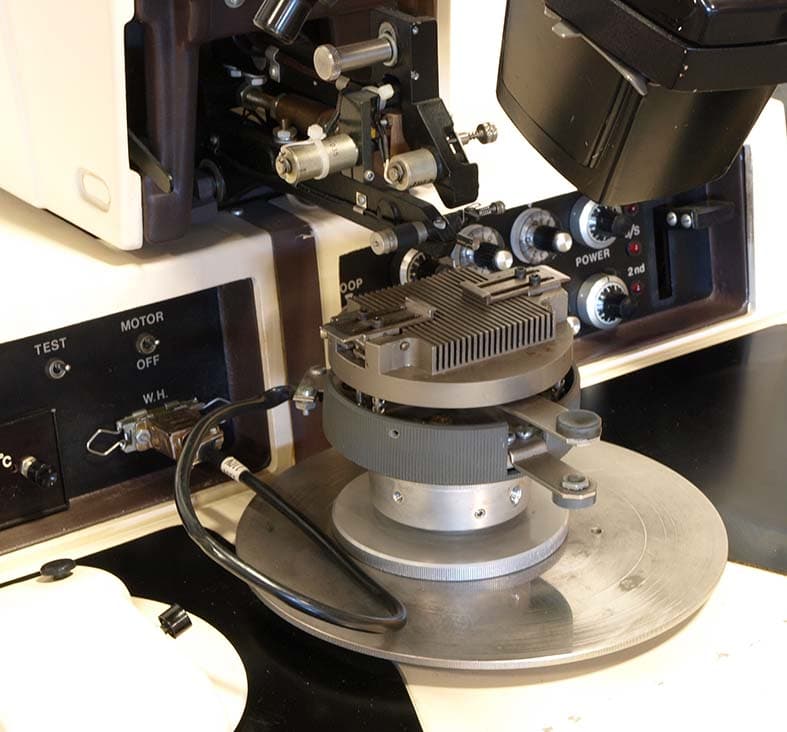

Heated work holder

B & L Stereozoom 4 Microscope

Magnification: 7X to 30X

Spotlight targeting

Wire diameter: 0.7 to 3.0 mils Wire spool: TC-3, 2", single flange Bond force: 10 to 160 grams Bond time: 10 to 100 ms Cycle time: 900 ms

Ultrasonic power: 1.3W low, 2.0W high

Throat depth: 5"

Bonding area: 3.75" x 3.75"

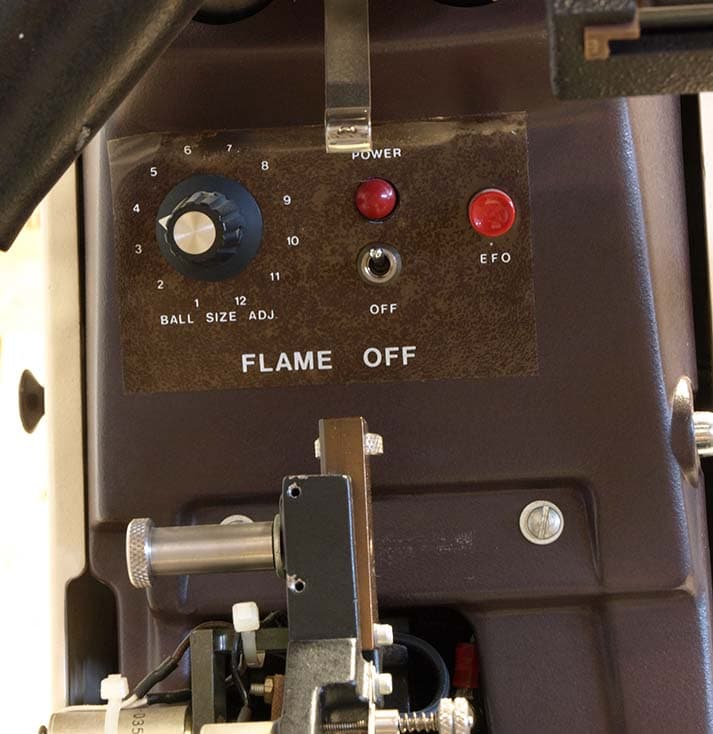

EFO: 1200 VDC, adjustable ball size

Technical specifications

Power Requirements115 V 5.0 A(2) 60 Hz 1 Phase
Weight110 lb (50 kg)

Exterior Dimensions

Width23.000 in (58.4 cm)
Depth26.000 in (66.0 cm)
Height26.000 in (66.0 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
