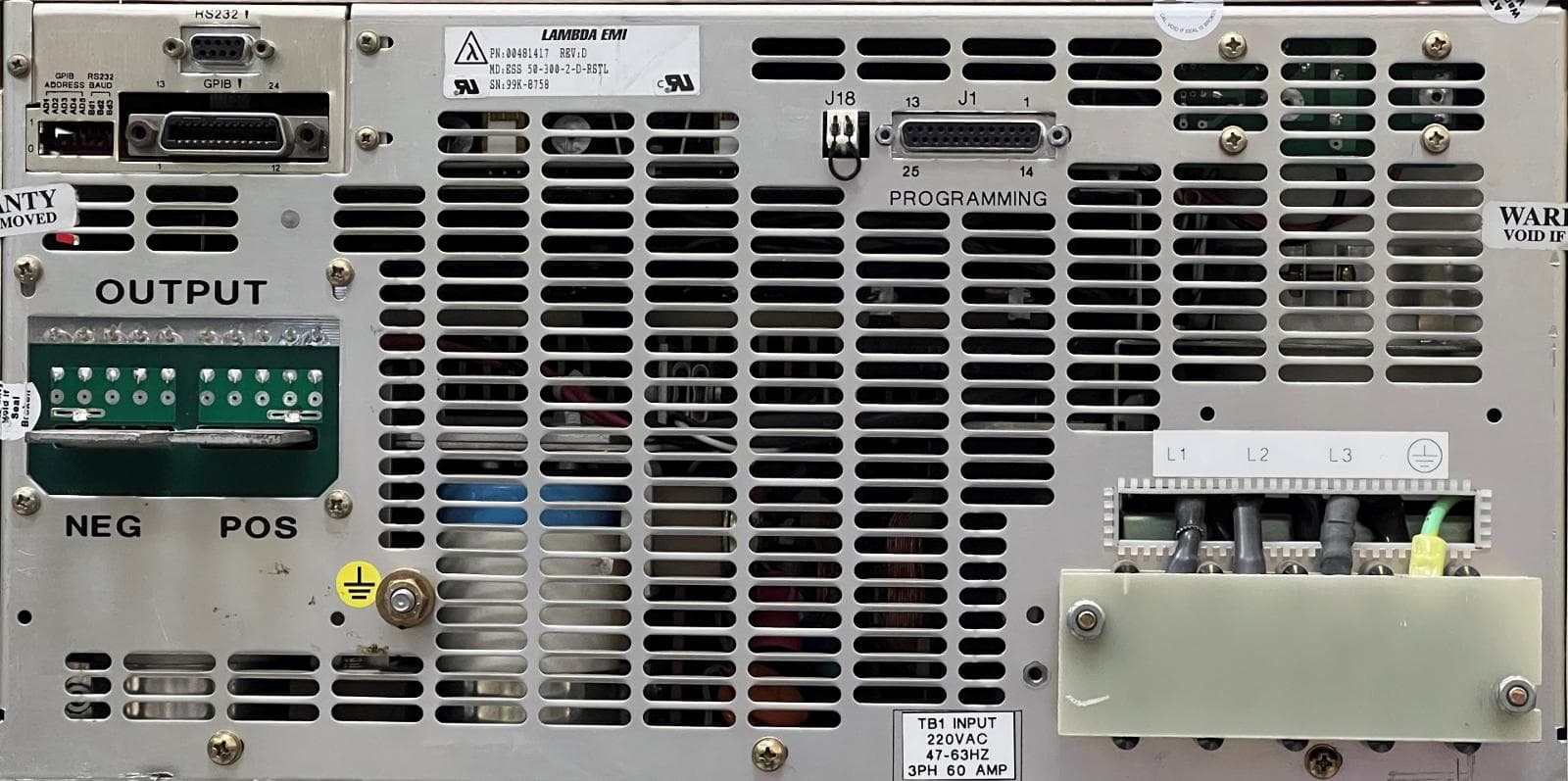

-RSTL option installed for IEEE-488.2 (GPIB) /RS232 control
P/N 00481417 Rev D
In the Normal Operation mode, the power supply is controlled by the front panel potentiometers and configured for constant voltage, constant current and local sensing. When shipped, the power supply will be configured for this mode with provided J1 jumper plug.
When using RSTL program, voltage and current programming are not applicable, see RSTL jumper plug configuration in the manual.
The unit with the "RSTL" option cannot be programmed by remote analog
programming connector in the voltage or current mode.
