Sorensen Ametek SGA 330X30 Programmable DC Power Supply
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Sorensen
- MPN
- SGA 330X30C-0AAA
- SKU
- 242604
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

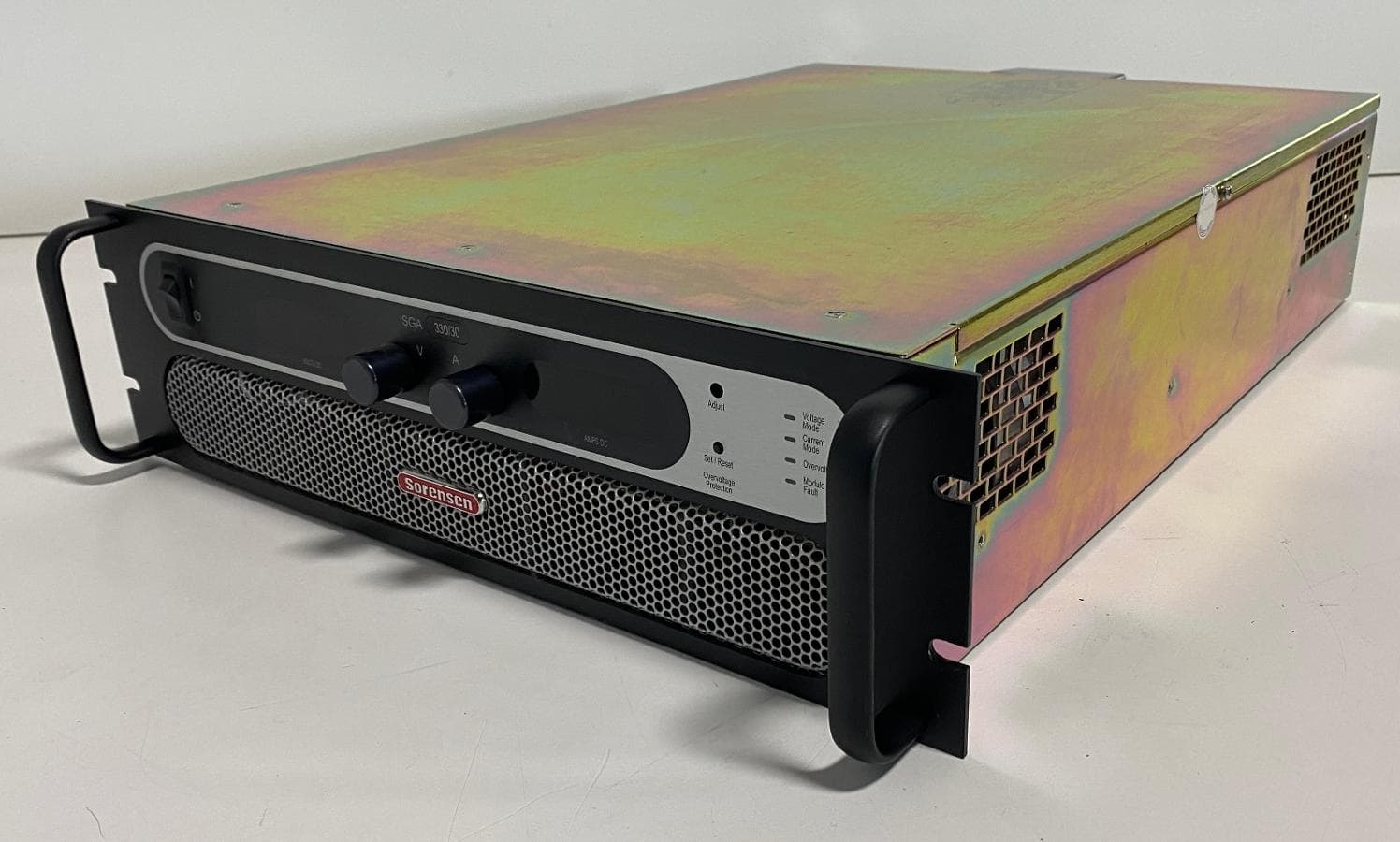

This unit has no remote control option, it can be controlled from the front panel only. See configuration decode from the model number in the manual SGA_Series_Op_Manual_M550129-01_RevAD.pdf linked below, page 1-2 (PDF page 14)

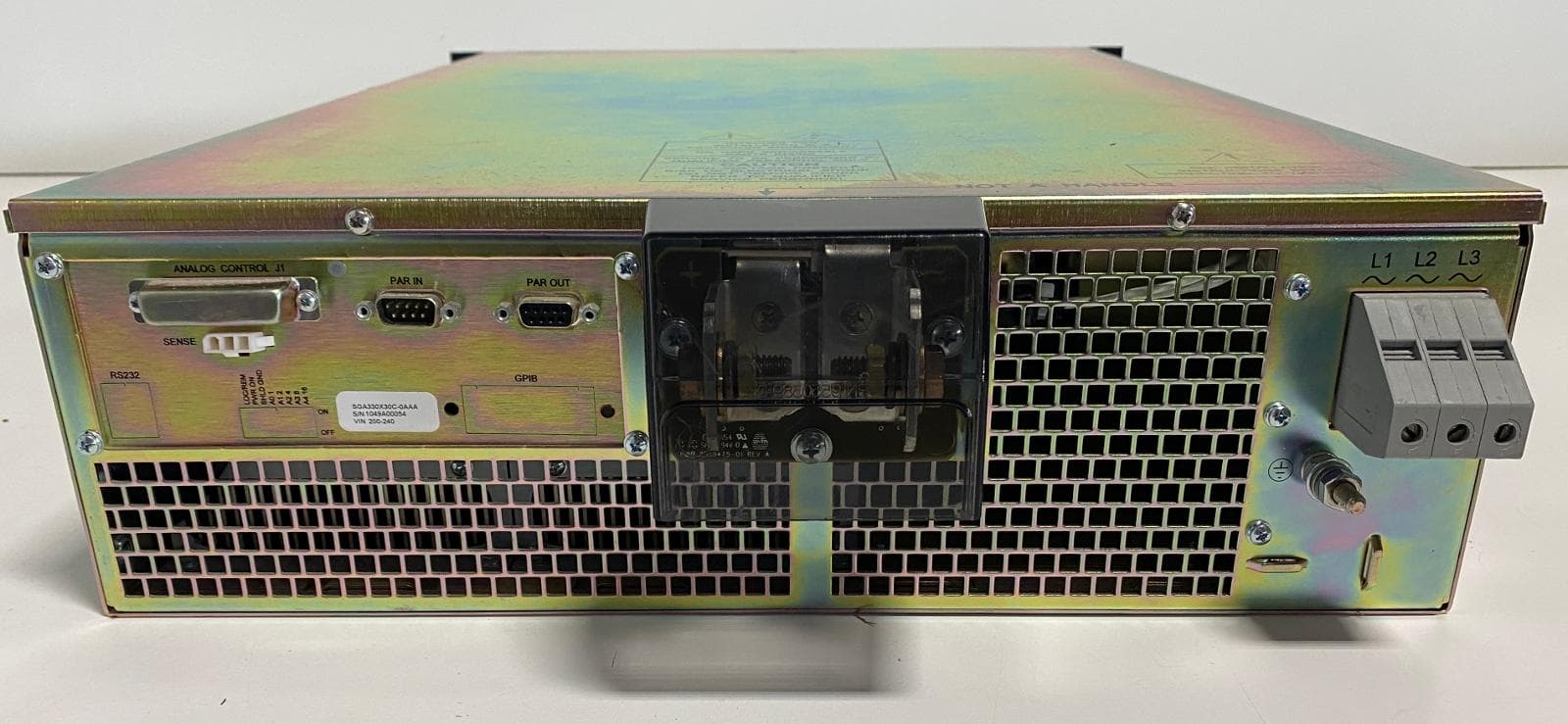

"PAR IN" and "PAR OUT" connectors are for parallel operation in master-slave configuration
Technical specifications
| Maximum Output Voltage | 330.00 Volts |
| Maximum Output Current | 30.00 Amps |
| Maximum Output Power | 9.90 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Ripple | 100mV |
| Panel Meters | Digital |
| Control Type | Analog Setpoint |
| External Cooling | Forced Air Cooled |
| Power Requirements | 200-240 V 41.0 A 50/60 Hz 3 Phase |
| CE Marked | YES |
| Weight | 66 lb (30 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 29.000 in (73.7 cm) |
| Height | 5.500 in (14.0 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
