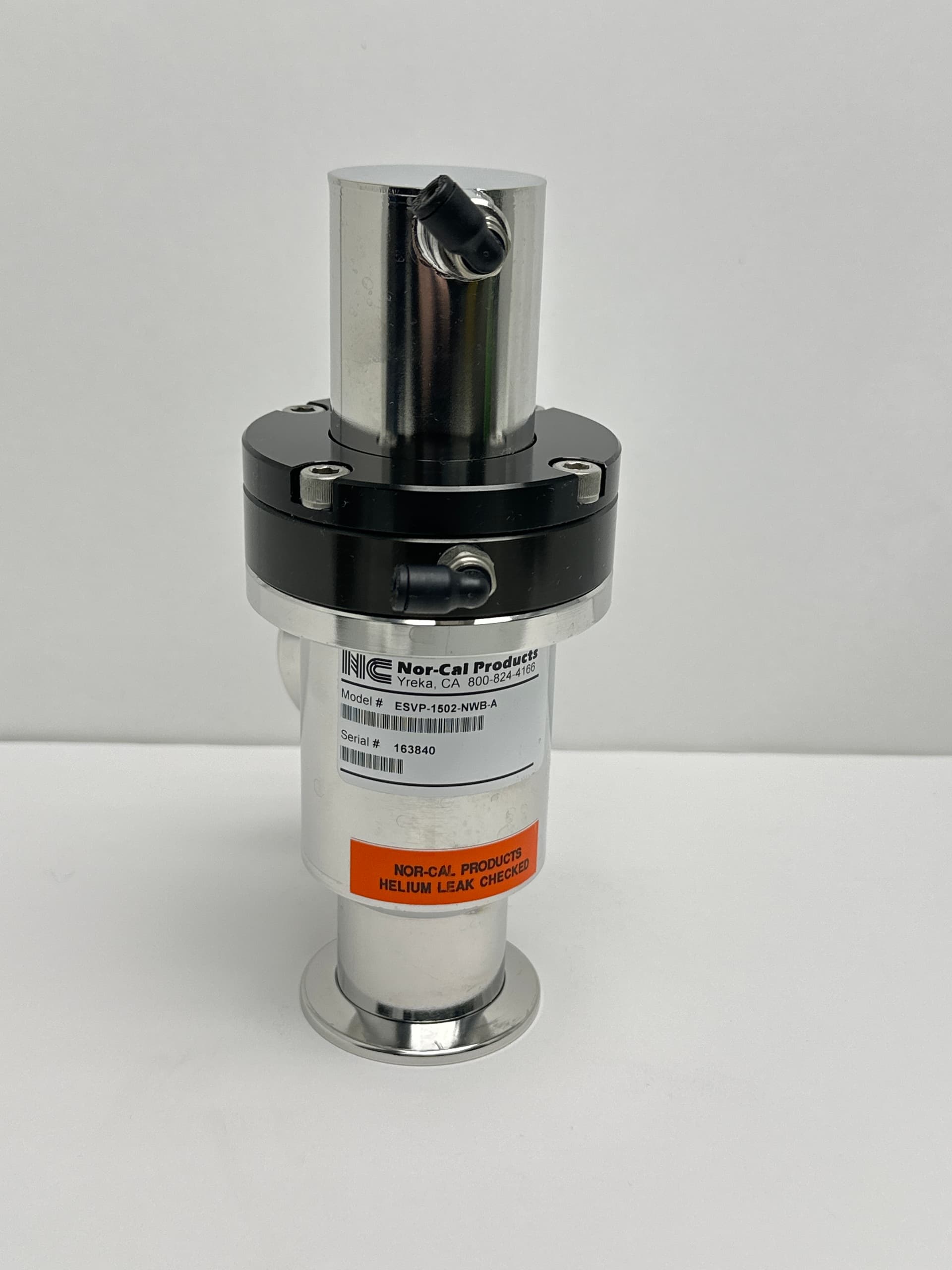

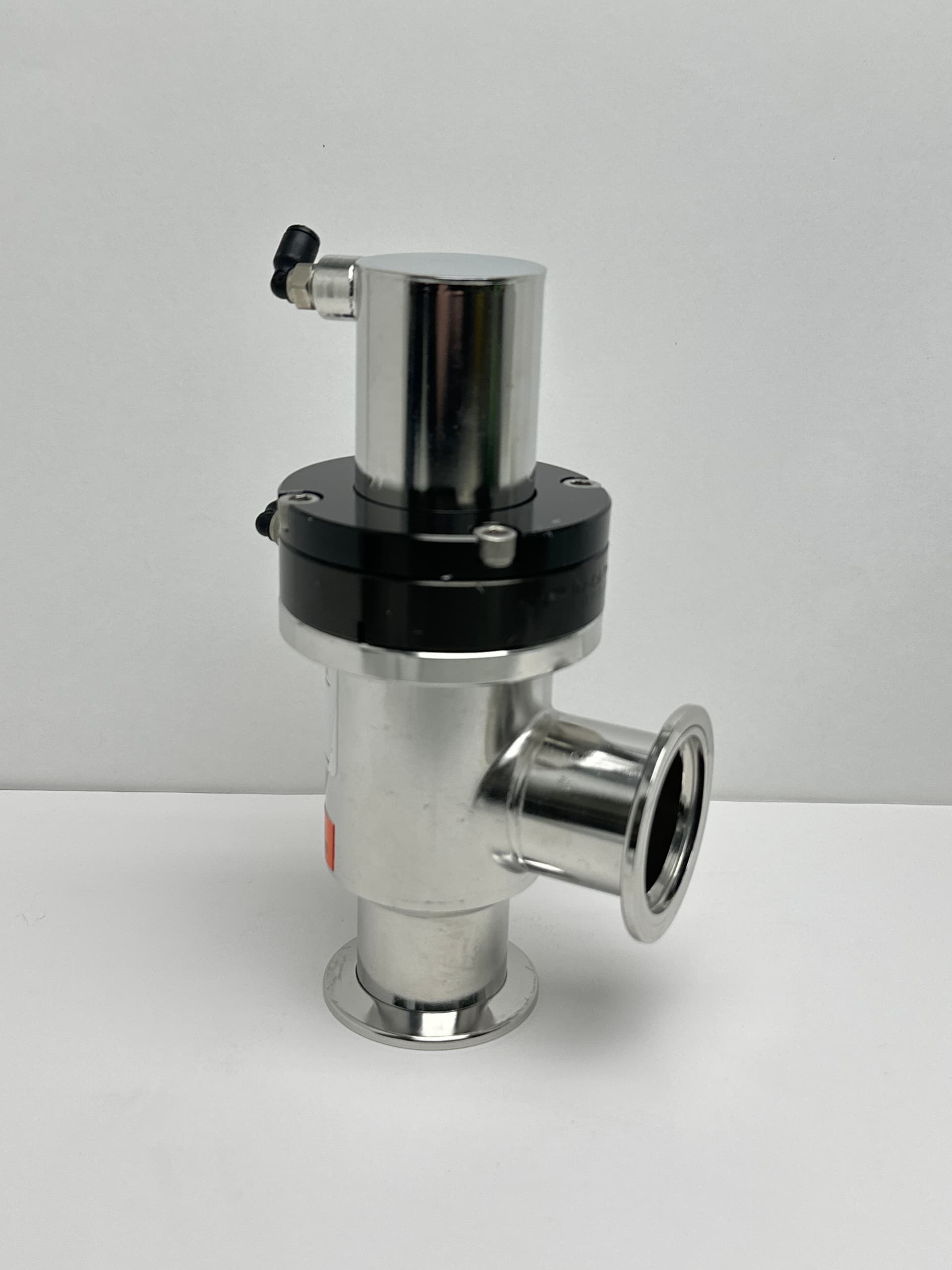

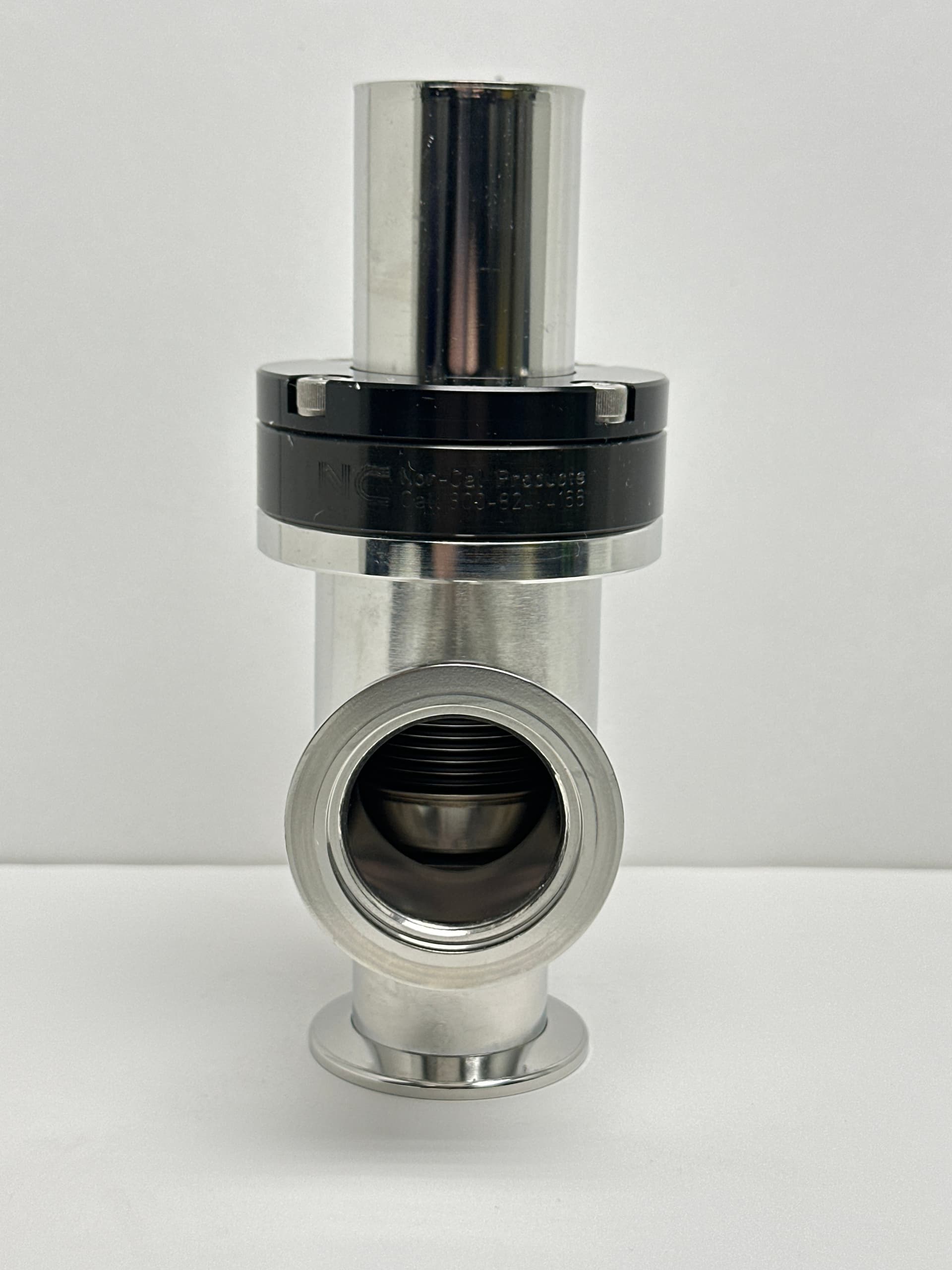

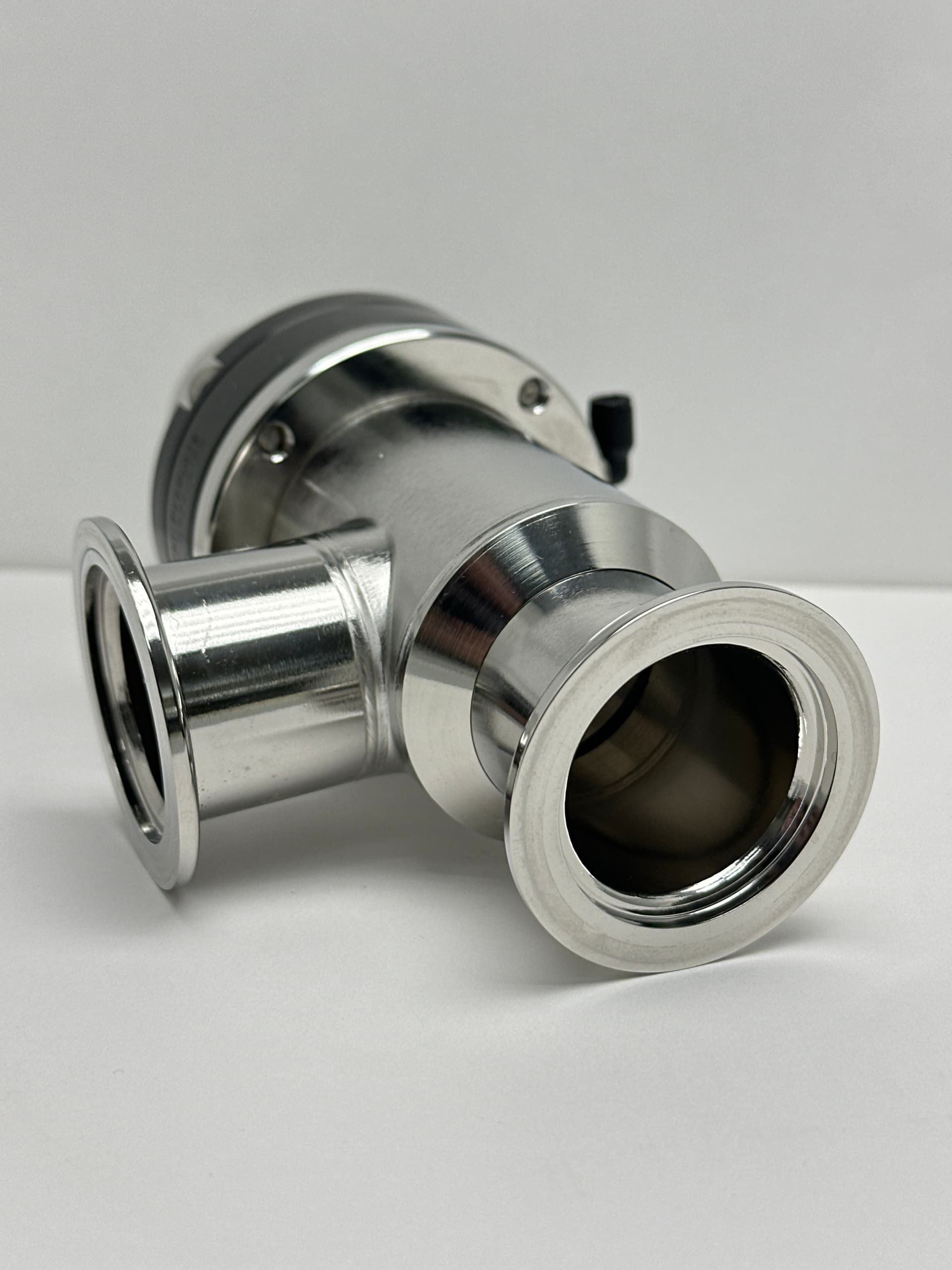

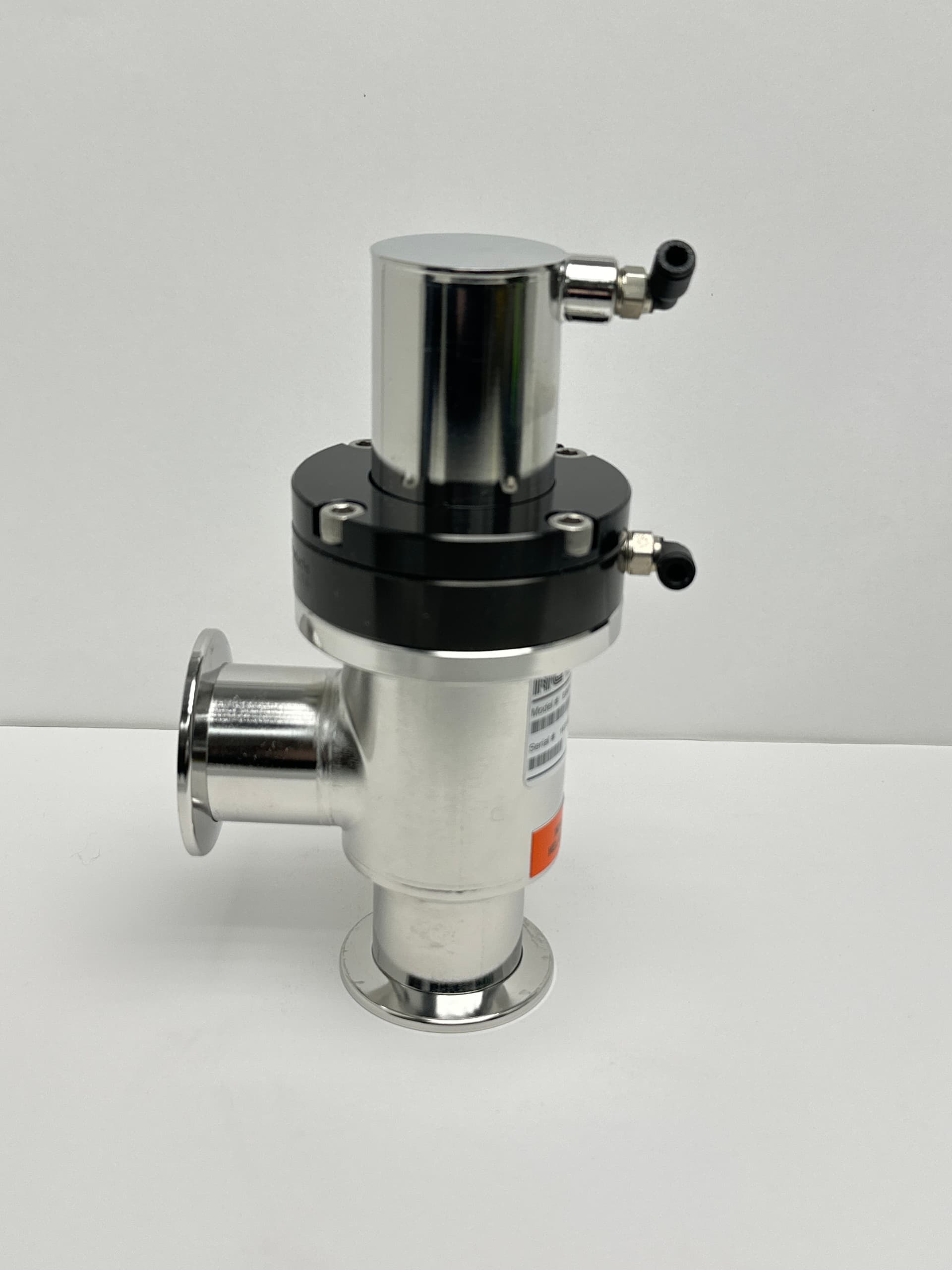

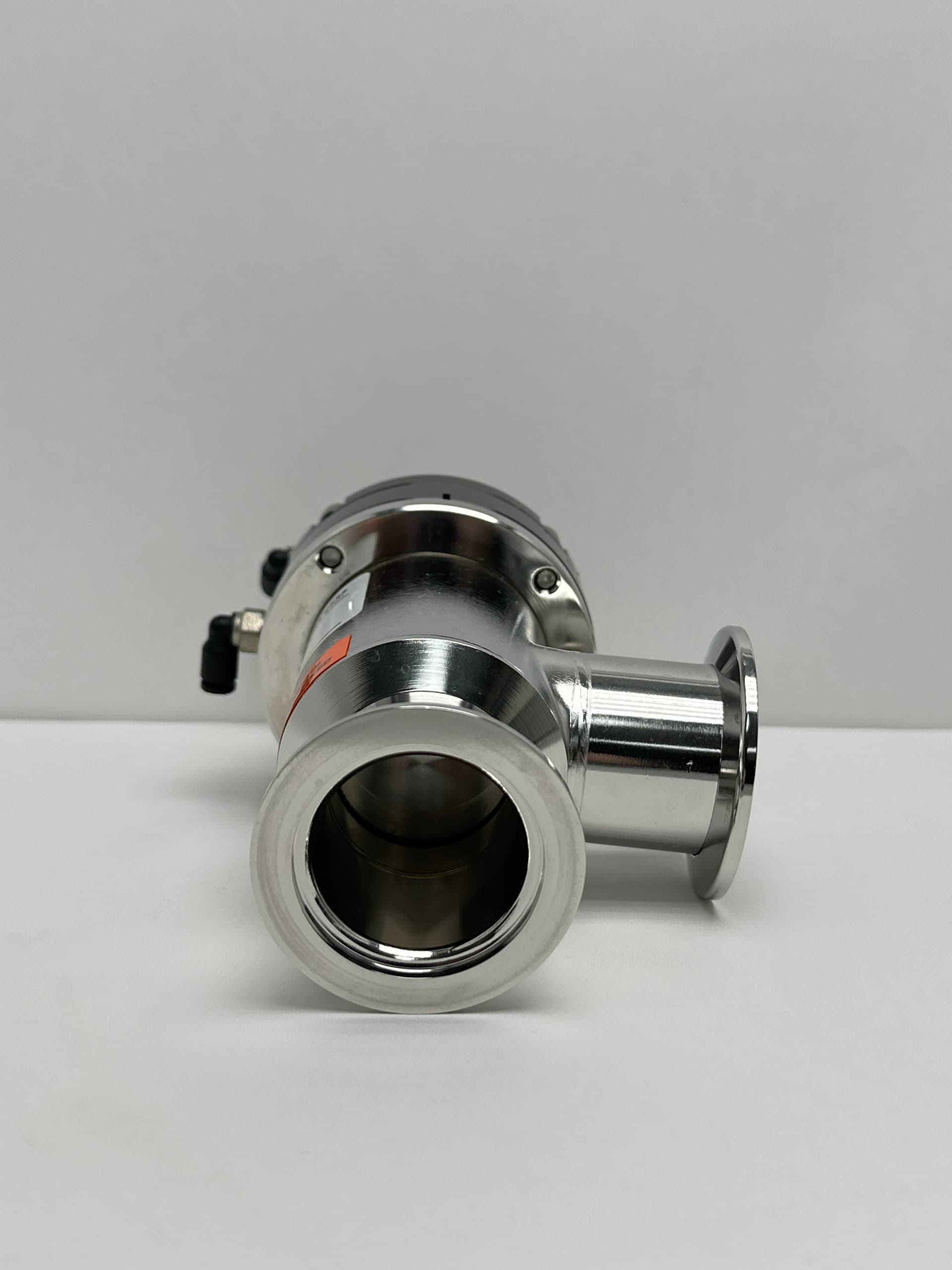

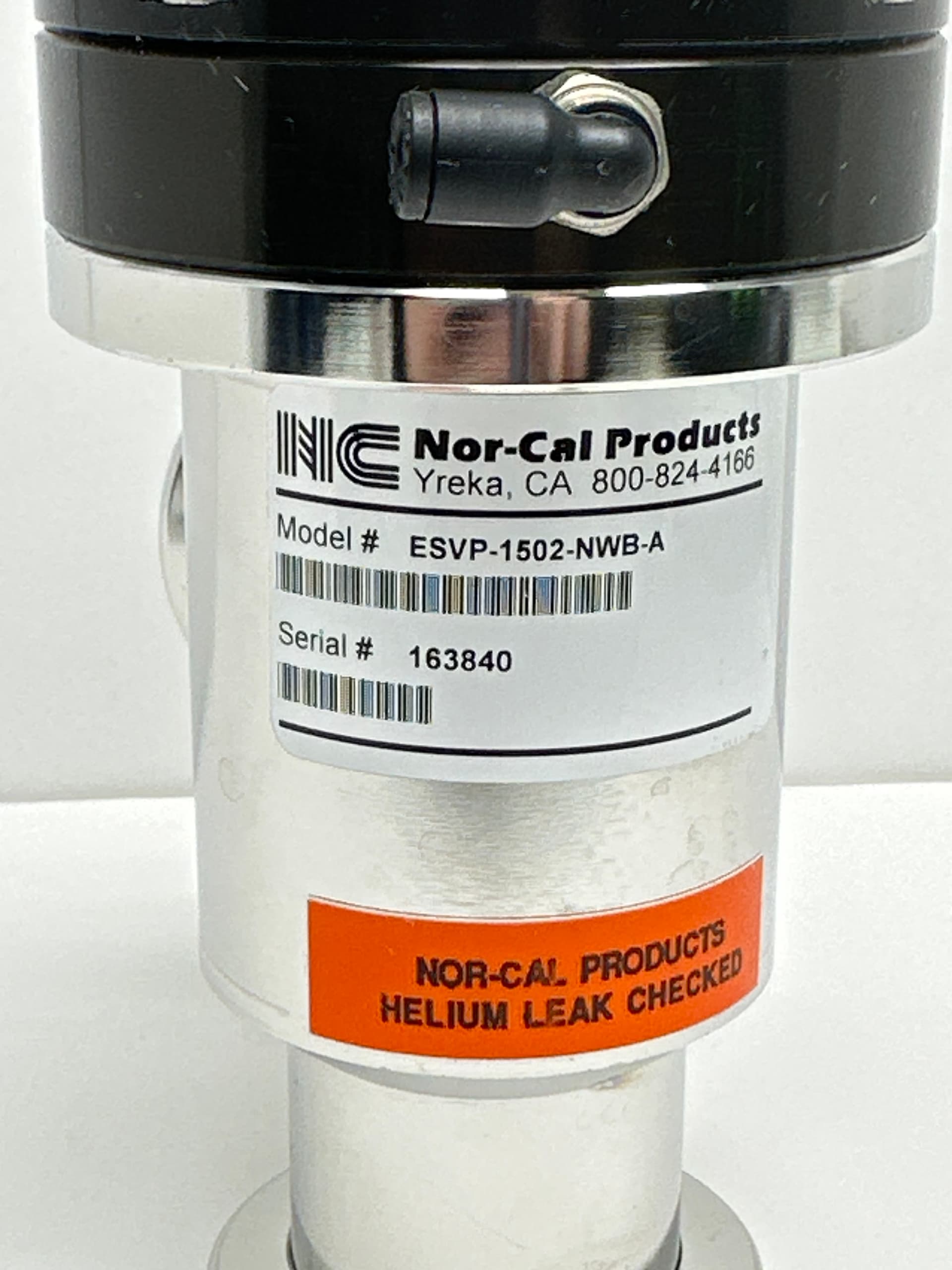

Nor-Cal Products ESVP-1502-NWB-A Pneumatic Angle Valve, 1-1/2 in NW-40B, DA
$350.0030 day return
- Condition
- Used See details
- Brand
- Nor-Cal Products
- MPN
- ESVP-1502-NWB-A
- SKU
- CID1506
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Technical specifications
| Product type | Pneumatic FKM Seal Angle Valve |
| NOMINAL PORT OD | 1-1/2 in (38 mm) |
| DESCRIPTION | NW-40B |
| Actuation option | Double Acting |
| Body | Electropolished 304 stainless steel |
| Bellows | Welded AM-350 stainless steel |
| Bonnet seal | FKM |
| Operating Pressure | 60 to 80 psig (4-5.5 bar) |
| Differential pressure | Maximum 20 psi (1.4 bar) differential across the valve seat |
| Helium leak tested | <10-9 mbar l/sec. |
| Vacuum range | FKM bonnet seal: >1 x 10-9 mbar - High Vacuum |
| Maximum temperature with FKM seals | Sustained: <150°C; Intermittent: <204°C |
Valve Specifications
| Product type | Pneumatic FKM Seal Angle Valve |
| NOMINAL PORT OD | 1-1/2 in (38 mm) |
| DESCRIPTION | NW-40B |
| Actuation option | Double Acting |
| Body | Electropolished 304 stainless steel |
| Bellows | Welded AM-350 stainless steel |
| Bonnet seal | FKM |
| Poppet seal | FKM |
| Operating Pressure | 60 to 80 psig (4-5.5 bar) |
| Differential pressure | Maximum 20 psi (1.4 bar) differential across the valve seat |
| Helium leak tested | <10-9 mbar l/sec. |
| Vacuum range | FKM bonnet seal: >1 x 10-9 mbar - High Vacuum |
| Maximum temperature with FKM seals | Sustained: <150°C; Intermittent: <204°C |
Condition & testing notes
Previously in service and offered for secondary-market resale. It is not tested.
