Plasma-Therm Dual Chamber 8" RIE Reactive Ion Etch System w/ Load Lock

$75,000.00As-is no return
Condition
Used See details
Brand
Plasma-Therm Unaxis
MPN
790, Adjustable Electrode
SKU
CID1456
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Freight, ready within 3 to 5 business days of order confirmation; you arrange the carrier or we can coordinate it.
Sale Coverage:
As-is No Return: No return; final sale. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

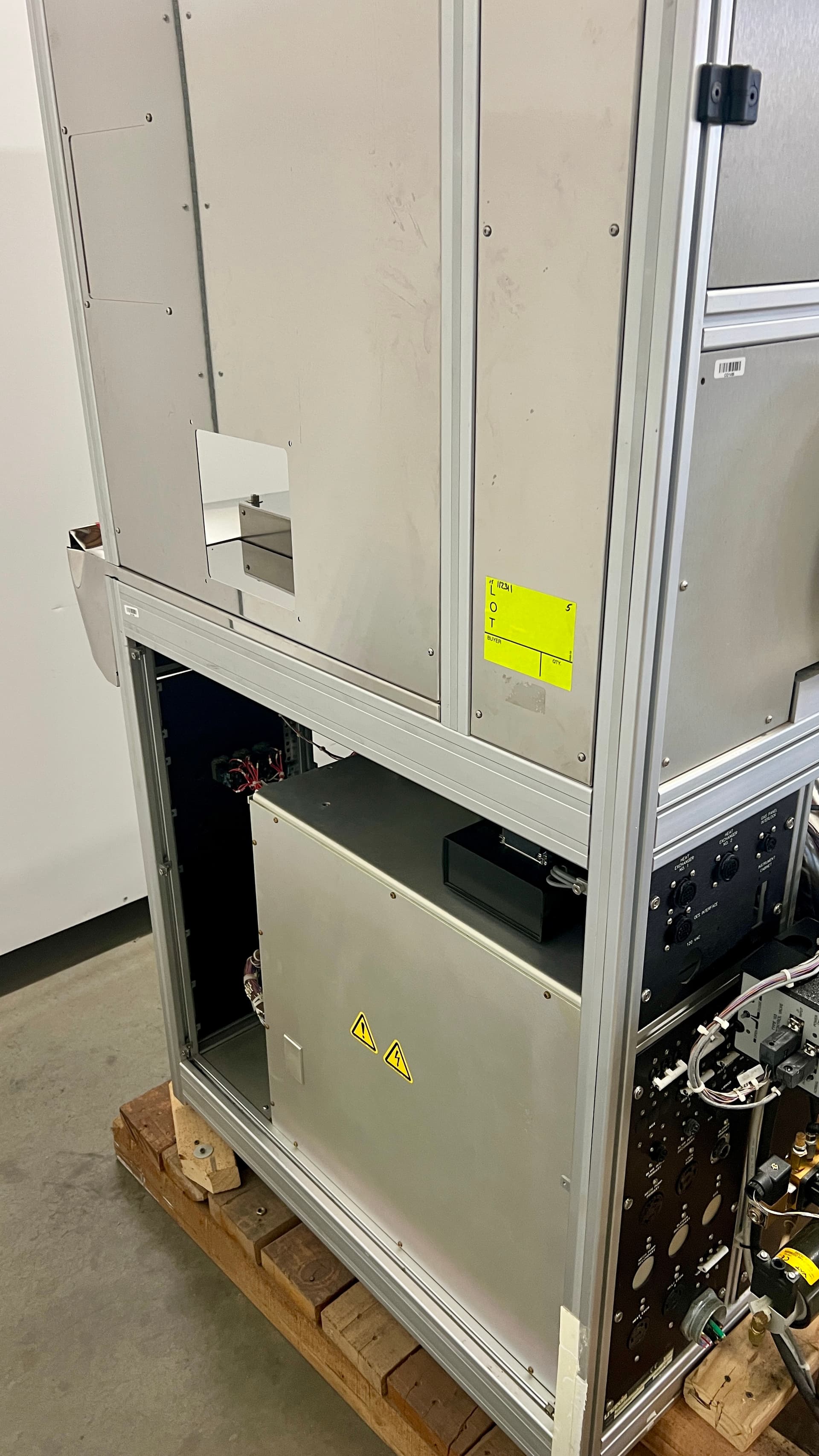

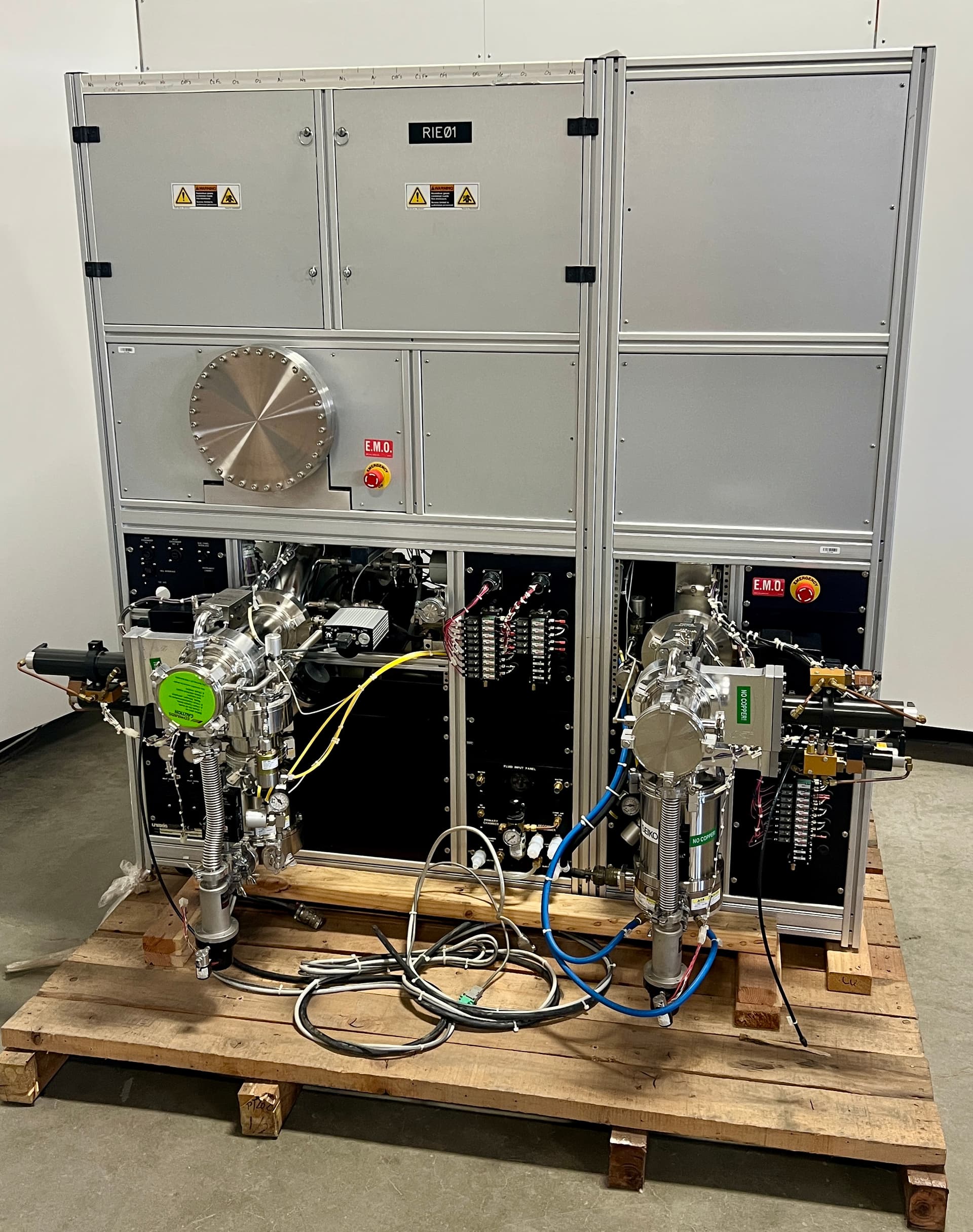

System Highlights

  • Plasma-Therm dual-chamber RIE system

  • (2) 8" reactive ion etching process chambers

  • Fixed-gap RIE chamber

  • Variable-gap RIE chamber

  • Adjustable electrode gap: approximately 1.25" to 3.25"

  • Powered upper and lower electrodes on both chambers

  • Integrated shuttle/load-lock wafer transfer system

  • Wafer transfer between the two process chambers

  • (8) MKS MFC gas channels per chamber

  • (16) MFC channels total

  • Independent turbomolecular pumping for each chamber

  • MKS throttle/pressure control

  • Advanced Energy RF hardware

  • RF matching/tuning hardware

  • Pneumatic high-vacuum valves

  • Integrated Plasma-Therm system controls

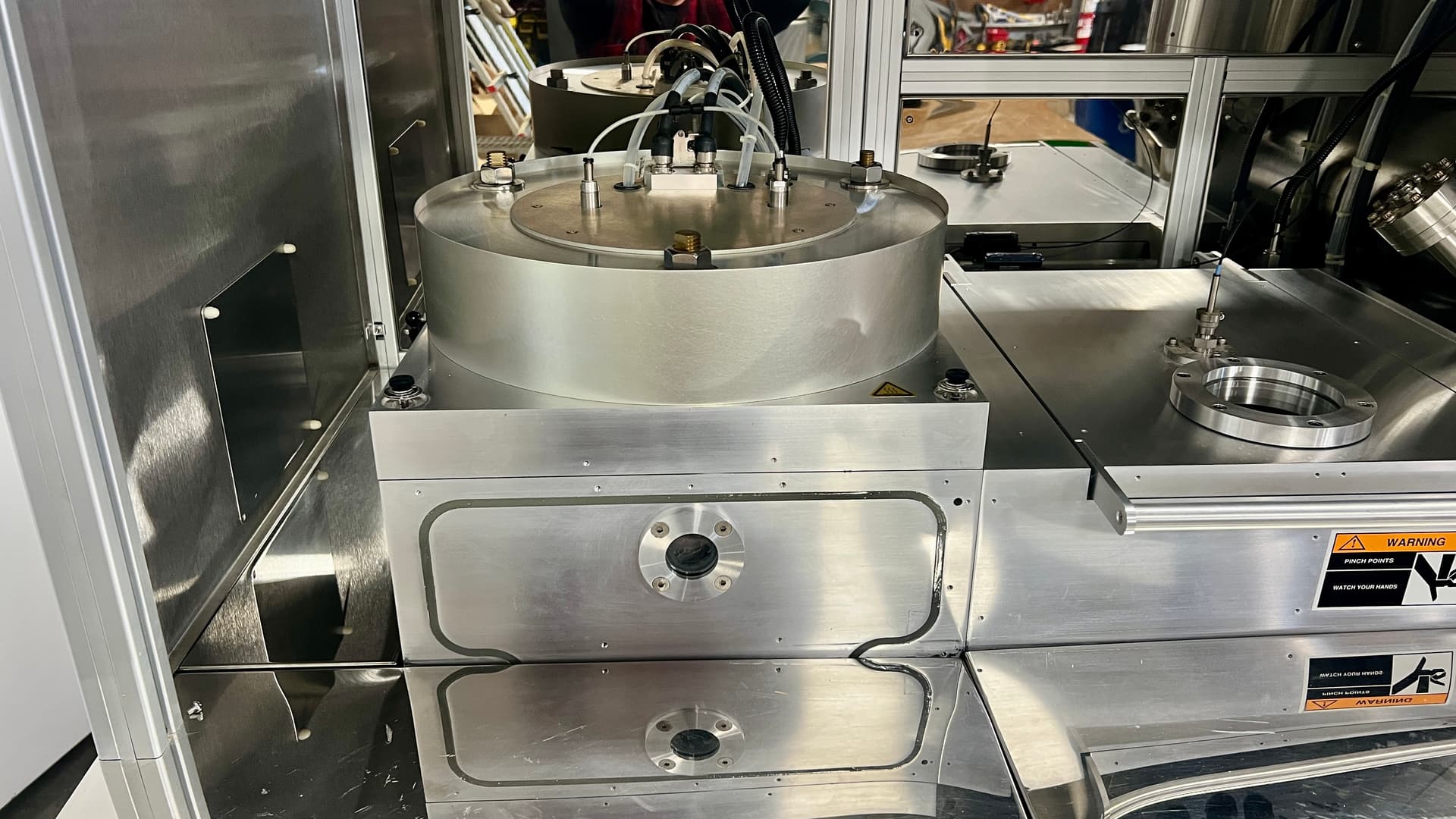

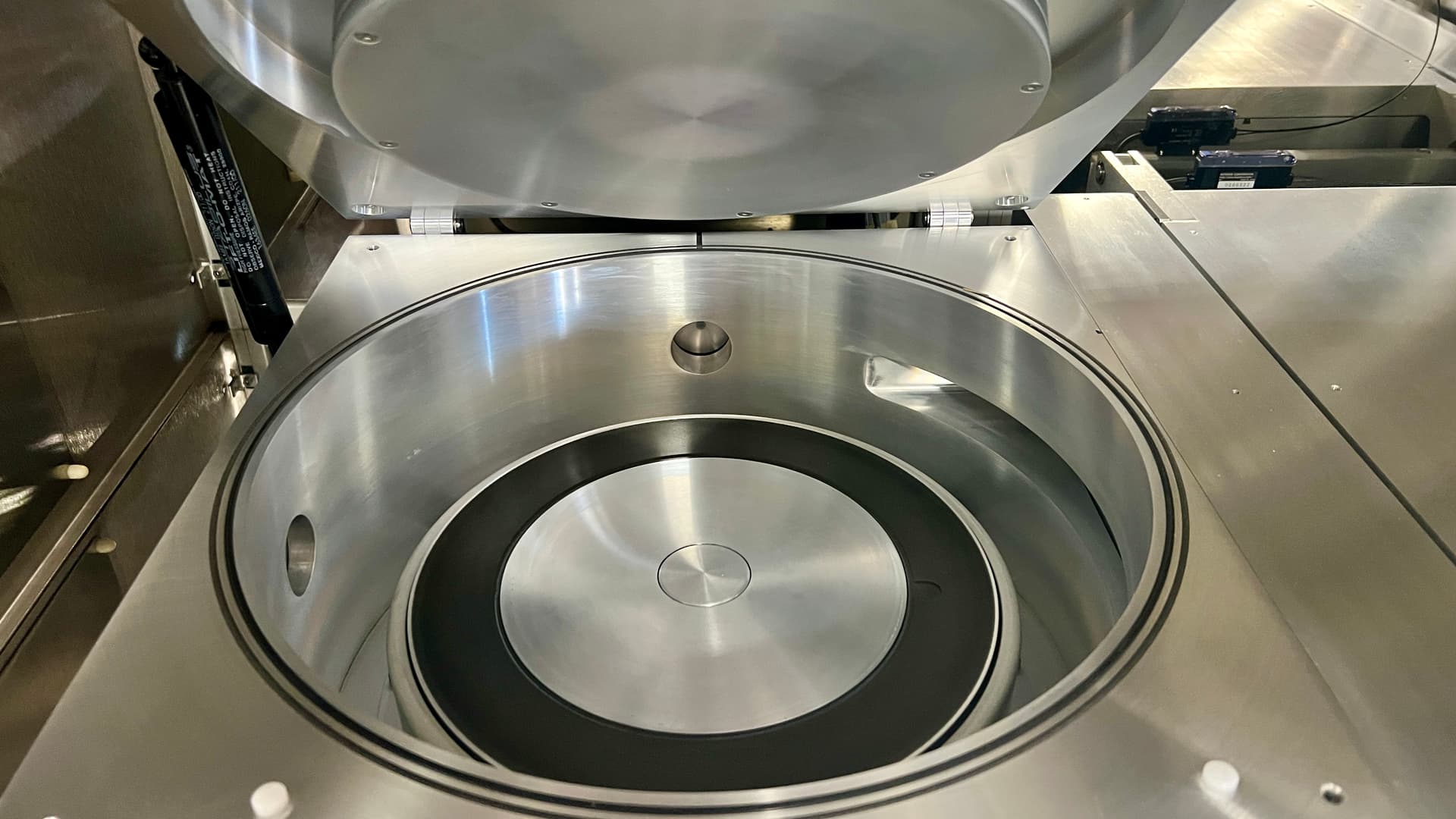

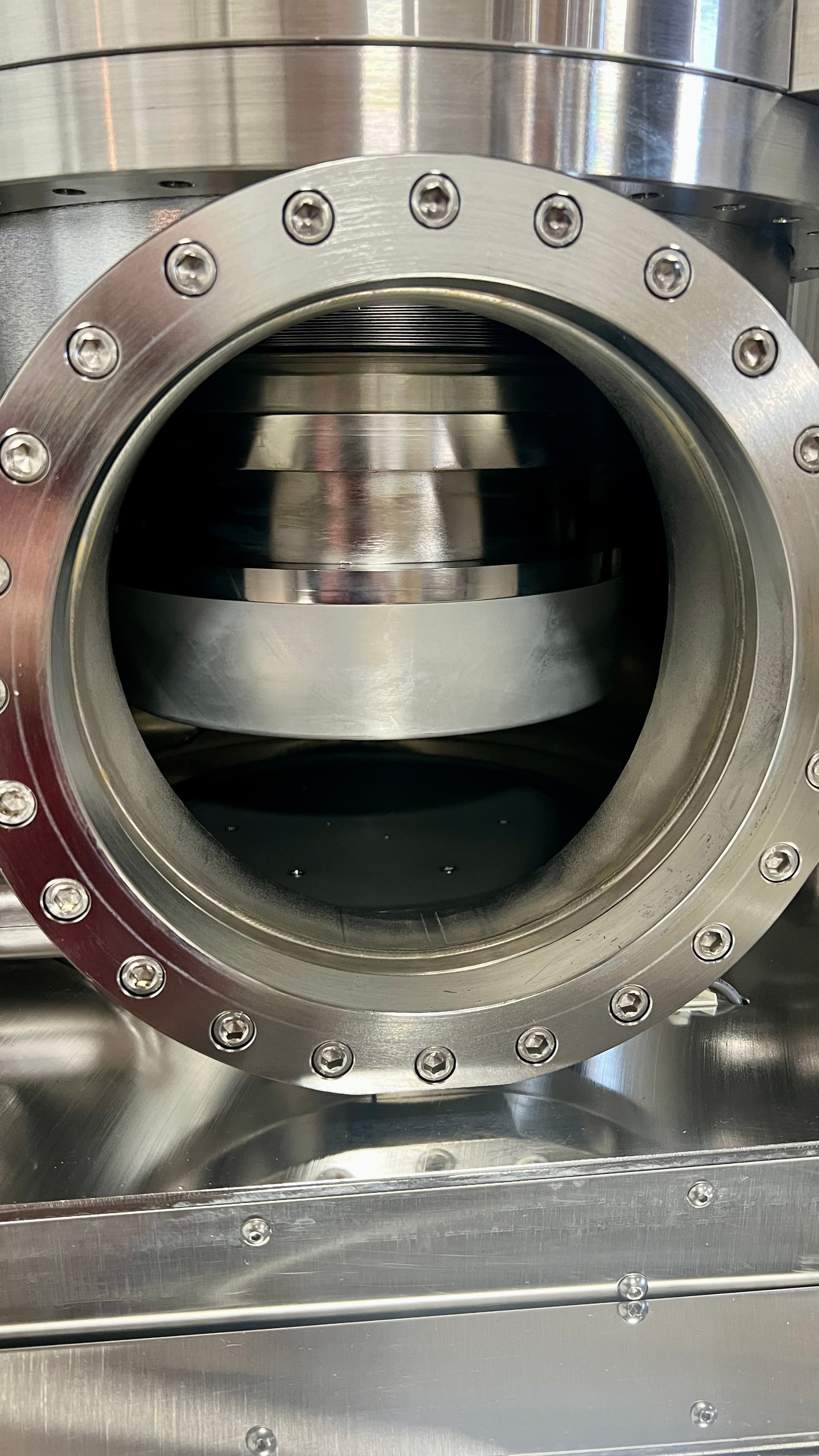

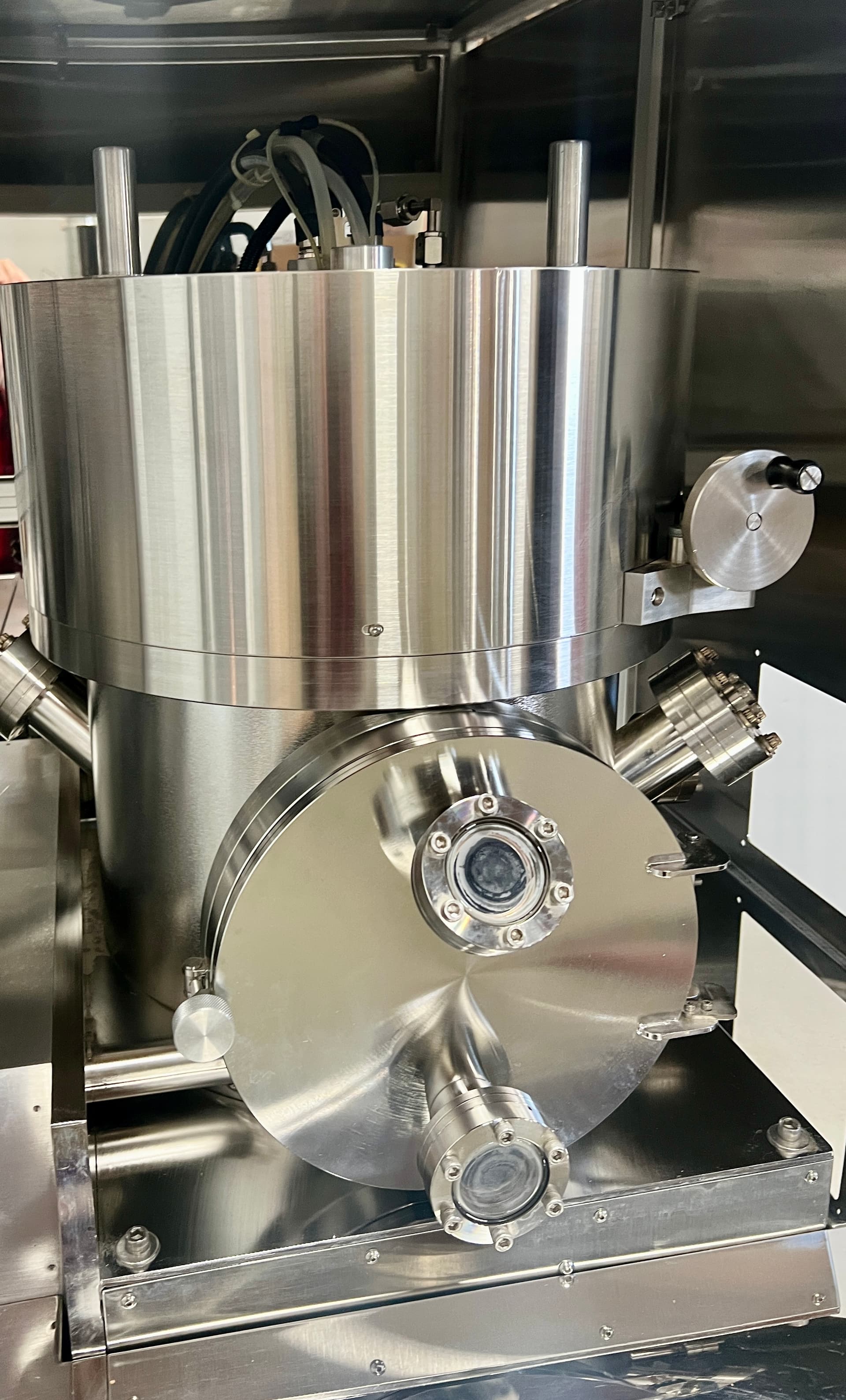

Fixed-Gap 8" RIE Chamber

The fixed-gap chamber incorporates an 8" parallel-electrode RIE configuration with powered upper and lower electrodes and its own independent gas delivery and high-vacuum system.

Chamber Configuration

  • 10" electrode

  • Fixed electrode spacing

  • Powered upper electrode

  • Powered lower electrode

  • Eight independent process-gas channels

  • MKS 1479A-series Mass-Flo mass flow controllers

  • Independent turbomolecular vacuum system

  • Automatic chamber-pressure/throttle control

  • Stainless-steel high-vacuum plumbing

  • Pneumatically operated vacuum valves

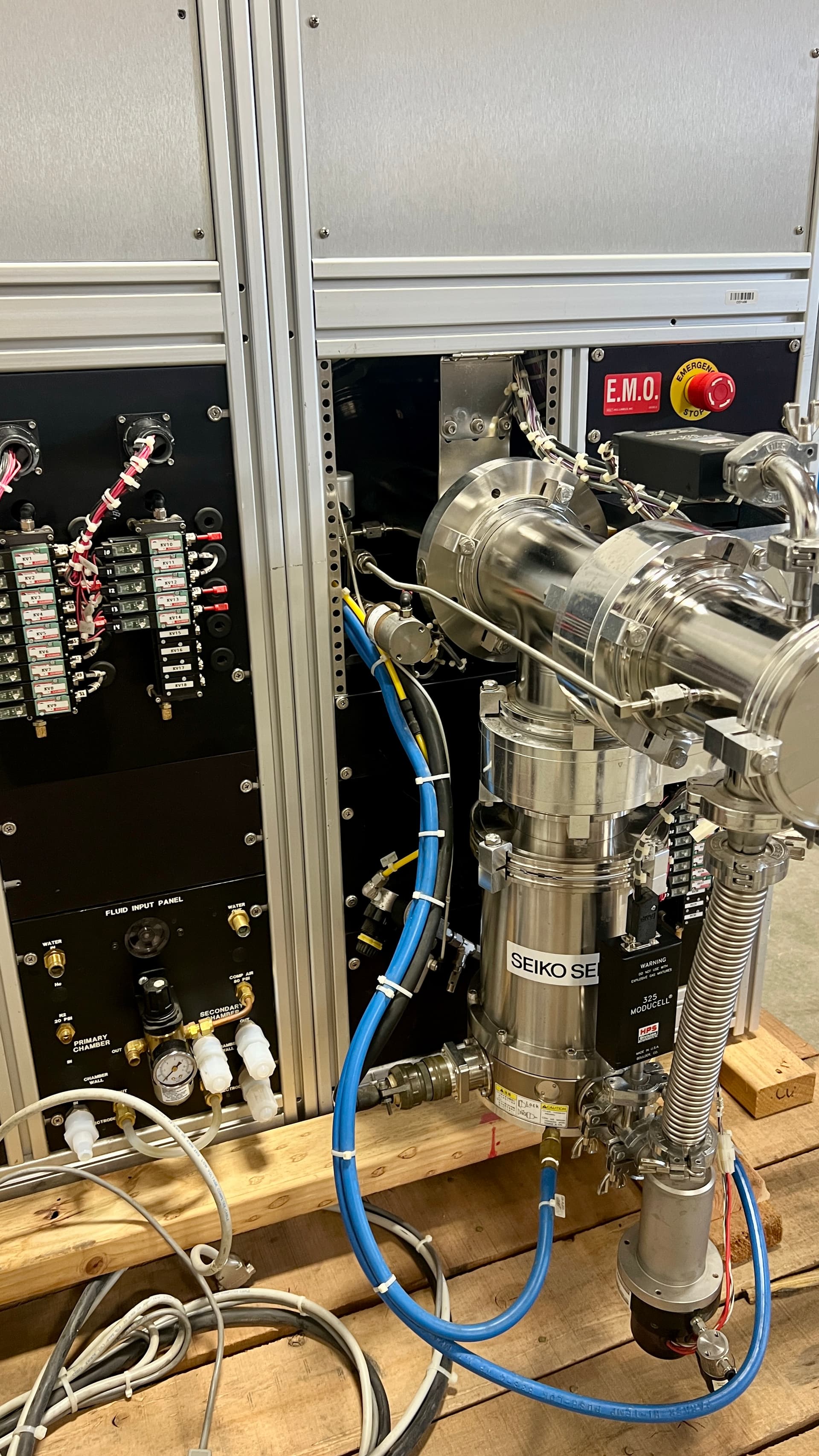

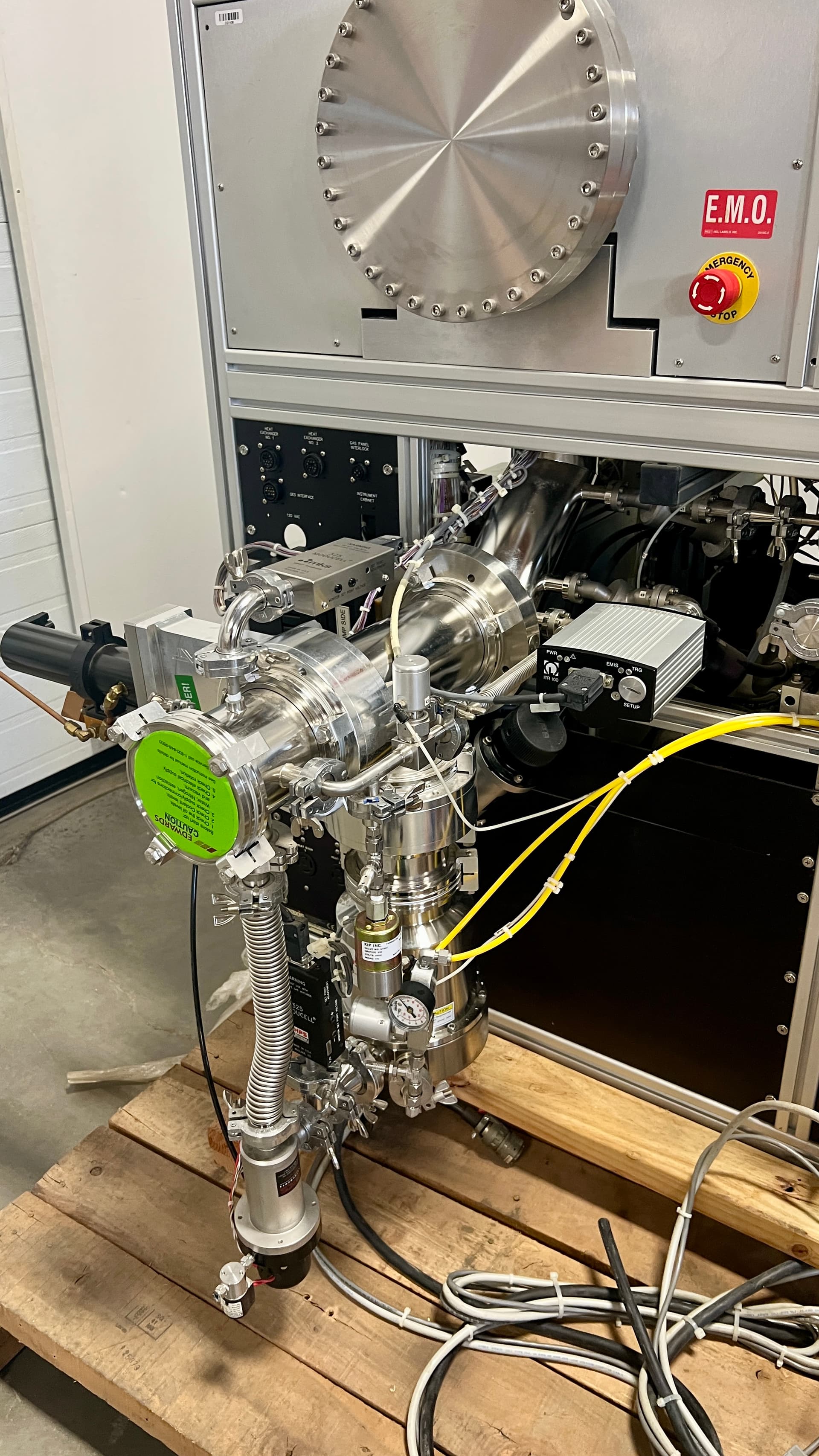

Fixed Chamber Vacuum System

  • Seiko Seiki STP-H300C turbomolecular pump

  • Seiko Seiki STP-H300C controller

  • MKS 153 throttle valve / pressure-control system

  • Pneumatically actuated high-vacuum isolation/control valves

  • Stainless-steel high-vacuum manifold

Process Gas / MFC Configuration

  • Ar (Argon) - MKS 1479A12CR1AM-S - 100 SCCM

  • CHF3 (Trifluoromethane) - MKS 1479A22CR1AM-S - 200 SCCM

  • C2F6 (Hexafluoroethane) - MKS 1479A52CR1AM-S - 500 SCCM

  • CF4 (Carbon Tetrafluoride) - MKS 1479A12CR1AM-S - 100 SCCM

  • SF6 (Sulfur Hexafluoride) - MKS 1479A12CR1AM-S - 100 SCCM

  • He (Helium) - MKS 1479A12CR1AM-S - 100 SCCM

  • O2 (Oxygen) - MKS 1479A12CR1AM-S - 100 SCCM

  • O2 (Oxygen) - MKS 1479A12CR1AM-S - 100 SCCM

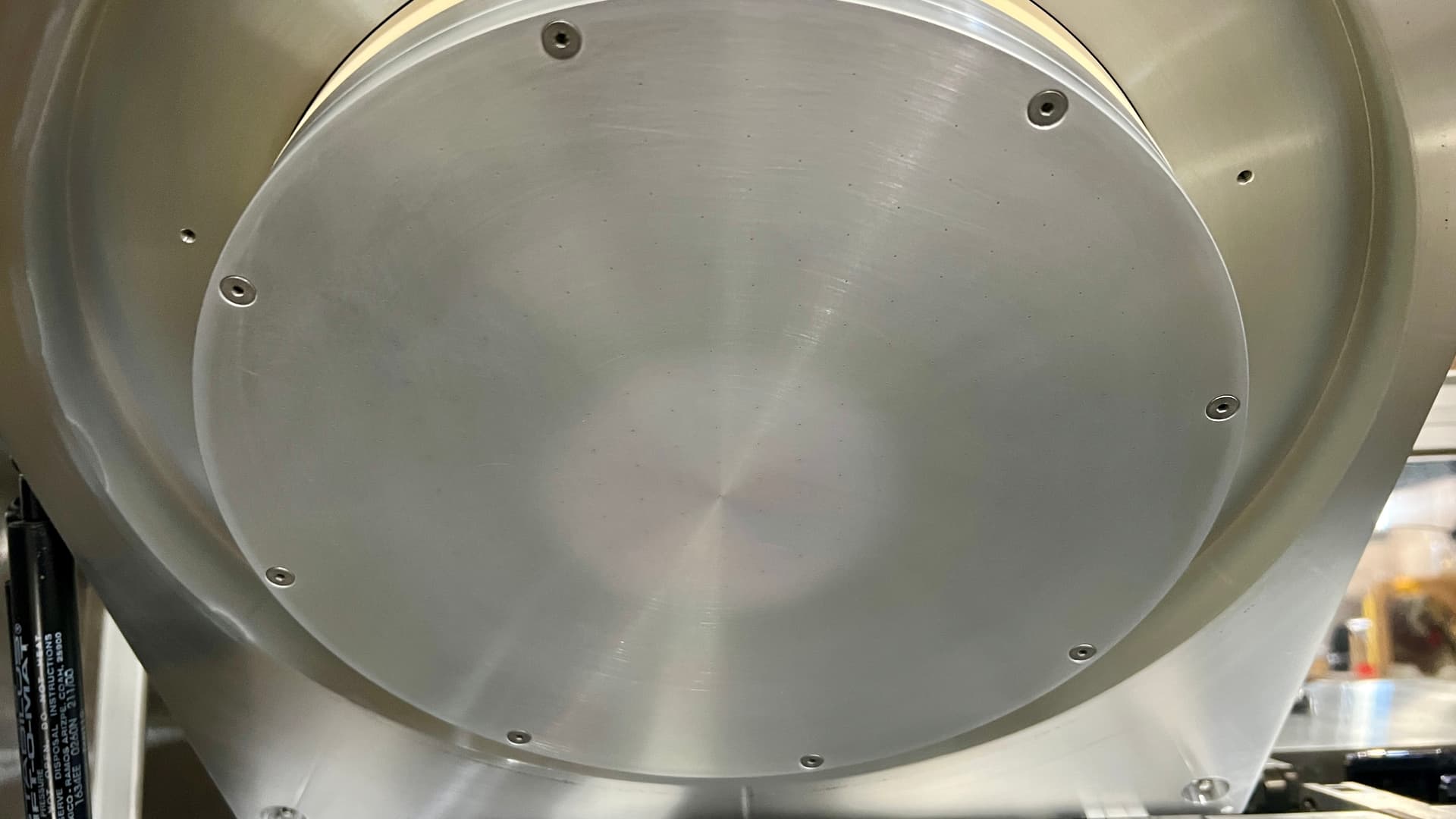

Adjustable-Gap 8" RIE Chamber

The second RIE chamber incorporates an adjustable electrode assembly that allows the electrode spacing to be varied for process development and optimization.

Chamber Configuration

  • 10" electrode

  • Manually adjustable electrode gap

  • Minimum electrode spacing: approximately 1.25"

  • Maximum electrode spacing: approximately 3.25"

  • Approximately 2" total adjustment range

  • Powered upper electrode

  • Powered lower electrode

  • Eight independent process-gas channels

  • MKS 1479A-series Mass-Flo controllers

  • Independent turbomolecular high-vacuum system

  • Stainless-steel vacuum plumbing

  • Pneumatically operated vacuum valves

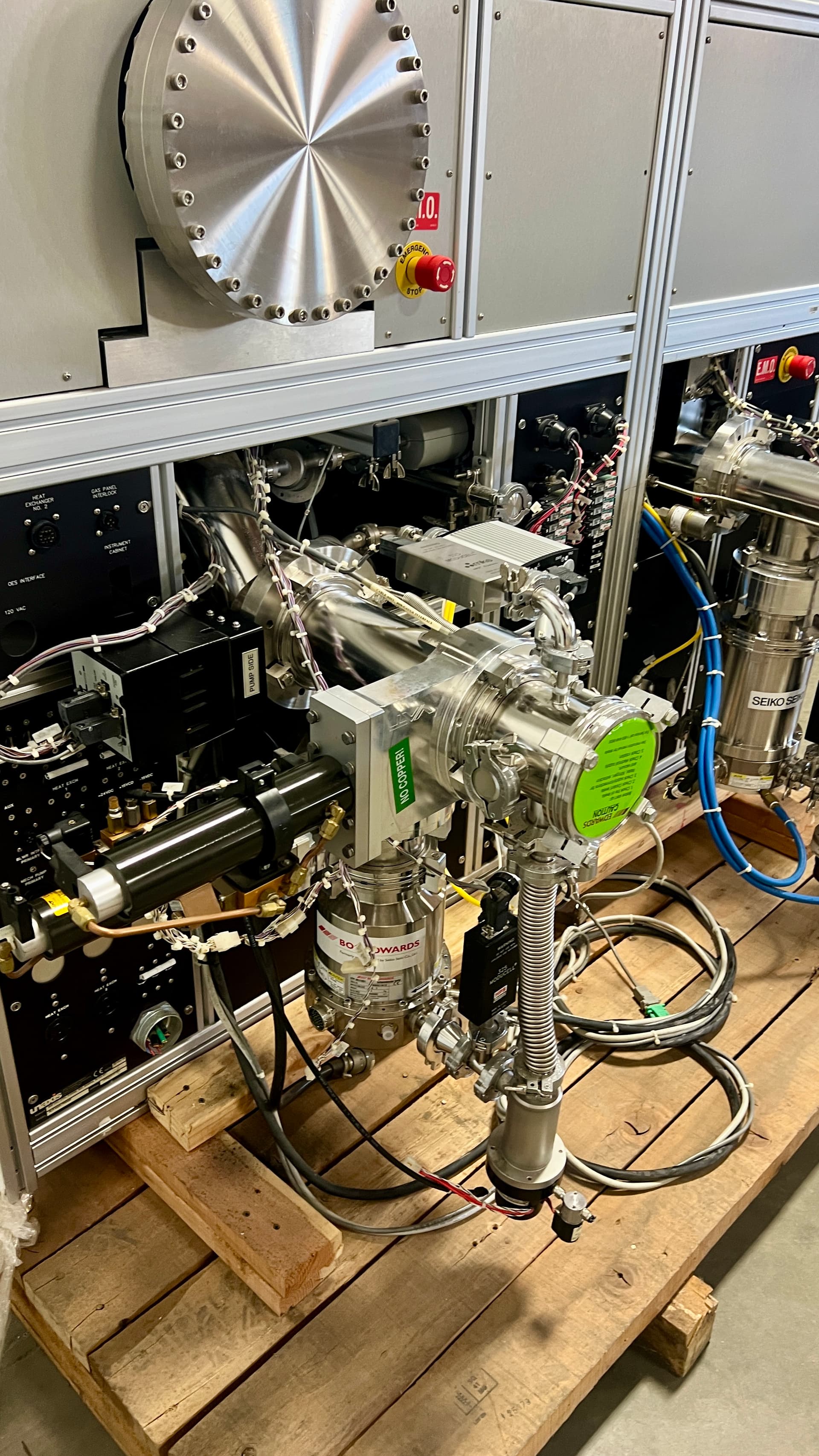

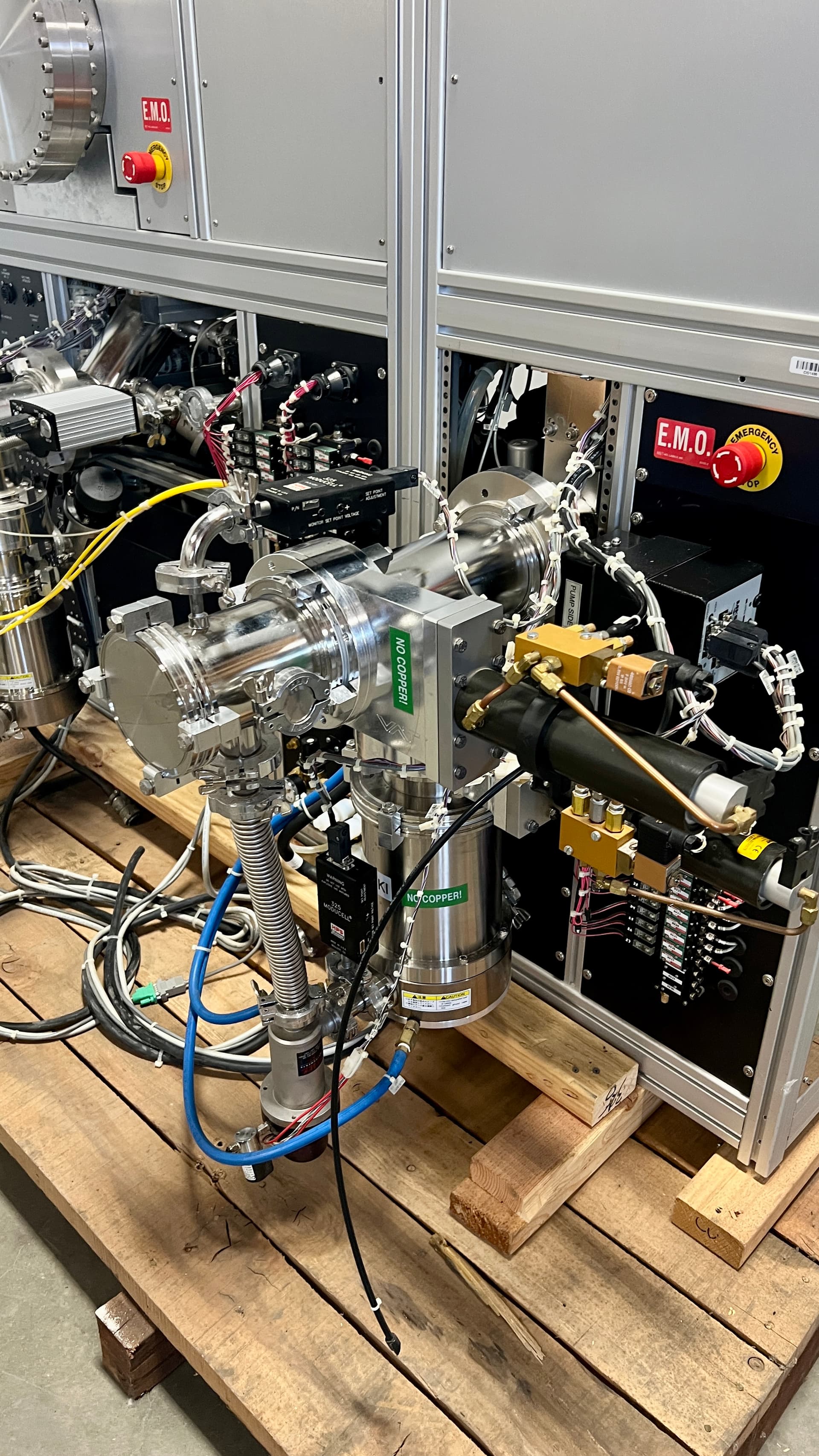

Adjustable Chamber Vacuum System

  • BOC Edwards STP-301CB1 turbomolecular pump

  • STP-301 turbo controller

  • MKS 153 throttle valve / pressure-control system

  • Pneumatically actuated high-vacuum isolation/control valves

  • Stainless-steel high-vacuum manifold

  • Bellows vacuum connections

  • Foreline/backing vacuum connections

Process Gas / MFC Configuration

  • SF6 (Sulfur Hexafluoride) - MKS 1479A12CR1AM-S - 100 SCCM

  • N2 (Nitrogen) - MKS 1479A22CR1AM-S - 200 SCCM

  • He (Helium) - MKS 1479A12CR1AM-S - 100 SCCM

  • CHF3 (Trifluoromethane) - MKS 1479A22CR1AM-S - 200 SCCM

  • C2F6 (Hexafluoroethane) - MKS 1479A52CR1AM-S - 500 SCCM

  • CF4 (Carbon Tetrafluoride) - MKS 1479A11CR1AM-S - 10 SCCM

  • O2 (Oxygen) - MKS 1479A12CR1AM-S - 100 SCCM

  • Ar (Argon) - MKS 1479A12CR1AM-S - 100 SCCM

Condition & testing notes

Previously in service and offered for secondary-market resale. It is not tested.
