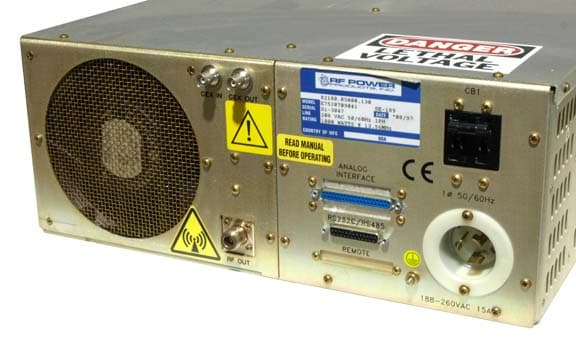

RFPP Advanced Energy RF-10S RF Generator
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Advanced Energy
- MPN
- RF10S
- SKU
- 124271
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
P/N: E7520709041
Adapter from 37 pin SUB-D to green or grey ELCO connector is available to order with the generator.
Input power 190-262VAC single phase, 50/60Hz, s electable via transformer taps.
Available taps
190-203VAC
203-214VAC
214-225VAC
225-235VAC
235-245VAC
245-262VAC
Specify input voltage when ordering, please!
Technical specifications
| Rated Power Output | 1000 Watts |
| Frequency | 13.56 |
| Scale | MHz |
| Output Impedance | 50 Ohms |
| Output Connector | Type N |
| Interface | RS 232 |
| Interface 2 | RS 485 |
| Panel Meters | Digital |
| External Cooling | Forced Air Cooled |
| Power Requirements | 208/240 V 50/60 Hz 1 Phase |
| CE Marked | YES |
| Year of Manufacture | 1997 |
| Weight | 98 lb (44 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 22.500 in (57.2 cm) |
| Height | 7.000 in (17.8 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
