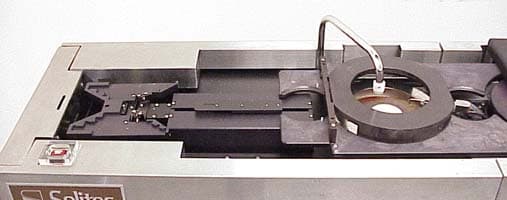

Solitec 820-CB Automatic Photoresist Coat & Bake System

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Solitec
MPN
820-CB
SKU
4005
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Solitec 8600 Calibration Module

System Features and Specifications

Resist Uniformity: 75 angstroms, 3 sigma

Microprocessor Controlled (10 program capacity)

Fast Hot Plate Bake: +/- 1.5ºC uniformity

Speed Range: 200-8,000 rpm (solid state servo control)

Acceleration Range: programmable from 0-40 krpm/s

Hot Plate: up to 300ºC vacuum assisted enclosed bake

Beltless Elevators

Nitrogen Requirement: 1 connection, 1/4" OD, 60 psi

Vacuum Requirement: up to 4 connections, 1/4" OD

Technical specifications

Number of Tracks1
Number of Hot Plates1
Controller TypeAnalog Controller Type
Year of Manufacture1988
Operating Air Pressure60.00 PSI (413,718.00 N/sq m)
Vacuum Required25.00 in Hg (634.99 mm Hg)

Wafer Size Range

Minimum50 mm
Maximum150 mm
Set Size100 mm

Exterior Dimensions

Width59.000 in (149.9 cm)
Depth15.500 in (39.4 cm)
Height37.000 in (94.0 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
