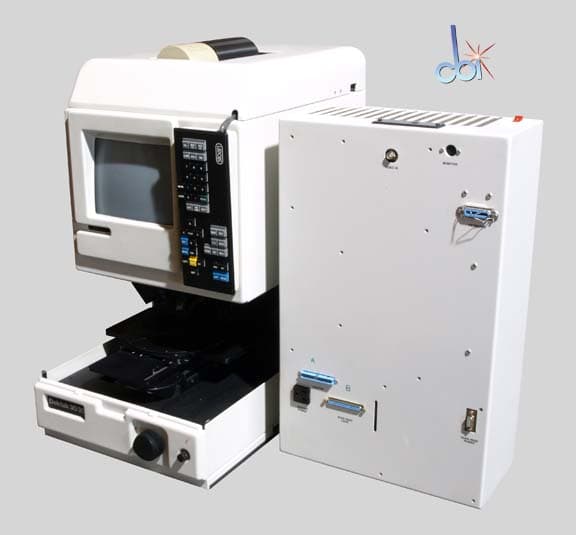

Veeco Dektatk 3030 Profilometer

Item description

Environmental shield included

Measuring Range: 100Å to 1310kÅ

Scan Speed Range: Low, Med, High

Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range

Data Points per micron: 0.04 -- 40

Scan Length 50 microns to 50 mm

Leveling: 2 point programmable or cursor leveling

Stylus: 12.5 micron, diamond (other sizes are optional)

Maximum sample thickness: 1.75 inches

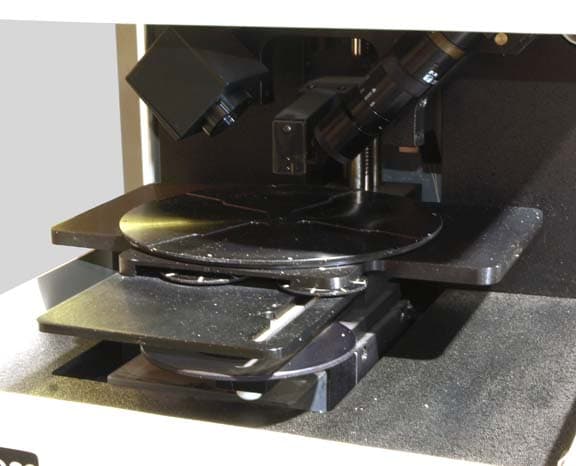

Sample stage diameter: 7 inches

Sample stage translation, manual: X axis: 6" and Y axis: 3"

Maximum sample weight: 1 lb

Zoom range: 35X -- 200X

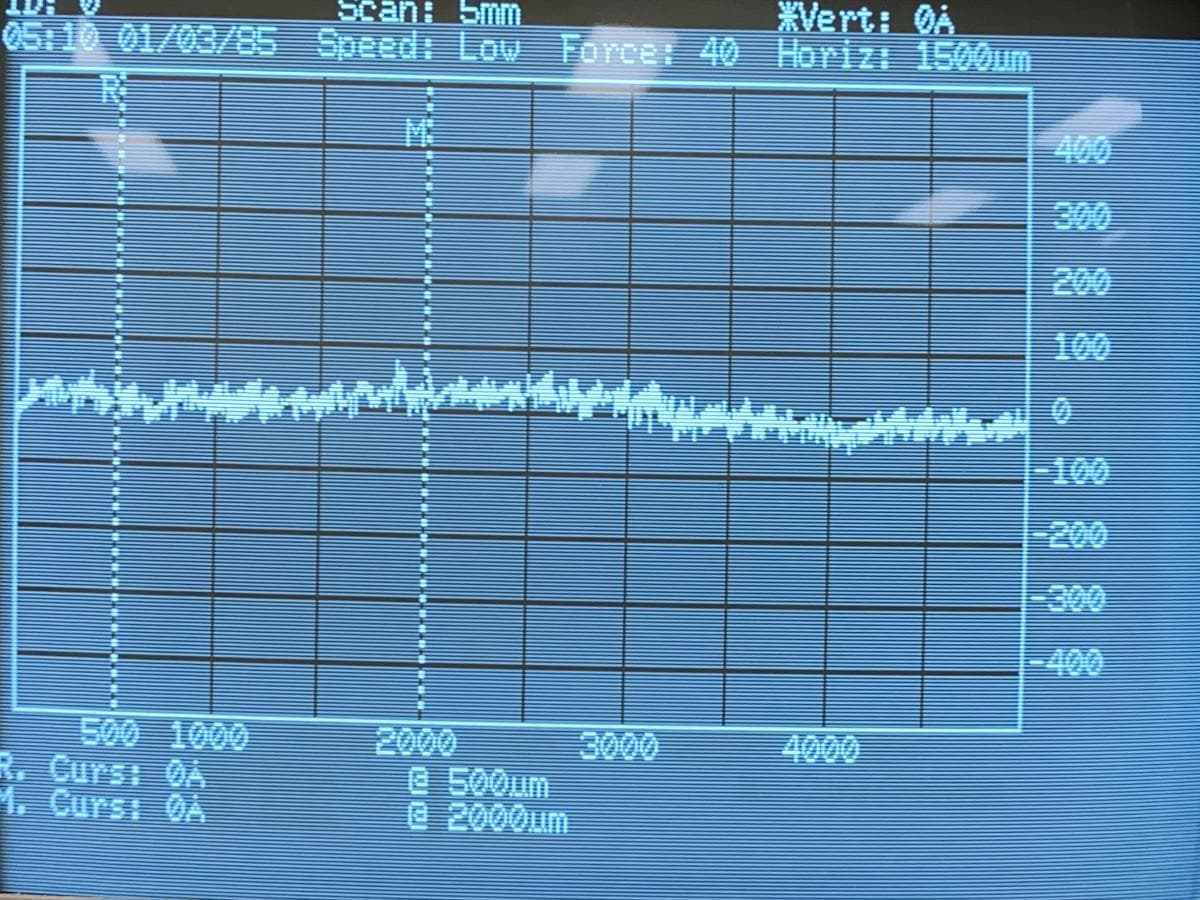

Unit is tested, see sample scans, image 8 and 9

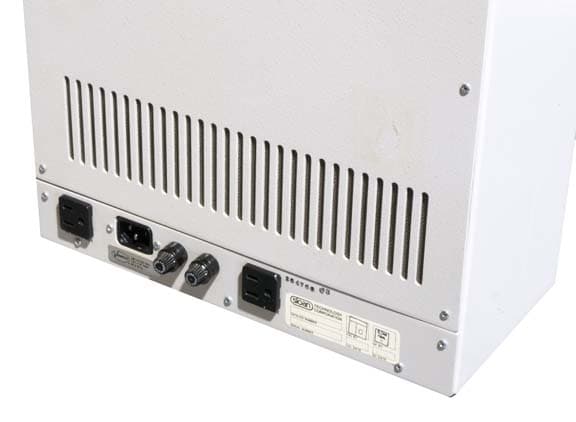

Power Requirements	120 V 60 Hz 1 Phase
Weight	88 lb (40 kg)

Working & Warranted
