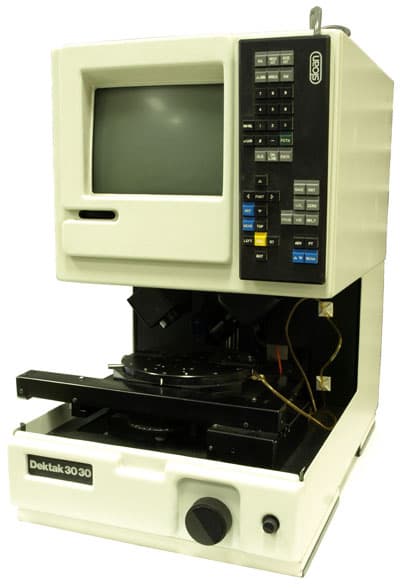

Veeco Instruments Dektak 3030 Auto II Profilometer

Item description

Thermal printer is included

Environmental shield is not included

Measuring Range: 100Å to 1310kÅ

Scan Speed Range: Low, Medium, High

Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range

Data Points per micron: 0.04-- 40

Scan Length 50 microns to 50 mm

Leveling: 2 point programmable or cursor leveling

Maximum sample thickness: 1.75 inches

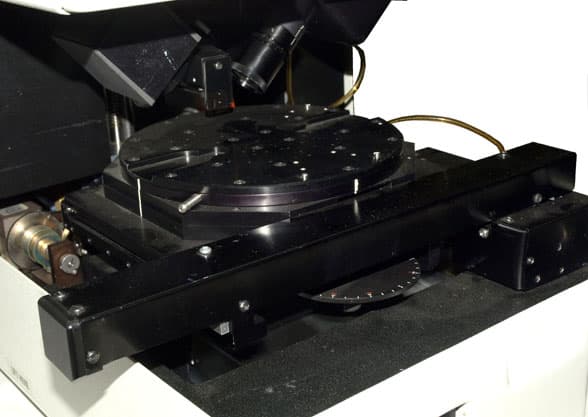

Motorized stage

Sample stage diameter: 6.375 inches

Sample stage translation (from center): X Axis, ±3 inches, Y Axis -3 inches

Stylus 12.5 micron radius (other sizes are optional)

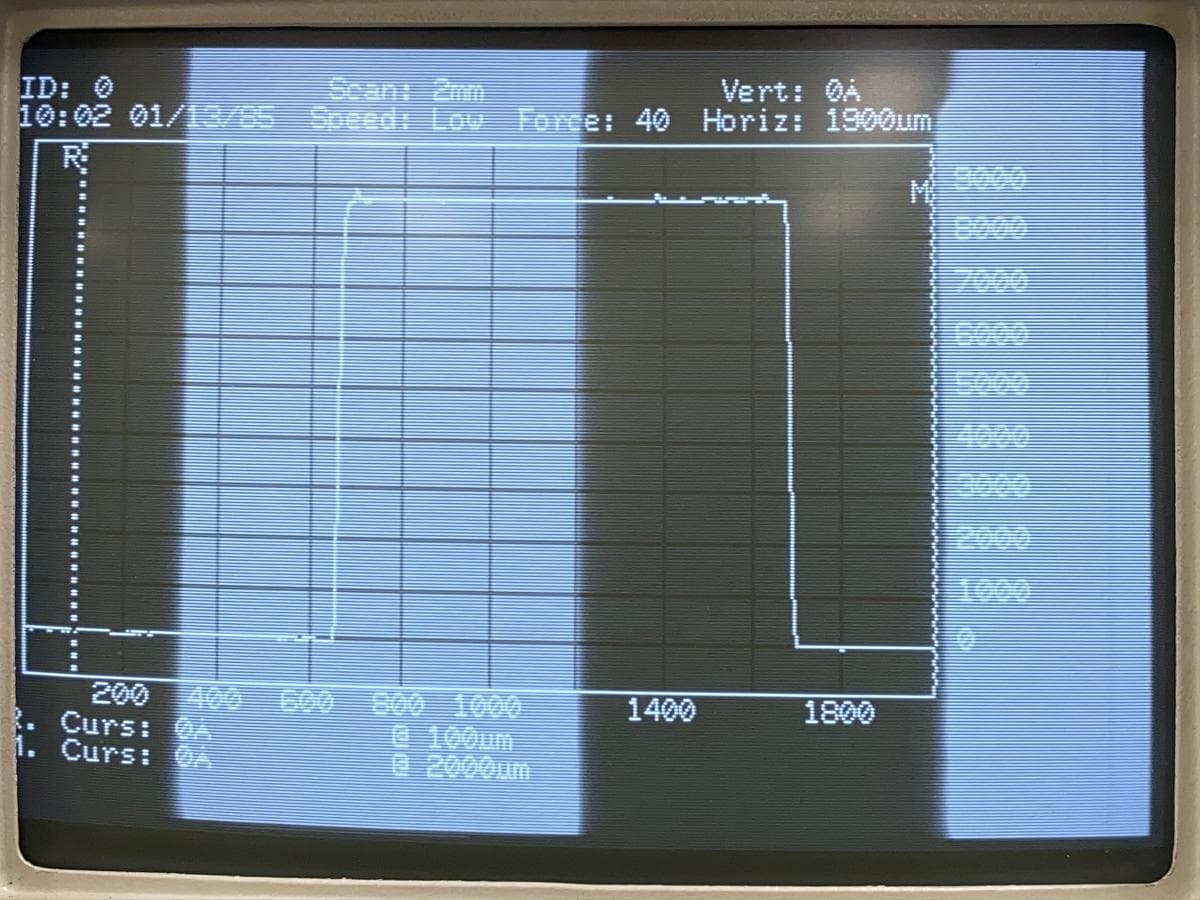

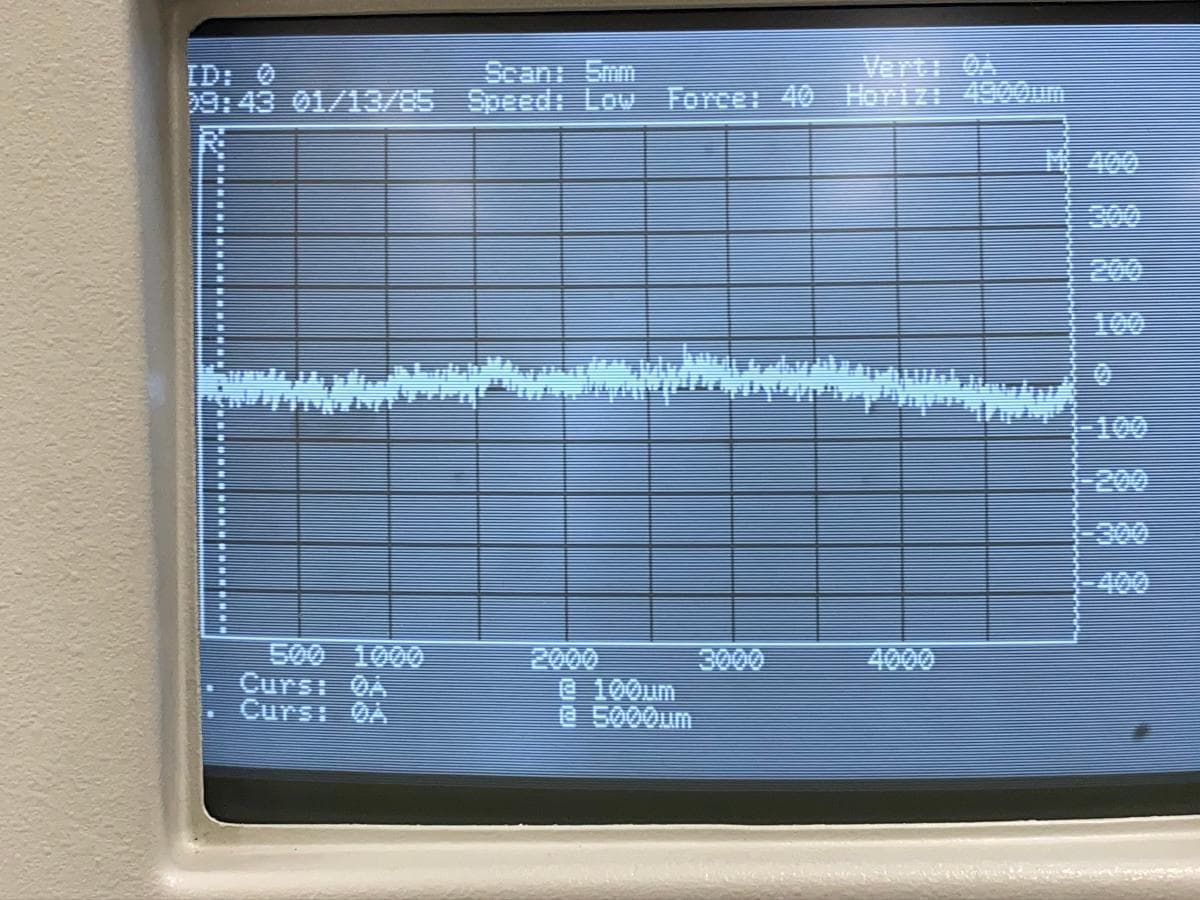

Unit is tested, see additional images 5 and 6 for sample scans

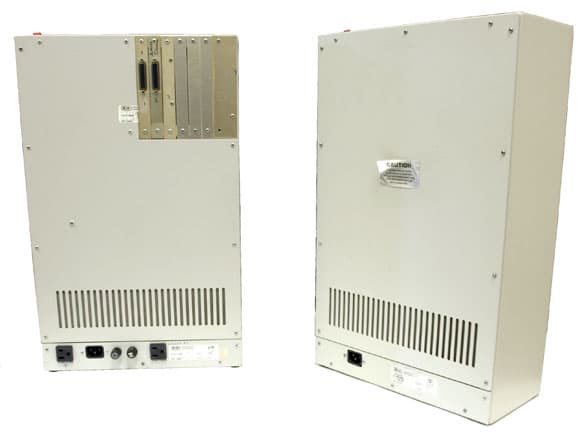

Controller Type	Microprocessor Controller Type
Power Requirements	120 V 2.0 A 50/60 Hz 1 Phase

Working & Warranted
Inspected by Capovani engineers to confirm function. Sold with a 90-day warranty covering function. Warranty terms
Lead time varies, confirmed in your quote
These items are inspected and serviced after your order is confirmed. Typical lead time is 1 to 3 weeks. We’ll confirm exact timing when we send your quote.
Logistics confirmed at quotation
Shipping method, cost, and timing are confirmed on your quote before an order is placed. Shipping policy
International orders
Available on a case-by-case basis. Some items may be subject to export control regulations affecting eligibility. Contact us for details.
Payment & purchase orders
Credit card payments via Stripe. Purchase orders accepted. See our Payment Information page for more details.
