TDK Lambda ESS 404-37.5-2-1262 DC Power Supply
$3,450.00Working & warranted
- Condition
- Brand new See details
- Brand
- TDK-Lambda
- MPN
- ESS 404-37.5-2-1262
- SKU
- 203400
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Remote control voltage is 0 to 5V for current and voltage setpoints.

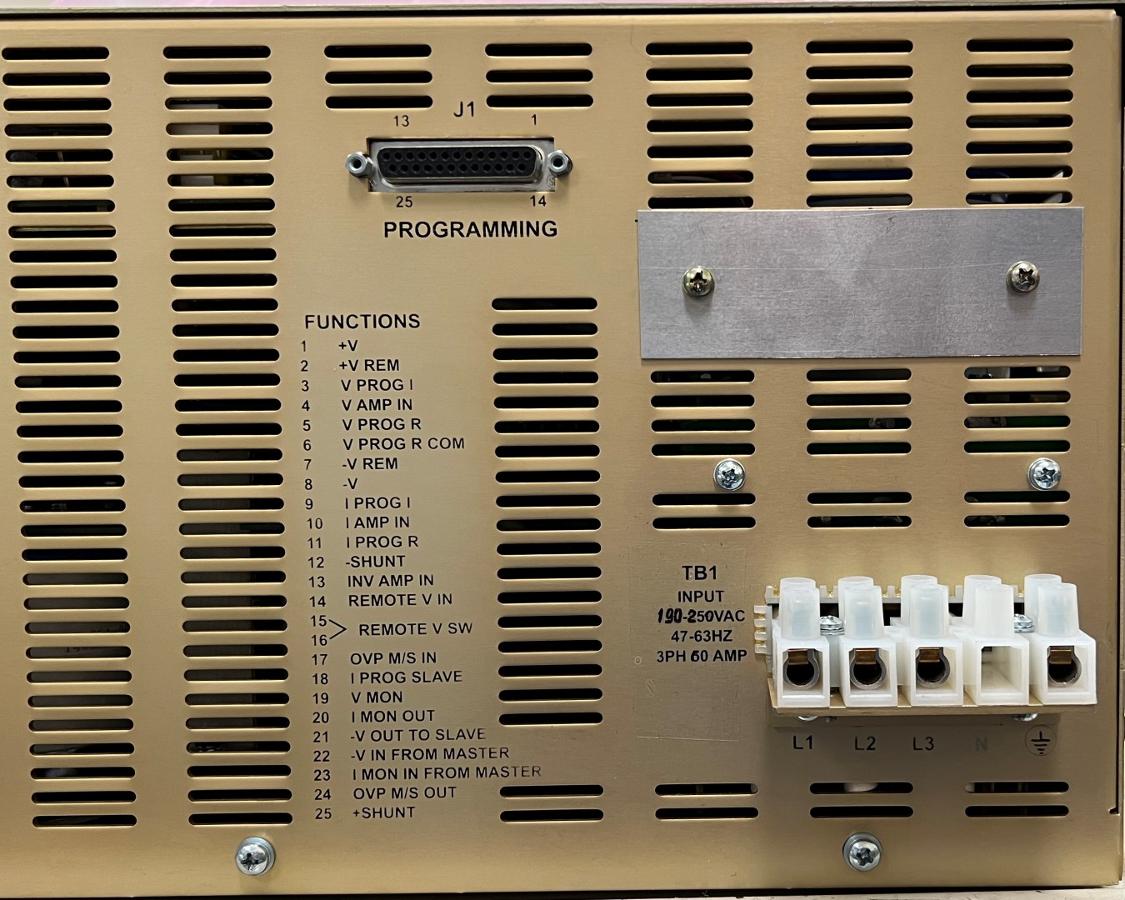

Remote control connector J1 pins are not isolated from the output.

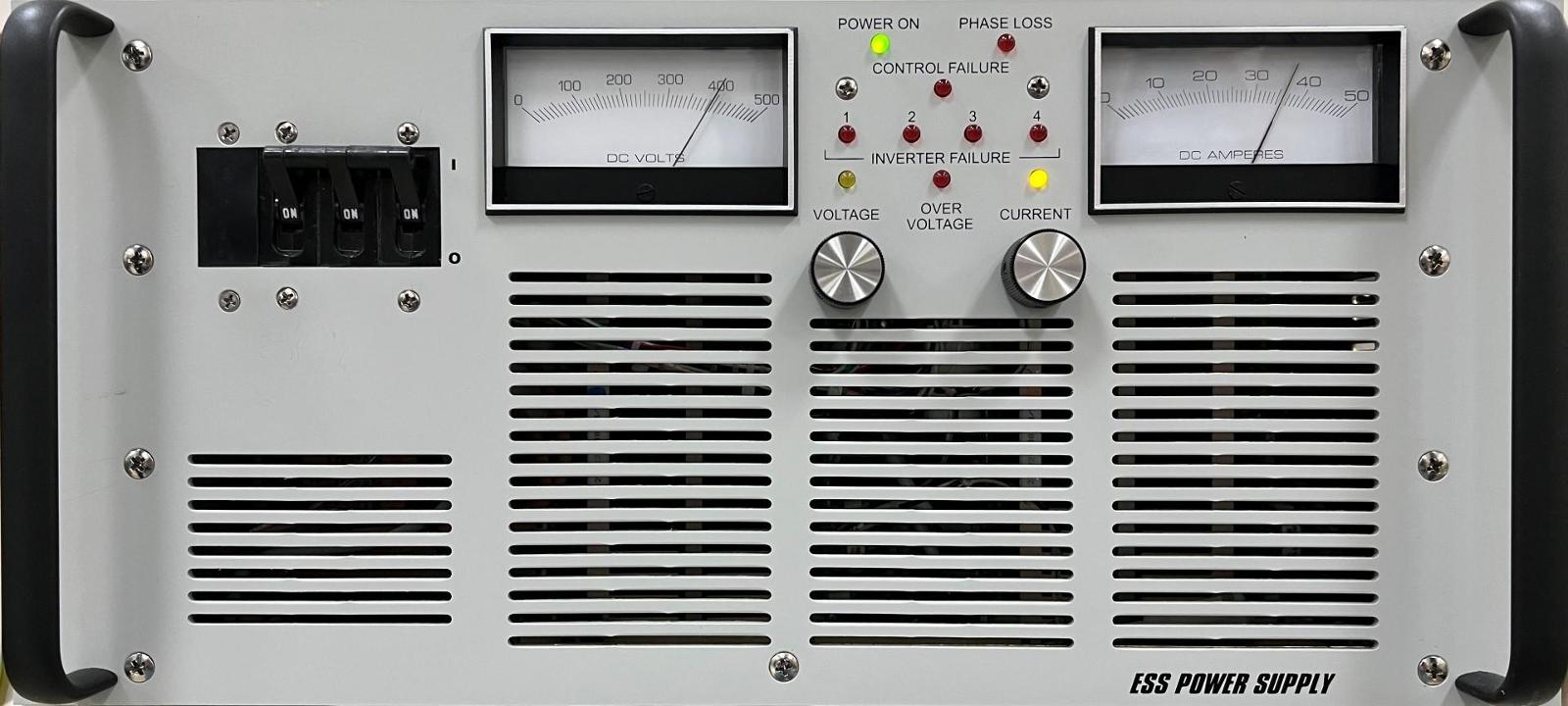

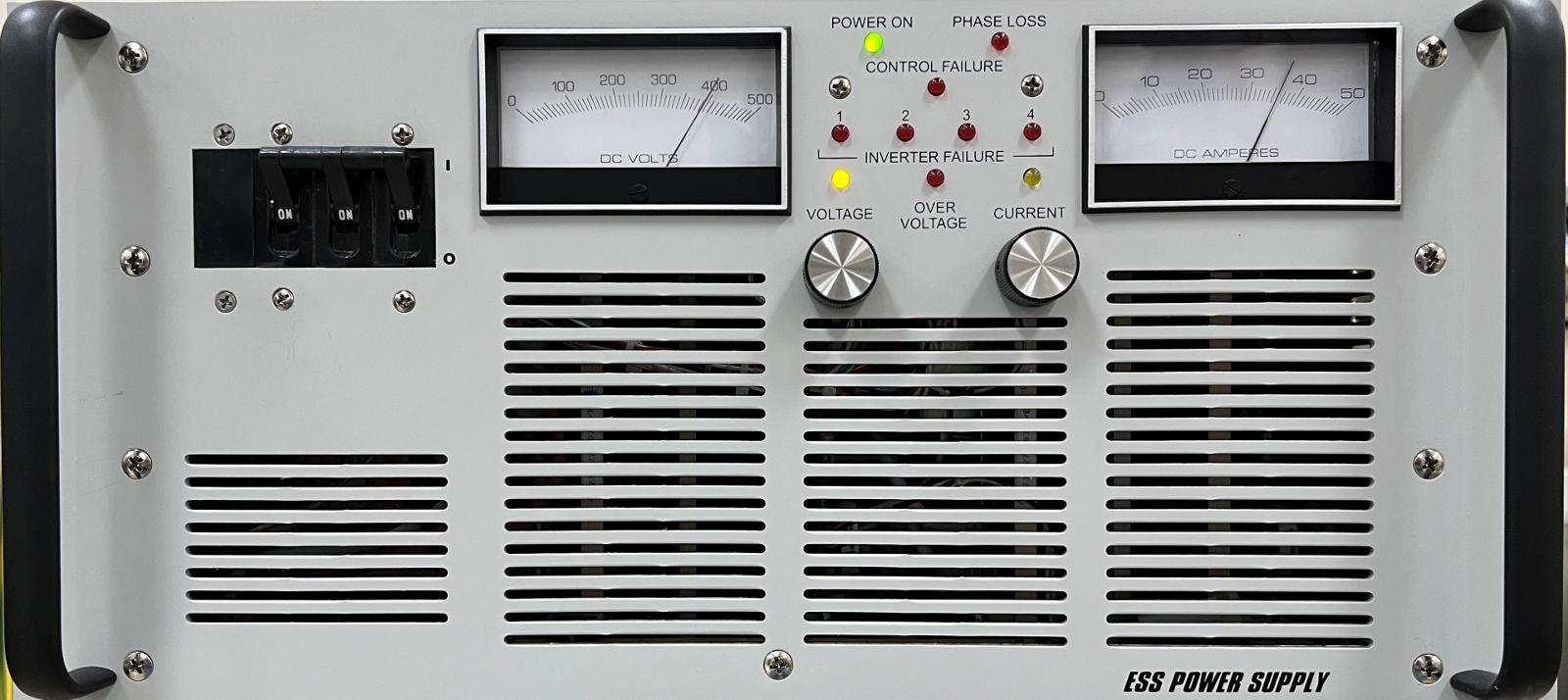

Unit is converted from 400VAC 50A 5 wire input to 220VAC 60A 4 wire input and tested for 2 hours under full load.

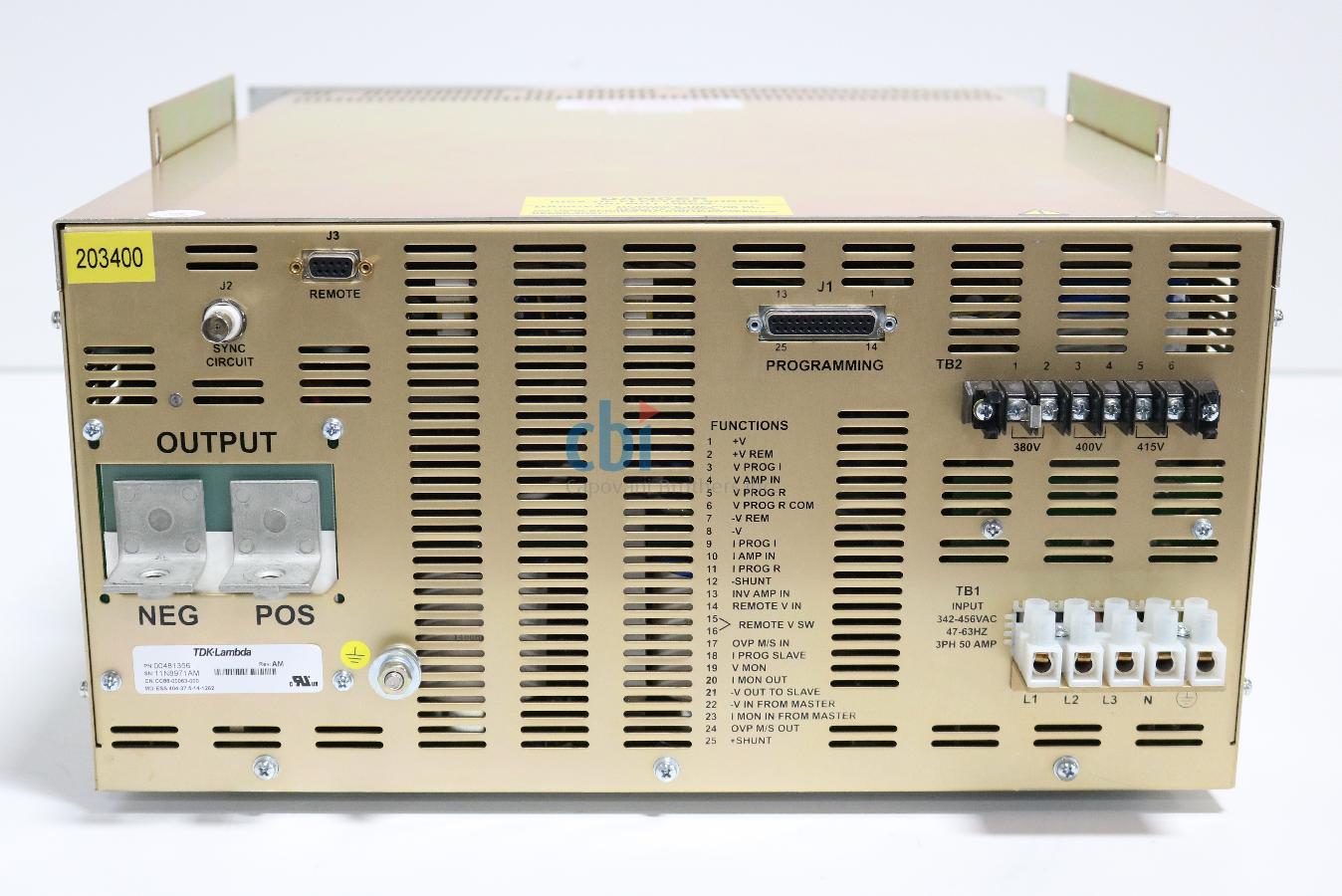

Connections to "REMOTE" connector J3 and "SYNC CIRCUIT" connector J2 are not required for normal operation

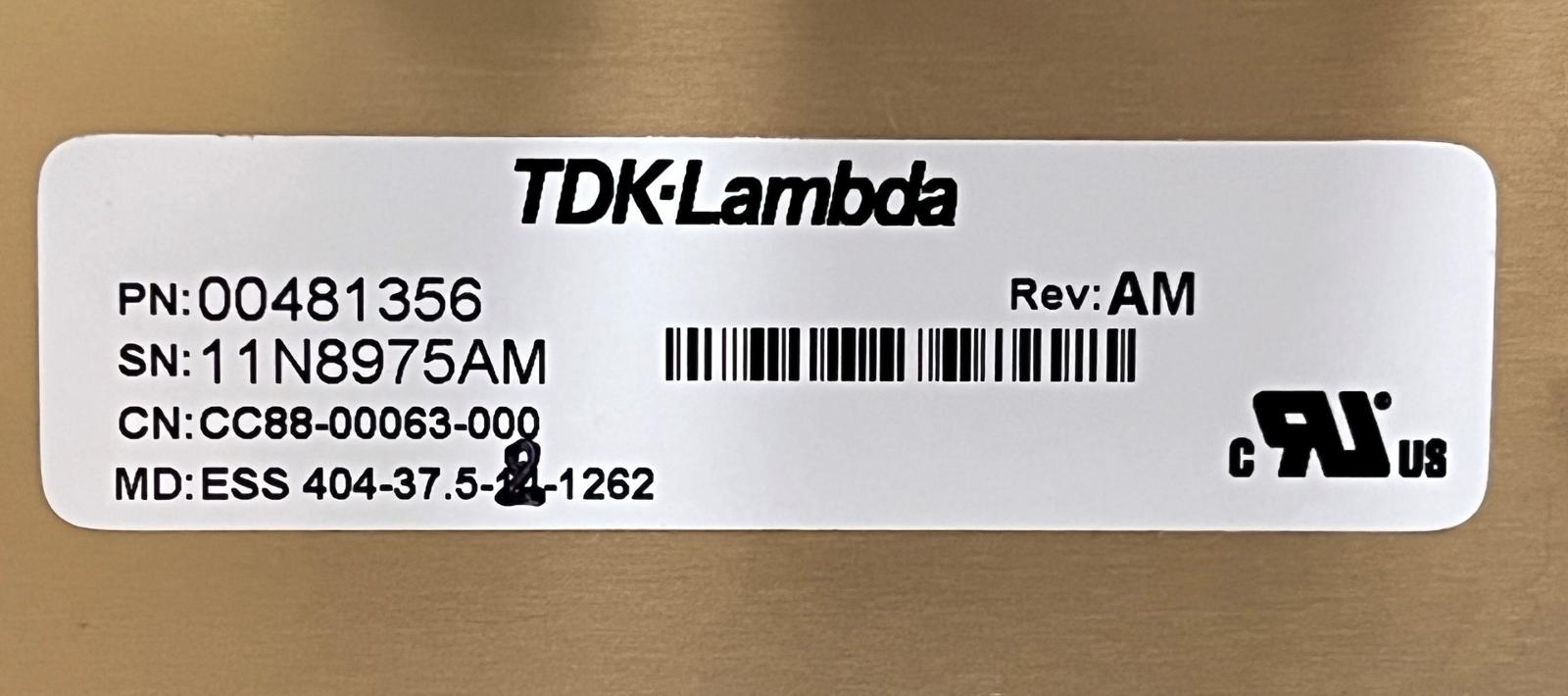

P/N: 00481356 REV: AM
C/N: CC88-00063-000
Technical specifications
| Maximum Output Voltage | 404.00 Volts |
| Maximum Output Current | 37.50 Amps |
| Maximum Output Power | 15.00 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Panel Meters | Analog |
| Interface | I/O Port |
| Control Type | Analog Setpoint |
| External Cooling | Air Cooled |
| Power Requirements | 190-250 V 60.0 A 50/60 Hz 3 Phase |
| Weight | 105 lb (48 kg) |
Condition & testing notes
Never used inventory in brand new condition.
