ALL CATEGORIES   Microscopes   Light Microscopes    View LISTINGS    Search-by-Specs


in Upright Microscopes
Item ID: 57070

Offered 1 Offered at $ 5,950.00


Brightfield, Darkfield and DIC
Leitz Filar Eyepiece with Boeckeler Micrometer and Readout

In addition to this Leitz Laborlux 12 HL, Capovani Brothers Inc stocks a wide range of used upright microscopes. Typical manufacturers include American Optical, Bausch & Lomb, Leica, Nikon, Olympus, Wild, and Zeiss.

To view our complete stock of used upright microscopes visit our Upright Microscope category.

This used reflected light microscope and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Learn more about our Used Microscopes Refurbishment and Functional Testing Procedures

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 5,950.00
Number of Units 1
Manufacturer Leitz

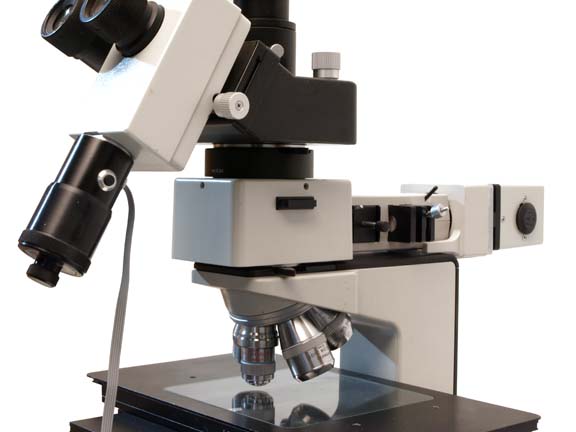

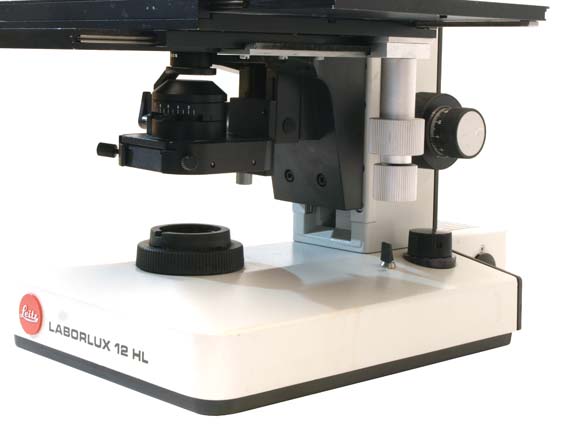

Model Laborlux 12 HL
Microscope Configuration Brightfield, Darkfield & DIC
Illumination Type Reflected & Transmitted Light
Binocular Angle 45°
  Magnification 12 X
Trinocular/Phototube Provided YES
Magnification Changer None

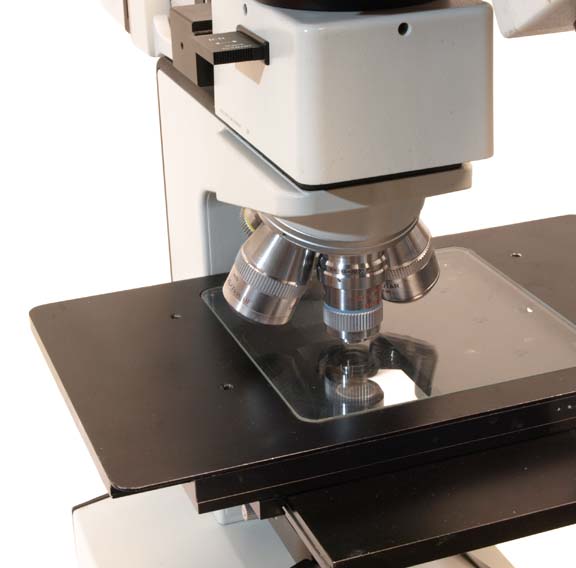

Multiple Objectives Models

NPL 5X 0.09
NPL 10x, 0.25, with ICR 10X 0.20P prism
NPL 20x, 0.35 DF
NPL Fluotar 50X, 0.85, with ICR 50x 0.85P prism
NPL Fluotar 100x, 0.90 DF

Infinity Corrected Objectives YES
Polarizer YES
Analyzer YES
Condenser YES
Illumination Power Volts: 6     Watts: 20
Illumination Power Transmitted Volts: 6     Watts: 20
Stage Type Coaxial X-Y
Stage Area Length: 292  mm  (11.496 in)     Width: 165.0  mm  (6.496 in)
X-Y-Z Stage Travel X: 108  mm  (4.252 in)     Y : 108  mm  (4.252 in)
  Type None

ICR Analyzer
Leitz Condenser, P/N: 513547
External reflected light power supply
Internal transmitted light power supply

Other Information

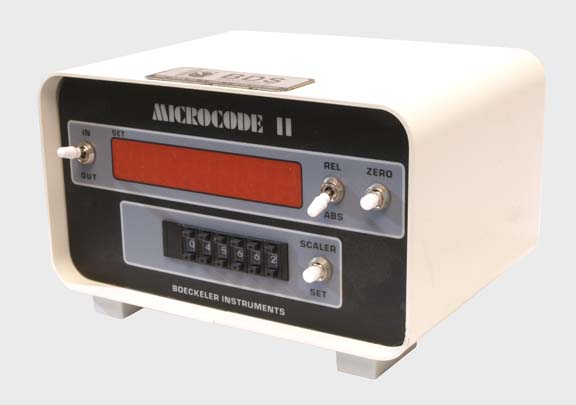

Boeckeler Microcode II readout.
Leitz P/N: 883901 Filar


  • Brightfield only in 10x and 50x objectives
  • Brighfield and darkfield in 5x, 20x, and 100x objectives
Power Requirements 100-240 V     50/60 Hz     1 Phase
