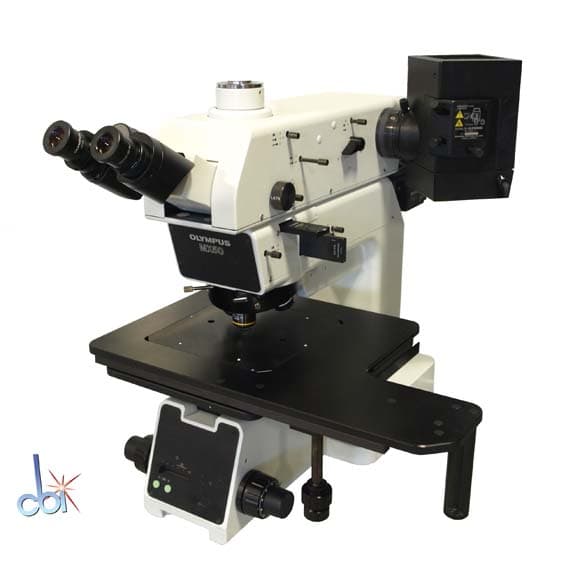

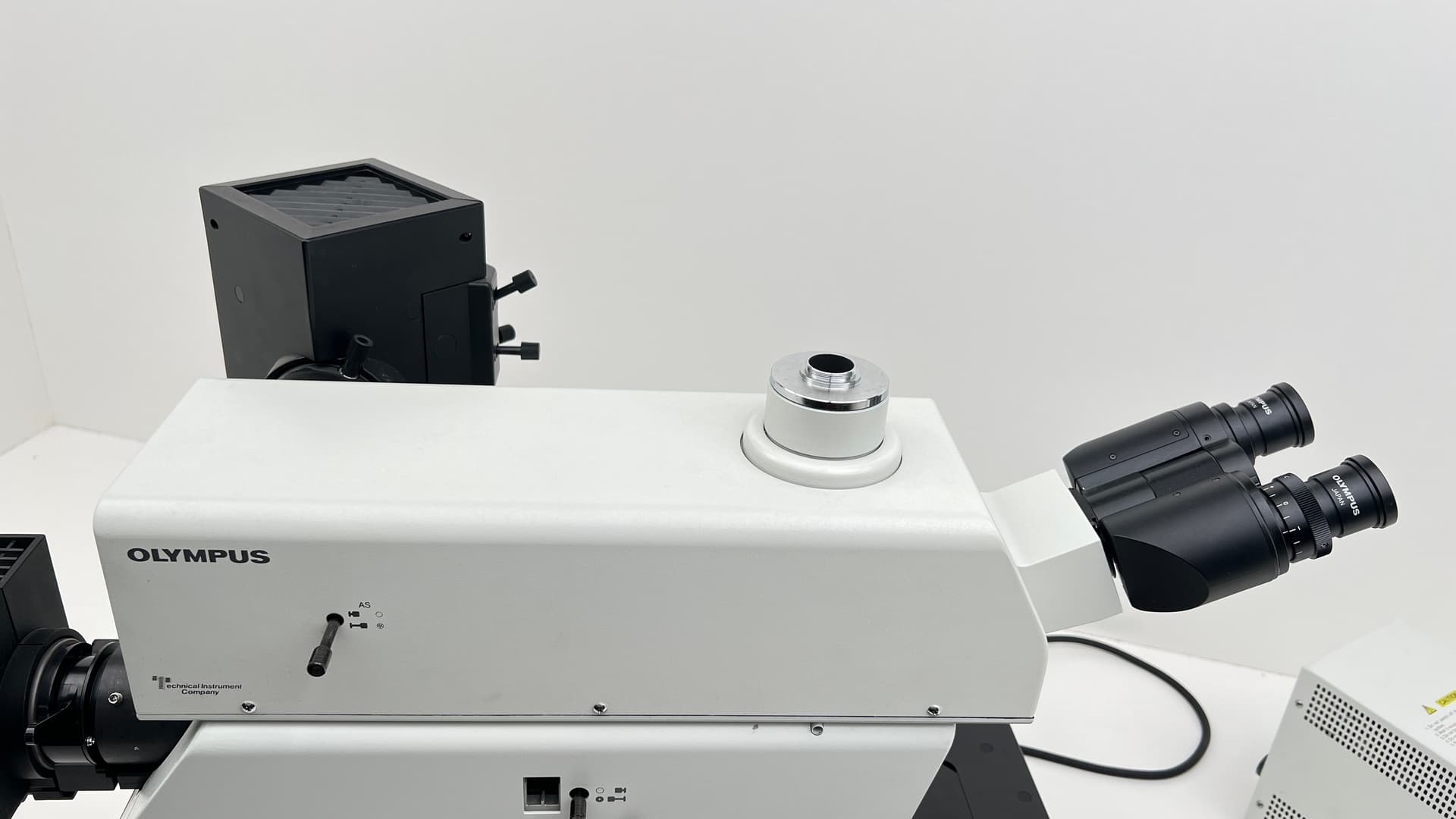

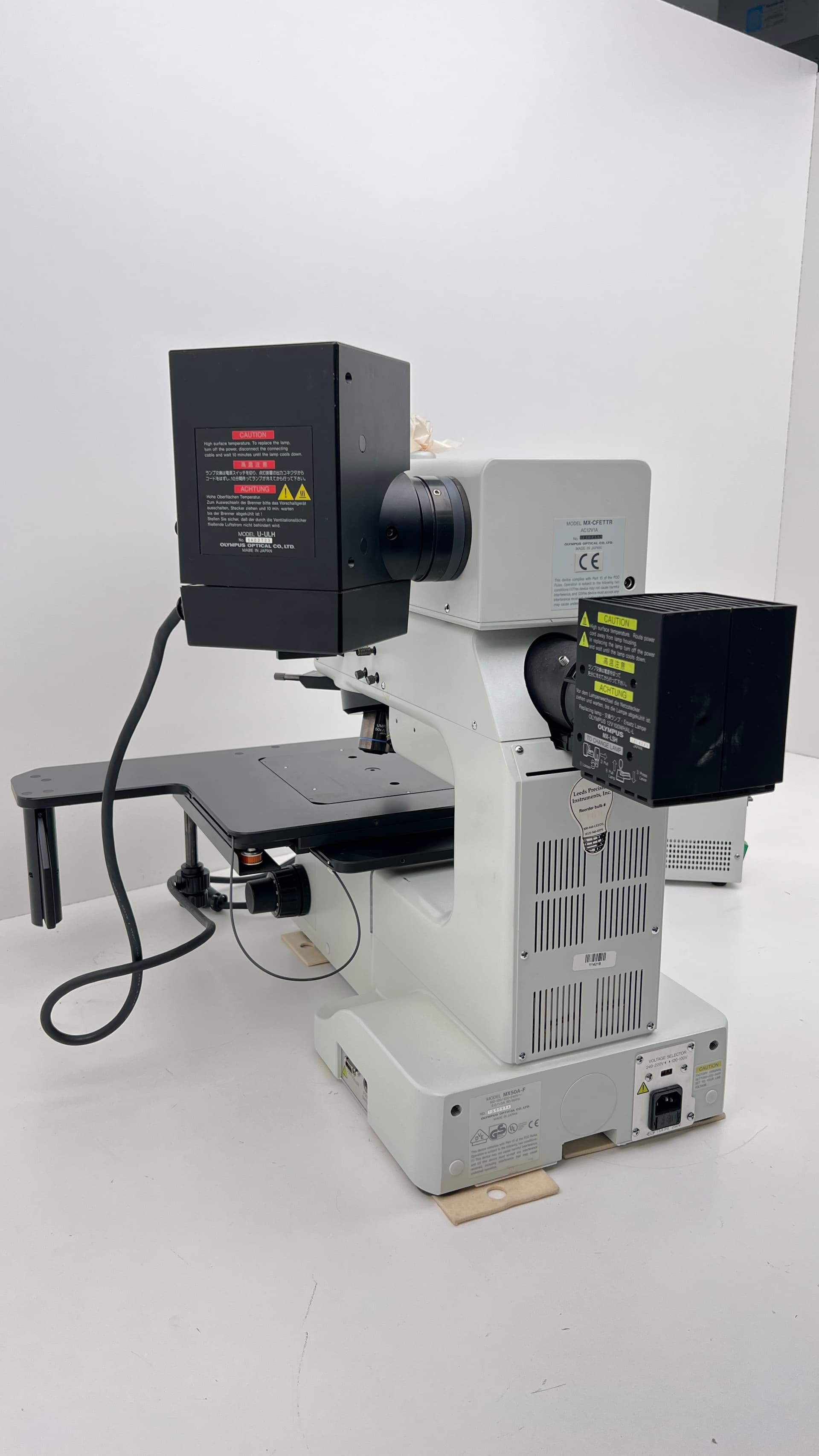

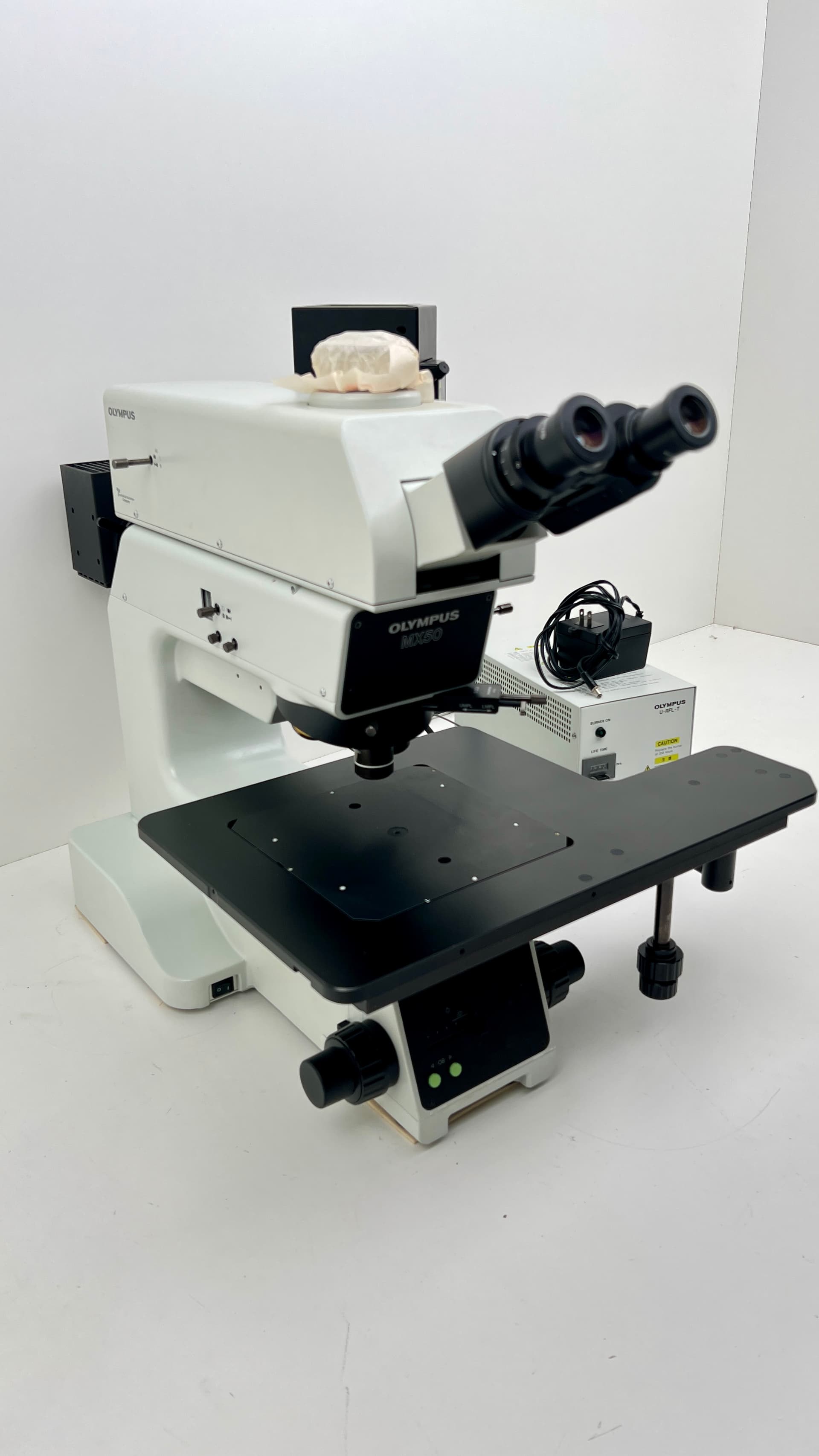

Olympus MX50-CF Reflected Light Microscope Confocal
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Olympus
- MPN
- MX50-CF
- SKU
- 114218
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

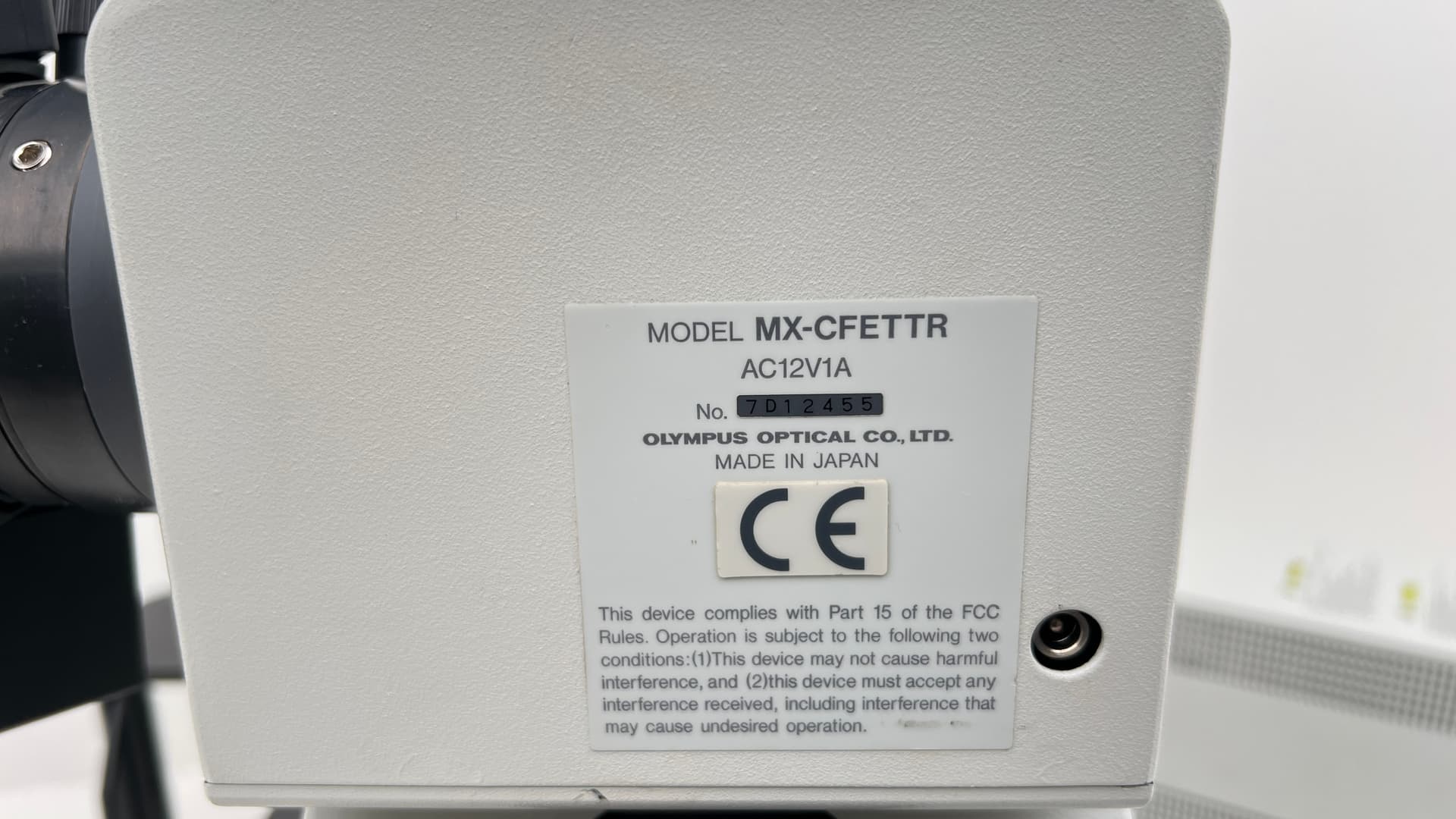

Confocal unit part#- MX-CFETTR

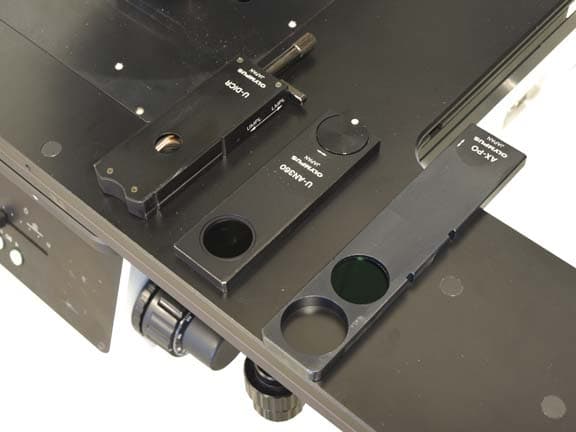

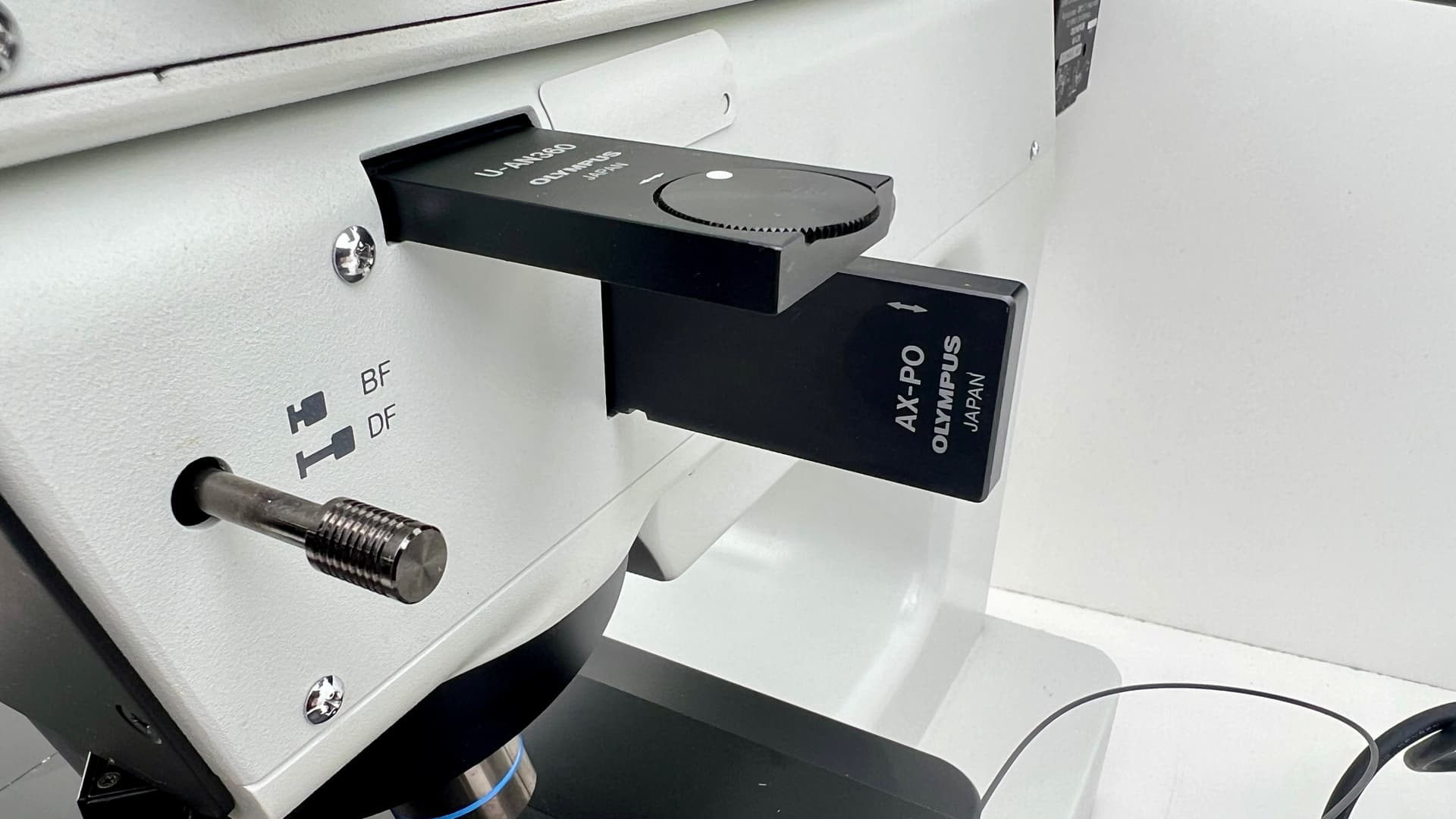

Analyzer for reflected light part#- U-AN360
Polarizer for reflected light part#- AX-PO

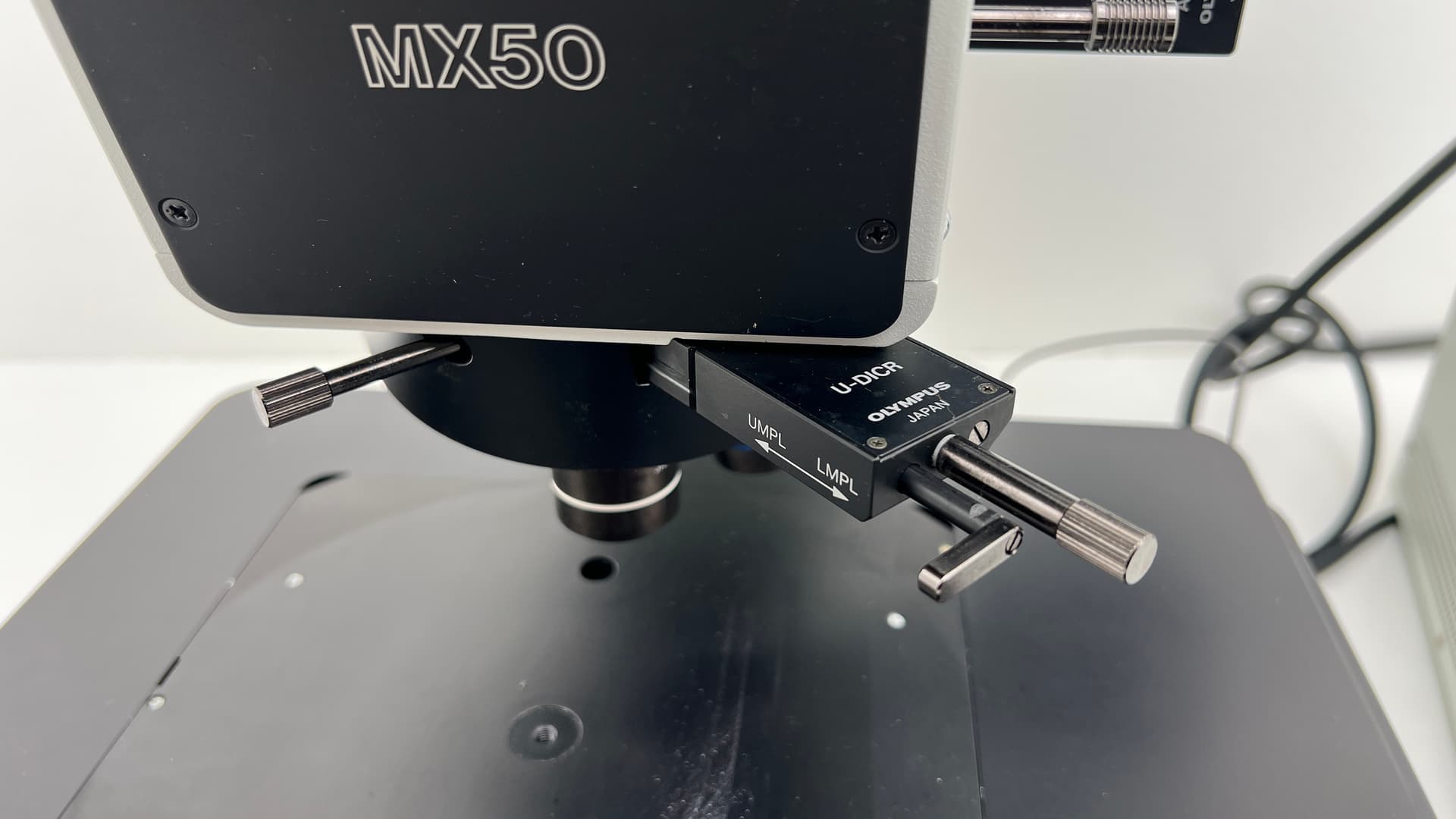

DIC Slider for reflected light part#- U-DICR

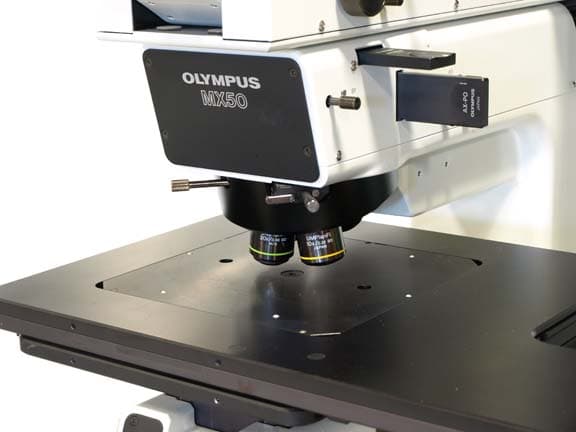

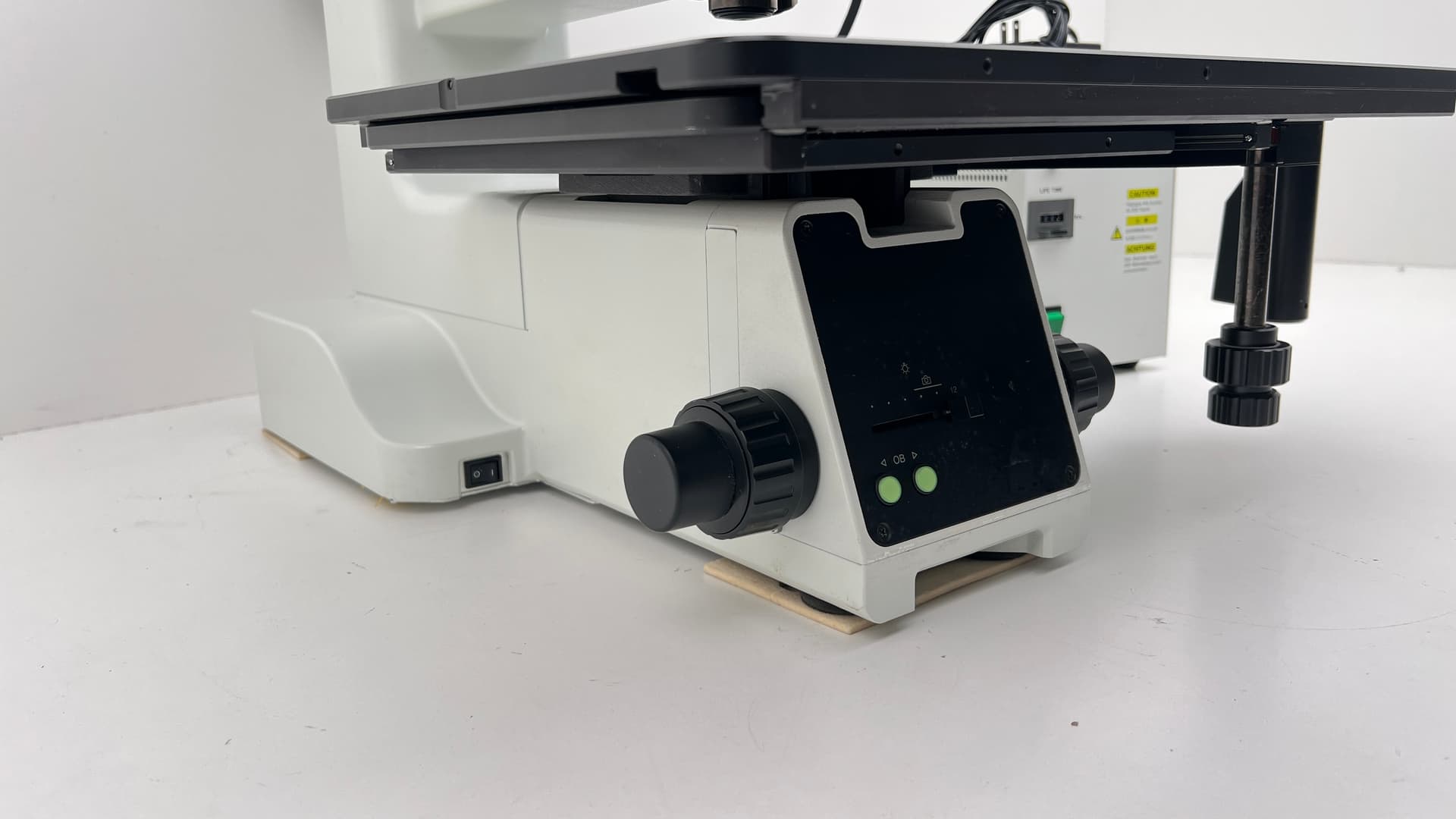

Olympus Stage: Model MX-SIC 8R
Halogen lamp for non confocal observation
12 volt/100 watts

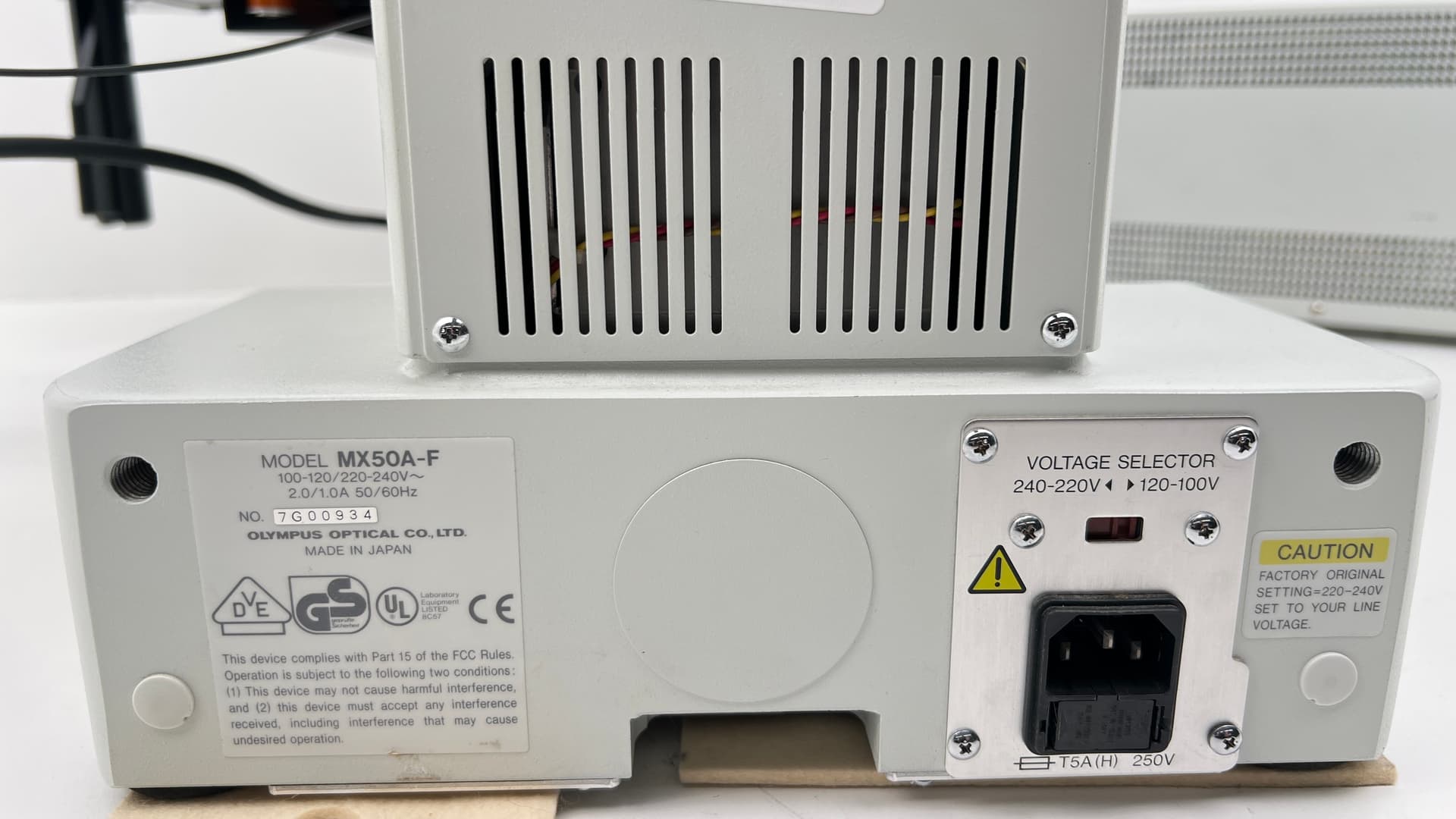

Voltage selecter
100-120 volt
220-240 volt
Confocal Observation

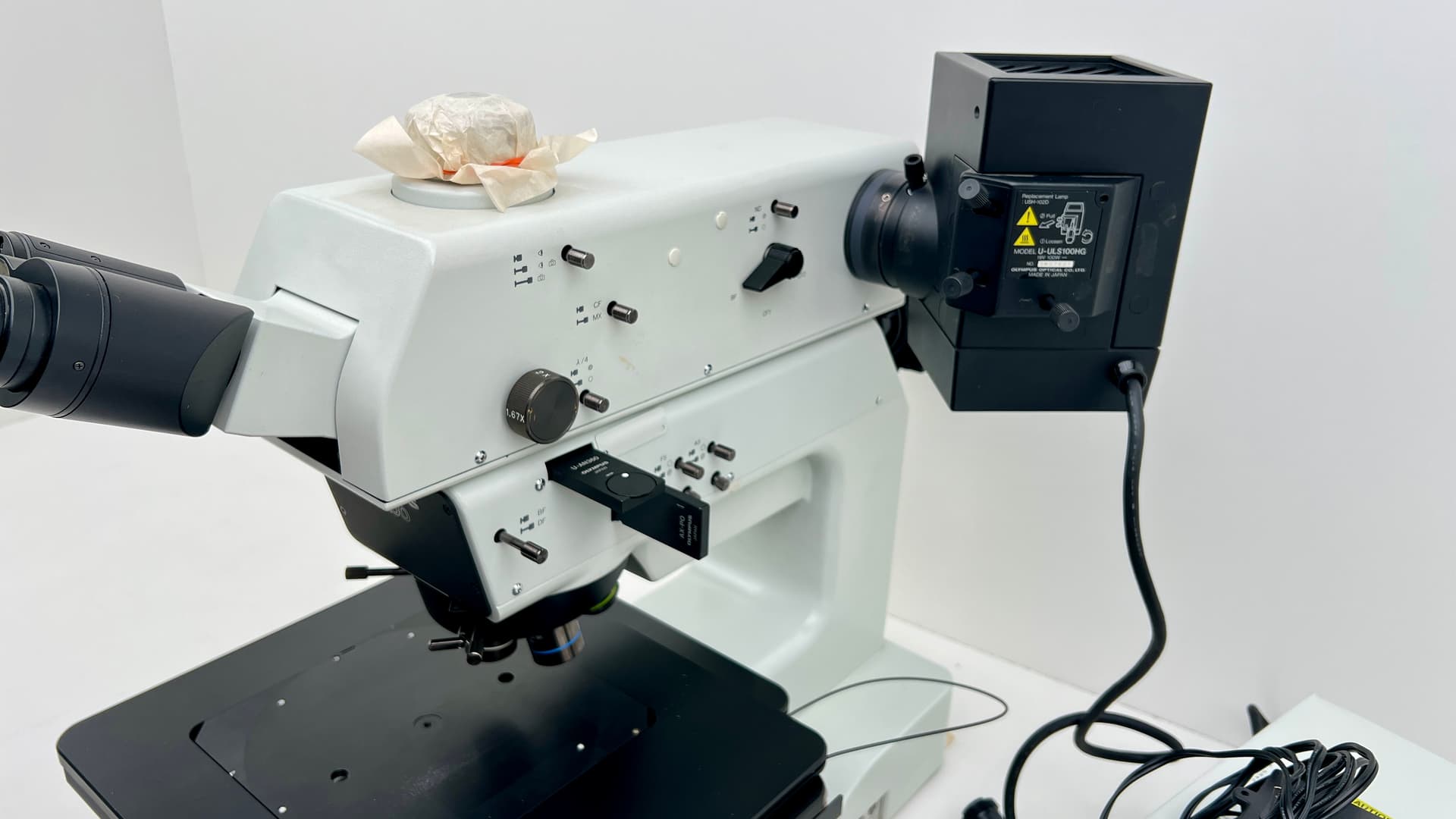

Olympus Model U-ULH Mercury Burner Housing. 19 volt/ 100watts

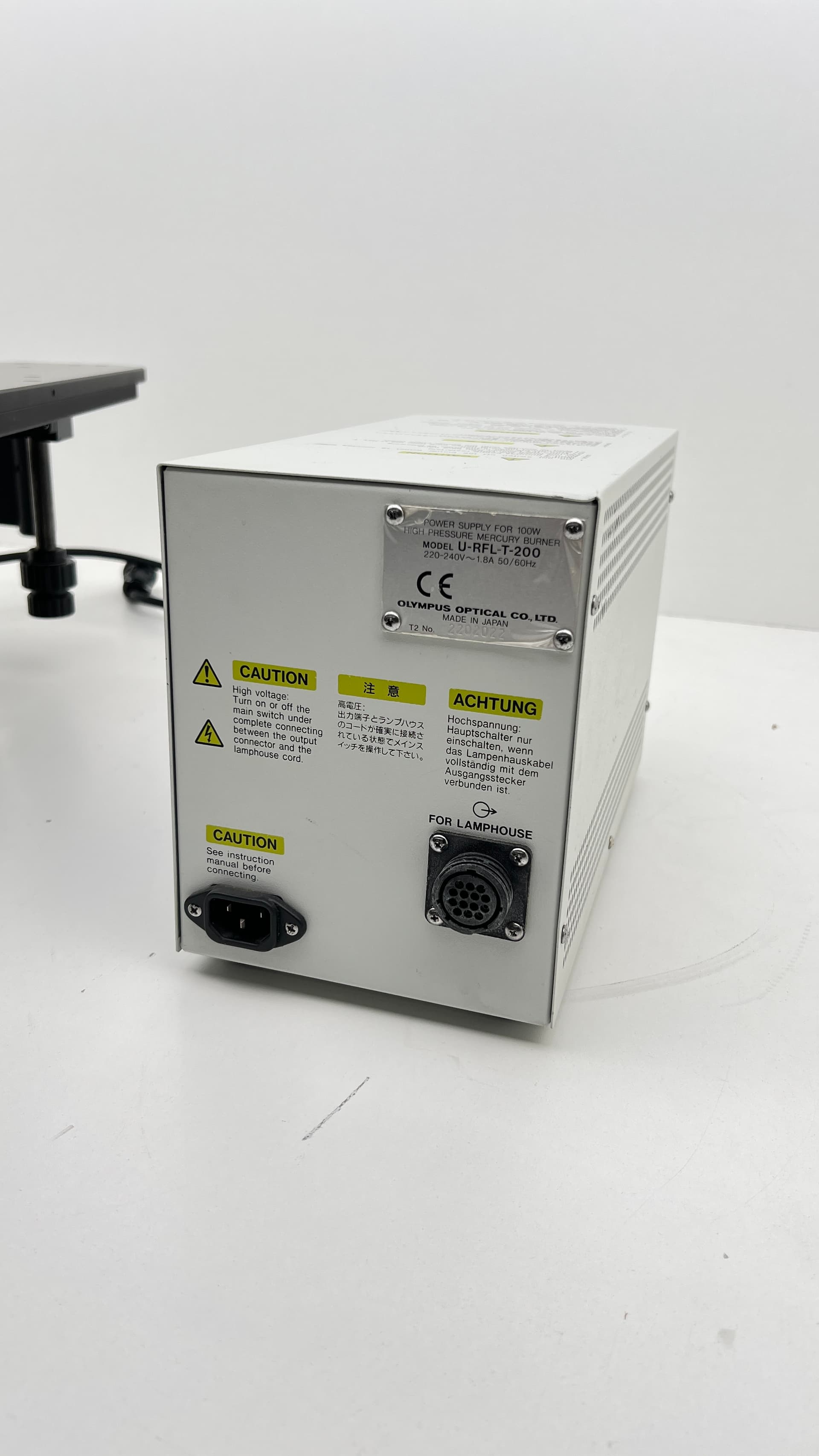

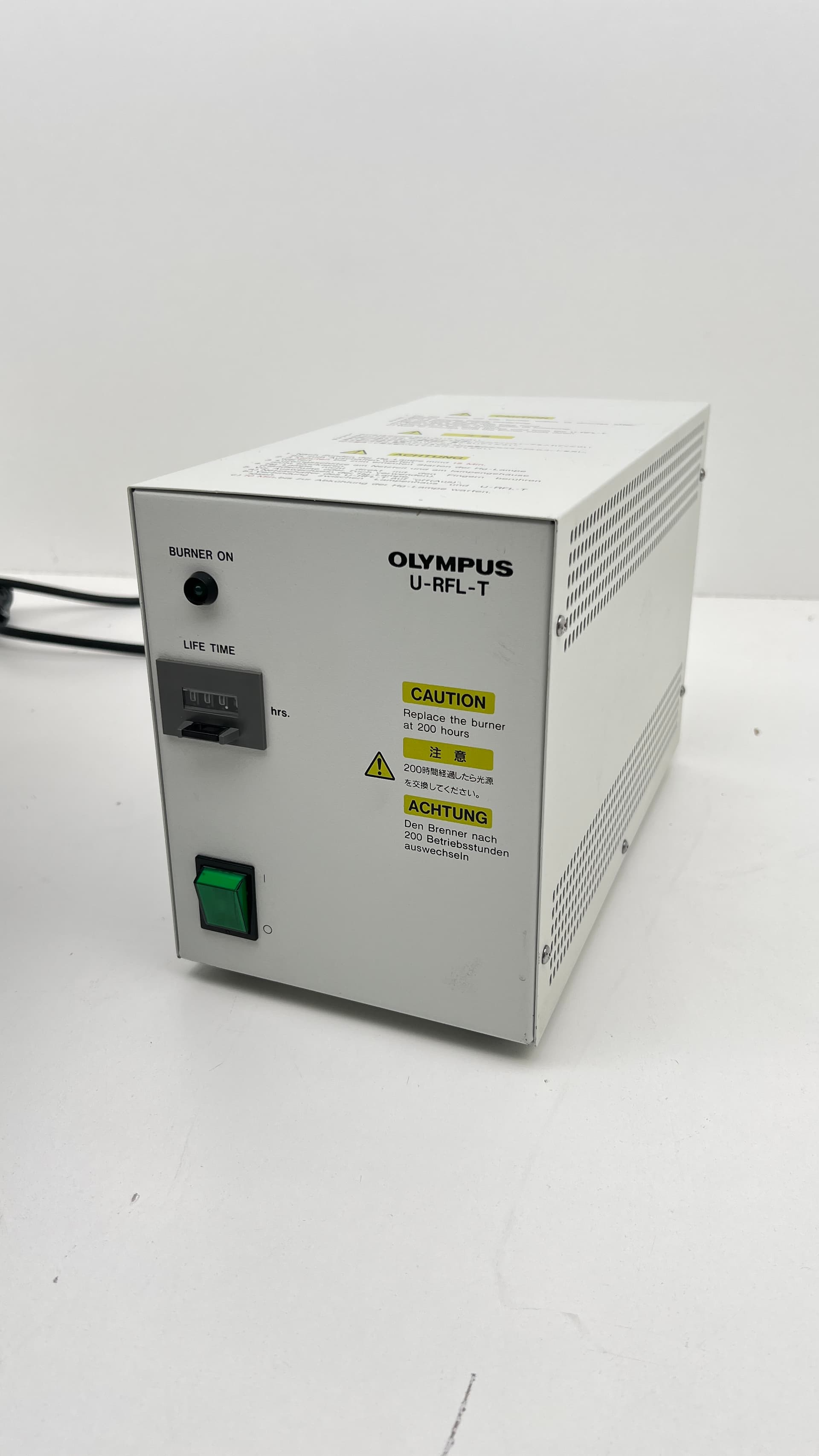

Olympus Model- U-RFL-T-200 Mercury Burner Power Supply
Technical specifications
| Microscope Configuration | Brightfield, Darkfield & DIC |
| Illumination Type | Hg Reflected Light |
| Binocular Angle | Variable |
| Trinocular/Phototube Provided | YES |
| Magnification Changer | 1.67x, 2x, 2.5x |
| Motorized Nosepiece | YES |

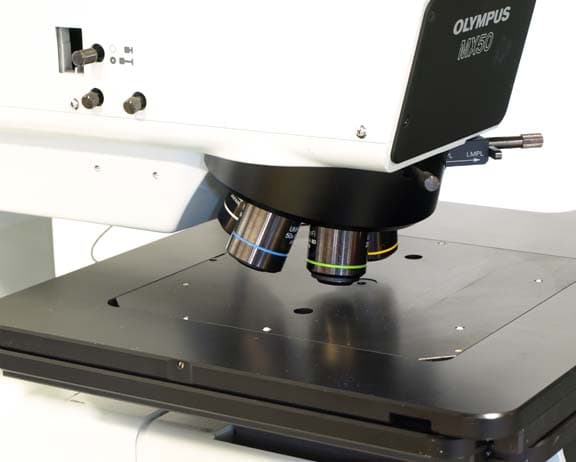

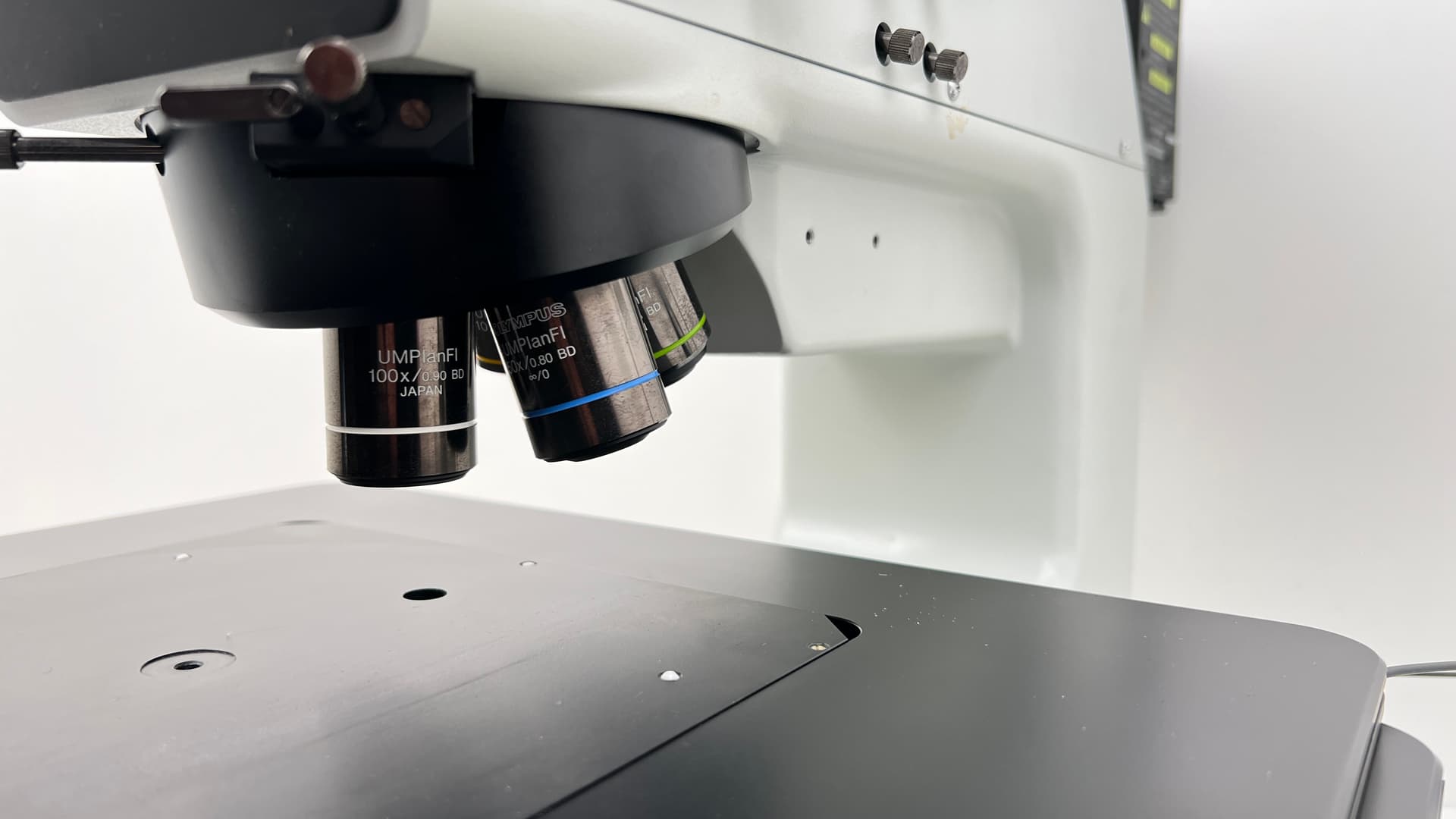

| Multiple Objectives Models | UM Plan FL 10x/0.30 BD UM Plan FL 20x/0.46 BD UM Plan FL 50x/0.80 BD UM Plan FL 100x/0.90 BD |
| Polarizer | YES |
| Analyzer | YES |
| Illumination Power | Volts: 19 Watts: 100 |
| Power Supply Included | YES |
| Stage Type | Coaxial X-Y |
| Stage Area | Length: 311 mm (12.244 in) Width: 349.0 mm (13.740 in) |
| X-Y-Z Stage Travel | X: 203 mm (7.992 in) Y : 203 mm (7.992 in) |
| CE Marked | YES |

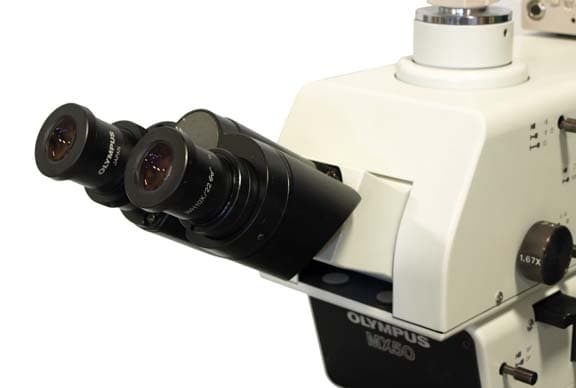

Eyepieces
| Magnification | 10 X |
| Field Number | 22 mm |
Exterior Dimensions
| Width | 20.000 in (50.8 cm) |
| Depth | 32.000 in (81.3 cm) |
| Height | 23.500 in (59.7 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
Documents
- MX50_CF.pdfPDF
