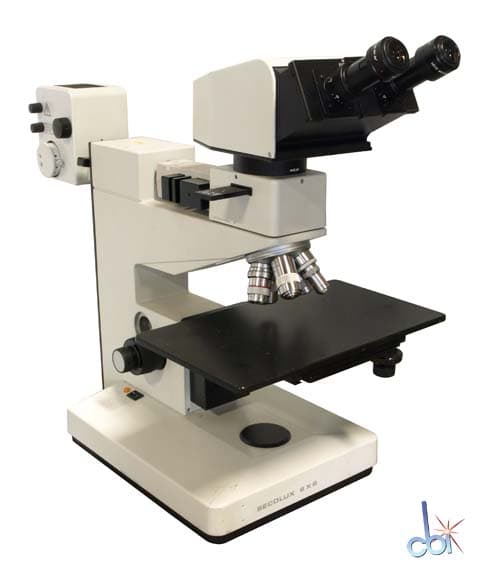

Secolux 6X6 Upright Microscope
$5,700.00Working & warranted
- Condition
- Used See details
- Brand
- Leitz
- MPN
- Secolux 6X6
- SKU
- 47433
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Analyzer part#- 513575
Polarizer part#- 553391
Lambda Plate part#- 553392
V Diapragm Slide DF
Modulopak vertical illuminator has 0.08x tube lens
110/120-130/220-230/240-250 volt
Technical specifications
| Microscope Configuration | Brightfield |
| Illumination Type | Reflected Light |
| Binocular Angle | Variable |
| Multiple Objectives Models | NPL 5X/0.09 NPL Fluotar 10x/0.22 NPL 20X/0.40 with ICR L32x/.0.40-UT50x/0.62 PL Apo 125x/0.95 |
| Polarizer | YES |
| Analyzer | YES |
| Illumination Power | Volts: 6 Watts: 20 |
| Power Supply Included | YES |

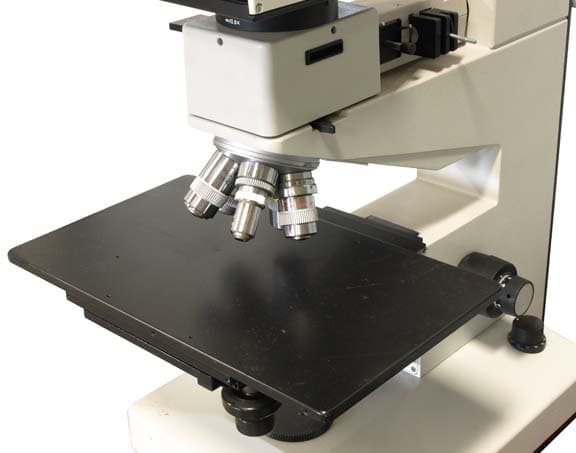

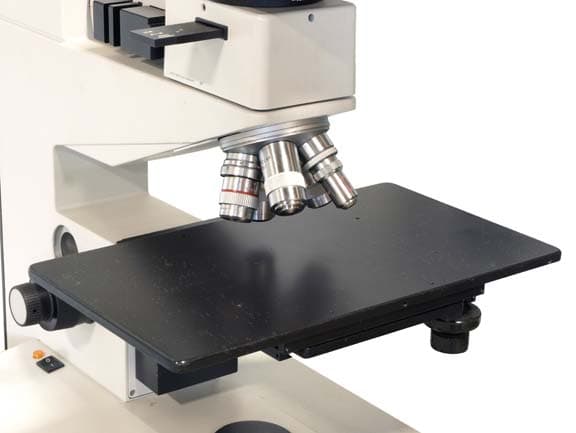

| Stage Type | Coaxial X-Y |
| Stage Area | Length: 305 mm (12.008 in) Width: 178.0 mm (7.008 in) |
| X-Y-Z Stage Travel | X: 127 mm (5.000 in) Y : 127 mm (5.000 in) |
| Power Requirements | 50/60 Hz 1 Phase |
| Weight | 44 lb (20 kg) |
Eyepieces
| Magnification | 10 X |
| Field Number | 18 mm |
| Focusing | YES |
Exterior Dimensions
| Width | 10.000 in (25.4 cm) |
| Depth | 25.000 in (63.5 cm) |
| Height | 27.000 in (68.6 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
