Item ID: 114218

Offered 1 Offered at Best Price

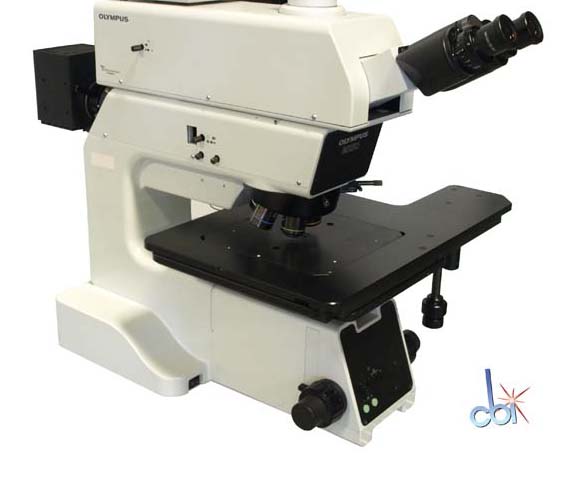

Reflected Light Real-Time Confocal Microscope

In addition to this Olympus MX50-CF, Capovani Brothers Inc stocks a wide range of used upright microscopes. Typical manufacturers include American Optical, Bausch & Lomb, Leica, Nikon, Olympus, Wild, and Zeiss.

To view our complete stock of used upright microscopes visit our Upright Microscope category.

This used reflected light microscope and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Learn more about our Used Microscopes Refurbishment and Functional Testing Procedures

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Olympus
Model MX50-CF
Microscope Configuration Brightfield, Darkfield & DIC
Illumination Type Hg Reflected Light

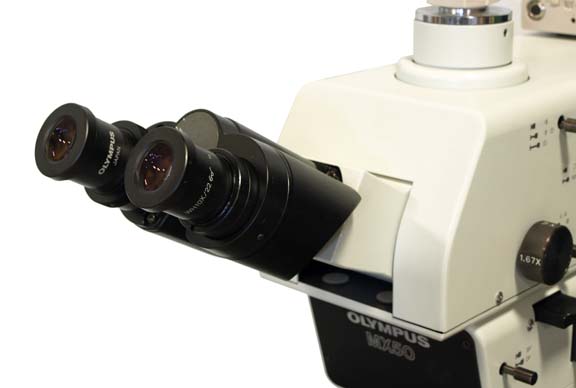

Binocular Angle Variable
  Model Olympus WH
  Magnification 10 X
  Field Number 22 mm
Trinocular/Phototube Provided YES
Magnification Changer 1.67x, 2x, 2.5x
Motorized Nosepiece YES

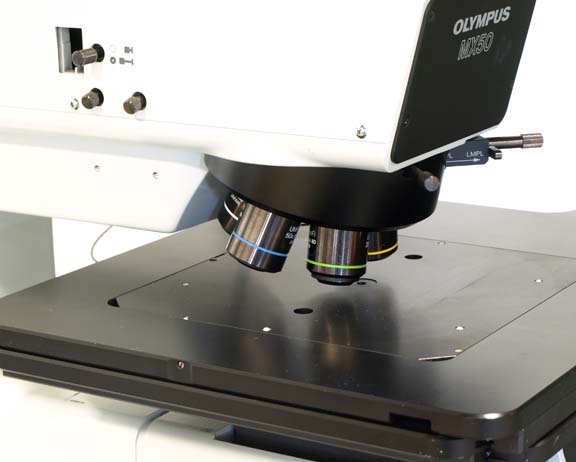

Multiple Objectives Models

UM Plan FL 10x/0.30 BD
UM Plan FL 20x/0.46 BD
UM Plan FL 50x/0.80 BD
UM Plan FL 100x/0.90 BD

Polarizer YES
Analyzer YES
Illumination Power Volts: 19     Watts: 100
Power Supply Included YES
Stage Type Coaxial X-Y
Stage Area Length: 311  mm  (12.244 in)     Width: 349.0  mm  (13.740 in)
X-Y-Z Stage Travel X: 203  mm  (7.992 in)     Y : 203  mm  (7.992 in)
Other Information

Confocal unit part#- MX-CFETTR

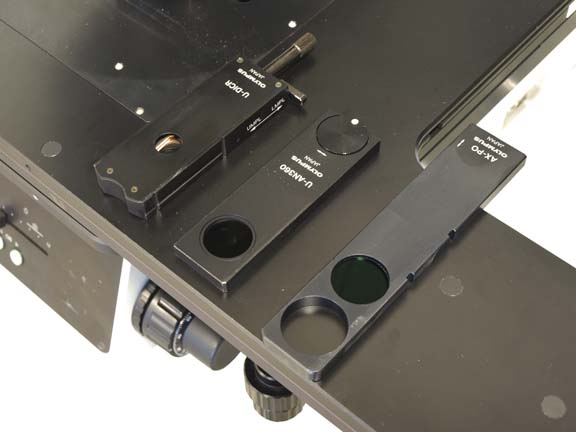

Analyzer for reflected light part#- U-AN360
Polarizer for reflected light part#- AX-PO
DIC Slider for reflected light part#- U-DICR
Olympus Stage: Model MX-SIC 8R

Halogen lamp for non confocal observation:
12 volt/100 watts

Voltage selecter:

  • 100-120 volt
  • 220-240 volt


Confocal Observation:

  • Olympus Model U-ULH Mercury Burner Housing. 19 volt/ 100watts
  • Olympus Model- U-RFL-T-200 Mercury Burner Power Supply
Extended Description  Details at MX50_CF.pdf
CE Marked YES
Exterior Dimensions
  Width 20.000  in  (50.8 cm)
  Depth 32.000  in  (81.3 cm)
  Height 23.500  in  (59.7 cm)
