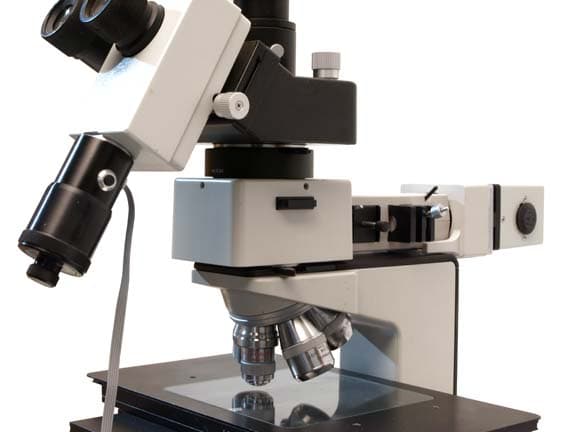

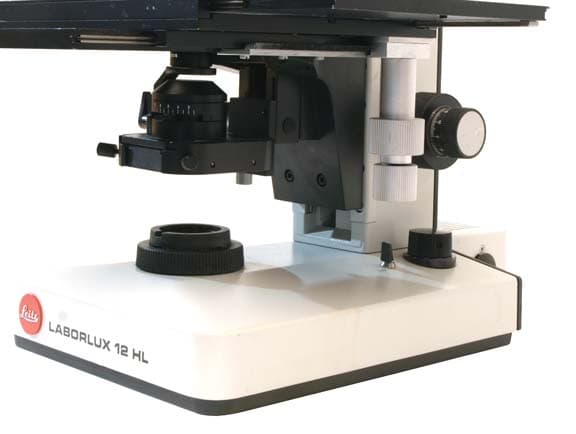

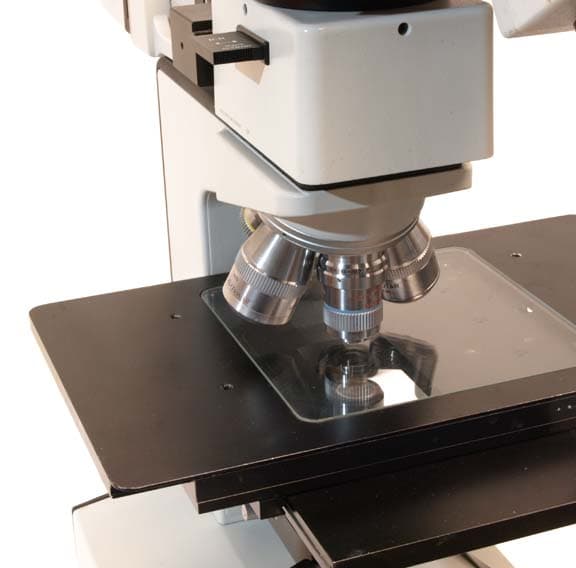

Leitz Laborlux 12 HL Upright Microscope

Name: Leitz Laborlux 12 HL Upright Microscope
Brand: Leitz
SKU: 57070
Price: 5950 USD
Availability: InStock

Item description

ICR Analyzer

Leitz Condenser, P/N: 513547

External reflected light power supply

Internal transmitted light power supply

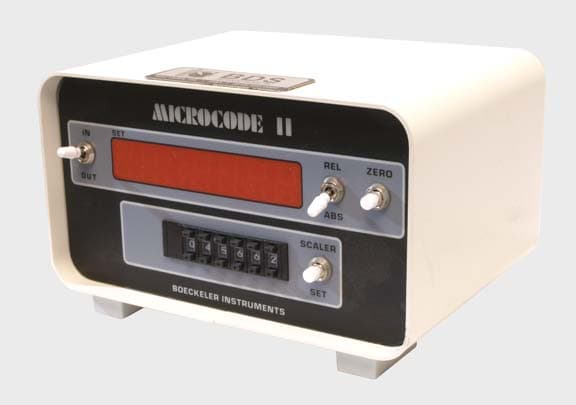

Boeckeler Microcode II readout.

Leitz P/N: 883901 Filar

Brightfield only in 10x and 50x objectives

Brighfield and darkfield in 5x, 20x, and 100x objectives

Microscope Configuration	Brightfield, Darkfield & DIC
Illumination Type	Reflected & Transmitted Light
Binocular Angle	45°
Trinocular/Phototube Provided	YES
Magnification Changer	None
Multiple Objectives Models	NPL 5X 0.09 NPL 10x, 0.25, with ICR 10X 0.20P prism NPL 20x, 0.35 DF NPL Fluotar 50X, 0.85, with ICR 50x 0.85P prism NPL Fluotar 100x, 0.90 DF
Infinity Corrected Objectives	YES
Polarizer	YES
Analyzer	YES
Condenser	YES
Illumination Power	Volts: 6 Watts: 20
Illumination Power Transmitted	Volts: 6 Watts: 20
Stage Type	Coaxial X-Y
Stage Area	Length: 292 mm (11.496 in) Width: 165.0 mm (6.496 in)
X-Y-Z Stage Travel	X: 108 mm (4.252 in) Y : 108 mm (4.252 in)
Power Requirements	100-240 V 50/60 Hz 1 Phase

Magnification

12 X

Type

None

Working & Warranted
Inspected by Capovani engineers to confirm function. Sold with a 90 day warranty covering function. Full warranty terms
Lead time varies, confirmed in your quote
These items are inspected and serviced after your order is confirmed. Typical lead time is 1 to 3 weeks. We will confirm exact timing when we send your quote.
