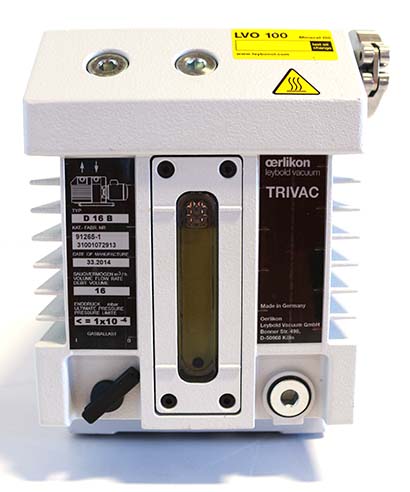

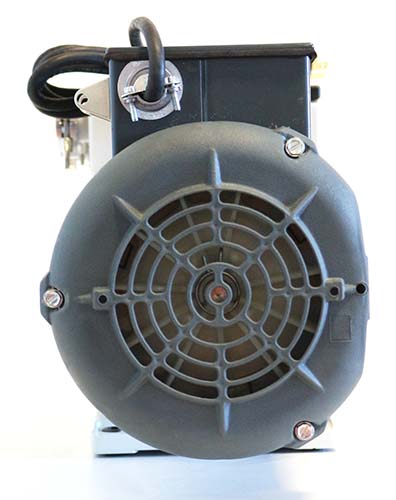

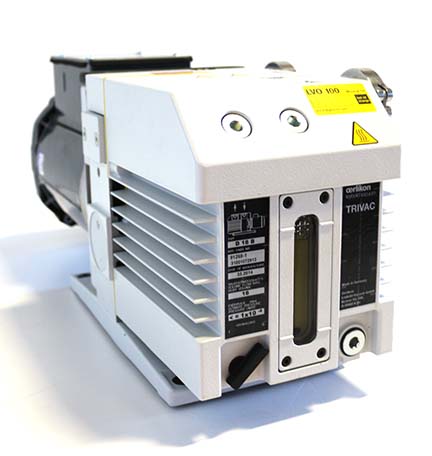

OERLIKON LEYBOLD ROTARY VANE VACUUM PUMP 13.4 CFM
Rotary Vane Pumps
Two Stage Mechanical Vacuum Pump -- NEW In the Box
Pumping speed and ultimate pressure are based on 60 Hz operation.
2 unit s @ Best Price
Make: Oerlikon Leybold
Model: D16B
Item ID: 185921
| Manufacturer | Oerlikon Leybold |
| Model | D16B |
| Pumping Speed | 13.4 CFM (378.7 l/m) |
| Ultimate Pressure | 0.15E-2(En) torr (0.20E-2 mbar) |
| Inlet Flange | KF 25.0 mm (0.984 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Duty--Service | Corrosive |
| Two-Stage | YES |
| Gas Ballast | Yes |
| Direct Drive | Yes |
| Motor Horsepower | .75 HP |
| Rotational Speed | 1,725 RPM |
| Oil Type | Hydrocarbon |
| Oil Capacity | Minimum: 0.47 L (0.50 qt, 0.10 Br gal) Maximum: 1.04 L (1.10 qt, 0.23 Br gal) |
| Condition | New-Never Used |
| Power Requirements | 115/ 230 V 50/60 Hz 1 Phase |
| Exterior Dimensions | |
| Width | 9.250 in (23.5 cm) |
| Depth | 20.000 in (50.8 cm) |
| Height | 11.000 in (27.9 cm) |
| Weight | 78 lb (35 kg) |
