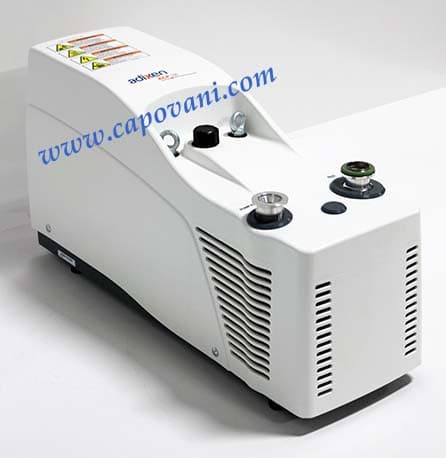

Adixen ACP 28 / V6SA TSF AMF Vacuum Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Adixen
- MPN
- ACP 28 / V6SA TSF AMF
- SKU
- 189122
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Maximum pressure at inlet (absolute): 1013 mbar
Technical specifications
| Dry Pump | YES |
| Pumping Speed | 16.0 CFM (452.1 l/m) |
| Ultimate Pressure | 0.23E-1(En) torr (0.30E-1 mbar) |
| Inlet Flange | ISO-K 25.0 mm (0.984 in) |
| Exhaust Flange | ISO-K 25.0 mm (0.984 in) |
| Rotational Speed | 4,800 RPM |
| Power Requirements | 110/230 V 10.0 A 5.0 A(2) 50/60 Hz 1 Phase |
| CE Marked | YES |
| Weight | 66 lb (30 kg) |
Exterior Dimensions
| Width | 8.000 in (20.3 cm) |
| Depth | 25.000 in (63.5 cm) |
| Height | 13.000 in (33.0 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
