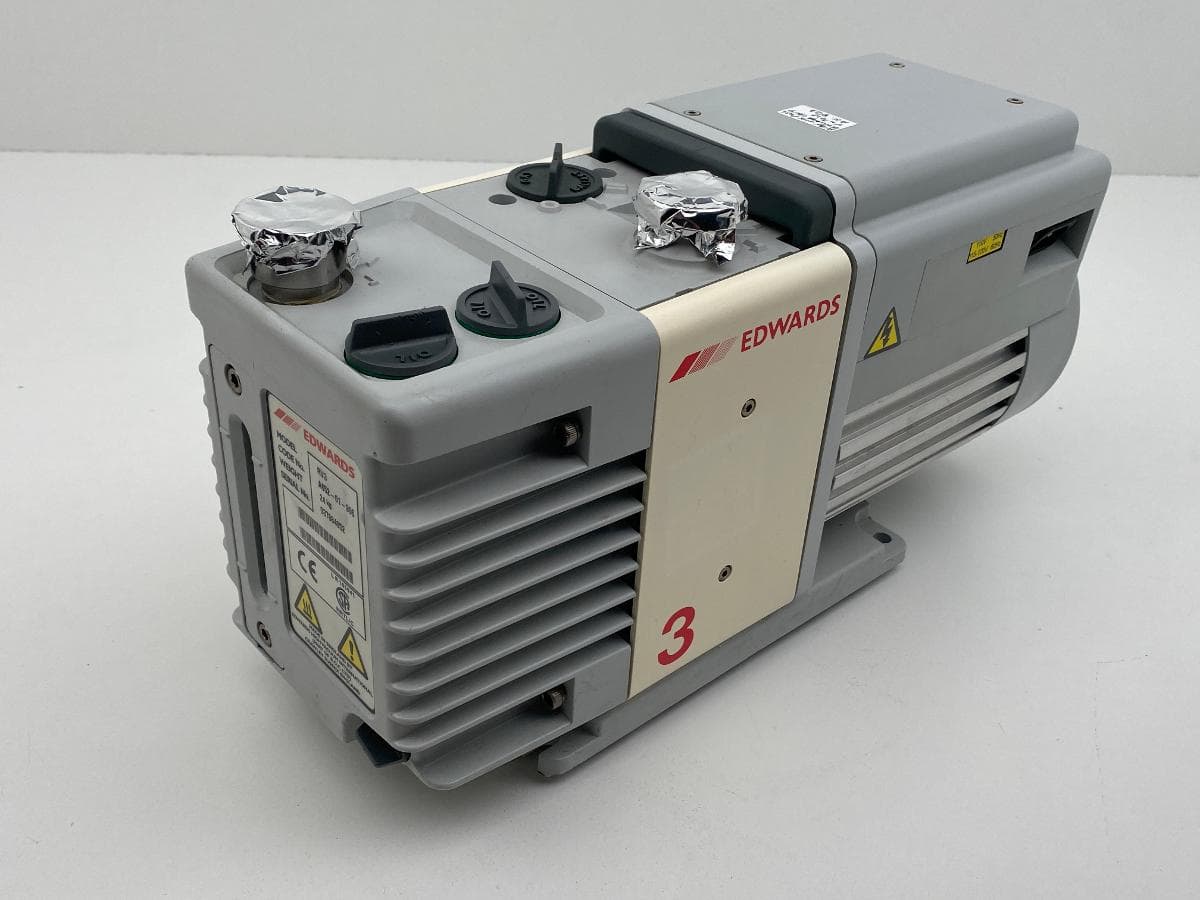

Edwards RV3 Rotary Vane Vacuum Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Edwards
- MPN
- RV 3
- SKU
- 242765
- Availability
- 2 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

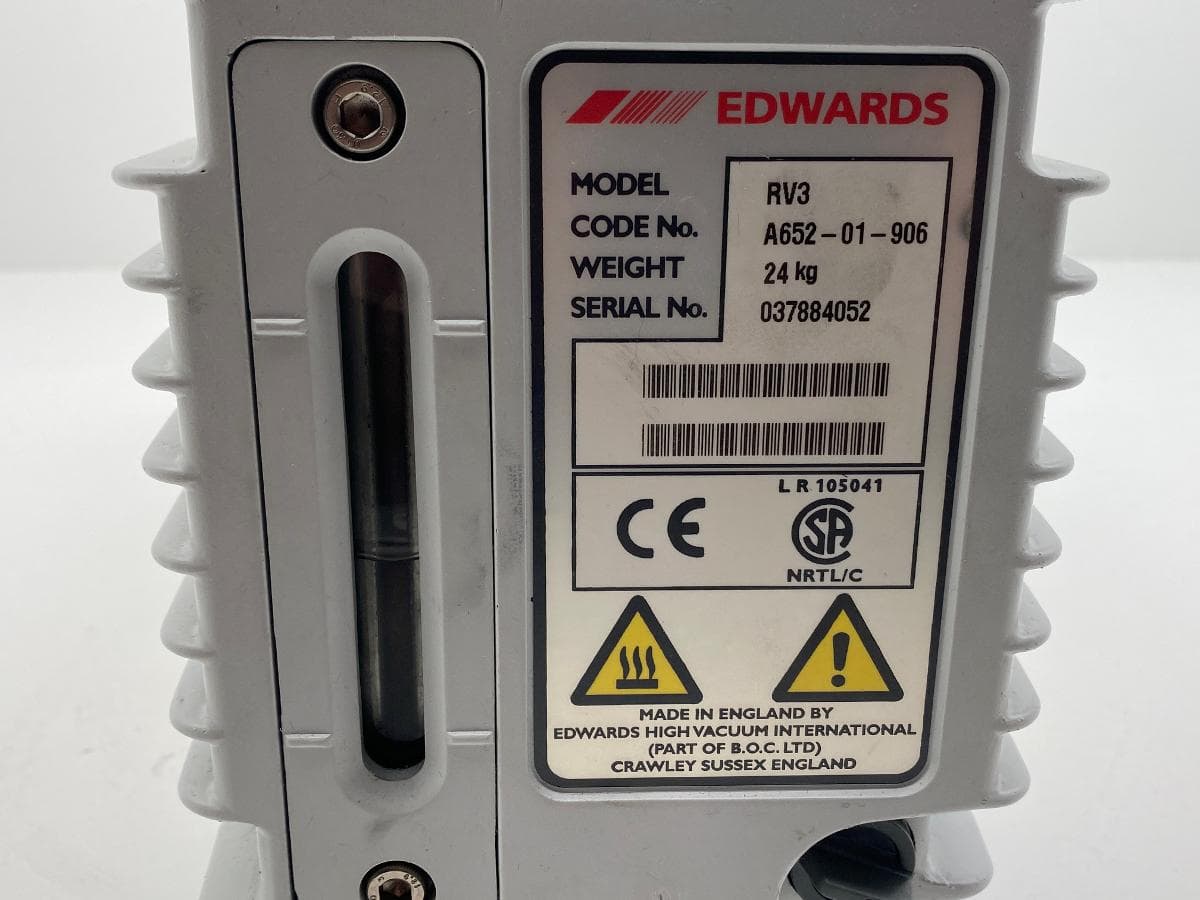

CODE No. A652-01-906
Pump is configured for 120VAC, request 240VAC input voltage when ordering.
Technical specifications
| Pumping Speed | 2.3 CFM (65.0 l/m) |
| Ultimate Pressure | 0.15E-2(En) torr (0.20E-2 mbar) |

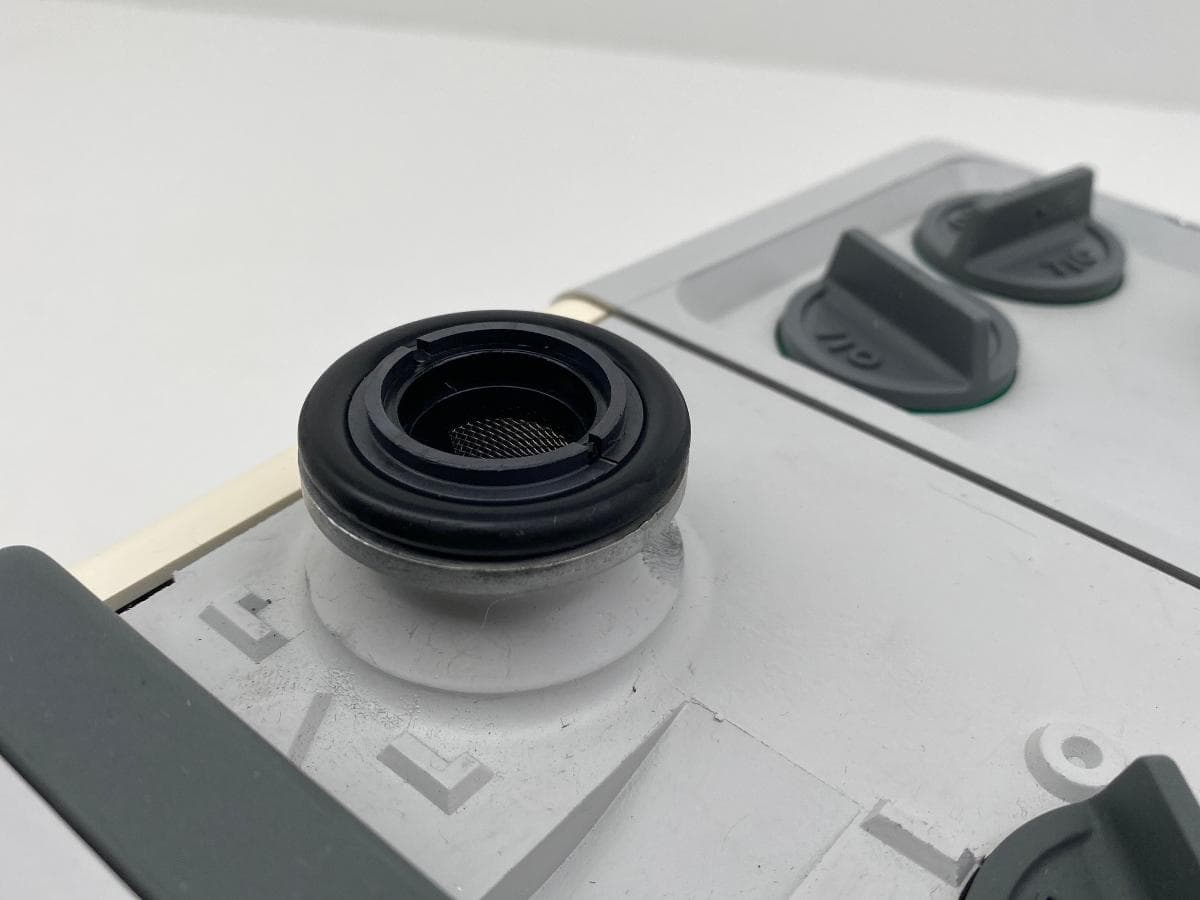

| Inlet Flange | KF 25.0 mm (0.984 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Duty--Service | Normal |
| Two-Stage | YES |
| Gas Ballast | Yes |
| Direct Drive | Yes |
| Motor Horsepower | 0.4 HP |
| Rotational Speed | 1,760 RPM |
| Oil Type | Hydrocarbon |

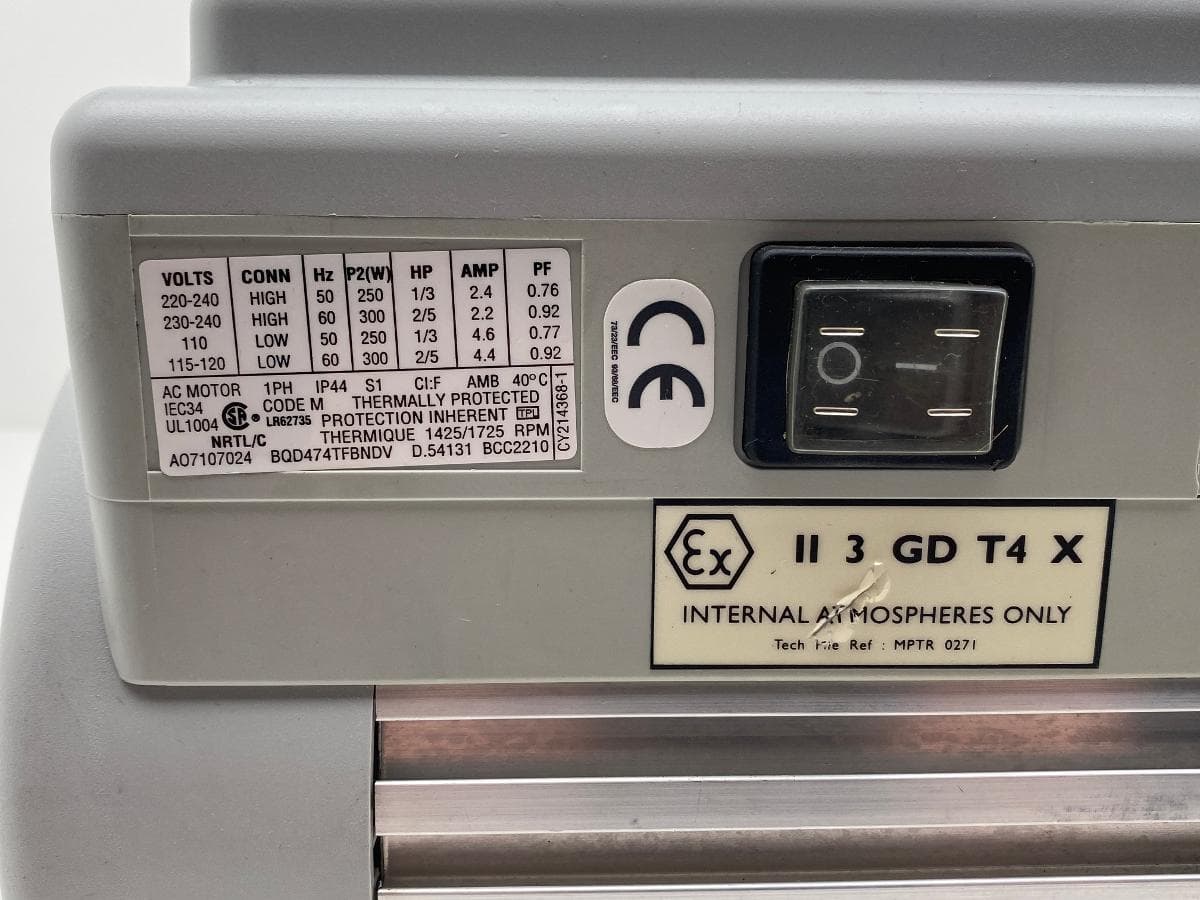

| Power Requirements | 120/240 V 4.4 A 2.2 A(2) 50/60 Hz 1 Phase |
| CE Marked | YES |
| Weight | 53 lb (24 kg) |
Exterior Dimensions
| Width | 6.220 in (15.8 cm) |
| Depth | 16.929 in (43.0 cm) |
| Height | 8.858 in (22.5 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
